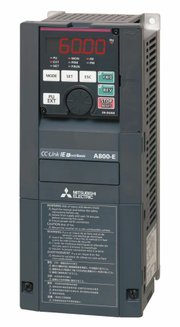

QTY 2: MITSUBISHI FR-A860-02890-E160 AC VFD DRIVE

MINIMUM RATED VOLTAGE (V) 525 MIN. PERMISSIBLE VOLTAGE (V) 472 MAXIMUM RATED VOLTAGE (V) 600 MAX. PERMISSIBLE VOLTAGE (V) 660 CURRENT TYPE AC PHASES 3 RATED OUTPUT CURRENT ND (A) 221 RATED MOTOR CAPACITY ND (KW) 132 RATED MOTOR CAPACITY HD (KW) 110 FREQUENCY RANGE (HZ) 0,2–590 CONTROL METHOD VECTOR CONTROL MOTOR TYPE INDUCTION MOTOR, PM MOTOR INTEGRATED EMC FILTER YES SAFE TORQUE OFF (STO) YES REGENERATIVE (4Q) NO INTEGRATED DC CHOKE NO PLC FUNCTION YES PROGRAM MEMORY 6K PROGRAM MEMORY UNIT STEPS INTEGRATED DIGITAL INPUTS 12 DIGITAL OUTPUTS (TRANSISTOR) 5 DIGITAL OUTPUTS (RELAY) 2 INTEGRATED ANALOGUE INPUTS 3 INTEGRATED ANALOGUE OUTPUTS 2 IO TYPE OF TERMINAL BLOCK SPRING CLAMP EXPANDABLE YES USB 1+1 MINI ETHERNET PORT 1 BUILT-IN NETWORK CC-LINK IE FIELD BASIC, MODBUS/TCP POWER LOSS SLD (W) 3600 POWER LOSS LD (W) 3200 POWER LOSS ND (W) 2600 POWER LOSS HD (W) 1900 PROTECTION CLASS IP00
