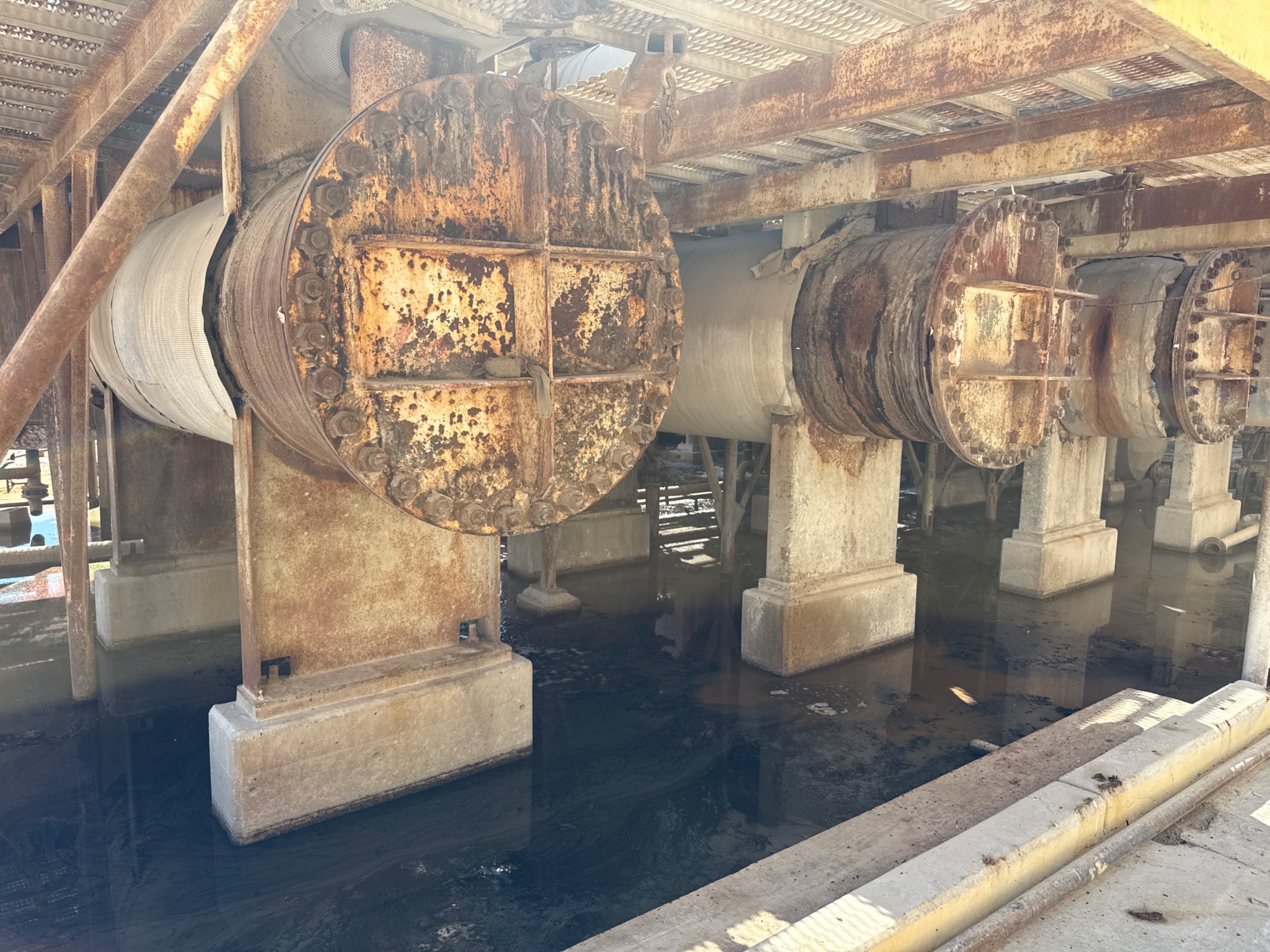

QTY 8: SHELL & TUBE HEAT EXCHANGERS

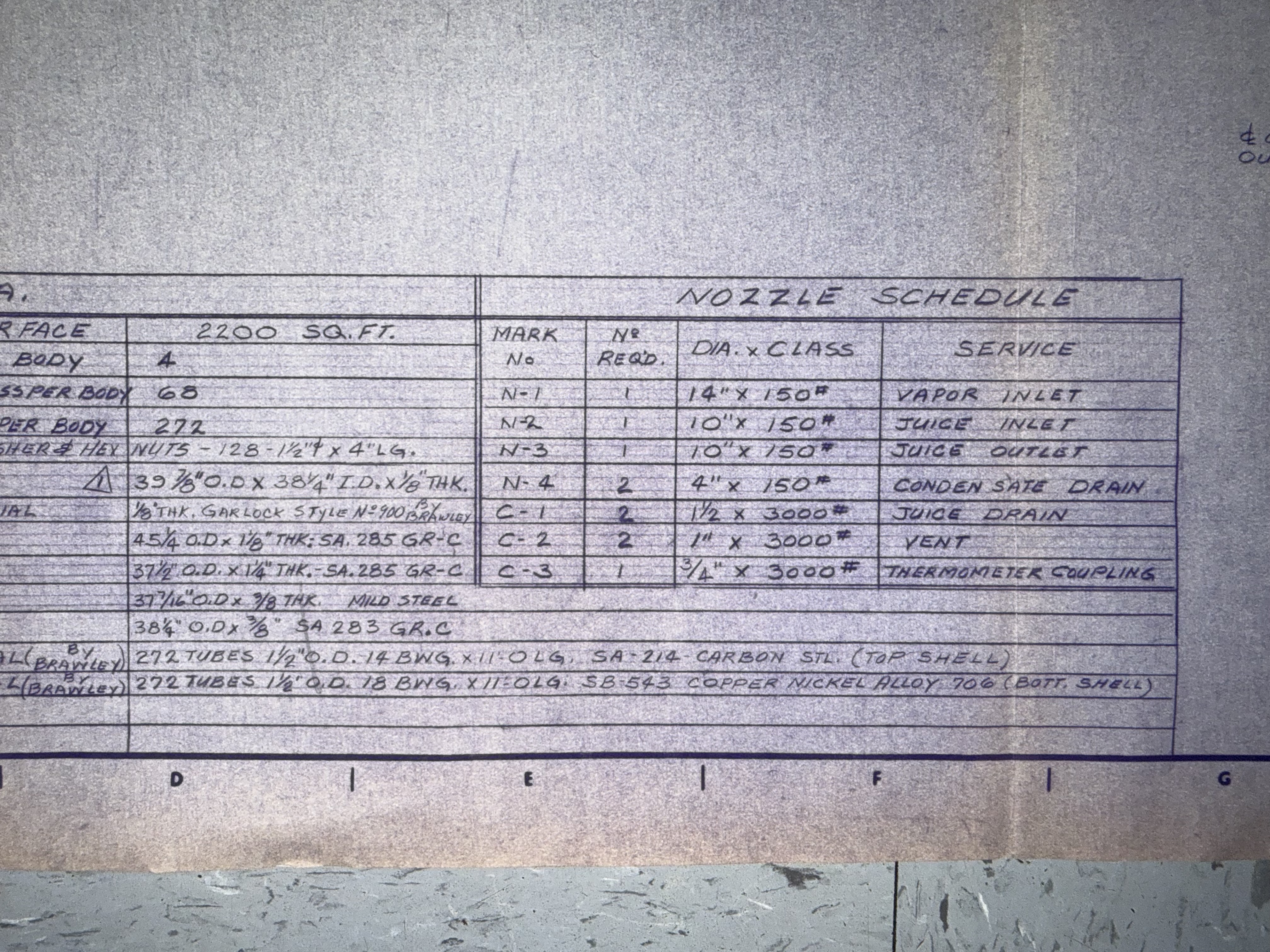

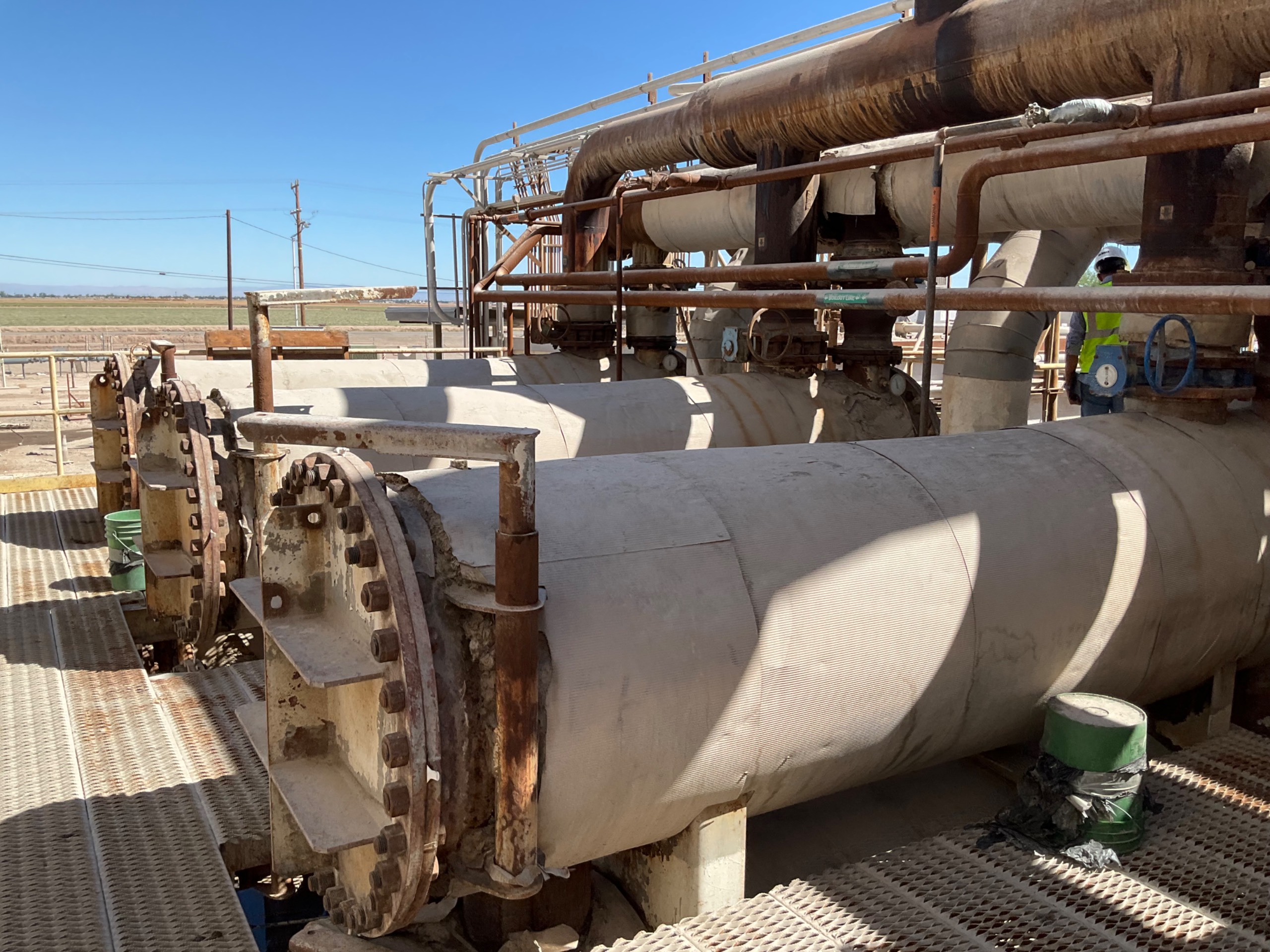

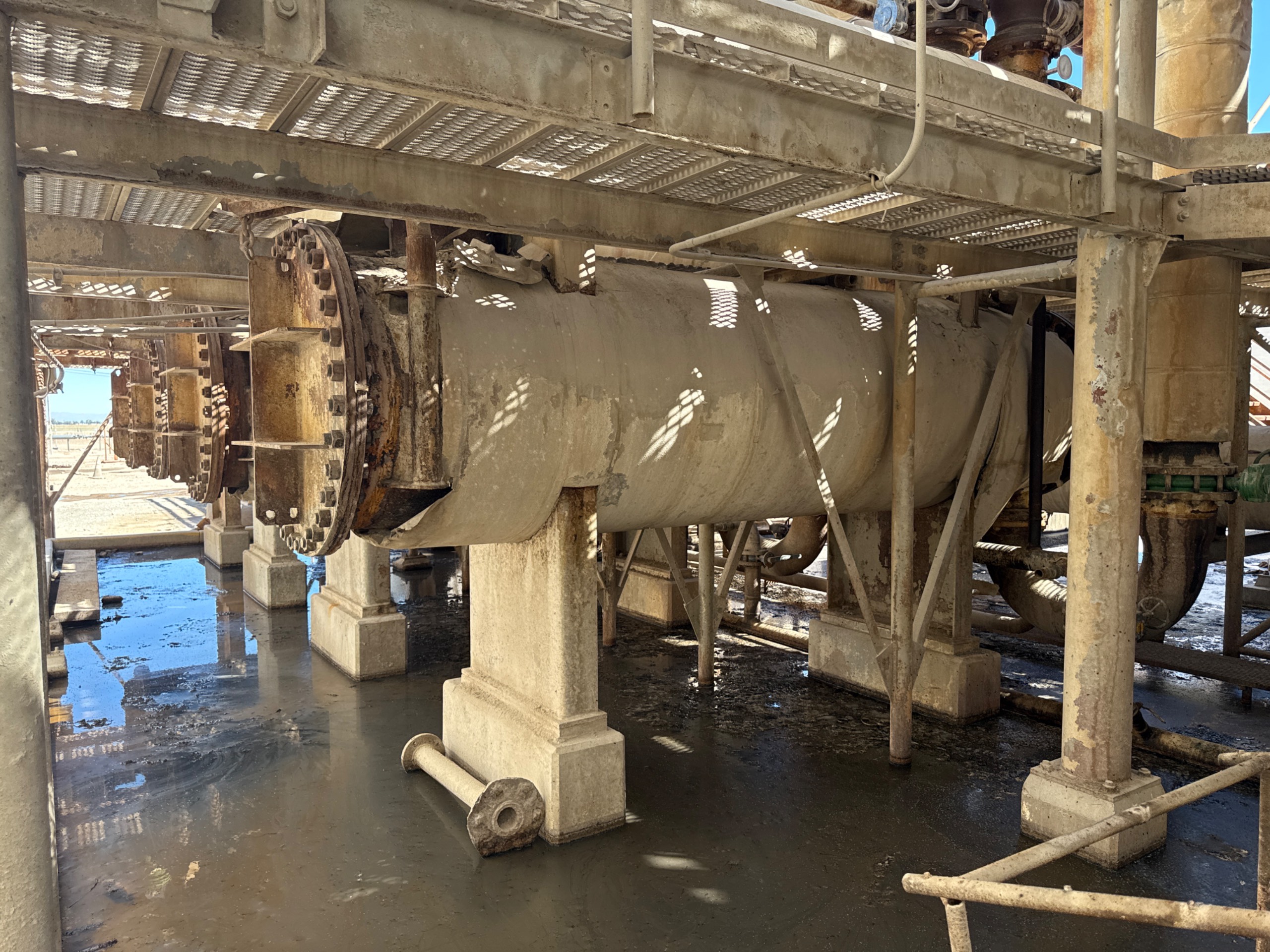

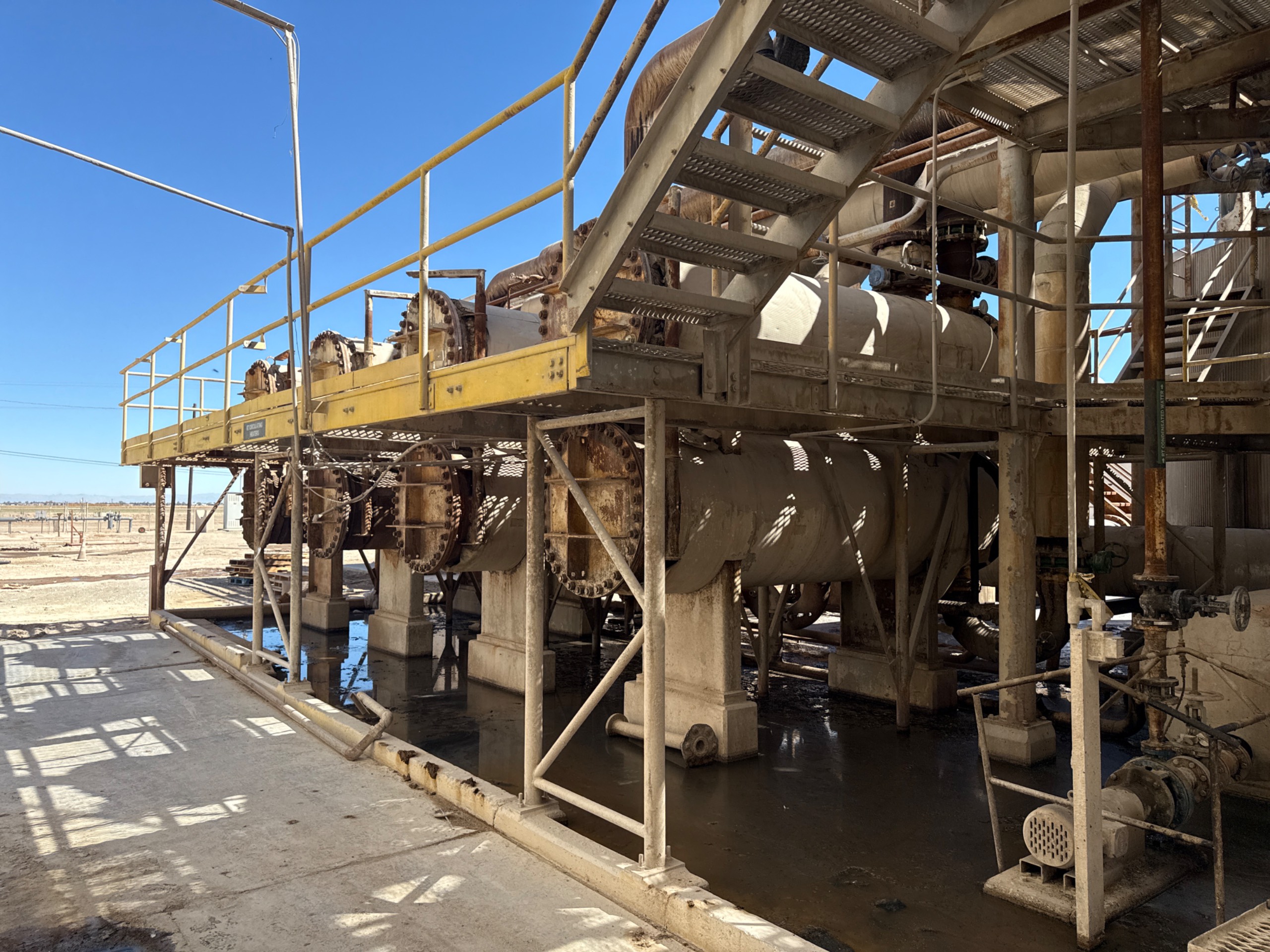

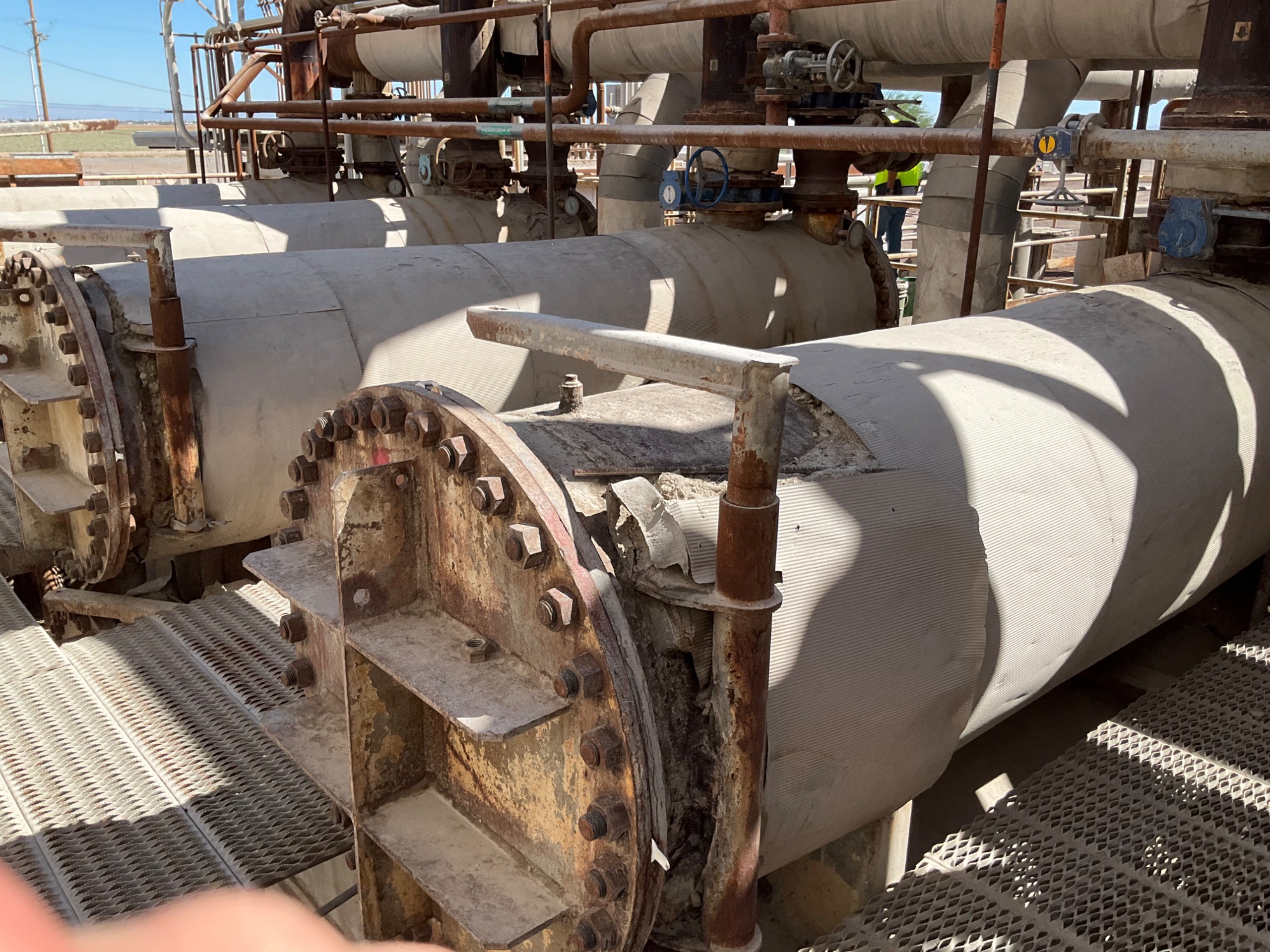

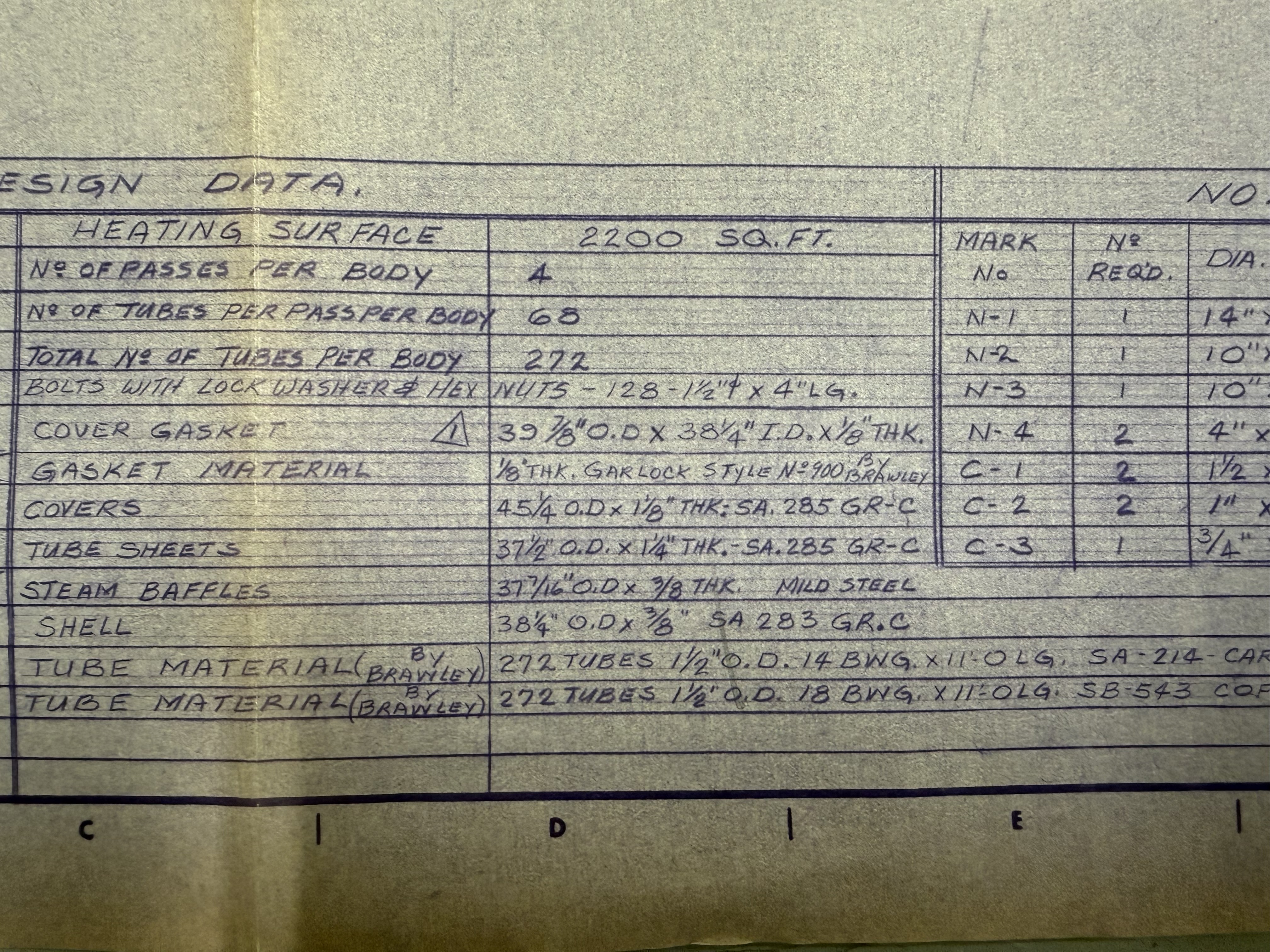

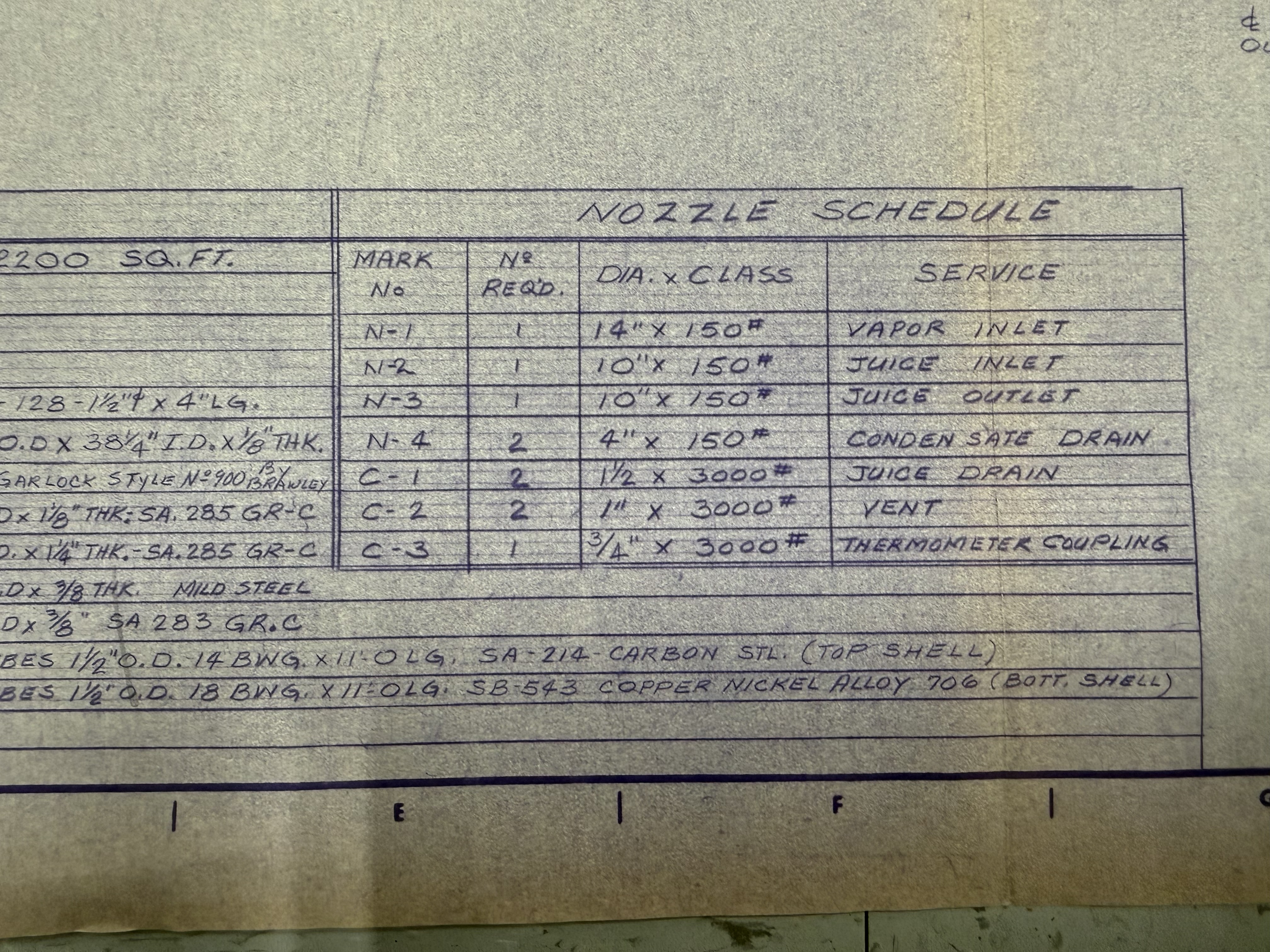

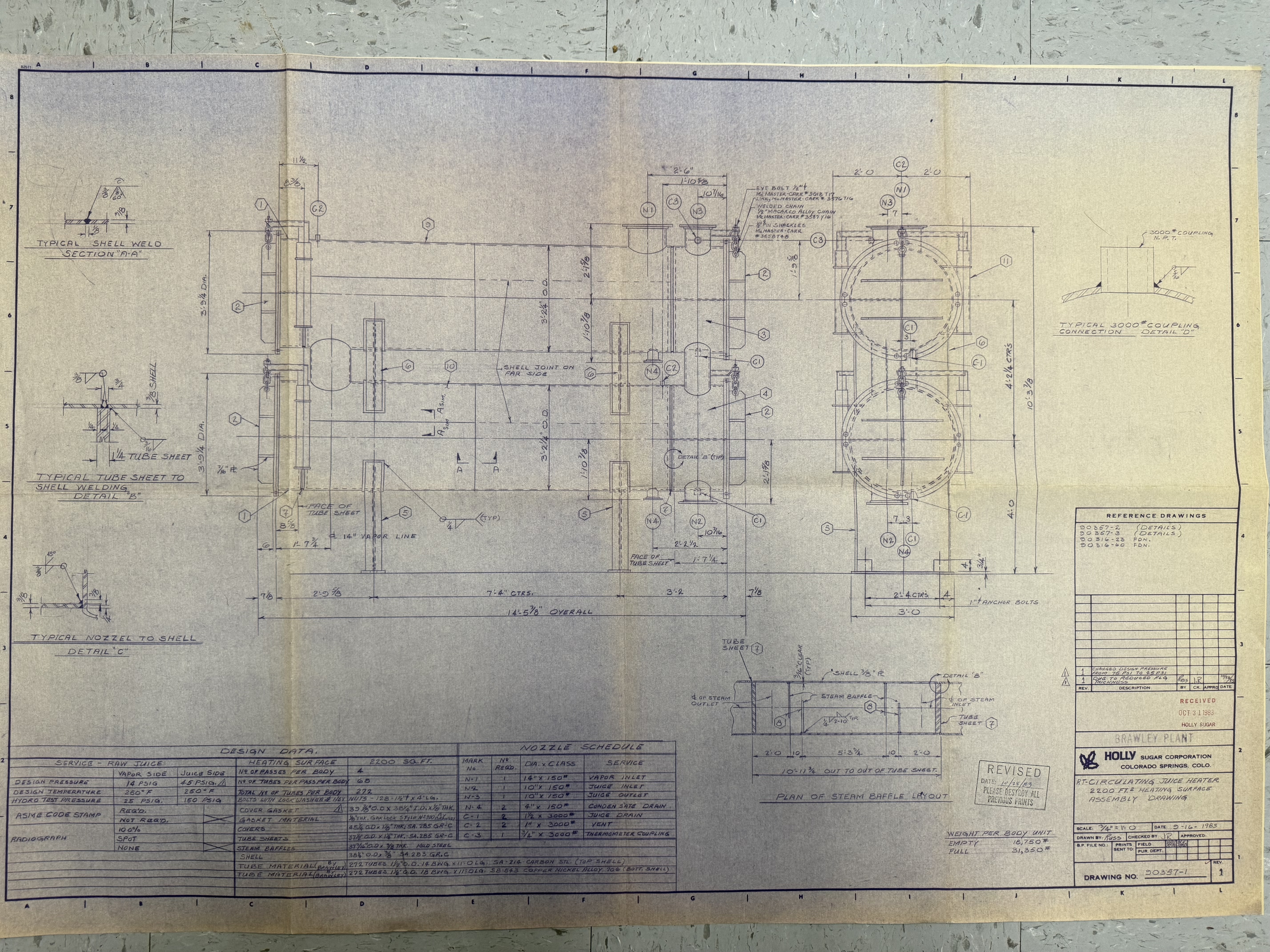

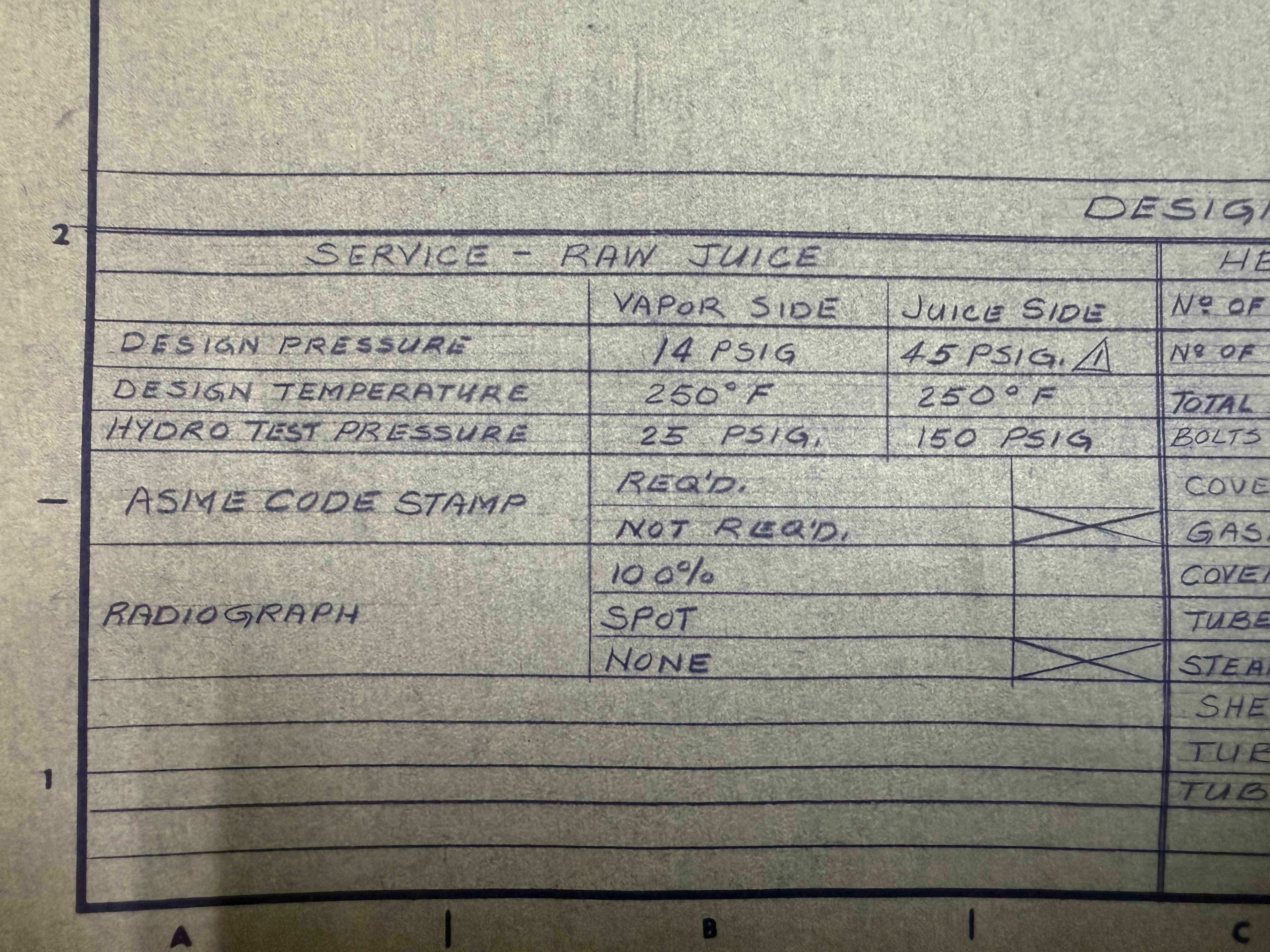

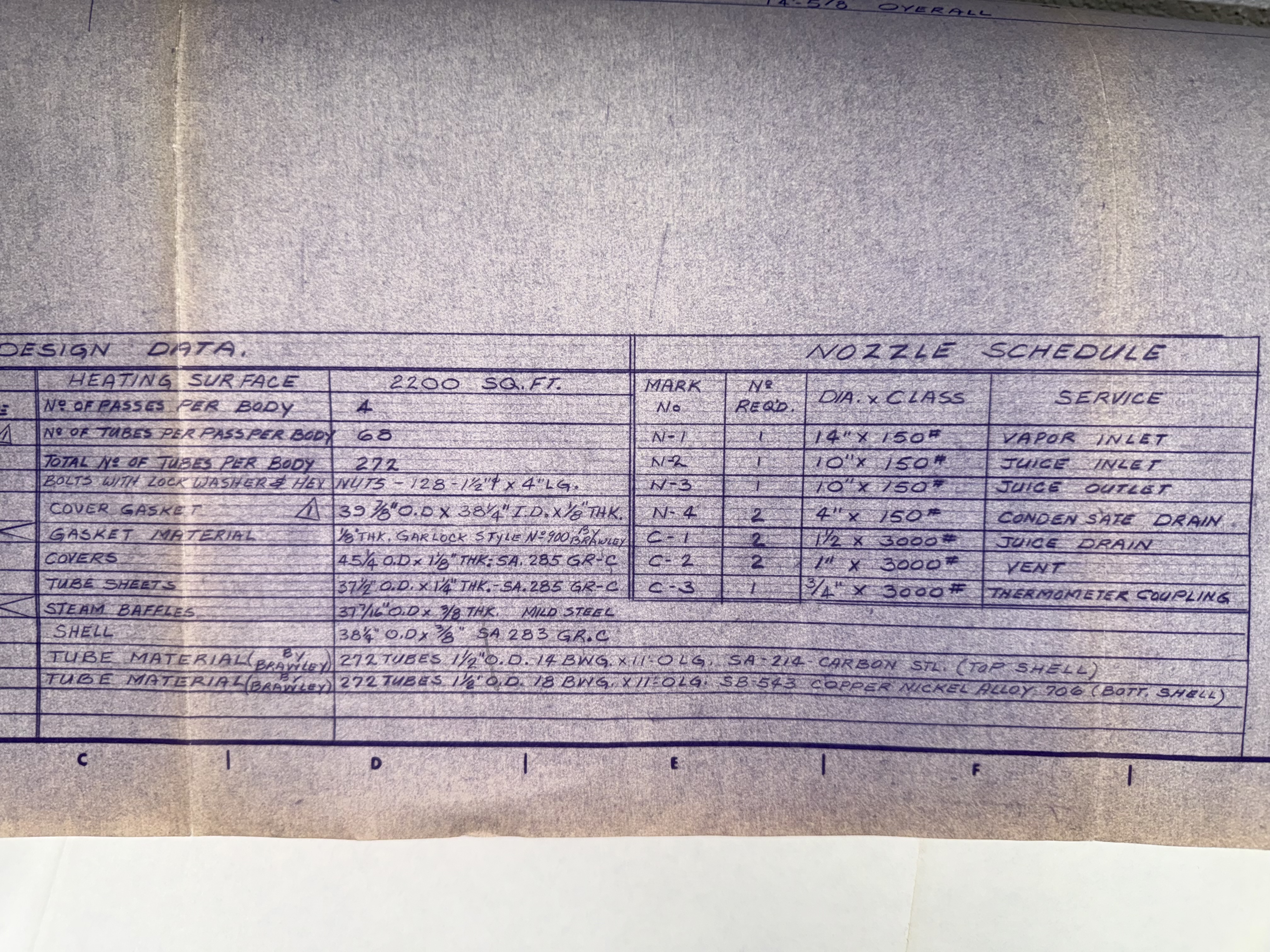

BULK LOT OF EIGHT RT-CIRCULATING JUICE HEATERS DESIGNED FOR RAW JUICE HEATING APPLICATIONS USING STEAM AS THE HEAT SOURCE. EACH UNIT IS A FOUR-PASS SHELL-AND-TUBE HEATER PROVIDING APPROXIMATELY 2,200 SQUARE FEET OF HEATING SURFACE. THE SHELLS ARE FABRICATED FROM 3/8 INCH THICK SA-283 CARBON STEEL, WITH UPPER TUBES MADE OF SA-214 CARBON STEEL AND LOWER TUBES MADE OF SB-543 COPPER NICKEL ALLOY 706. EACH HEATER IS DESIGNED FOR 14 PSIG ON THE VAPOR SIDE AND 45 PSIG ON THE JUICE SIDE, WITH A DESIGN TEMPERATURE OF 250 °F. CONNECTIONS INCLUDE A 14 INCH VAPOR INLET, 10 INCH JUICE INLET AND OUTLET, AND A 4 INCH CONDENSATE DRAIN. GASKETS ARE GARLOCK STYLE NO. 900, AND COVERS ARE SA-285 GR.C STEEL. THE SYSTEM CONSISTS OF FOUR UPPER AND FOUR LOWER HEATERS OPERATING IN PARALLEL AS PART OF A CONTINUOUS RECIRCULATION SYSTEM USED IN INDUSTRIAL JUICE HEATING PROCESSES. PHOTOS MAY BE INACCURATE. INSPECTIONS ARE ENCOURAGED. PLEASE SEE INSPECTION TERMS FOR MORE DETAILS.
