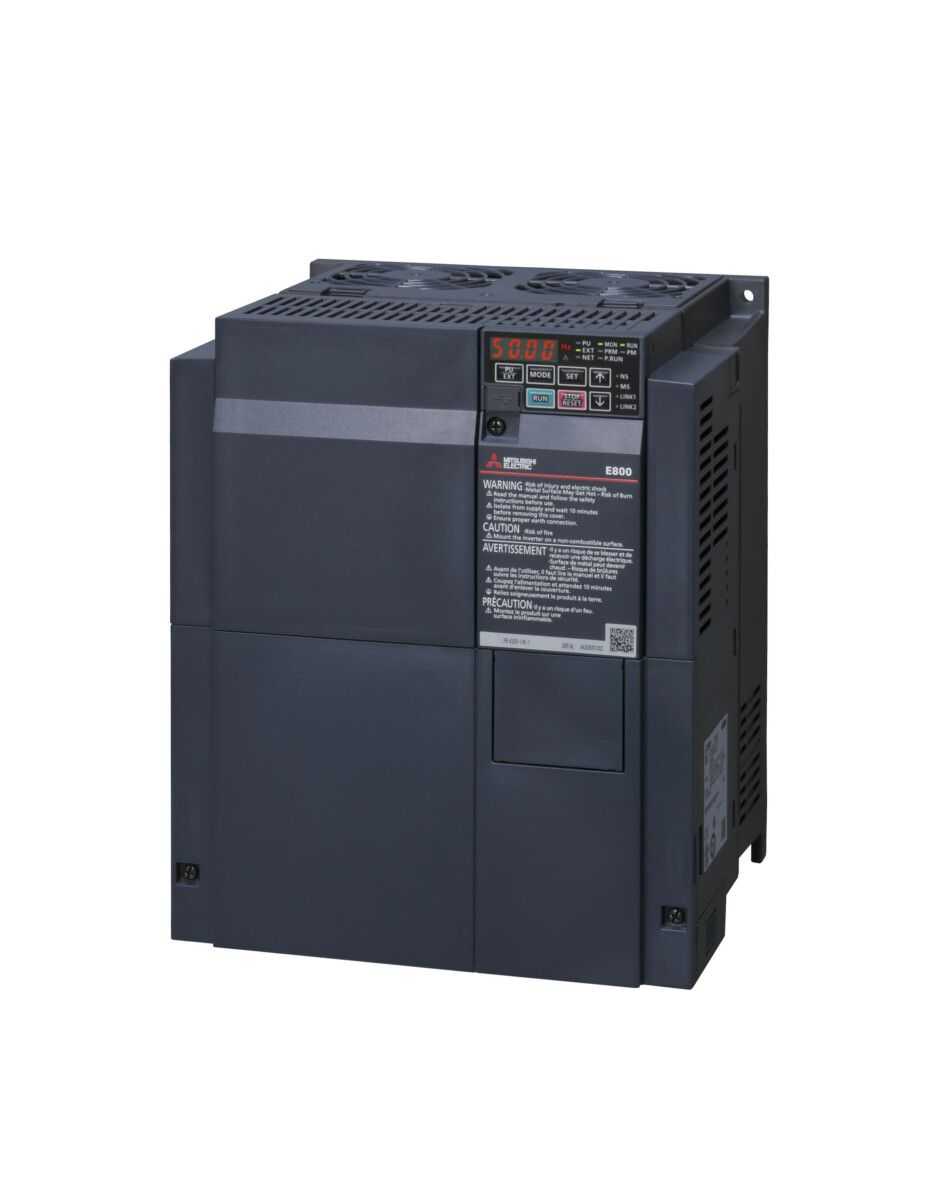

QTY 9: MITSUBISHI E840-0300EPA-60 AC VFD DRIVE

MINIMUM RATED VOLTAGE (V) 380 MIN. PERMISSIBLE VOLTAGE (V) 323 MAXIMUM RATED VOLTAGE (V) 480 MAX. PERMISSIBLE VOLTAGE (V) 528 CURRENT TYPE AC PHASES 3 RATED OUTPUT CURRENT LD (A) 41 RATED OUTPUT CURRENT ND (A) 30 RATED MOTOR CAPACITY LD (KW) 18,5 RATED MOTOR CAPACITY ND (KW) 15 FREQUENCY RANGE (HZ) 0,2–590 CONTROL METHOD MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL, V/F CONTROL MOTOR TYPE INDUCTION MOTOR, PM MOTOR BRAKE CHOPPER ED (%) 100 INTEGRATED EMC FILTER NO SAFE TORQUE OFF (STO) YES REGENERATIVE (4Q) NO INTEGRATED DC CHOKE NO DISPLAY BUILT-IN DISPLAY TYPE 4 DIGITS LED PLC FUNCTION YES PROGRAM MEMORY 2K PROGRAM MEMORY UNIT STEPS INTEGRATED DIGITAL INPUTS 2 DIGITAL OUTPUTS (TRANSISTOR) 0 DIGITAL OUTPUTS (RELAY) 1 INTEGRATED ANALOGUE INPUTS 2 INTEGRATED ANALOGUE OUTPUTS 0 IO TYPE OF TERMINAL BLOCK SPRING CLAMP EXPANDABLE YES RS-485 NO USB 1 (MINI B) ETHERNET PORT 2 BUILT-IN NETWORK MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC, BACNET/IP LEAKAGE CURRENT (MA) 1,2 POWER LOSS LD (W) 487 POWER LOSS ND (W) 322 PROTECTION CLASS IP20
