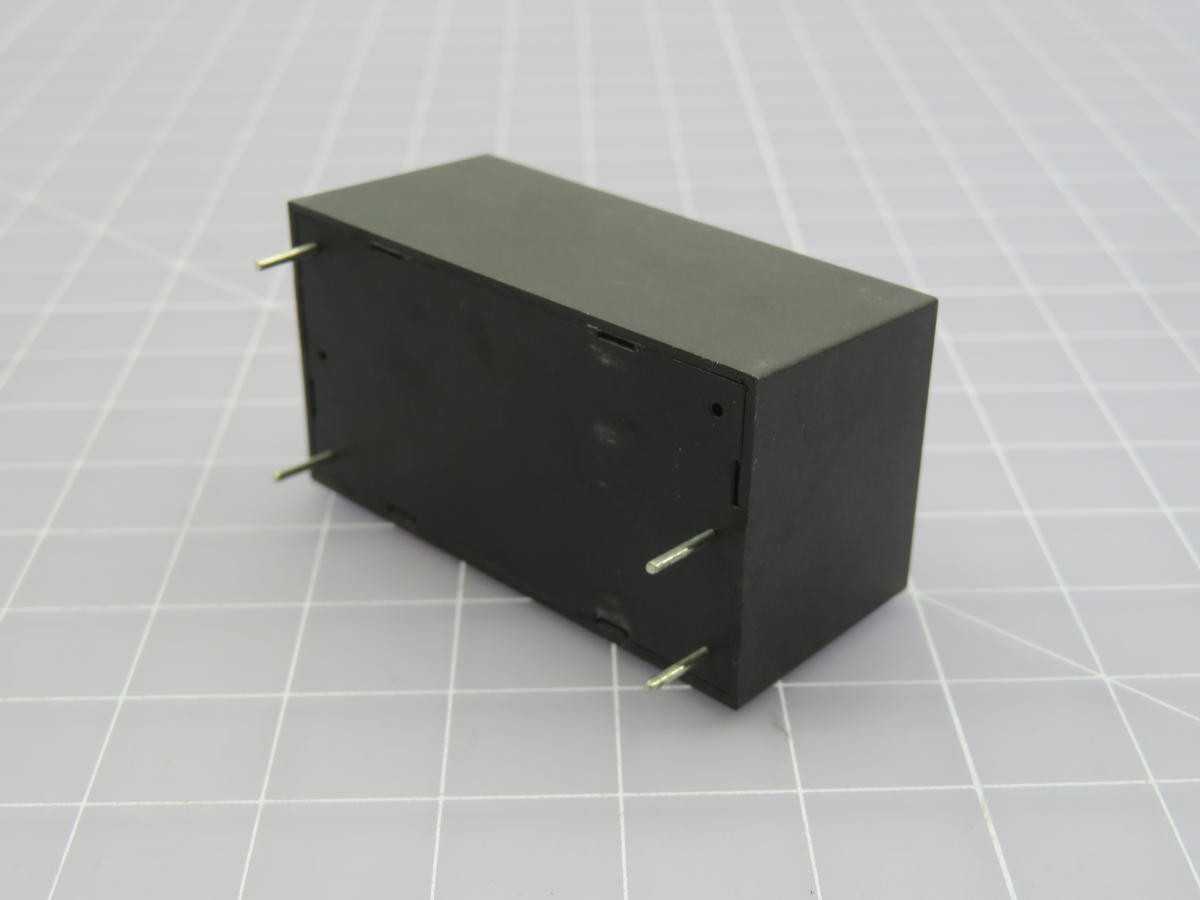

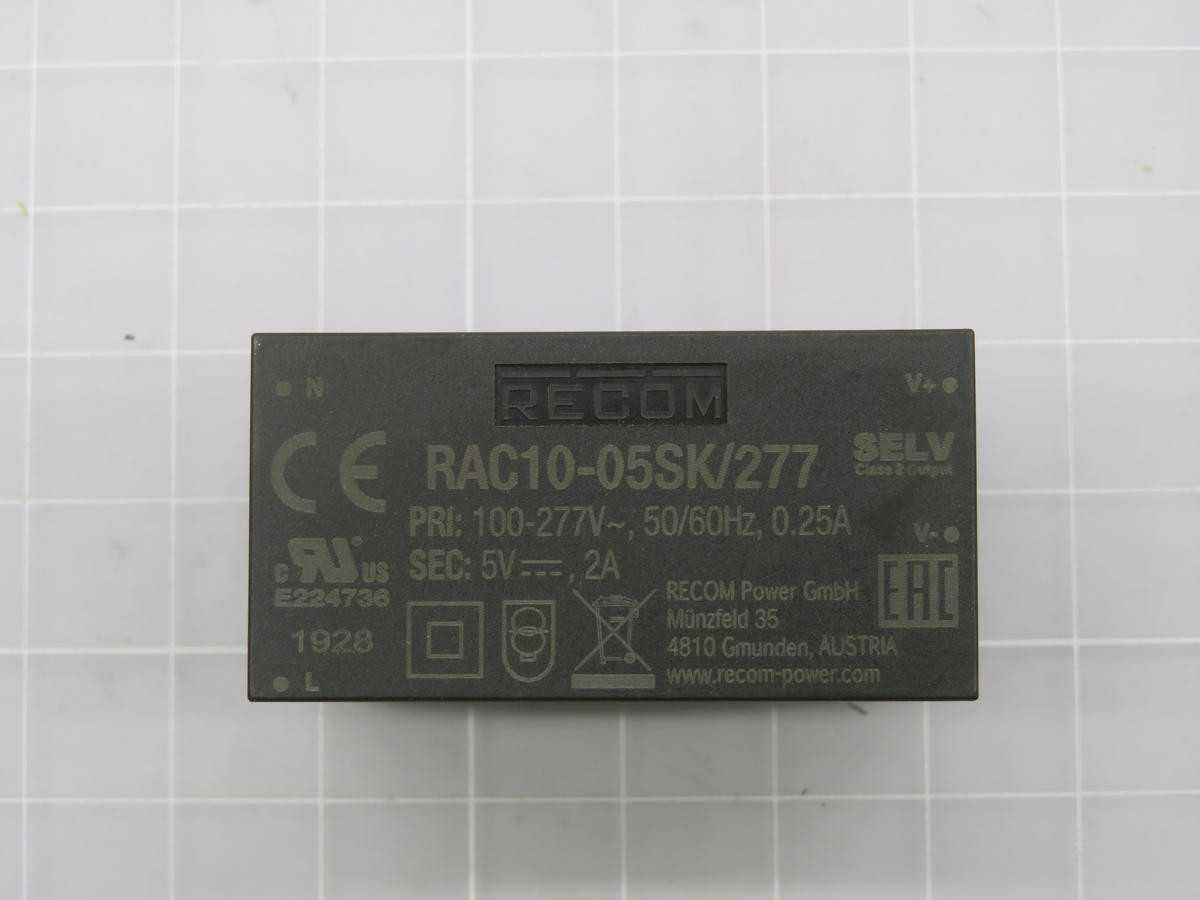

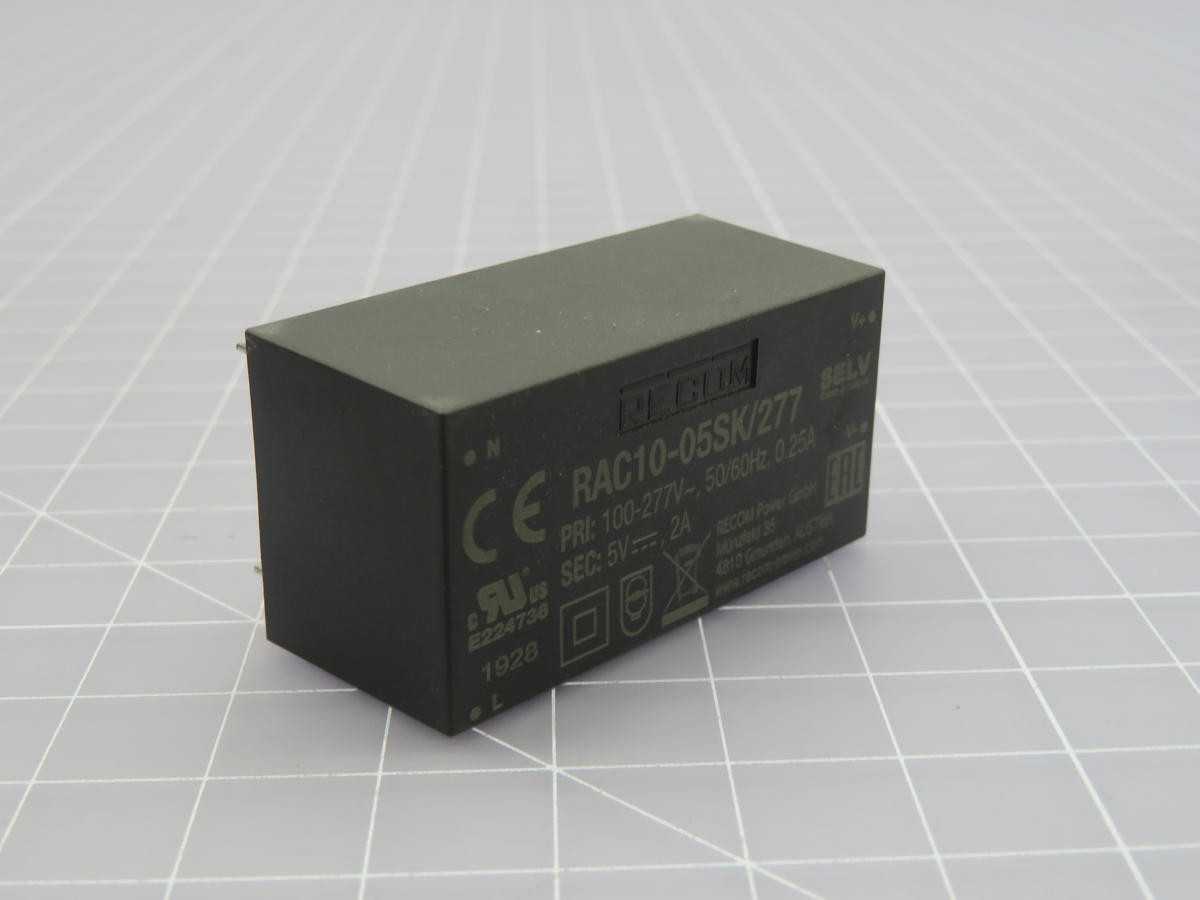

RECOM RAC10-05SK/277 PS, 100-277VAC IN, 5VDC OUT, 10W POWER, 2A MAX OUT, 4000V ISOL

THE RECOM RAC10-05SK/277 IS AN ENCAPSULATED AC/DC POWER SUPPLY MODULE ENGINEERED FOR UNIVERSAL INPUT APPLICATIONS. IT OPERATES WITHIN AN INPUT VOLTAGE RANGE OF 100-277VAC AT 50/60HZ, DRAWING A MAXIMUM INPUT CURRENT OF 0.25A. THIS MODULE PROVIDES A REGULATED OUTPUT OF 5VDC WITH A MAXIMUM CURRENT OF 2000MA, DELIVERING A TOTAL OUTPUT POWER OF 10W. IT ACHIEVES A TYPICAL EFFICIENCY OF 83% AT 230VAC AND OFFERS AN ISOLATION VOLTAGE OF 4000VAC. THE UNIT IS DESIGNED FOR AN OPERATING TEMPERATURE RANGE OF -25°C TO +70°C. INTEGRATED PROTECTION FEATURES INCLUDE SHORT CIRCUIT PROTECTION, OVERLOAD PROTECTION, AND OVER VOLTAGE PROTECTION. IT COMPLIES WITH SAFETY STANDARDS SUCH AS UL/CUL 60950-1, EN 60950-1, AND EN 62368-1.
