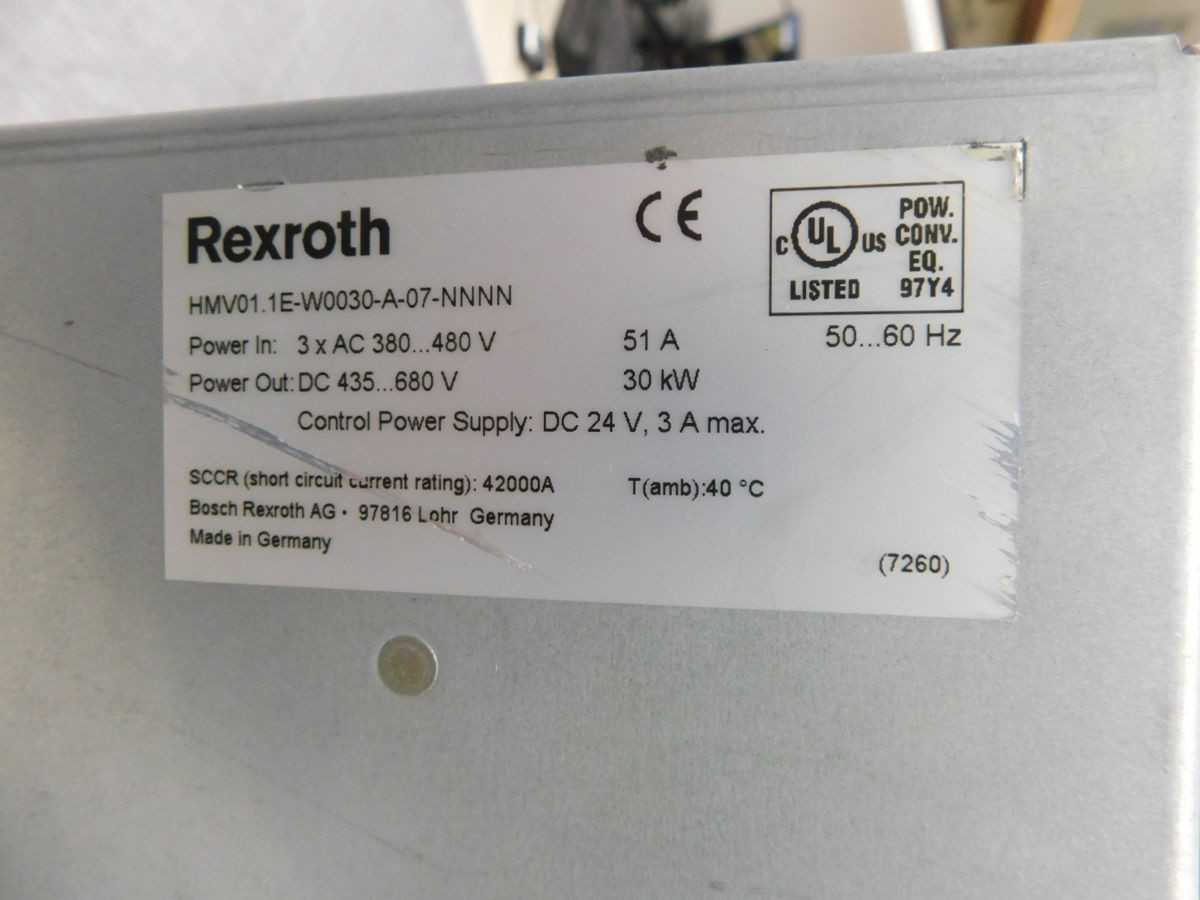

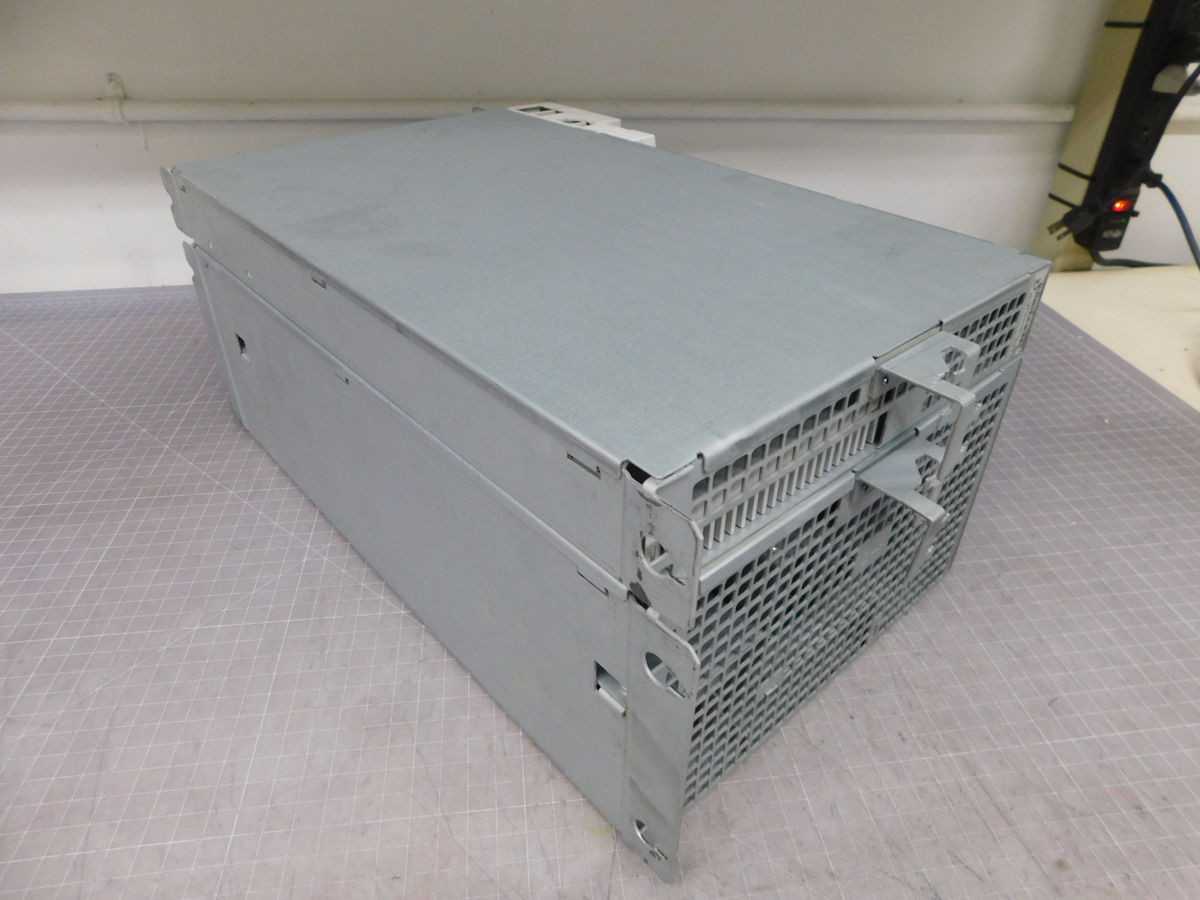

REXROTH HMV01.1E-W0030-A-07-NNNN HMD01-1N-W0012-A-07-NNNN SERVO DRIVES

THE REXROTH INDRADRIVE M SYSTEM INCLUDES AN HMV01.1E-W0030-A-07-NNNN MAIN DRIVE CONTROLLER AND AN HMD01-1N-W0012-A-07-NNNN EXPANSION DRIVE MODULE. THIS CONFIGURATION PROVIDES MULTI-AXIS SERVO DRIVE CAPABILITIES, OPERATING WITH A THREE-PHASE AC INPUT VOLTAGE RANGE OF 200 V TO 500 V. THE HMV01.1E-W0030 MAIN DRIVE CONTROLLER FEATURES A NOMINAL OUTPUT CURRENT OF 30 A AND A PEAK OUTPUT CURRENT OF 60 A. THE HMD01-1N-W0012 EXPANSION DRIVE MODULE PROVIDES A NOMINAL OUTPUT CURRENT OF 12 A AND A PEAK OUTPUT CURRENT OF 24 A. BOTH COMPONENTS UTILIZE A SERCOS III COMMUNICATION INTERFACE, INDICATED BY THE '07' CODE IN THEIR RESPECTIVE MODEL DESIGNATIONS, FOR HIGH-SPEED SYNCHRONIZED DATA EXCHANGE.
