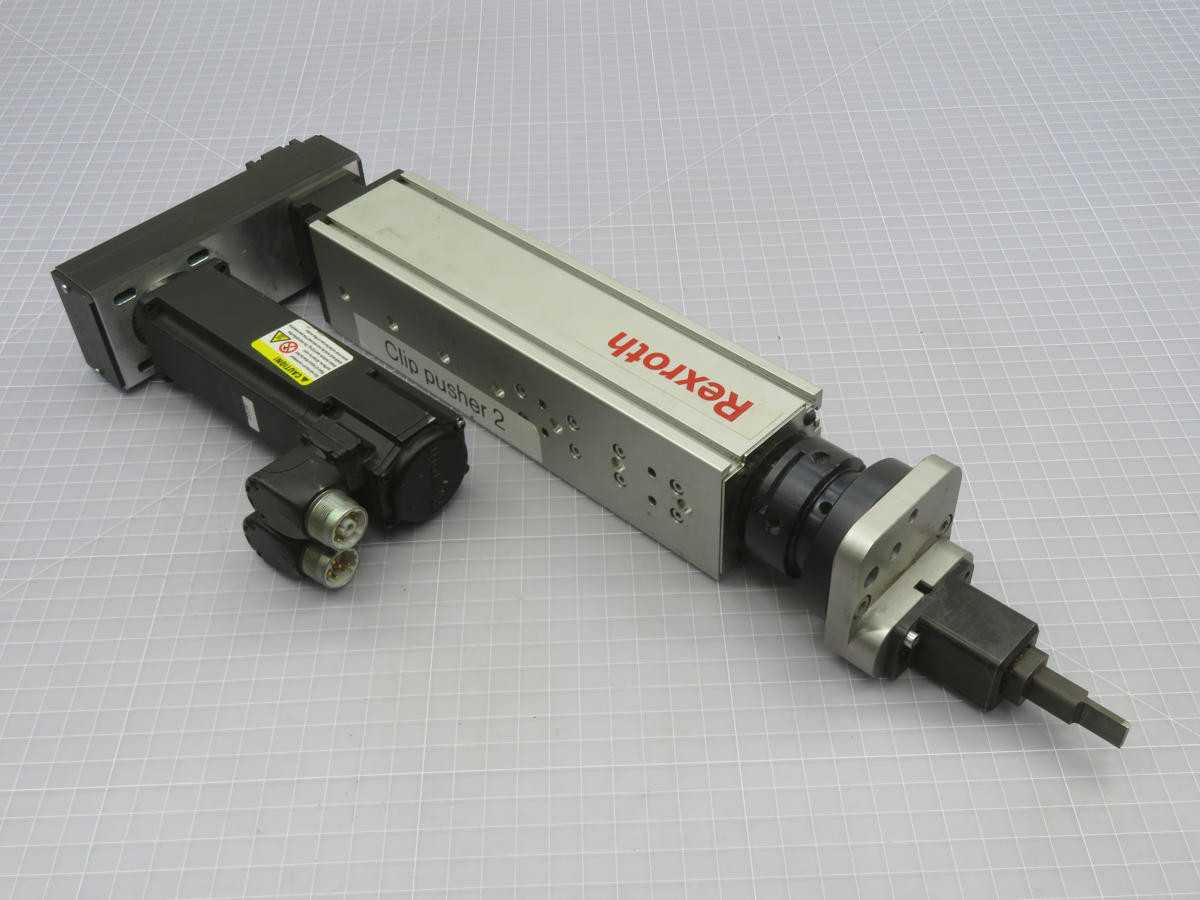

REXROTH MSK030C-0900 SERVO MOTOR, 0.8 NM CONT. TORQUE, 9000 MIN-1 MAX SPEED

THE REXROTH MSK030C-0900-NN-M1-UG0-NNNN IS A SYNCHRONOUS SERVO MOTOR DESIGNED FOR NATURAL CONVECTION COOLING. IT FEATURES A CONTINUOUS TORQUE OF 0.8 NM AND A RATED CURRENT OF 1.5 A. THE MOTOR IS CAPABLE OF A MAXIMUM SPEED OF 9000 MIN-1 AND HAS A PEAK TORQUE OF 2.4 NM. ITS ELECTRICAL CHARACTERISTICS INCLUDE A BACK EMF CONSTANT OF 35.6 V/1000 MIN-1, A TORQUE CONSTANT OF 0.58 NM/A, AND AN OPERATIONAL MAXIMUM AC VOLTAGE OF 600 V. THIS CONFIGURATION INCLUDES NO HOLDING BRAKE (NN), A MULTI-TURN ABSOLUTE HIPERFACE ENCODER WITH 128 SIGNAL PERIODS (M1), AND A SHAFT WITH A KEYWAY WITHOUT A SEALING RING (UG0). THE MOMENT OF INERTIA FOR THIS MODEL IS 0.17 X 10^-4 KGM^2.
