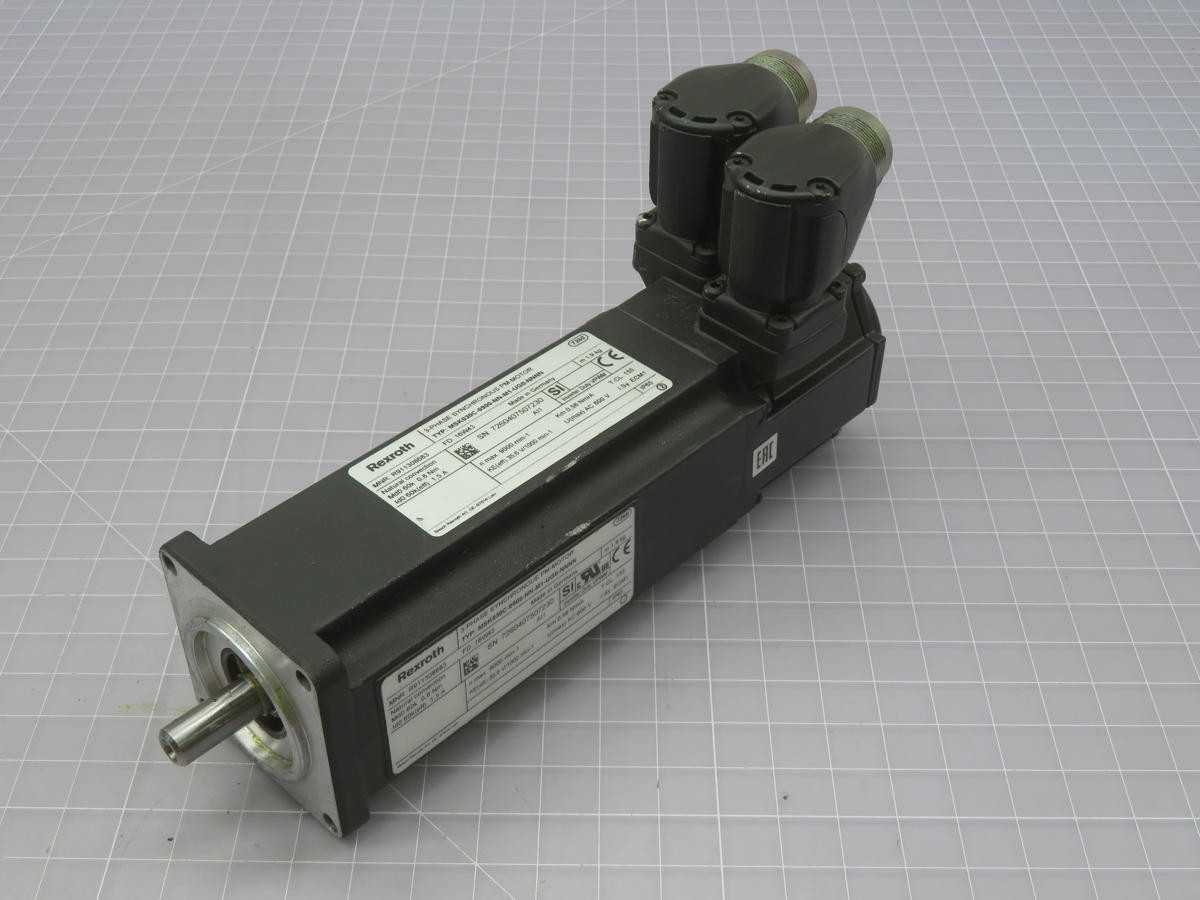

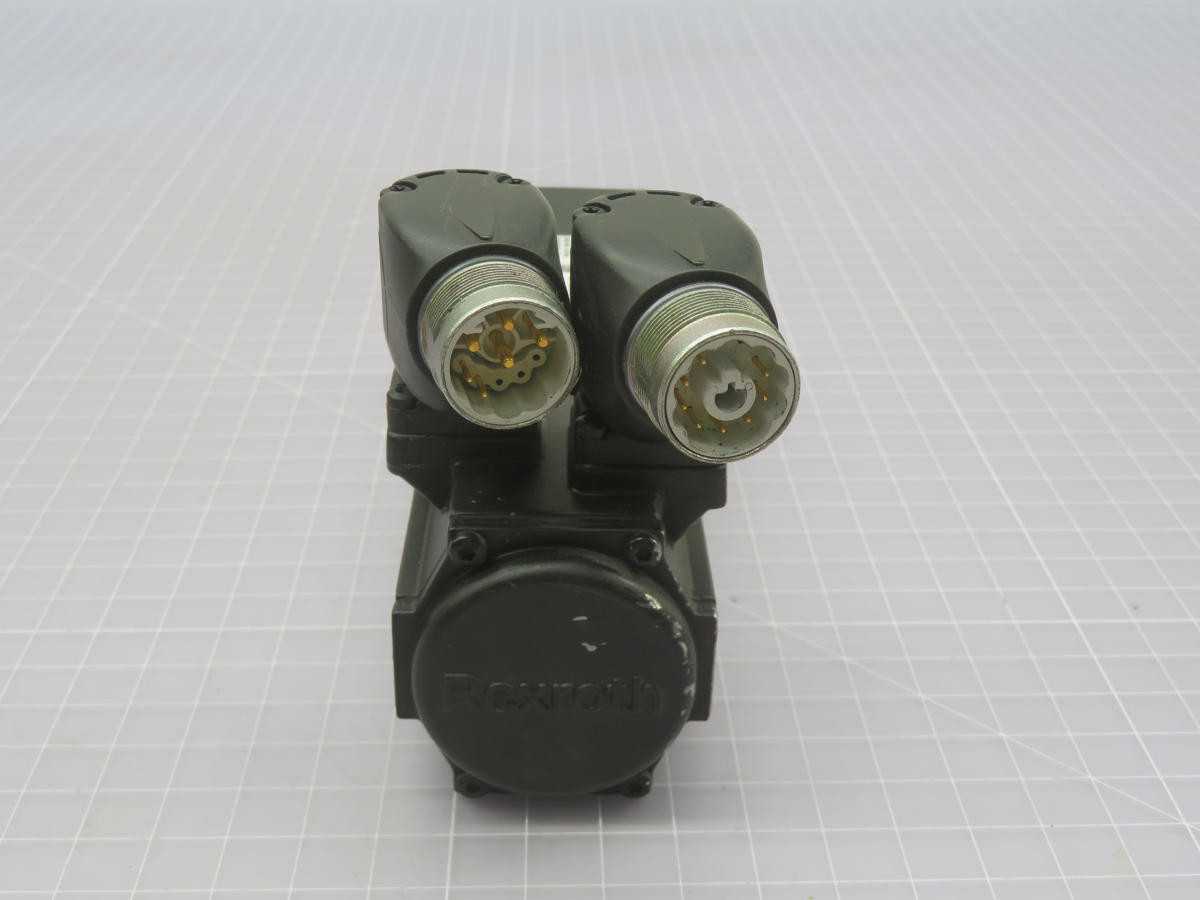

REXROTH MSK030C-0900 SERVO MOTOR, 9000 RPM, 600V, 0.3 NM TORQUE, IP65 PROTECTION

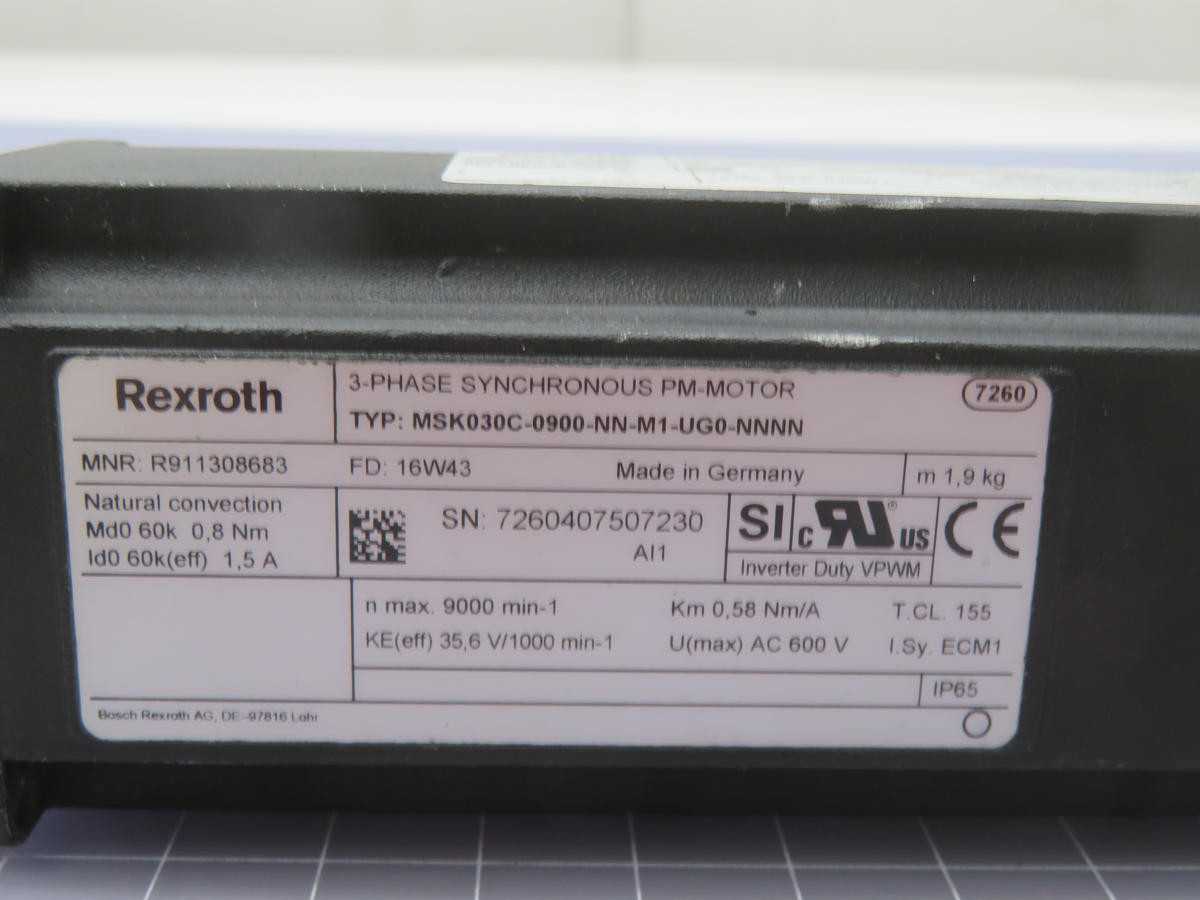

THE REXROTH R911308683 MSK030C-0900-NN-M1-UG0-NNNN IS A THREE-PHASE SERVO MOTOR WITH A RATED SPEED OF 9000 RPM AND AN OPERATING VOLTAGE OF 600V. IT EMPLOYS NATURAL CONVECTION FOR COOLING AND FEATURES A PLAIN SHAFT EQUIPPED WITH A SHAFT SEALING RING. POSITION FEEDBACK IS MANAGED BY A MULTI-TURN ABSOLUTE ENCODER, WHICH PROVIDES 128 SIGNAL PERIODS WITH 4096 REVOLUTIONS ABSOLUTE. THIS SERVO MOTOR DELIVERS A RATED TORQUE OF 0.3 NM AND A MAXIMUM TORQUE OF 0.9 NM, WITH A CORRESPONDING RATED CURRENT OF 0.8 A AND A MAXIMUM CURRENT OF 2.4 A. THE MOTOR'S ROTOR MOMENT OF INERTIA IS 0.053 X 10^-4 KGM². IT CARRIES AN IP65 PROTECTION CLASS AND HAS AN APPROXIMATE WEIGHT OF 1.0 KG. THIS SPECIFIC MODEL CONFIGURATION DOES NOT INCLUDE A HOLDING BRAKE.
