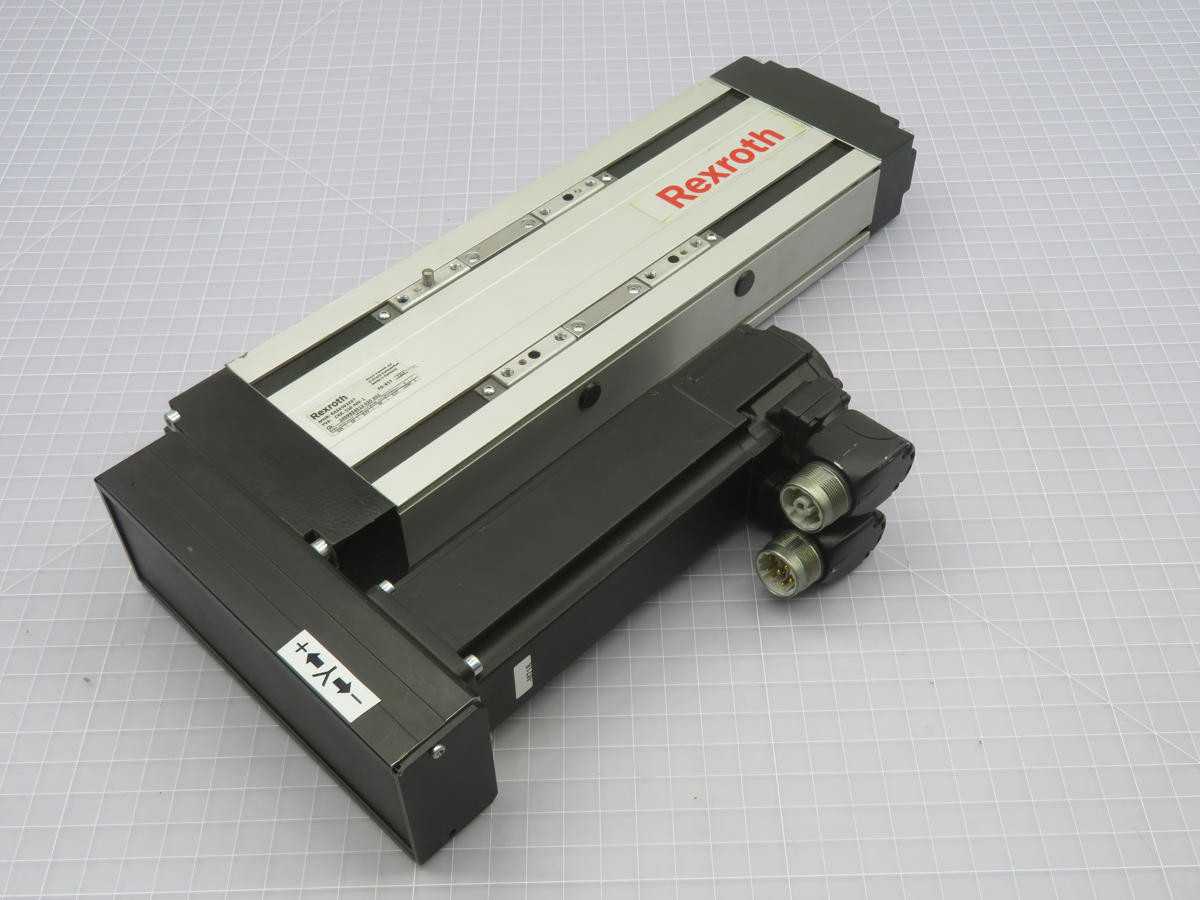

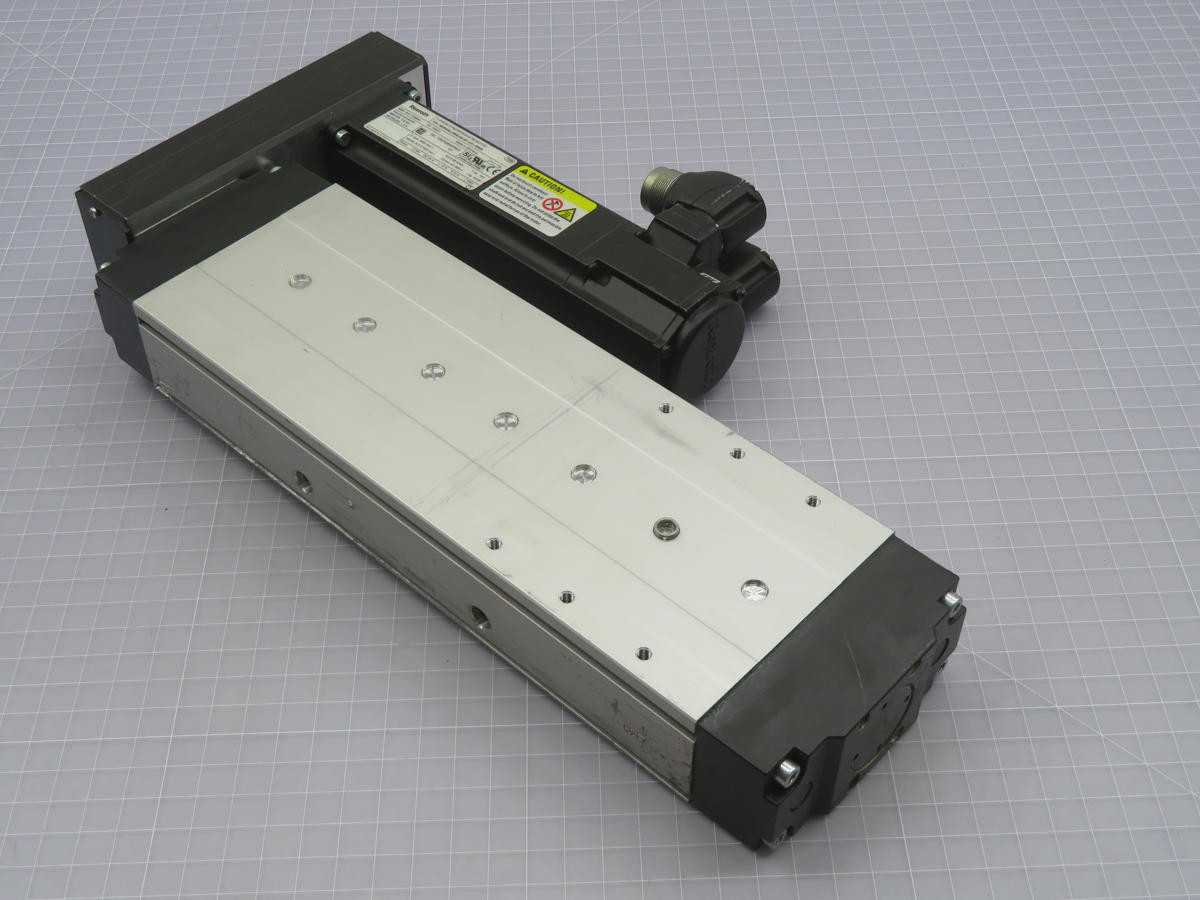

REXROTH, R911308684 CKK-110-NN-1 3-PHASE, SERVO MOTORS, 10.5NM TORQUE, 3000 RPM SPEED

THE REXROTH R911308684 CKK-110-NN-1 IS A 3-PHASE SYNCHRONOUS PERMANENT MAGNET SERVO MOTOR OPERATING AT 600 VAC. THIS MOTOR FEATURES A 110 MM FRAME SIZE AND IS DESIGNED WITH A PLAIN SHAFT WITHOUT A KEYWAY AND NO INTEGRATED HOLDING BRAKE. KEY PERFORMANCE SPECIFICATIONS INCLUDE A RATED TORQUE OF APPROXIMATELY 10.5 NM AND A MAXIMUM TORQUE OF APPROXIMATELY 33.6 NM. IT ACHIEVES A RATED SPEED OF APPROXIMATELY 3000 RPM AND A MAXIMUM SPEED OF APPROXIMATELY 4500 RPM. THE RATED CURRENT IS APPROXIMATELY 2.4 A, WITH A MAXIMUM CURRENT CAPABILITY OF APPROXIMATELY 7.2 A. THE MOTOR HAS A MOMENT OF INERTIA OF APPROXIMATELY 0.00078 KGM^2 AND WEIGHS APPROXIMATELY 10.7 KG. IT IS CONSTRUCTED TO AN IP65 PROTECTION CLASS AND UTILIZES THERMAL CLASS F INSULATION. POSITION AND SPEED FEEDBACK ARE PROVIDED BY AN INTEGRATED HIPERFACE ENCODER.
