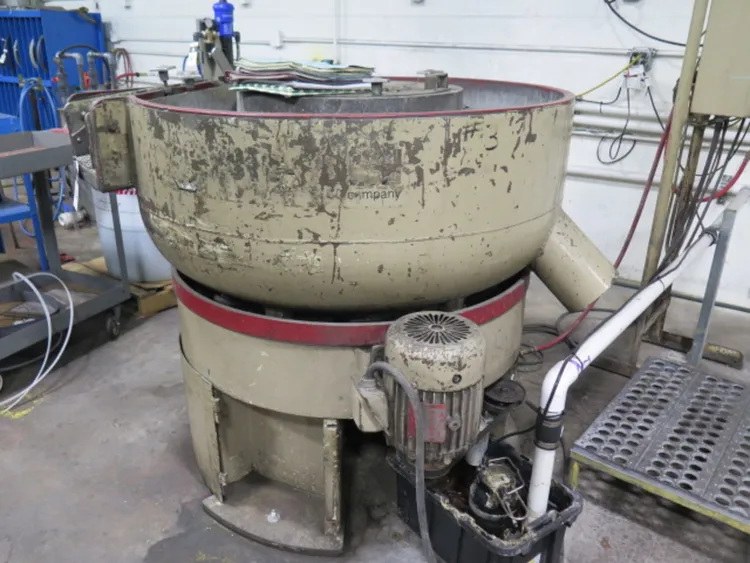

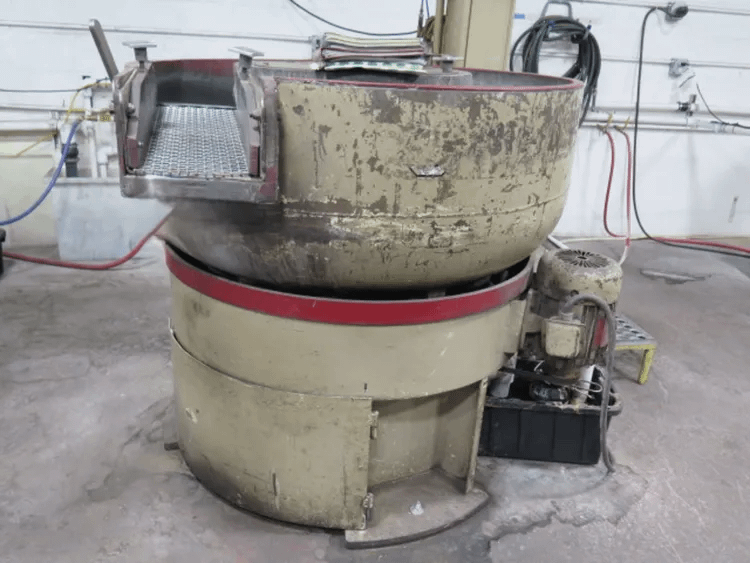

ROTO-FINISH SPIRATRON ER 0405MS VIBRATORY FINISHER, 5 CU FT, 3 HP, DIA 48.7", HT 46.5"

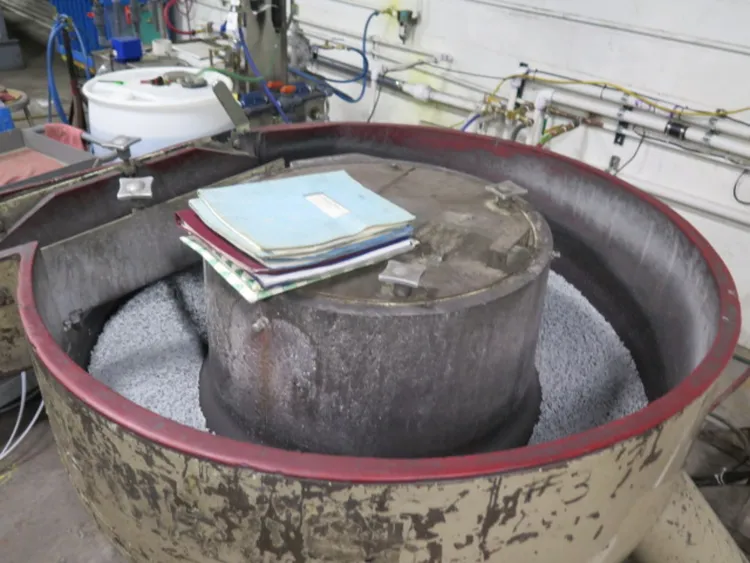

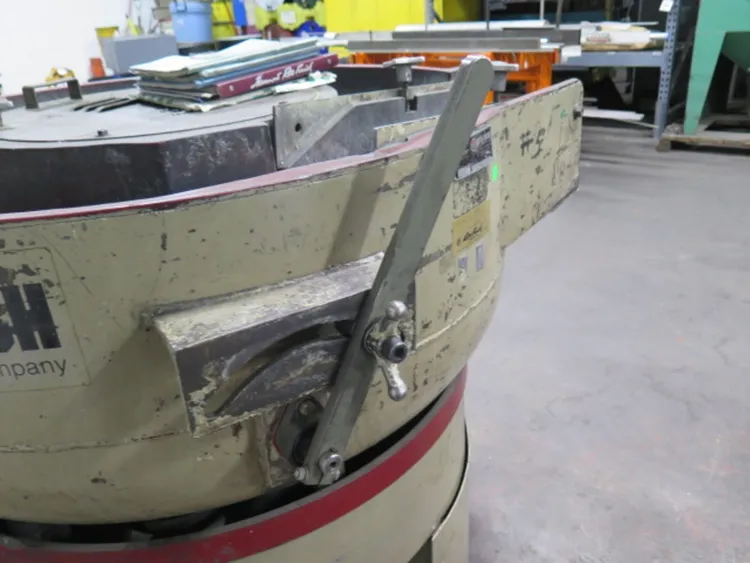

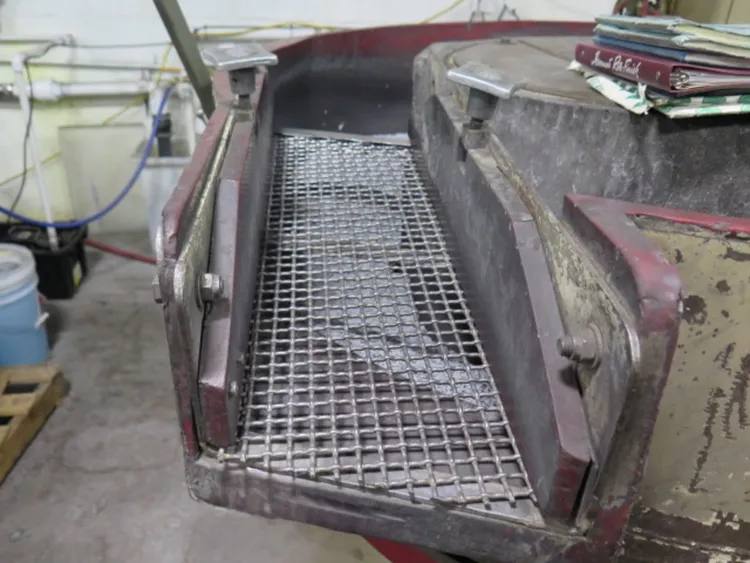

THE ROTO-FINISH SPIRATRON ER 0405MS IS A VIBRATORY FINISHER WITH A MAXIMUM WORKING CAPACITY OF 5 CUBIC FEET. KEY DIMENSIONS INCLUDE AN OVERALL DIAMETER OF 48.7 INCHES, A HEIGHT TO THE BOWL OF 46.5 INCHES, A PROCESS CHANNEL WIDTH OF 10.2 INCHES, AND A BASE DIAMETER OF 47 INCHES. IT IS DRIVEN BY A 3 HP MOTOR AND FEATURES THREE 4-INCH DRAINS, WITH A SCREEN DECK HEIGHT OF 39 INCHES. DESIGN FEATURES CONSIST OF AN ADVANCED STRUCTURAL BOWL SHAPE WITH A POLYURETHANE LINING, ENGINEERED FOR HIGHER AMPLITUDE, A LOW PROFILE, AND LOWER POWER REQUIREMENTS. STANDARD OPERATING FEATURES INCLUDE A UNIQUE CARTRIDGE DRIVE SYSTEM, AN ADJUSTABLE DROP-ON ECCENTRIC WEIGHT SYSTEM, AND CONTINUOUSLY-MONITORED OIL RECIRCULATION. THE SYSTEM INCLUDES BUILT-IN PARTS/MEDIA SEPARATION, A COMPOUND FLOW-THROUGH SYSTEM, MULTIPLE POP-IN DRAINS, A COMPACT SETTLING TANK, AND DUAL AMPLITUDE. THE EQUIPMENT UTILIZES QUICK-CHANGE, STRAIGHT-LINE SCREEN DECKS AND A MANUAL, LEVER-OPERATED GATE. THIS ER SERIES COVERS MASS FINISHING PROCESSES SUCH AS BALL BURNISHING, DEBURRING, PREPLATE FINISHING, AND WASHING FOR DIVERSE MATERIALS INCLUDING FERROUS AND NONFERROUS METALS, PLASTICS, WOOD, AND CERAMICS.
