SANDVIK C6-A390.545-50 040 MODULAR TOOL HOLDER, CAPTO C6, CAT50 TAPER
Aucto ID: #94720
Ends in:
1eb2bdc8-61df-43d8-9a23-f5f1c5d7c9d5
Asking Price:
$80.00
active
Location: Louisville, Kentucky, United States
Logistics:
Rigging:
Included
Loading:
Included
Shipping:
Buyer
buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller: Machinery Central
3070Selling since 2025.
Product Description

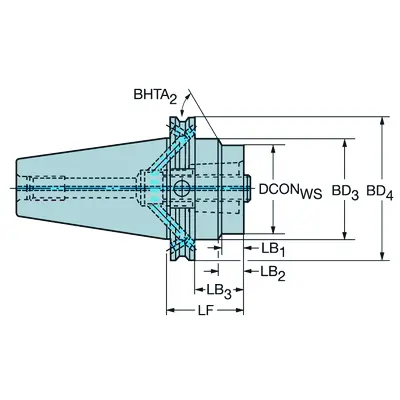

THE SANDVIK C6-A390.545-50 040 IS A MODULAR TOOL HOLDER FEATURING A CAPTO C6 CONNECTION AND A CAT50 TAPER. ITS FUNCTIONAL DIAMETER (DFC) IS 1.7323 INCHES. THE CONNECTION RETENTION KNOB THREAD SIZE (CRKS) IS INCH 1"-8. THE CONNECTION DIAMETER WORKPIECE SIDE (DCONWS) IS 2.4803 INCHES, AND THE FUNCTIONAL LENGTH (LF) IS 1.5748 INCHES. THE BODY DIAMETERS (BD) ARE BD_1 AND BD_2 AT 2.4803 INCHES, BD_3 AT 2.7598 INCHES, AND BD_4 AT 3.874 INCHES. THE CORRESPONDING BODY LENGTHS (LB) ARE LB_1 AT 0.1181 INCH, LB_2 AT 0.1969 INCH, LB_3 AT 0.8228 INCH, AND LB_4 AT 1.5748 INCH. THE OVERALL LENGTH (OAL) OF THE TOOL HOLDER IS 5.5827 INCHES.
Core Specifications
Manufacturer: SANDVIK
Model: C6-A390.545-50 040
Condition: Fair
- Item functions as originally intended, shows signs of normal wear.Category:
 MACHINING EQUIPMENT -> MACHINE TOOLINGLogistics
Rigging Responsibility:
Included
Loading Responsibility:
Included
Shipping Responsibility:
Buyer
