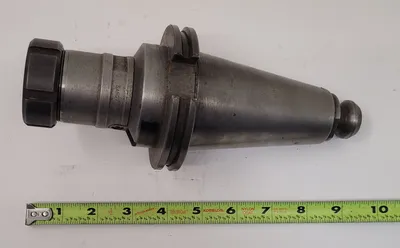

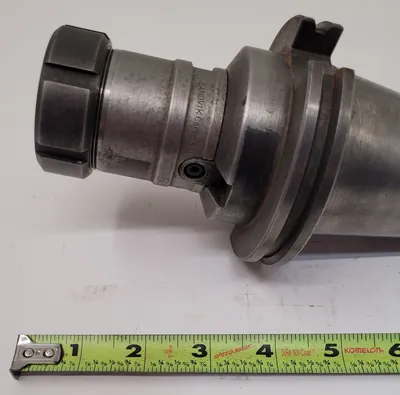

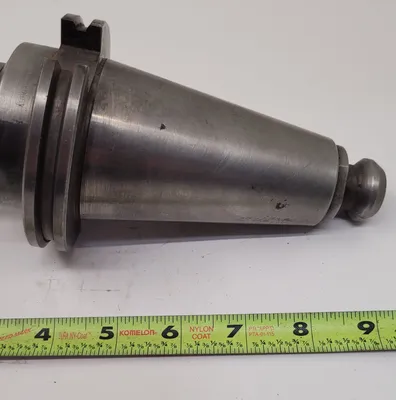

SANDVIK COROMANT A 390.45-50 50 040M CAT 50 VARILOCK ADAPTER / COLLET CHUCK

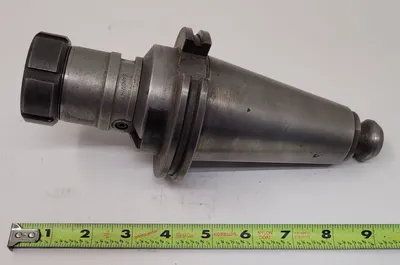

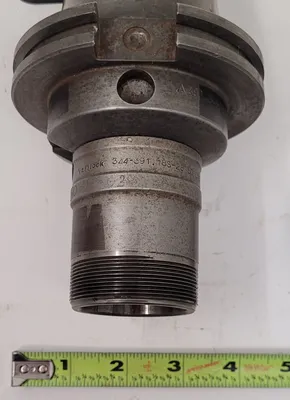

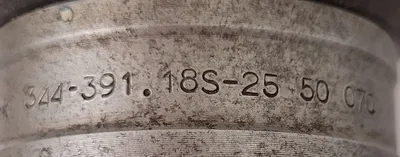

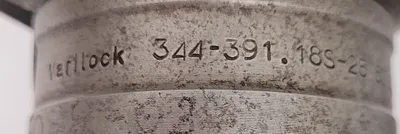

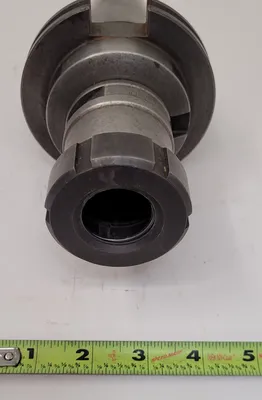

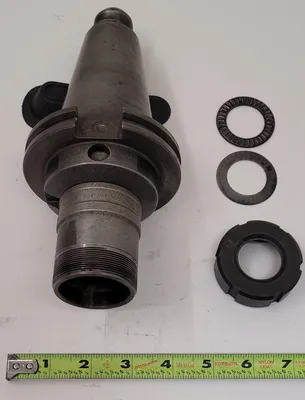

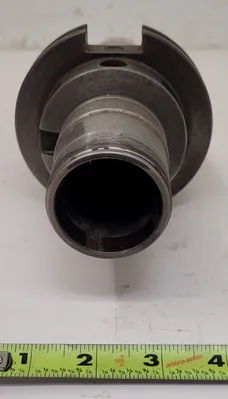

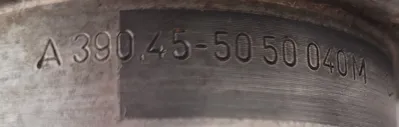

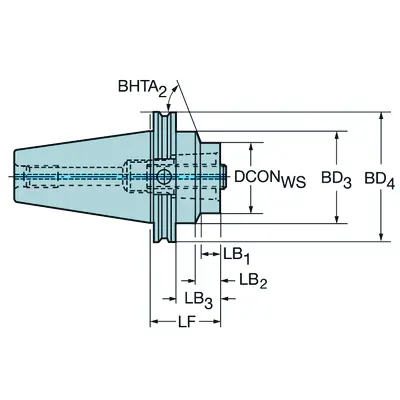

THIS IS A SANDVIK COROMANT ADAPTER/VARILOCK COLLET CHUCK, MODEL A 390.45-50 50 040M, FEATURING A CAT 50 HOLDER TYPE. THE OVERALL LENGTH (OAL) IS 5.5829 INCHES, WITH A FUNCTIONAL LENGTH (LF) OF 1.575 INCHES. KEY BODY DIMENSIONS INCLUDE A FUNCTIONAL DIAMETER (DFC) OF 2.75 INCHES AND BODY DIAMETERS (BD) RANGING FROM 1.9685 INCHES TO 3.874 INCHES. CORRESPONDING BODY LENGTHS (LB) RANGE FROM 0.0945 INCHES TO 1.5748 INCHES. THE ACCOMPANYING VARILOCK 344-391.18S-25-50 070 COMPONENT HAS A BODY DIAMETER OF 2 INCHES, A BORE DIAMETER OF 1.125 INCHES, AND AN OAL OF 2.5 INCHES. THE OVERALL LENGTH OF THE ENTIRE PIECE WITHOUT THE BUTTON IS 8.25 INCHES.
