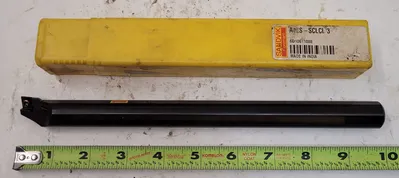

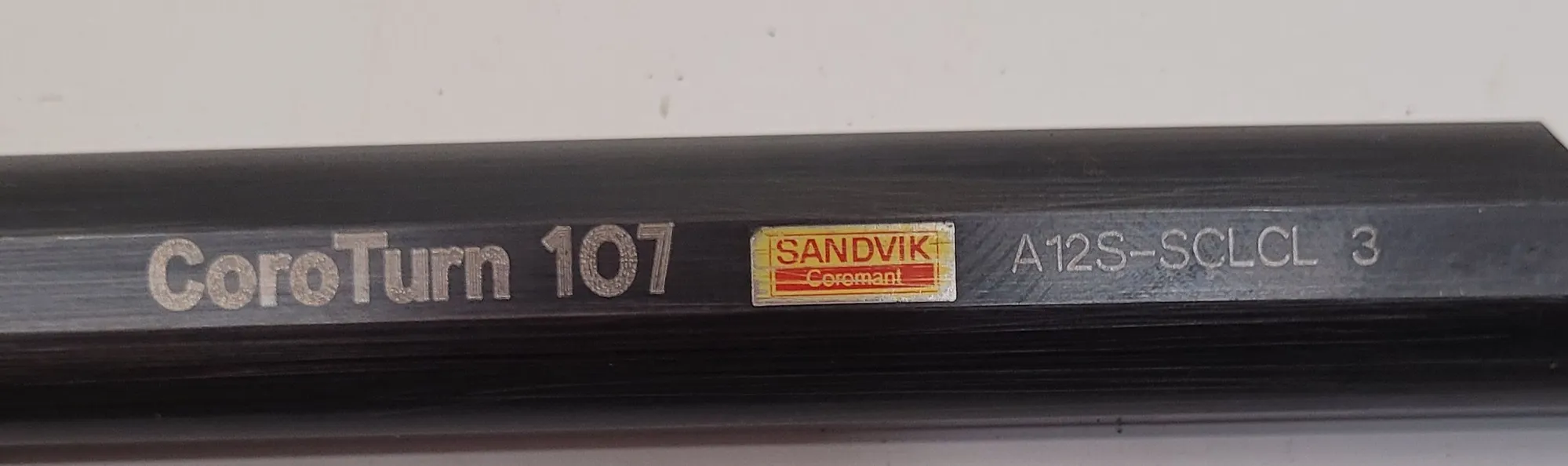

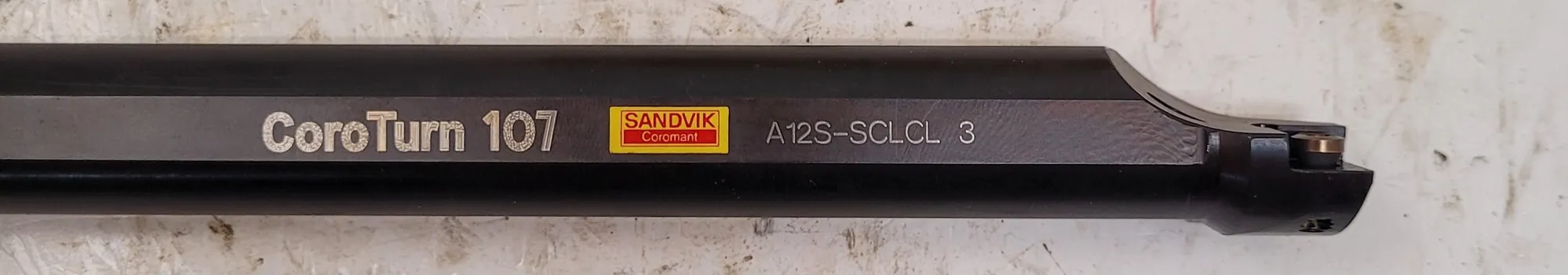

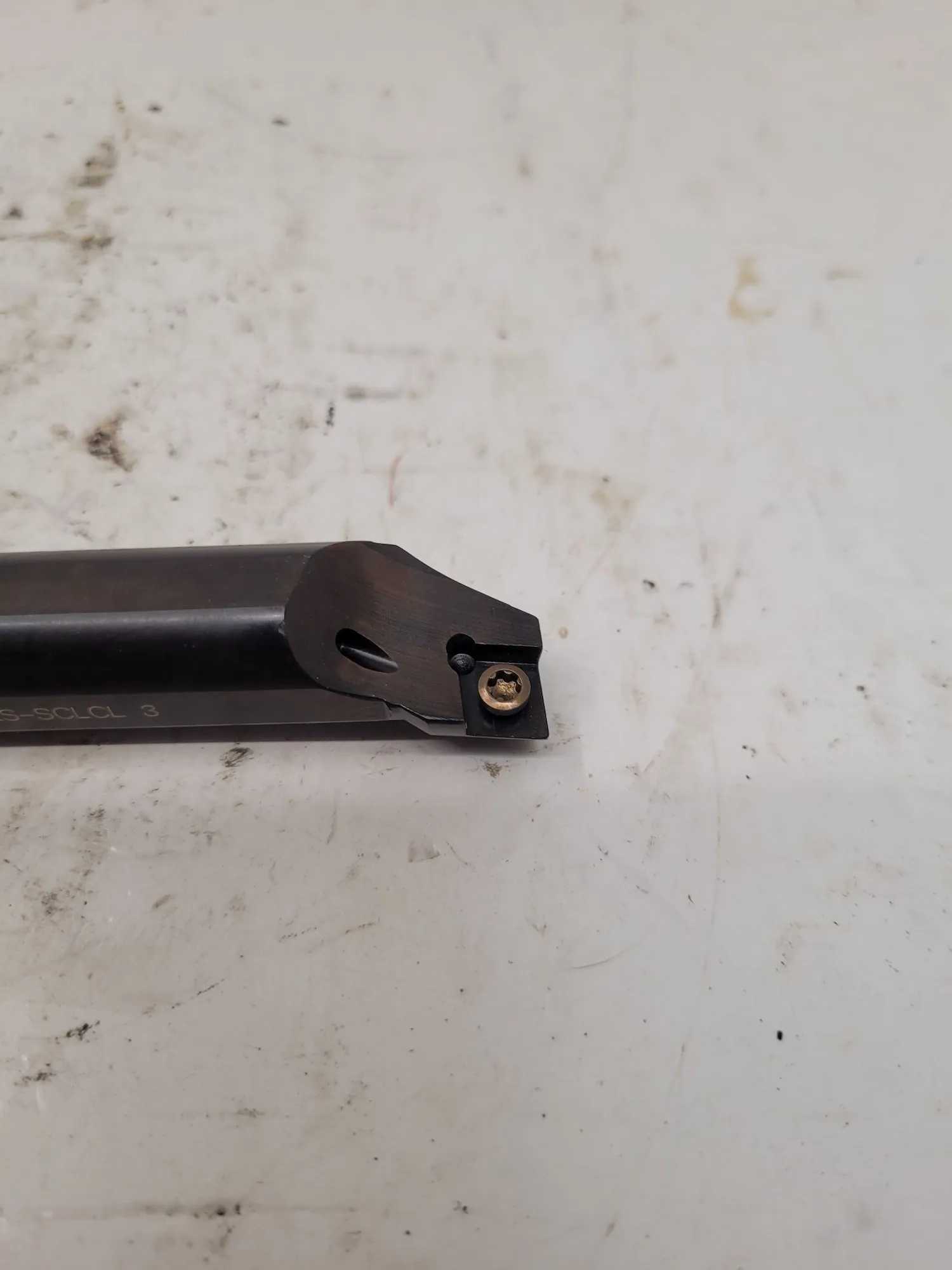

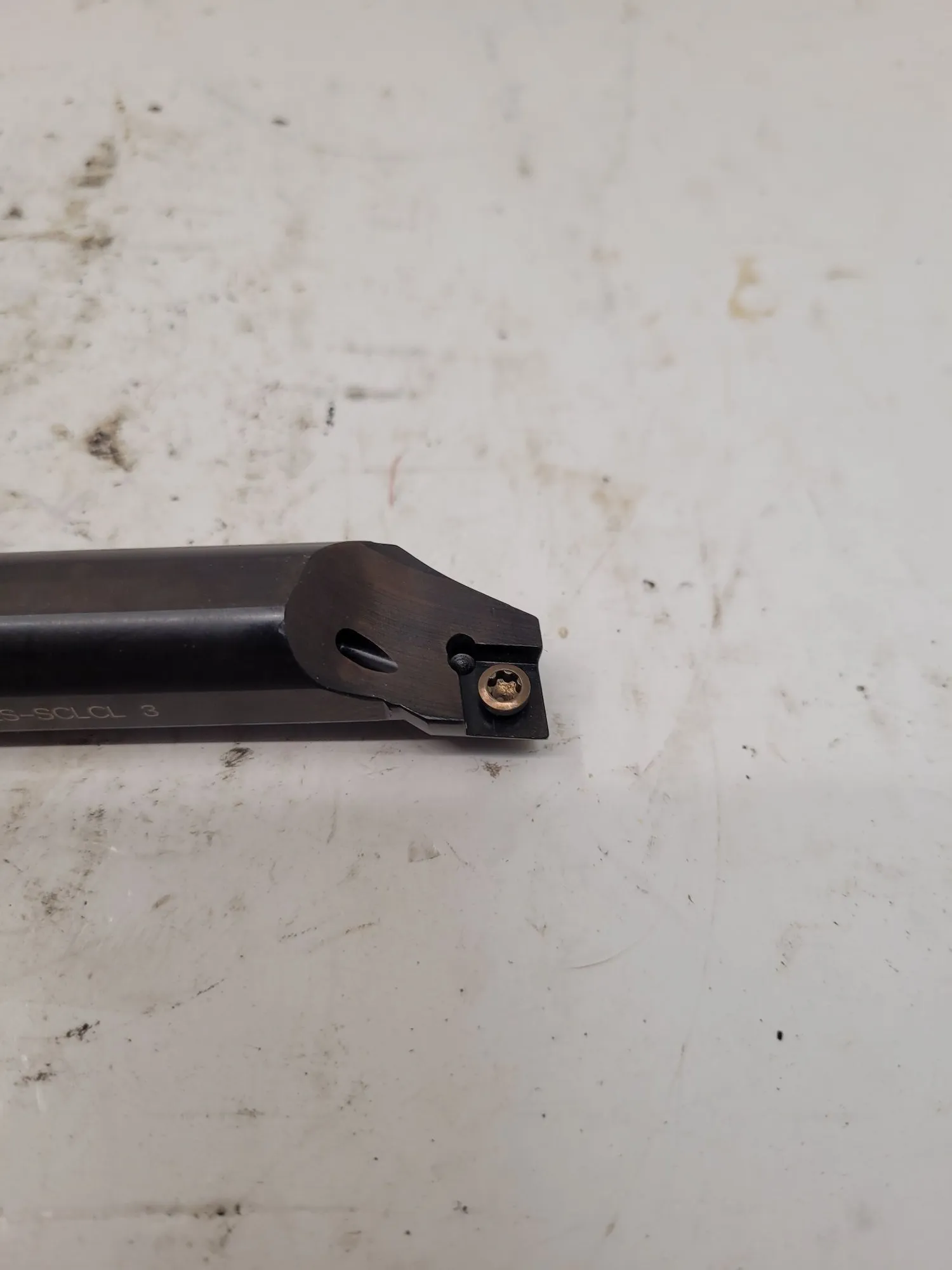

SANDVIK COROMANT A12S-SCLCL 3 COROTURN 107 BORING BAR, 3/4" CONNECTION DIAMETER

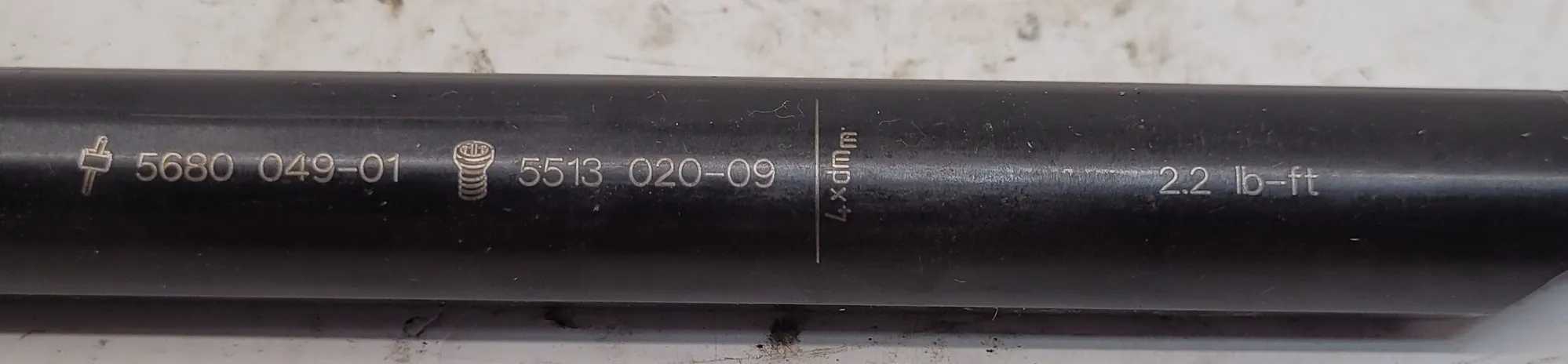

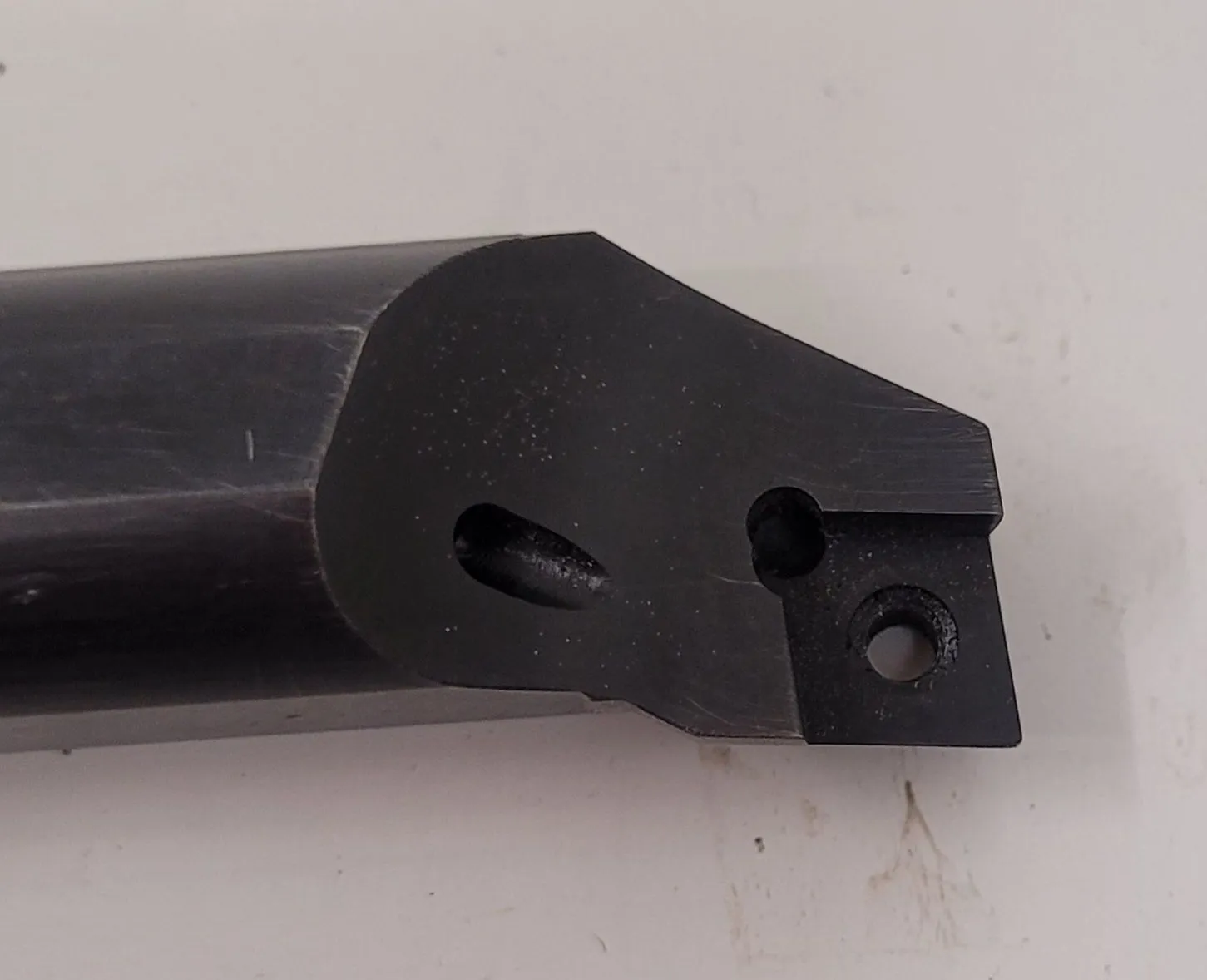

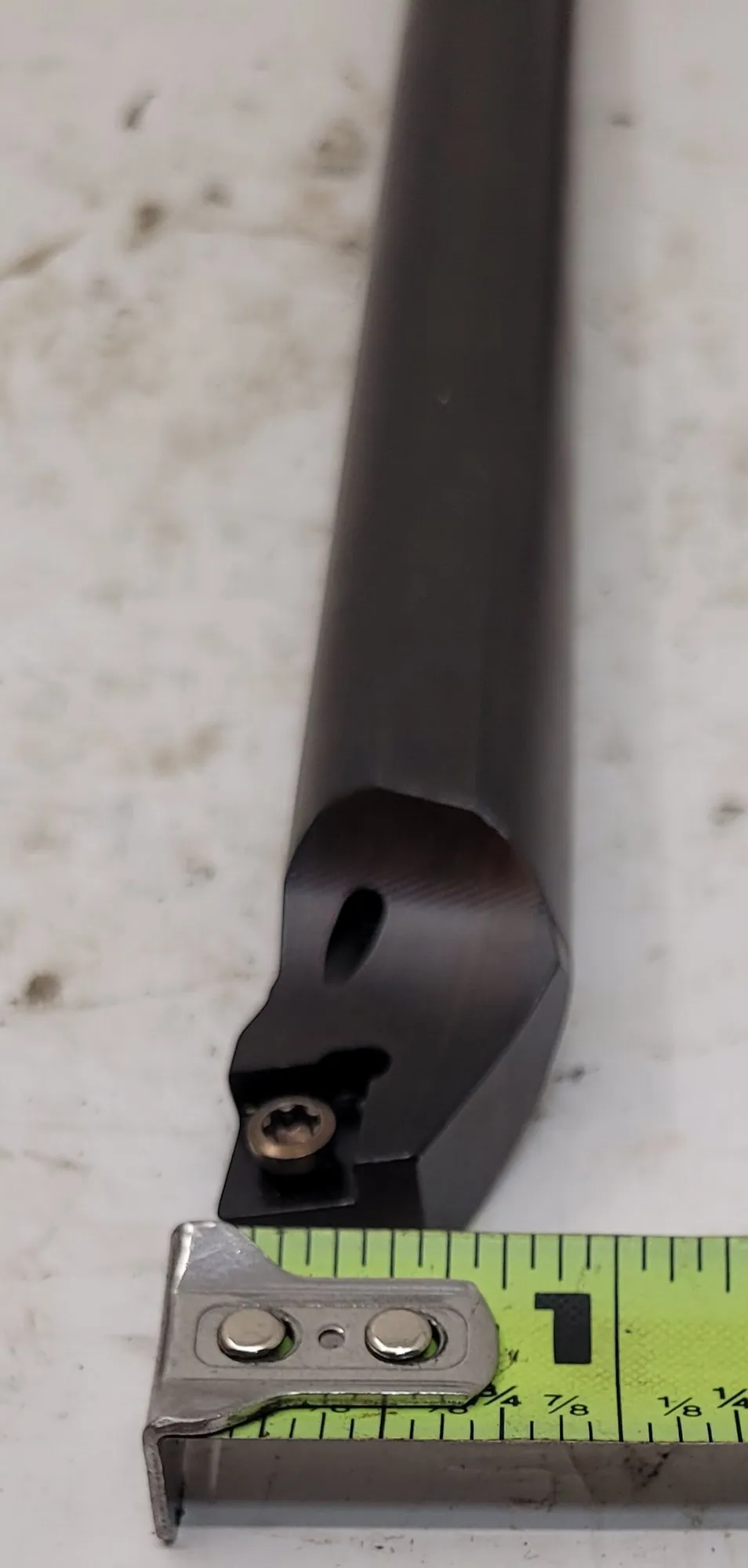

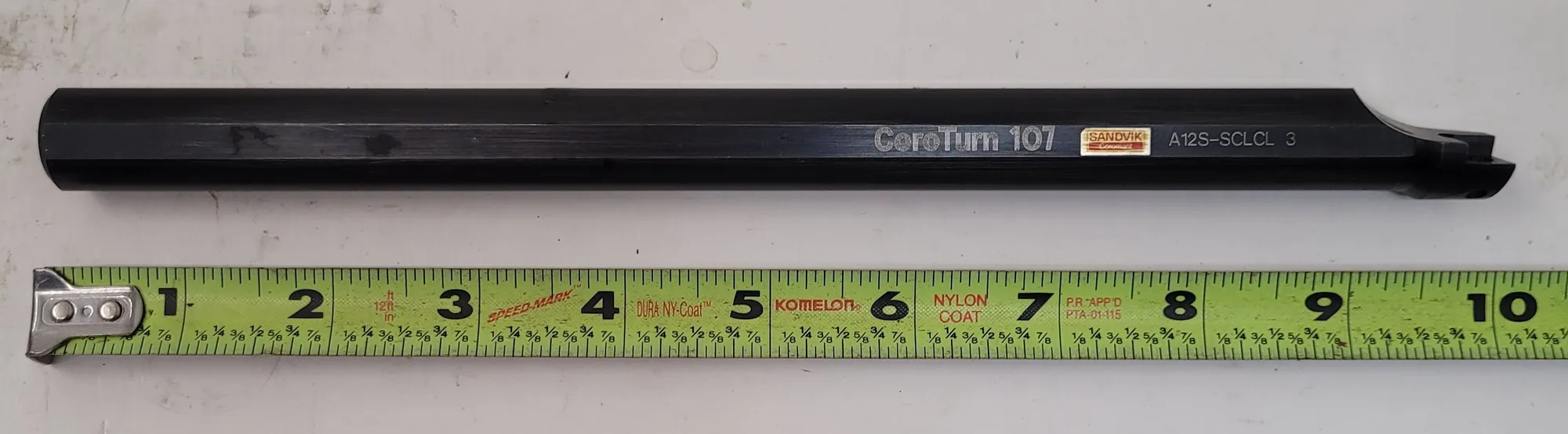

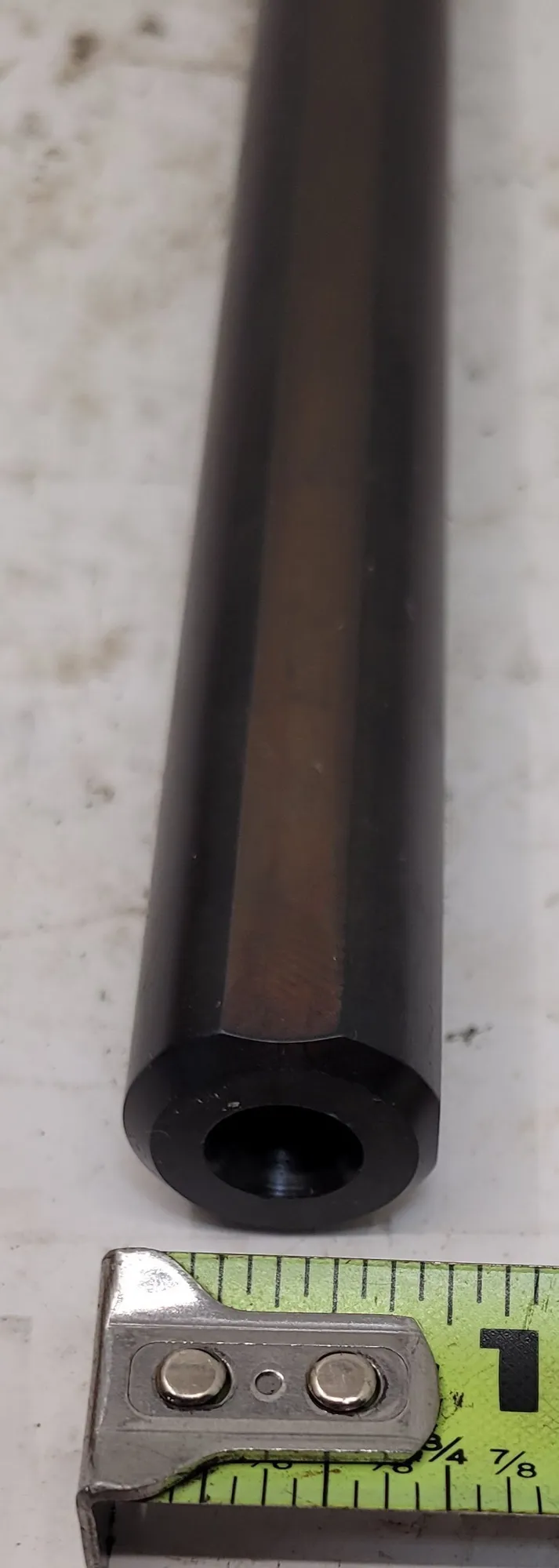

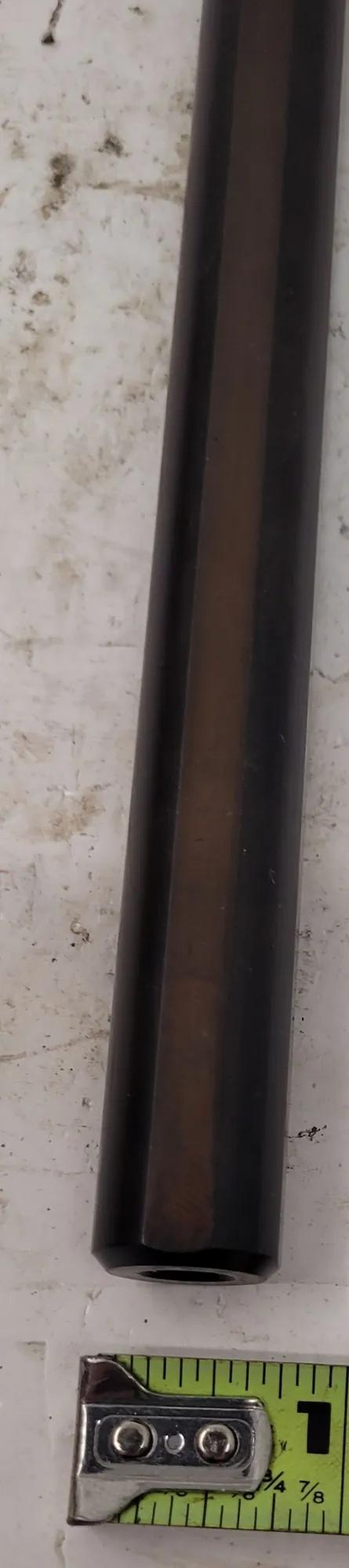

THE SANDVIK COROMANT A12S-SCLCL 3 COROTURN 107 BORING BAR FEATURES A 3/4" CONNECTION DIAMETER ON THE MACHINE SIDE AND A CYLINDRICAL SHANK WITH THREE FLATS. IT HAS A LEFT-HAND CUTTING DIRECTION, WITH A BODY DIAMETER OF 0.75 INCH AND AN OVERALL LENGTH (OAL) OF 10 INCHES. THE MINIMUM BORE DIAMETER SUPPORTED IS 0.9291 INCH. FUNCTIONAL DIMENSIONS INCLUDE A FUNCTIONAL LENGTH OF 10 INCHES, FUNCTIONAL WIDTH OF 0.5 INCH, AND A SHANK HEIGHT OF 0.7087 INCH. THE TOOL UTILIZES AN INSERT SEAT SIZE CODE OF 3/8 AND AN INSERT SEAT CODE OF 09. THE CLAMPING MECHANISM IS A CLAMP WITH A SCREW THROUGH THE HOLE, DESIGNED FOR CCMT 09T308 INSERT TYPES. THE MINIMUM OVERHANG IS 1.125 INCHES, AND THE MAXIMUM OVERHANG IS 3 INCHES.
