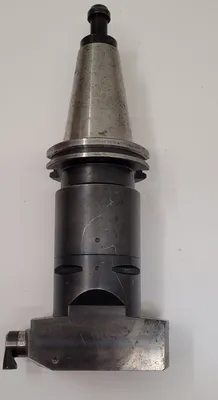

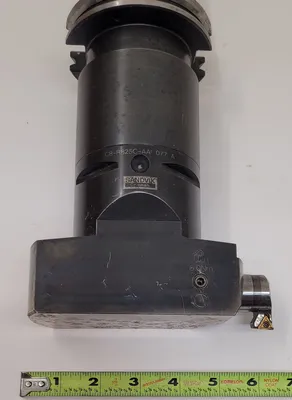

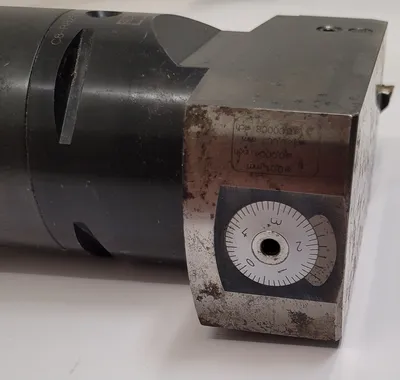

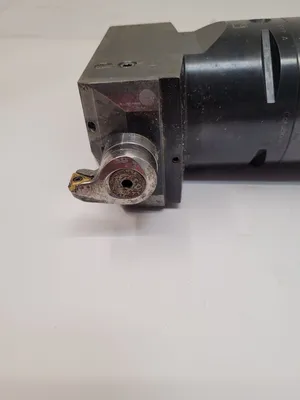

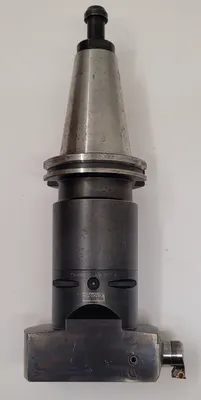

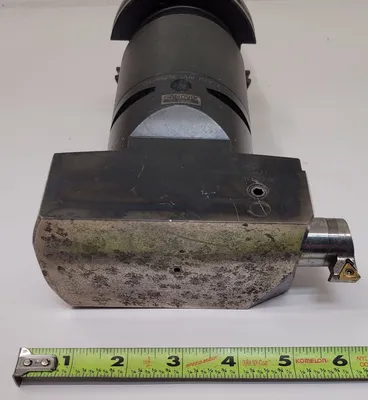

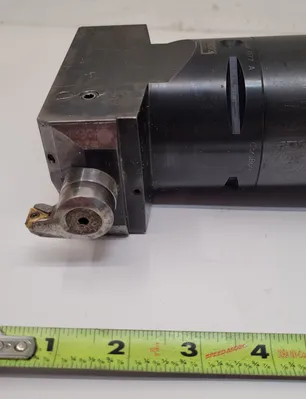

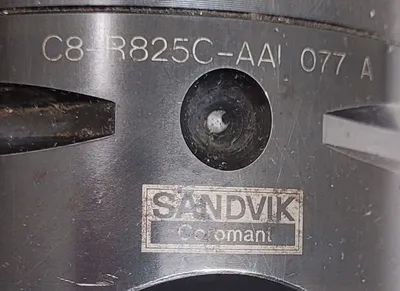

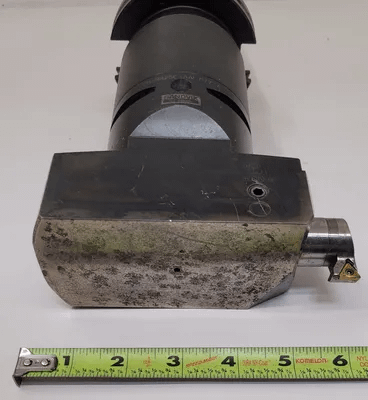

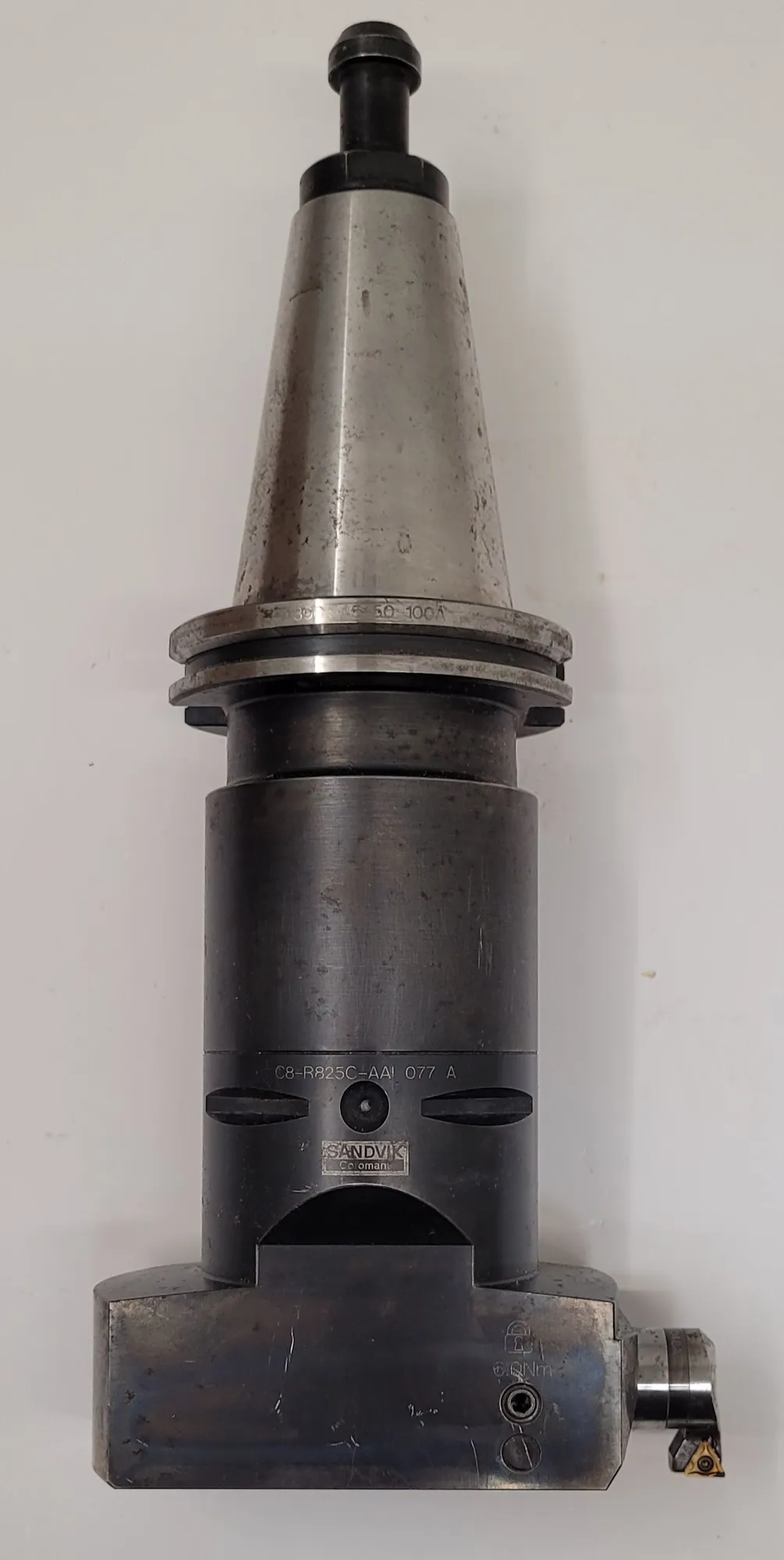

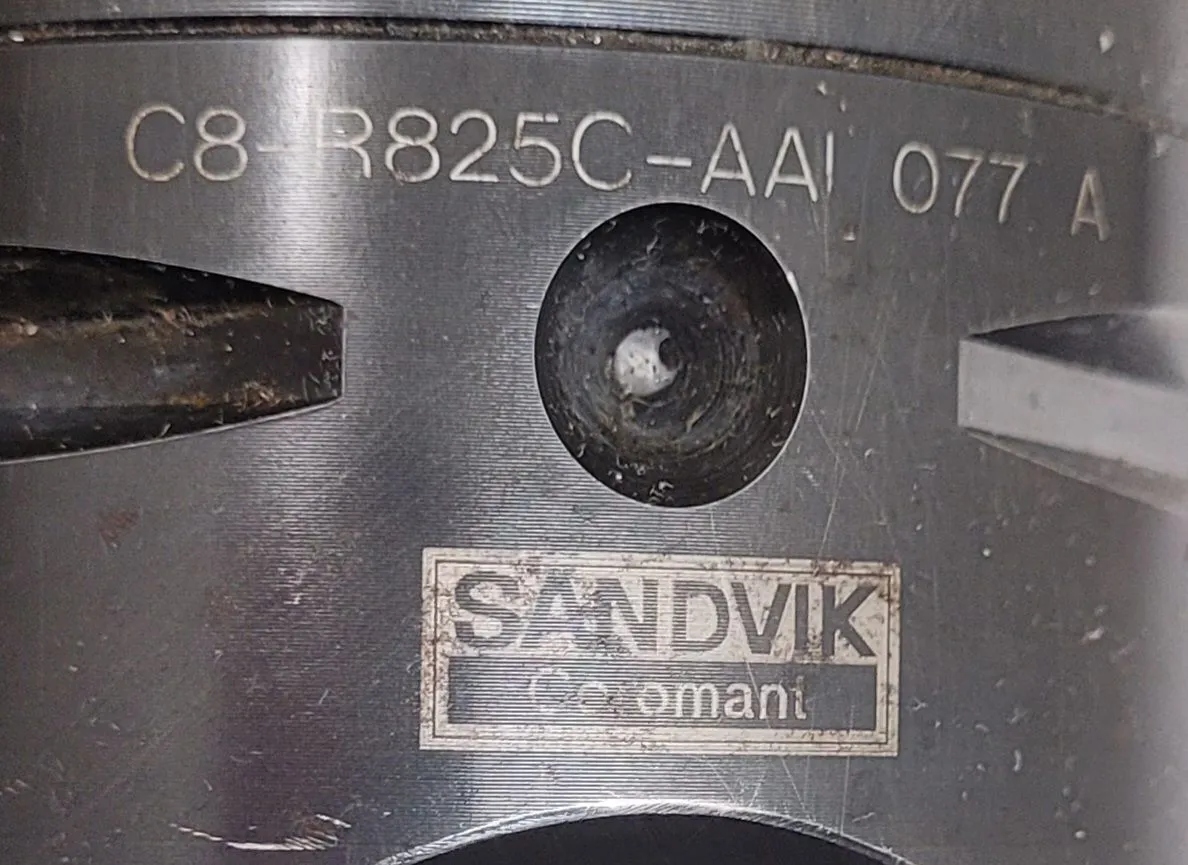

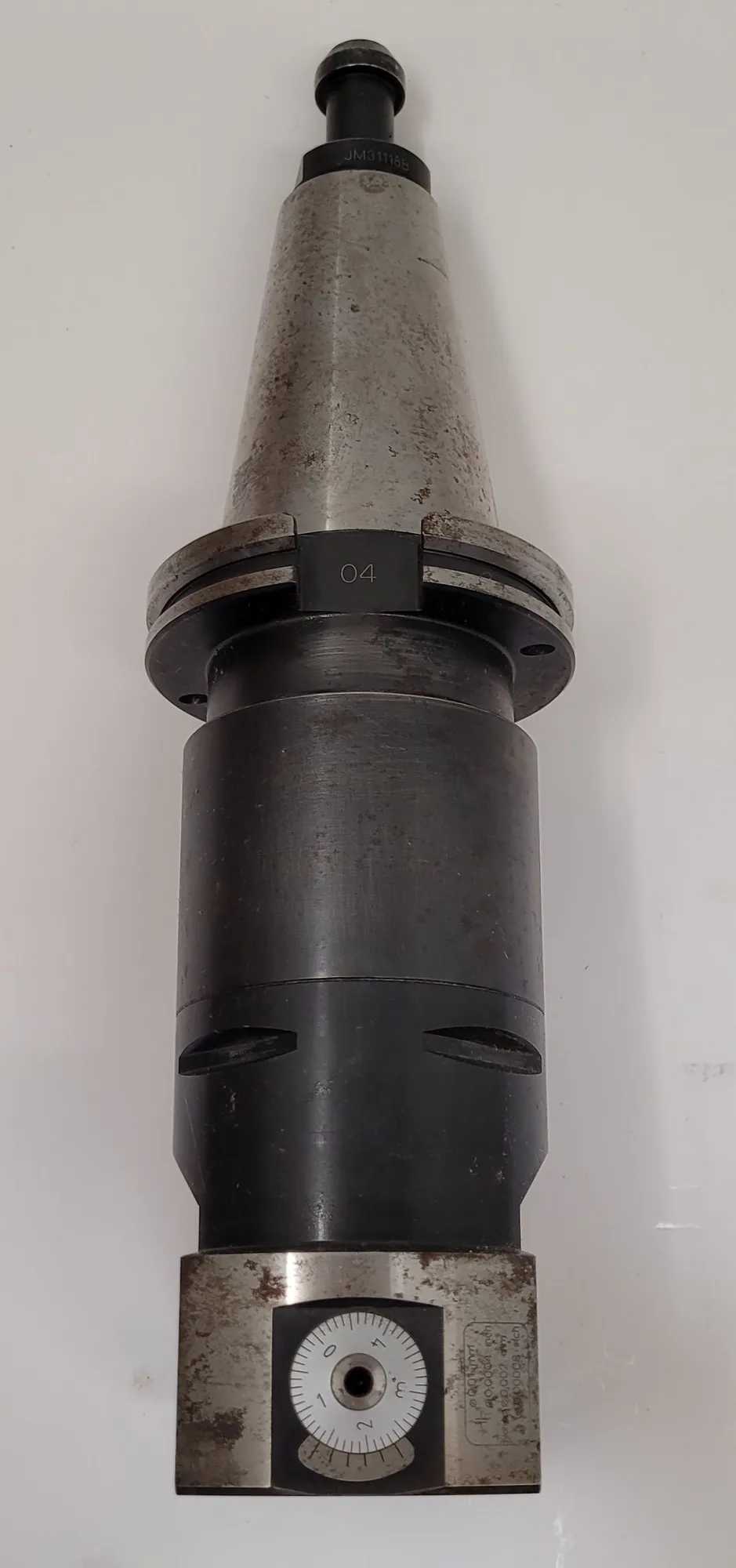

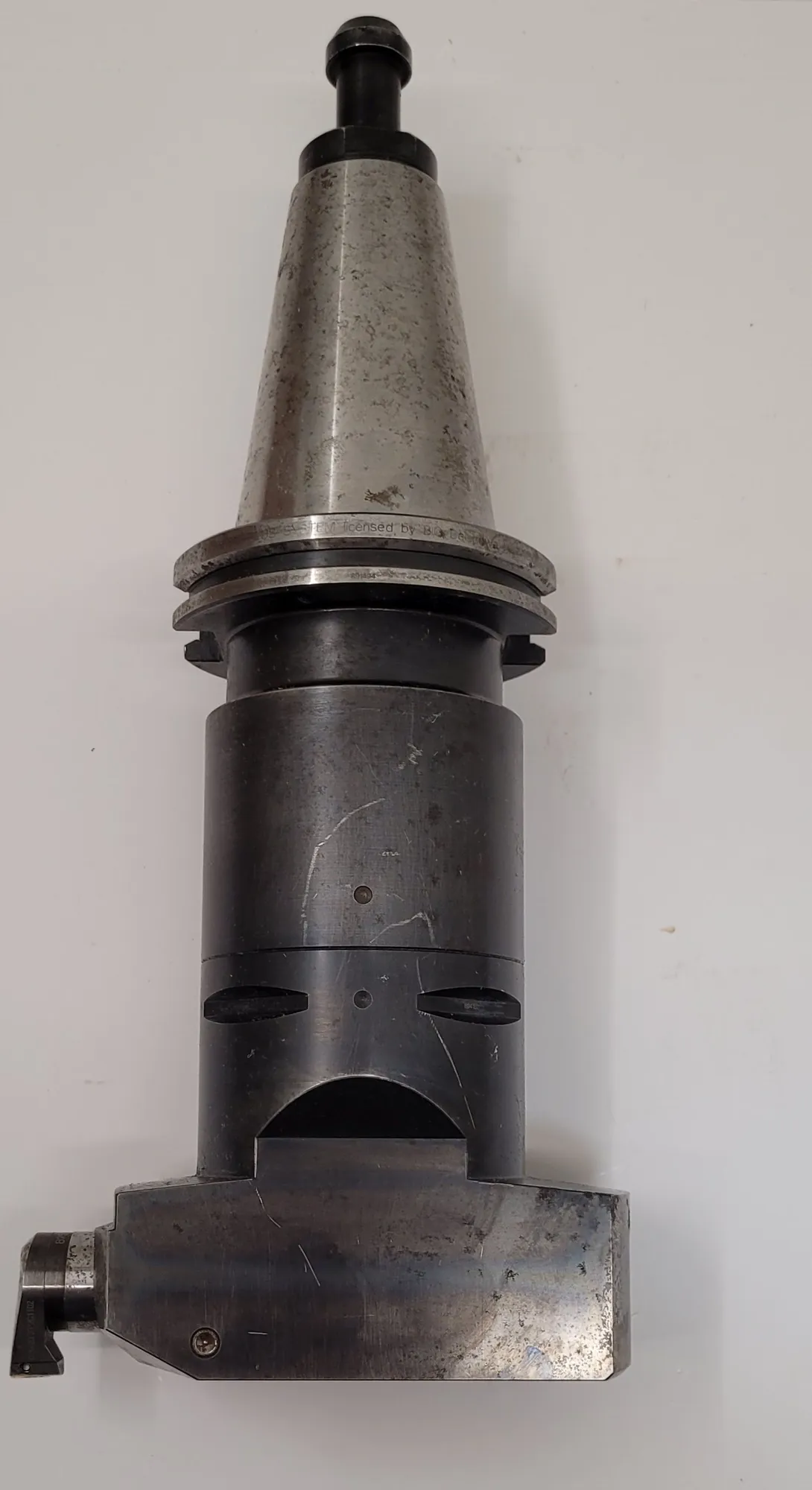

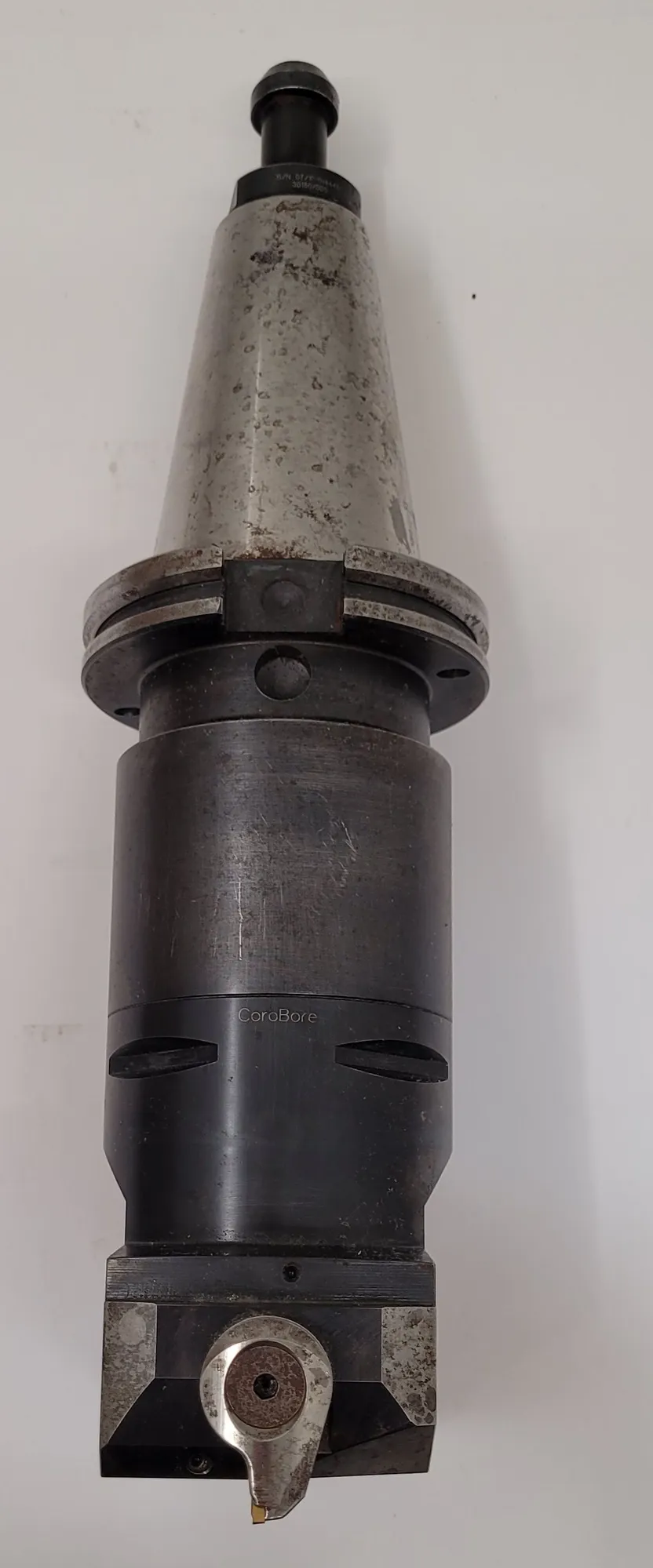

SANDVIK COROMANT COROBORE C8-R825C-AAI 077 A BORING HEAD W/ BIG DAISHOWA CAT50

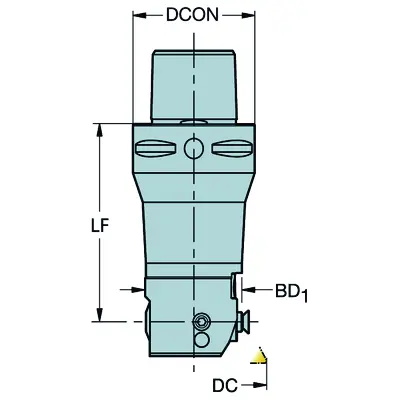

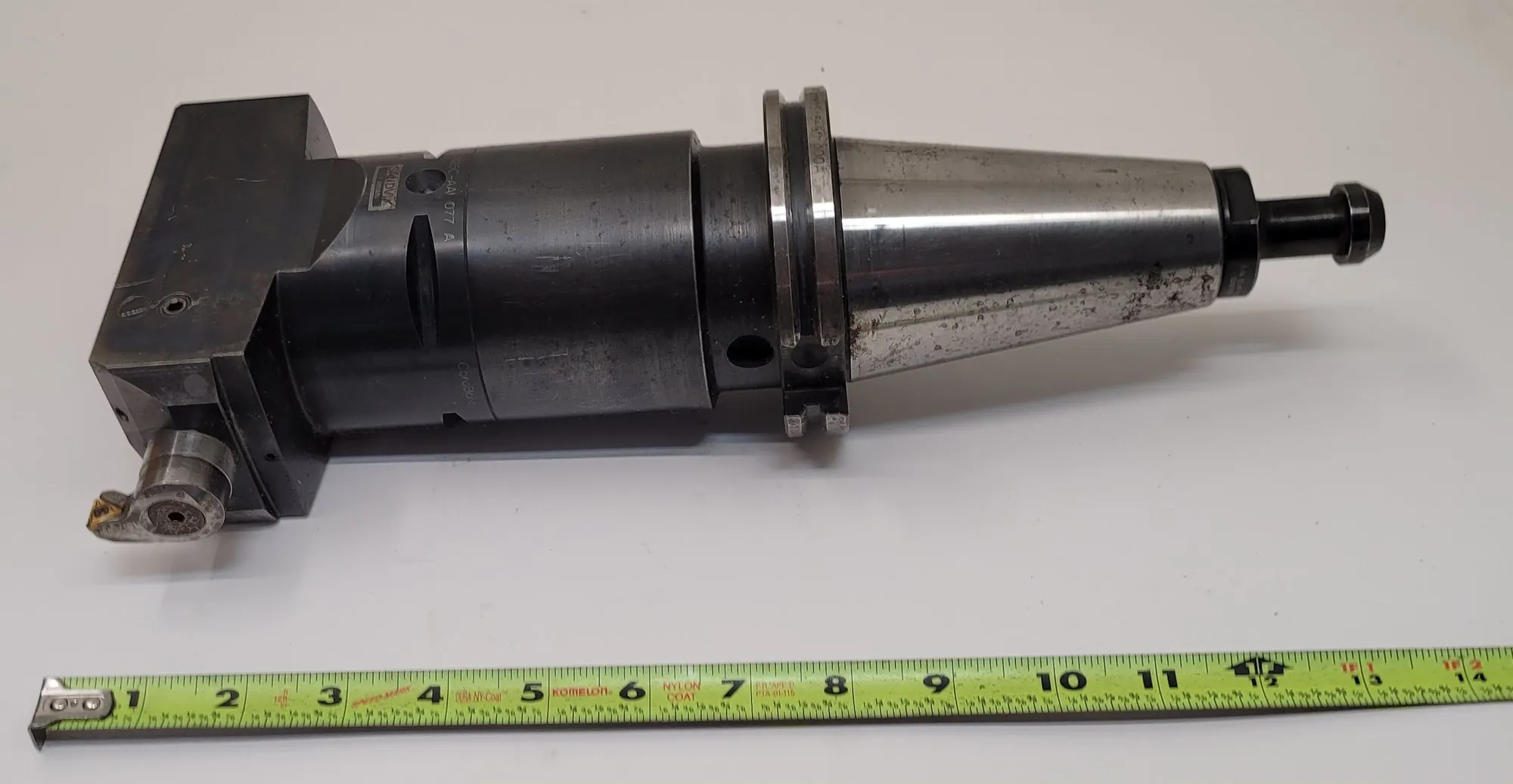

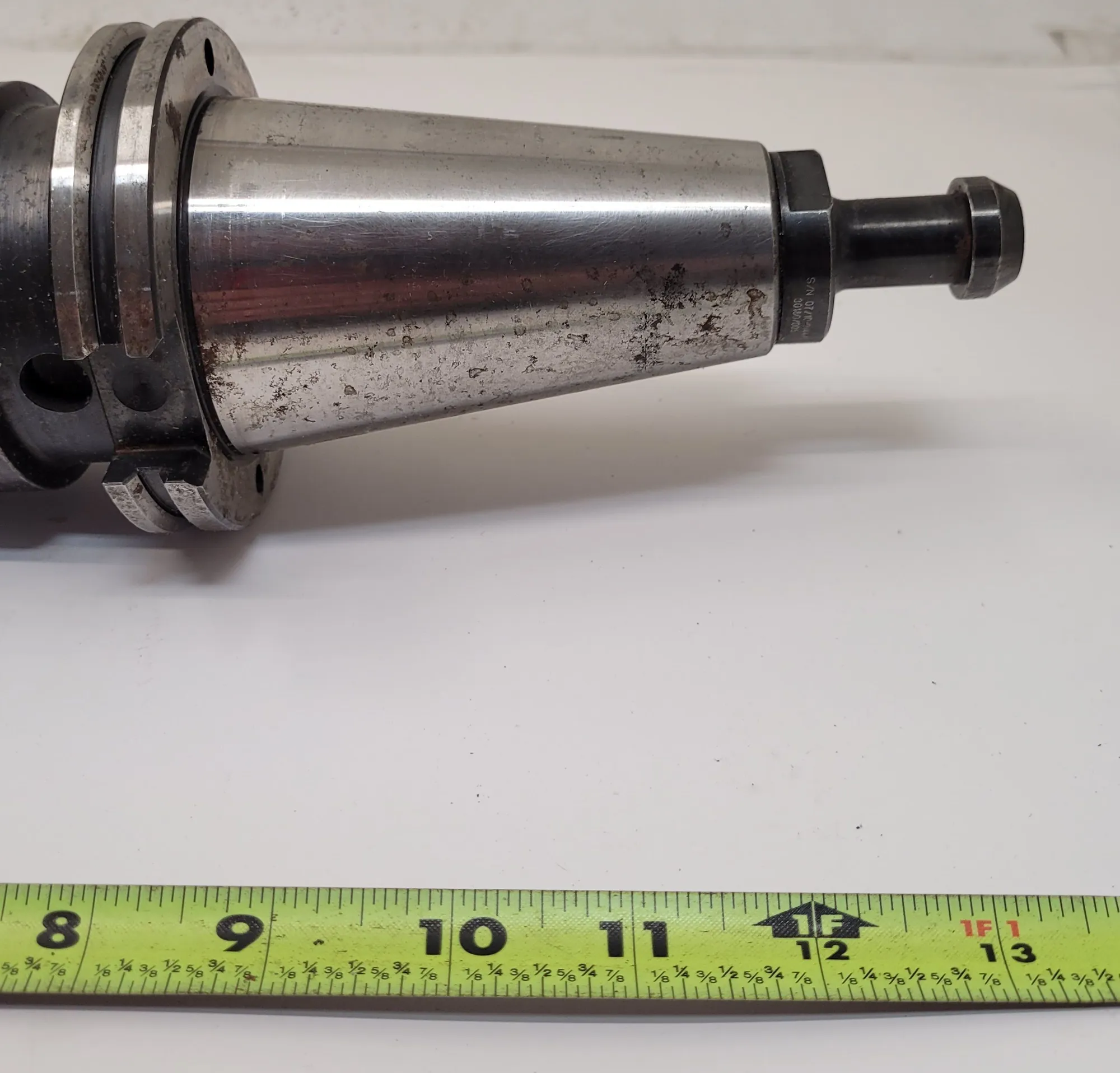

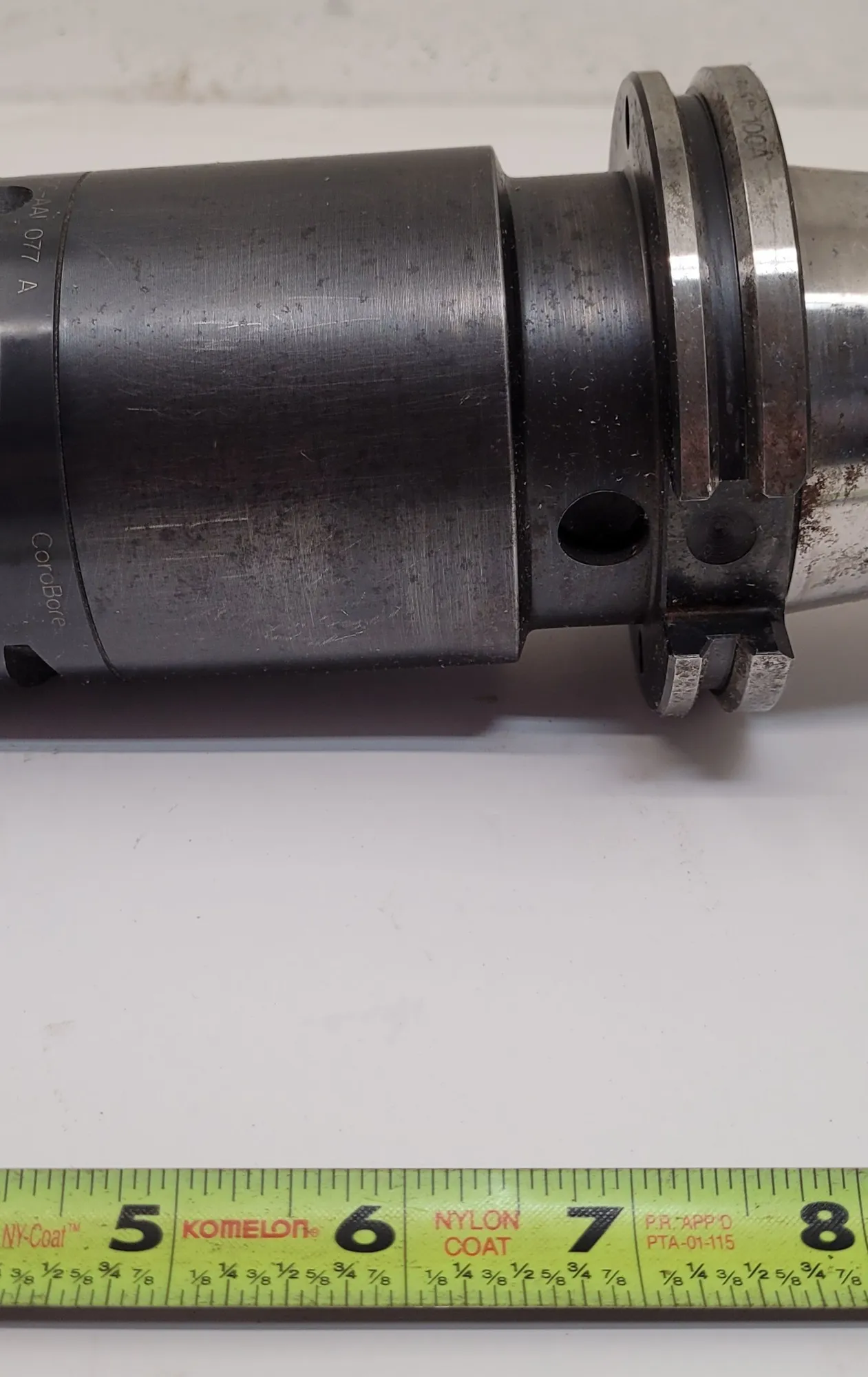

THE SANDVIK COROMANT COROBORE C8-R825C-AAI 077 A BORING HEAD IS DESIGNED FOR TOOLING AND BORING APPLICATIONS, FEATURING A CAPTO 8 CONNECTION AND IS PAIRED WITH A BIG DAISHOWA CAT50 HOLDER. THE OVERALL LENGTH WITH THE CAT 50 HOLDER IS 12 INCHES WITHOUT A BUTTON AND 14 INCHES WITH A BUTTON. SPECIFICATIONS FOR THE COROBORE ONLY INCLUDE A CONNECTION DIAMETER MACHINE SIDE (DCONMS) OF 3.1496 INCHES, A FUNCTIONAL LENGTH (LF_1) OF 3.0315 INCHES, A FUNCTIONAL WIDTH (WF_1) OF 2.2835 INCHES, A BODY LENGTH (LB_1) OF 3.7795 INCHES, AND A BODY DIAMETER (BD_1) OF 5.1181 INCHES. THE TOTAL LENGTH (OAL) OF THE BORING HEAD IS 5.6693 INCHES. THE MINIMUM MILLING DIAMETER (DCN) IS 5.3543 INCHES, AND THE MAXIMUM CUTTING DIAMETER (DCX) IS 6.5748 INCHES.
