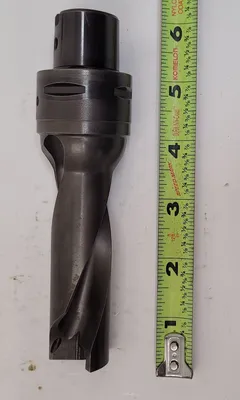

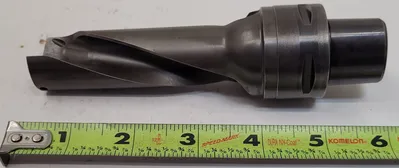

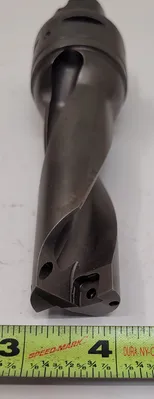

SANDVIK COROMANT CORODRILL 880-D2700C4-03 INDEXABLE INSERT DRILL - 1.063 INCH DC

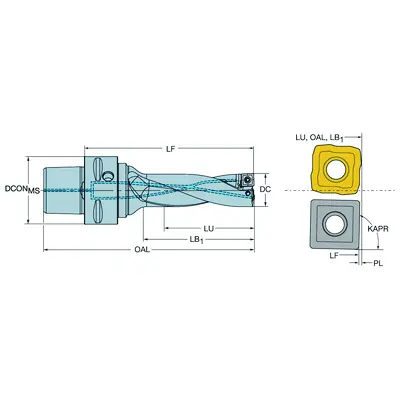

THE SANDVIK COROMANT 880-D2700C4-03 IS AN INDEXABLE INSERT DRILL WITH A MAXIMUM ROTATIONAL SPEED OF 16000 RPM. IT FEATURES 2 SPIRAL FLUTES AND HAS AN OVERALL LENGTH OF 5.8661 INCHES. THE CUTTING DIAMETER (DC) MEASURES 1.063 INCHES, WITH A USABLE LENGTH (LU) OF 3.2099 INCHES, RESULTING IN A USABLE LENGTH DIAMETER RATIO (ULDR) OF 3.0197. THE DRILL IS DESIGNED FOR OPERATION WITH A COOLANT PRESSURE OF 145.0377 LBF/IN2. THE CONNECTION DIAMETER MACHINE SIDE (DCONMS) IS 1.5748 INCHES. THE FUNCTIONAL DIAMETER (DFC) IS 1.1024 INCHES, AND THE TOOL CUTTING EDGE ANGLE (KAPR) IS 88 DEGREES. THE ACHIEVABLE HOLE TOLERANCE RANGES FROM A LOWER LIMIT (TCHAL) OF 0 INCHES TO AN UPPER LIMIT (TCHAU) OF 0.0098 INCHES. KEY DIMENSIONAL SPECIFICATIONS INCLUDE A POINT LENGTH (PL) OF 0.0209 INCHES, A FUNCTIONAL LENGTH (LF) OF 4.9004 INCHES, AND A BODY LENGTH (LB) OF 3.3071 INCHES.
