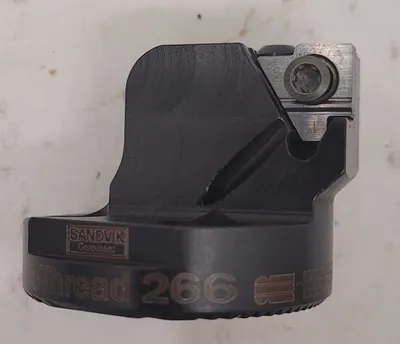

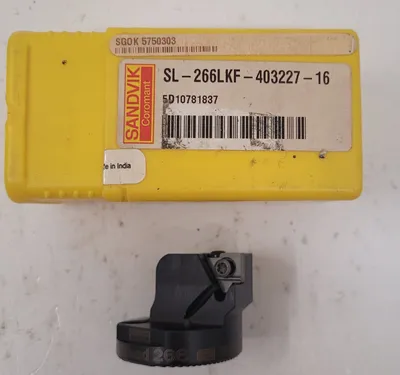

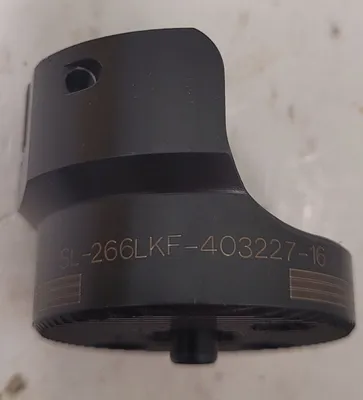

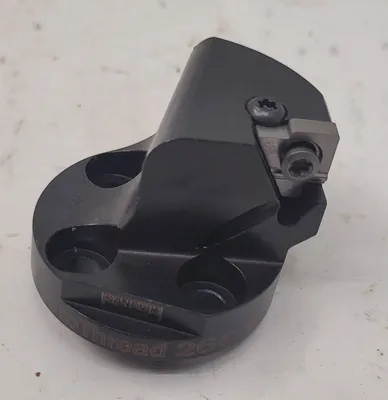

SANDVIK COROMANT COROTHREAD 266 SL-266LKF-403227-16 THREAD TURNING HEAD

THE SANDVIK COROMANT SL-266LKF-403227-16 IS A THREAD TURNING HEAD UTILIZING COROTHREAD 266 TECHNOLOGY. THIS LEFT-HAND APPLICATION COMPONENT FEATURES A MINIMUM BORE DIAMETER (DMIN) OF 1.9685 INCHES AND A MAXIMUM OVERHANG (OHX) OF 1.2598 INCHES. THE CONNECTION DIAMETER ON THE MACHINE SIDE (DCONMS) IS 1.5748 INCHES. THE PHYSICAL DIMENSIONS INCLUDE A FUNCTIONAL LENGTH (LF) OF 1.2598 INCHES, A FUNCTIONAL WIDTH (WF) OF 1.063 INCHES, AND A FUNCTIONAL HEIGHT (HF) OF 0 INCHES. THE OVERALL LENGTH (OAL) MEASURES 1.4094 INCHES. IT ACCOMMODATES AN INSERT SEAT WITH A METRIC SIZE (SSC_M) OF 16 AND AN IMPERIAL SIZE CODE (SSC_N) OF 3/8.
