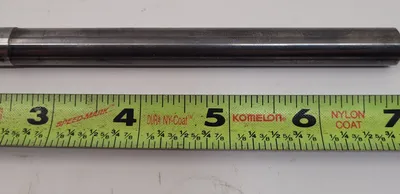

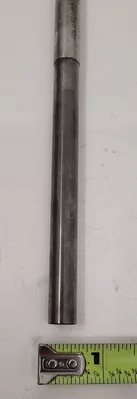

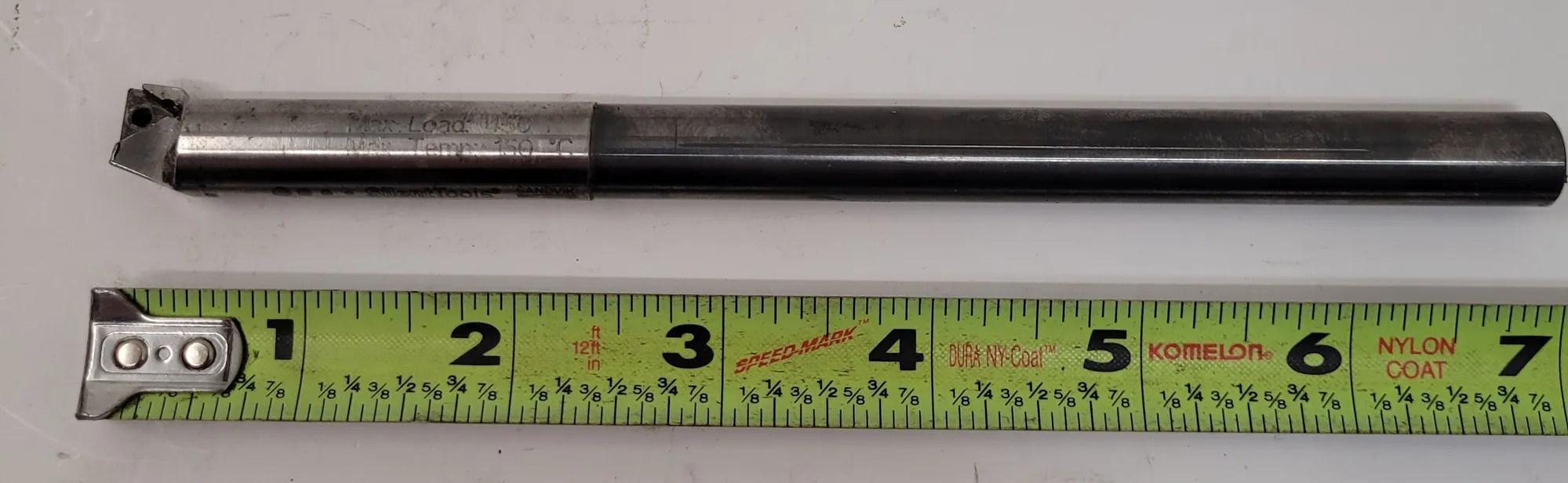

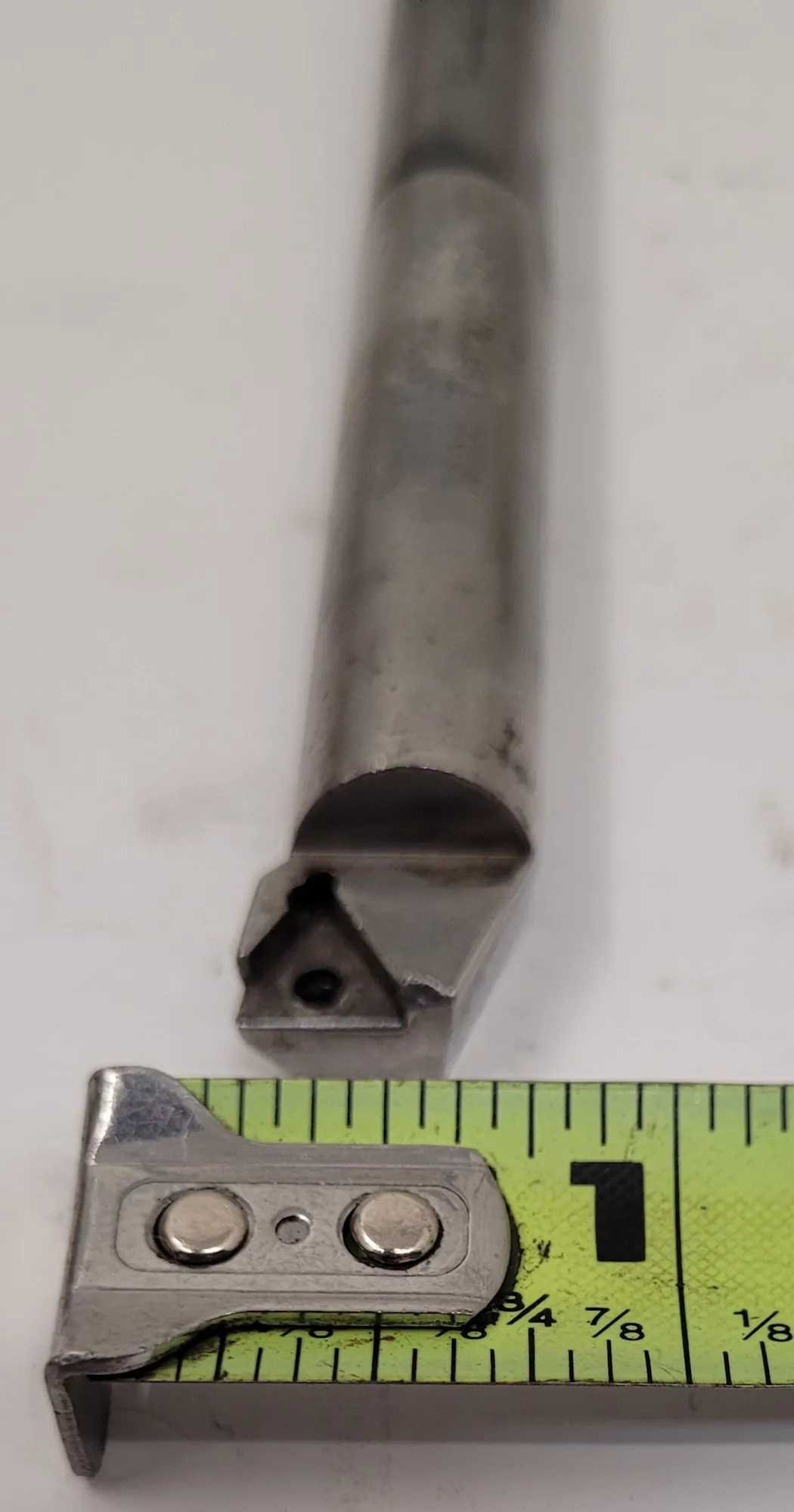

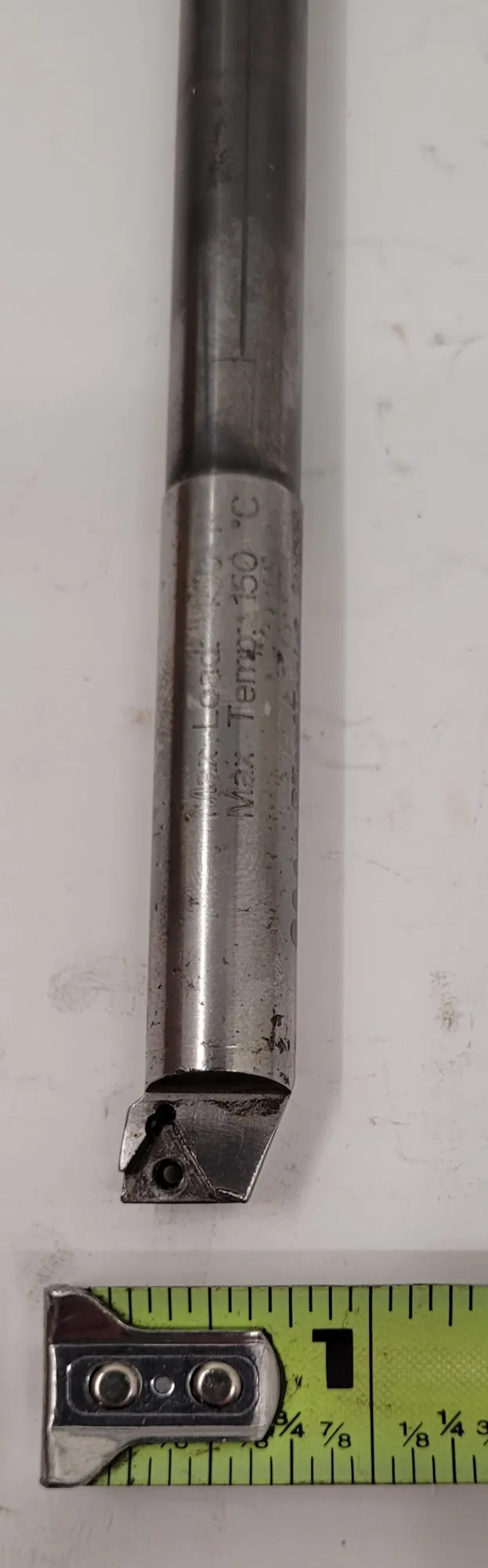

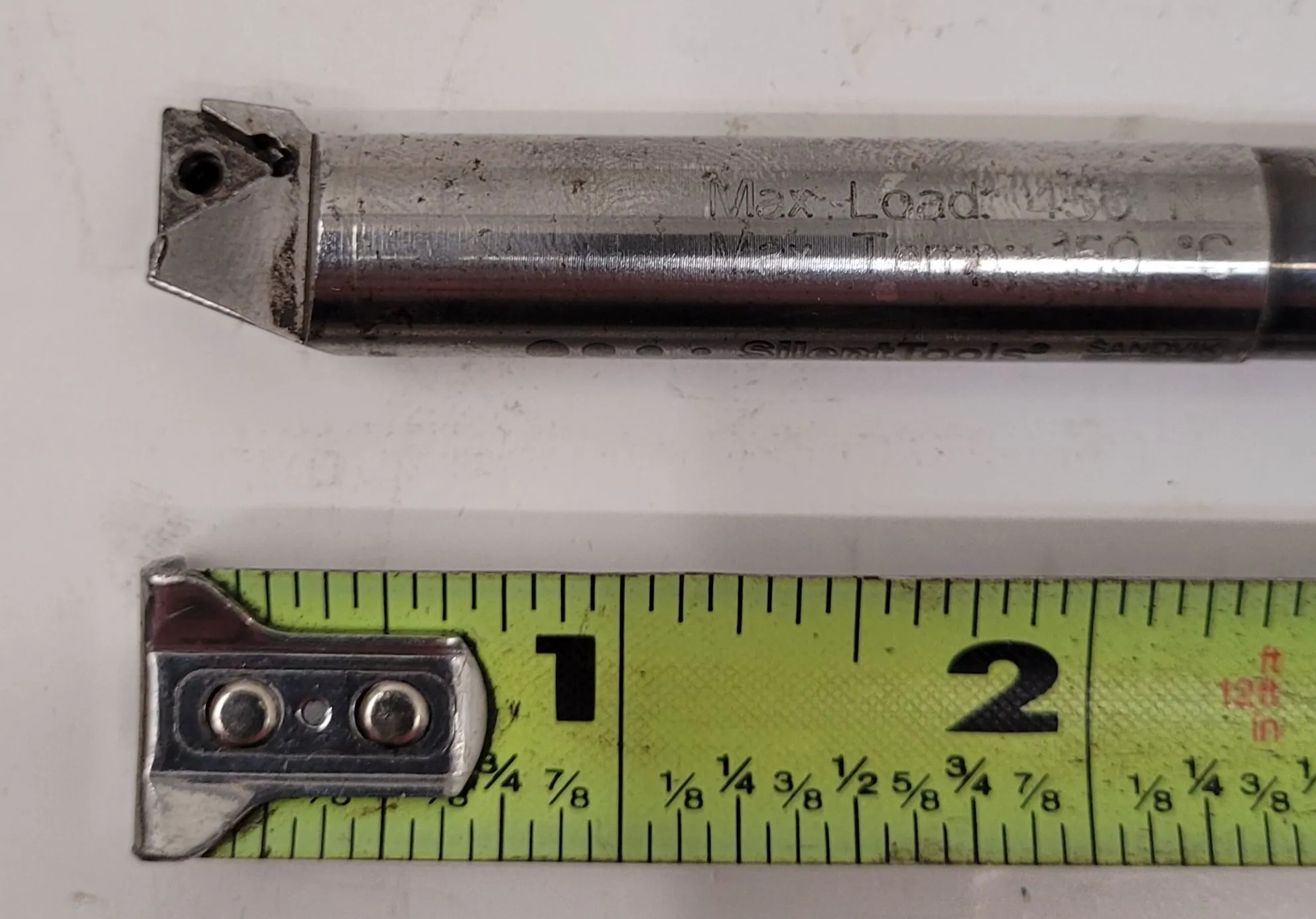

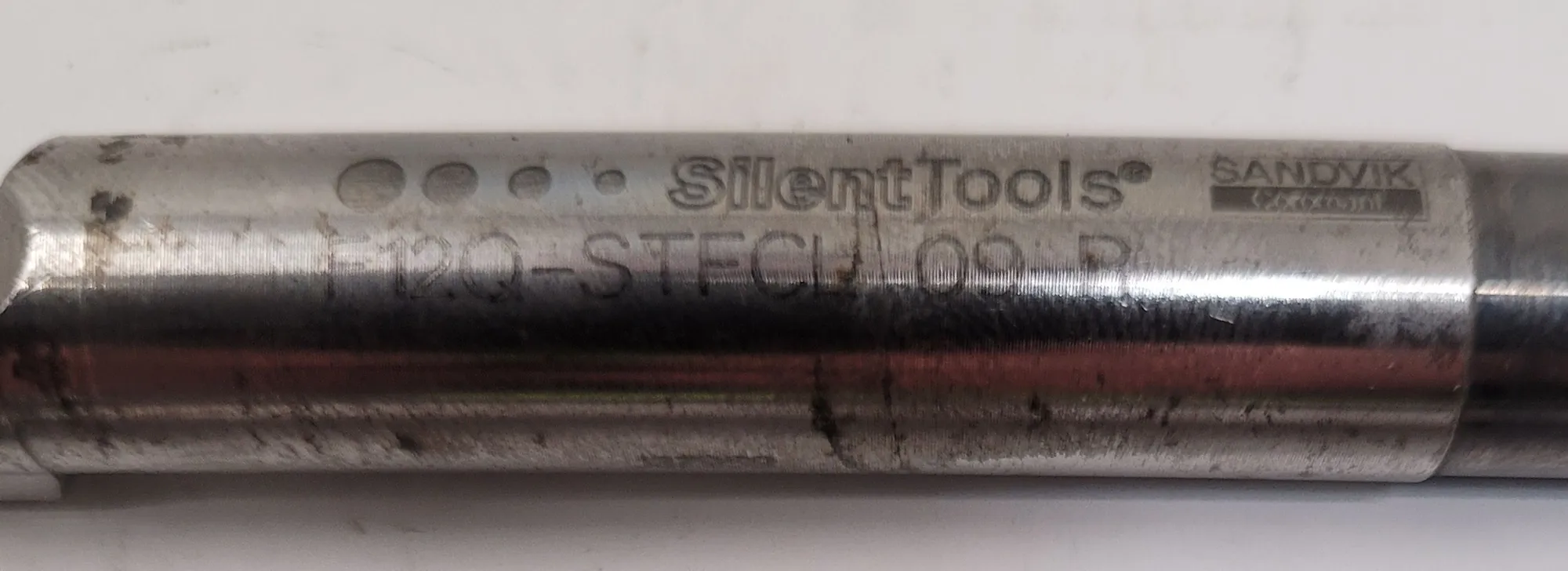

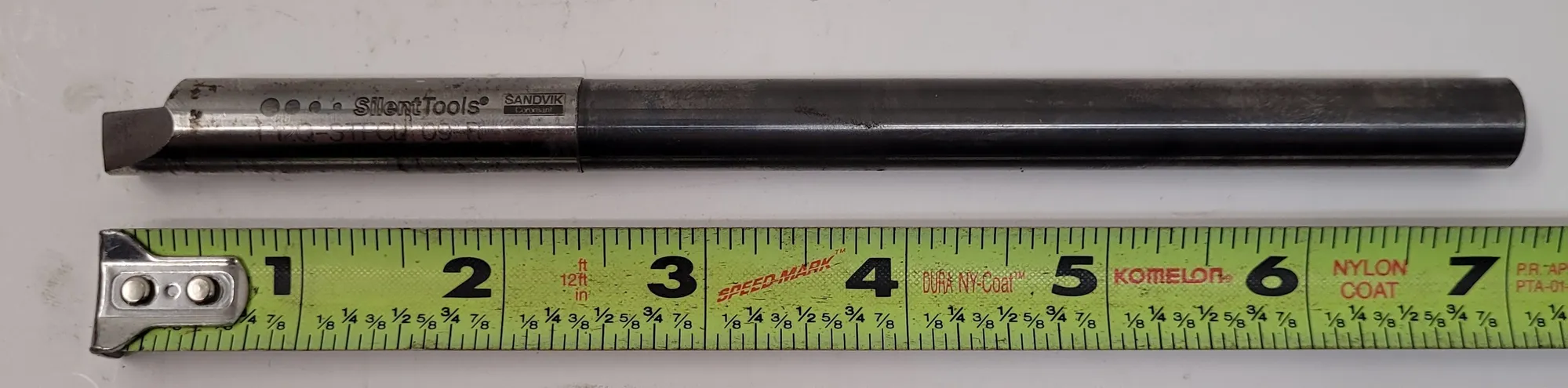

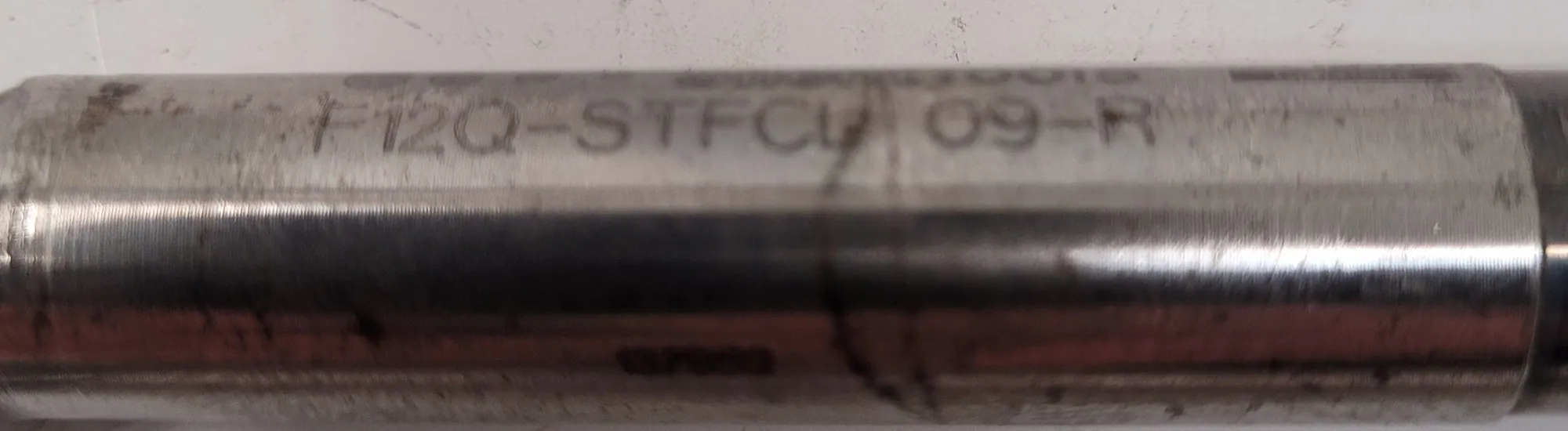

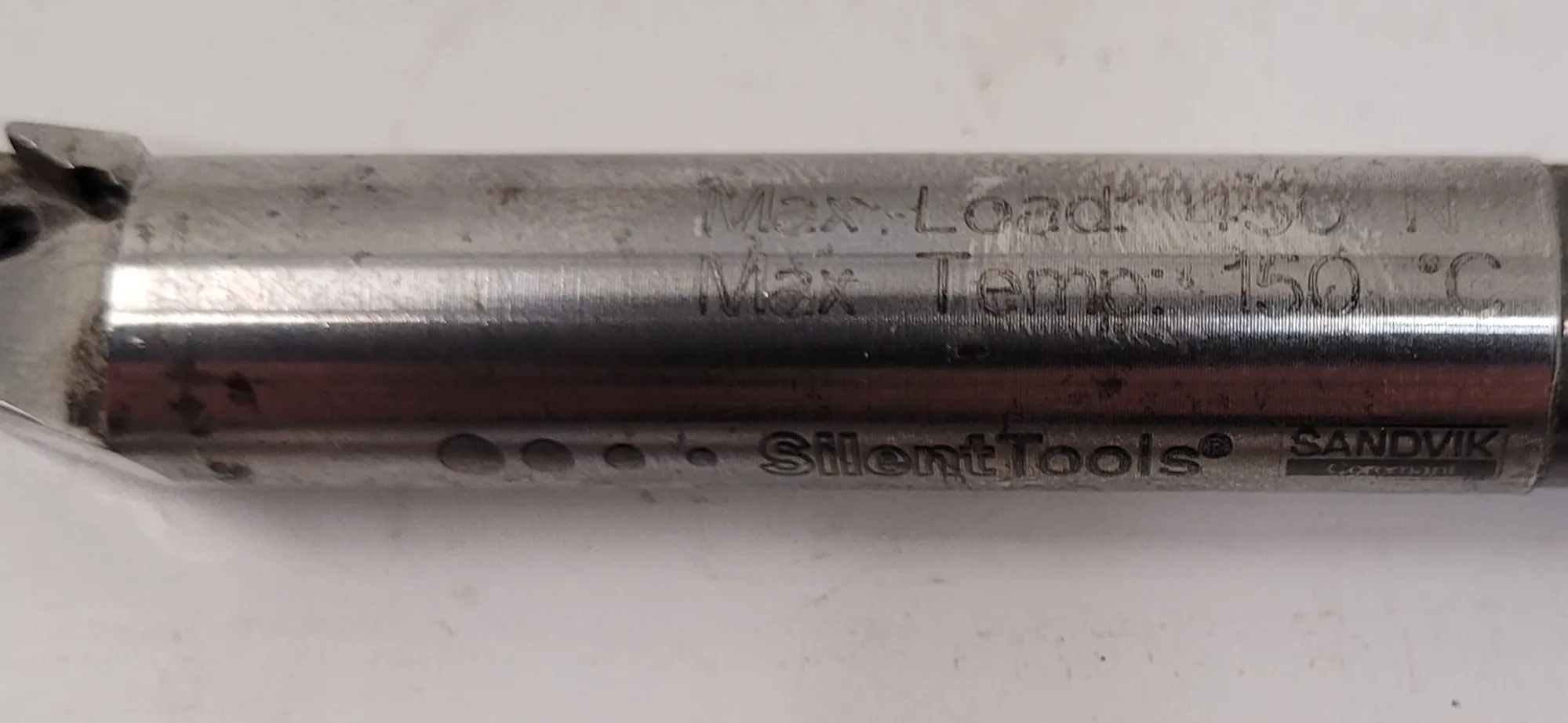

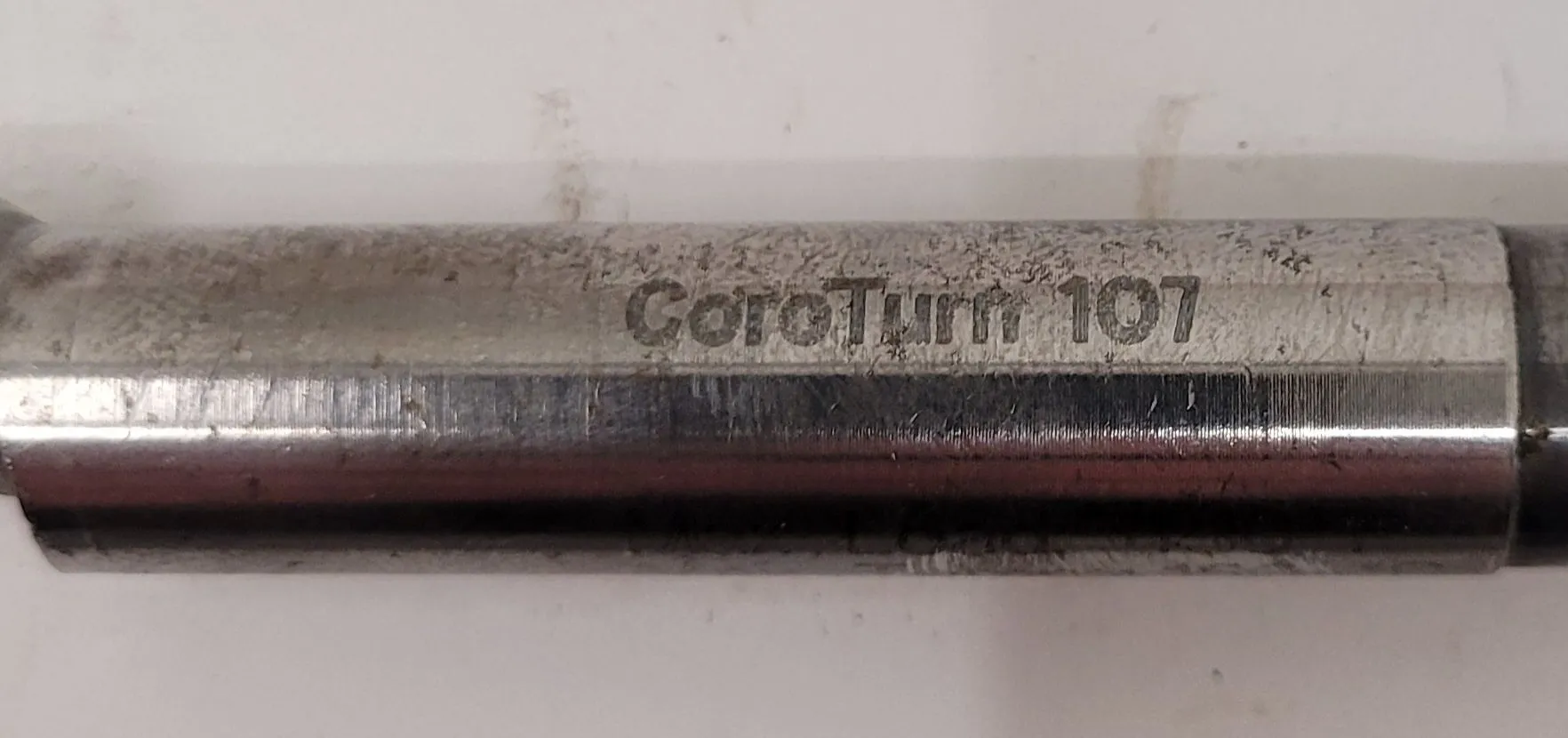

Sandvik Coromant Coroturn 107 F12Q-STFCL 09-R Silent Tool Boring Bar

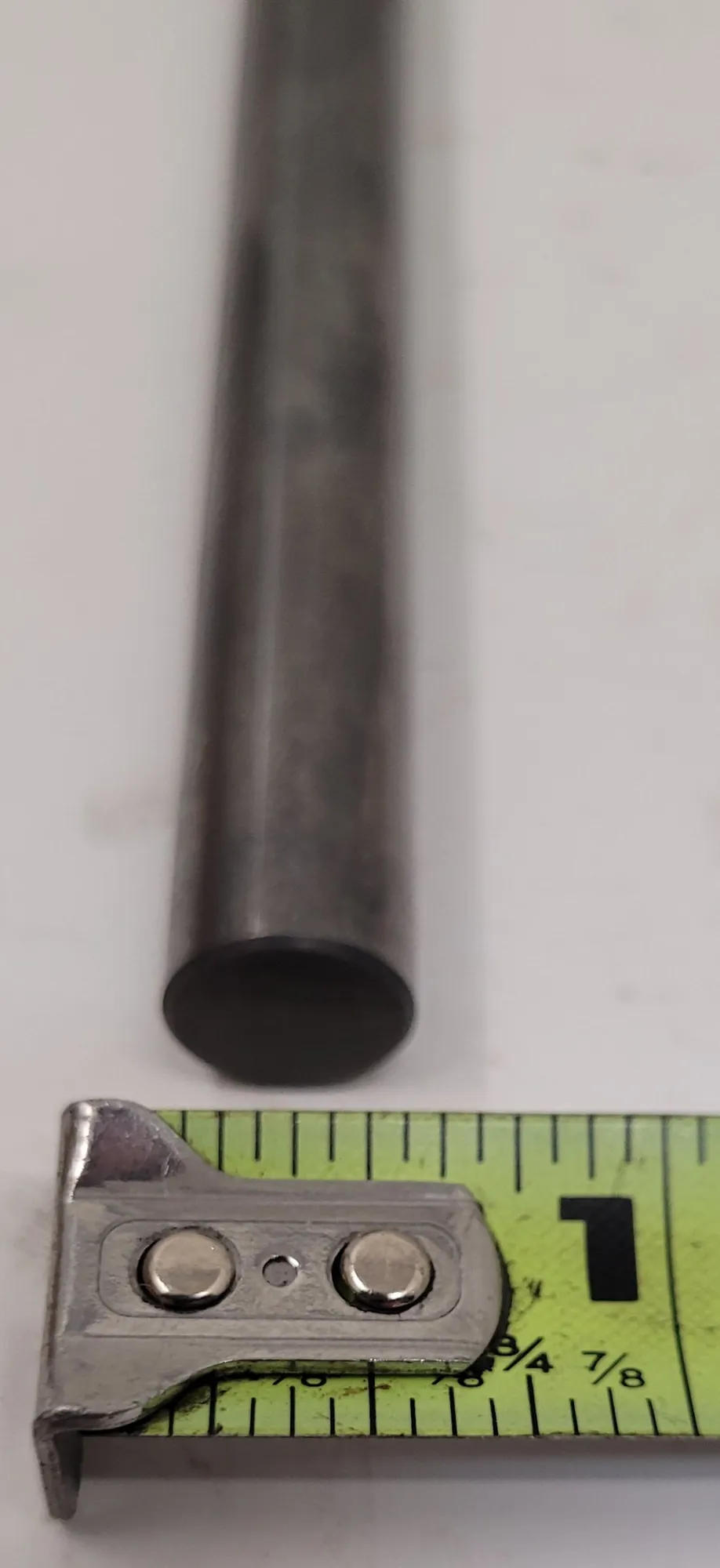

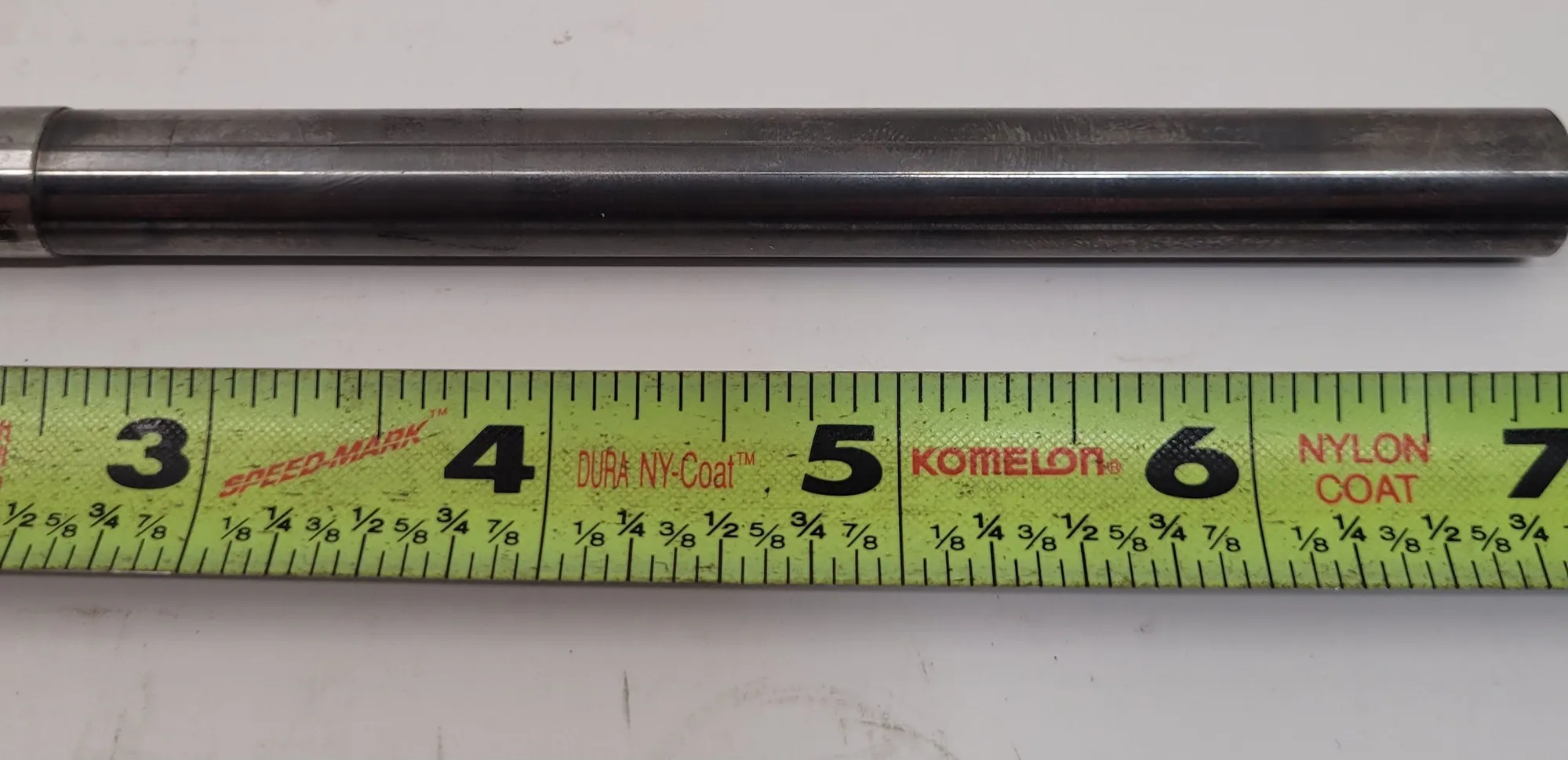

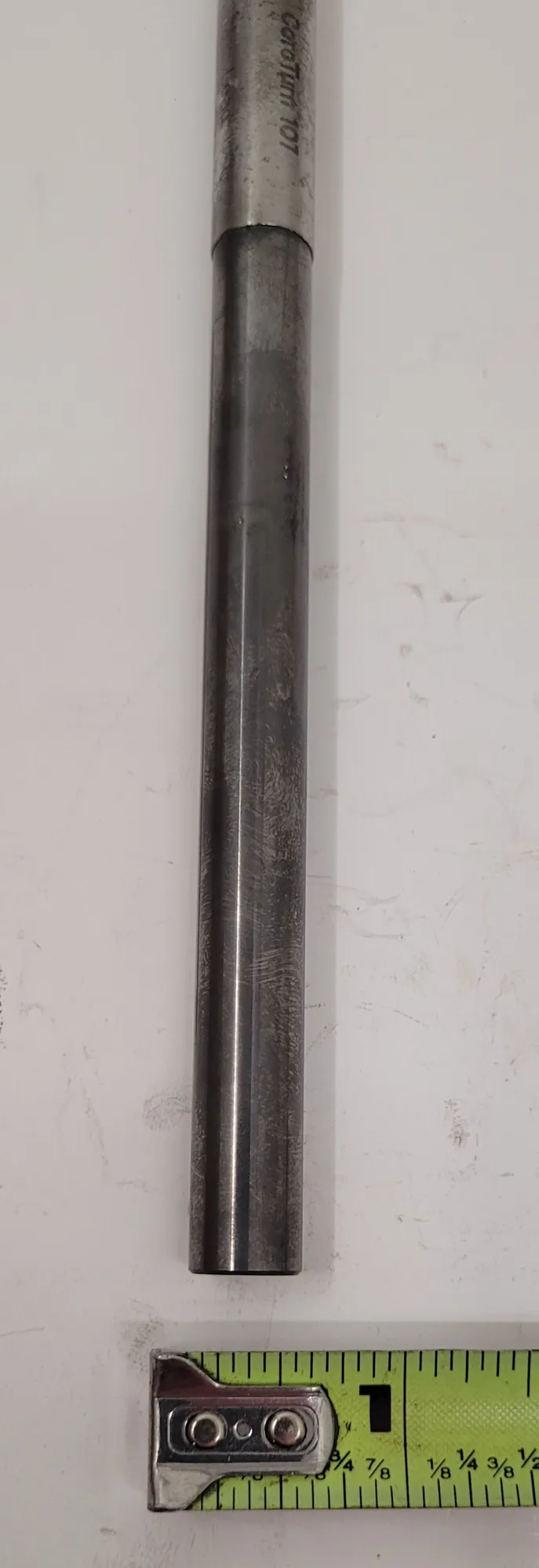

This Sandvik Coromant F12Q-STFCL 09-R Coroturn 107 boring bar is a silent tool designed for left-hand operations. It features a minimum bore diameter of 0.6299 inch, a functional length of 7.0866 inch, and an overall length (OAL) of 7.0866 inch. The body diameter is 0.4724 inch, and the functional width is 0.3543 inch. The bar offers a minimum overhang of 2.8346 inch and a maximum overhang of 4.7244 inch. Both the workpiece side body angle and the machine side body angle are 0 degrees. It utilizes TCMT 090204 insert type with a clamping type code of 'clamp with screw through hole.' The tool cutting edge angle is 91 degrees, and the lead angle is -1 degree. The insert seat size codes are 09 (metric) and 7/32 (imperial view).
