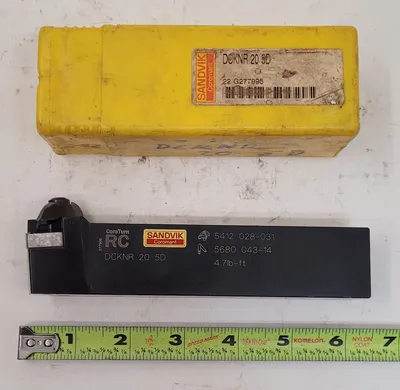

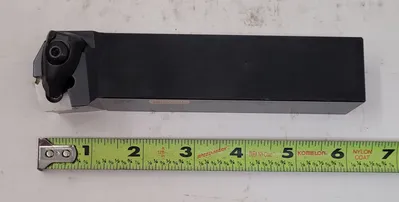

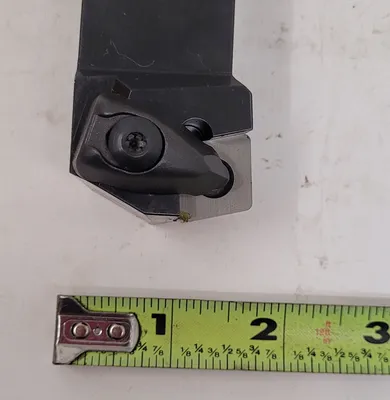

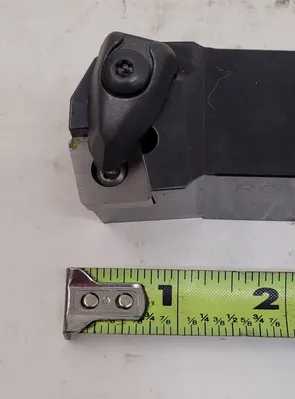

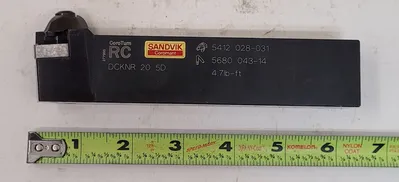

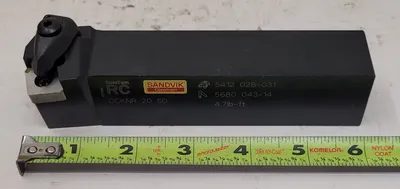

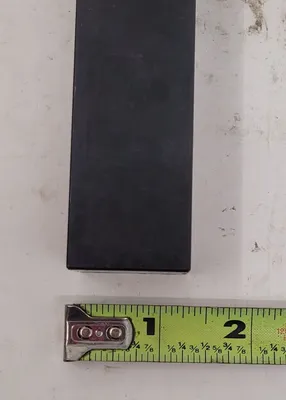

SANDVIK COROMANT DCKNR 20 5D GENERAL TURNING TOOL, RIGHT HAND, 1.25" HANDLE, 6.1496" OAL

THE SANDVIK COROMANT DCKNR 20 5D GENERAL TURNING TOOL FEATURES A RIGHT-HAND DESIGN. KEY DIMENSIONS INCLUDE A HANDLE WIDTH AND HEIGHT OF 1.25 INCHES. THE OVERALL LENGTH OF THE TOOL IS 6.1496 INCHES, WHICH IS CONSISTENT WITH THE PROTRUDING LENGTH. THE FUNCTIONAL LENGTH IS 6 INCHES, FUNCTIONAL WIDTH IS 1.5 INCHES, AND FUNCTIONAL HEIGHT IS 1.25 INCHES. THIS TOOL IS SPECIFIED WITH AN ORTHOGONAL BREAKOUT ANGLE OF -6 DEGREES. IT UTILIZES AN INSERT HOUSING OF SIZE 16, WITH THE IMPERIAL INSERT HOUSING SIZE CODE VIEW LISTED AS 5/8.
