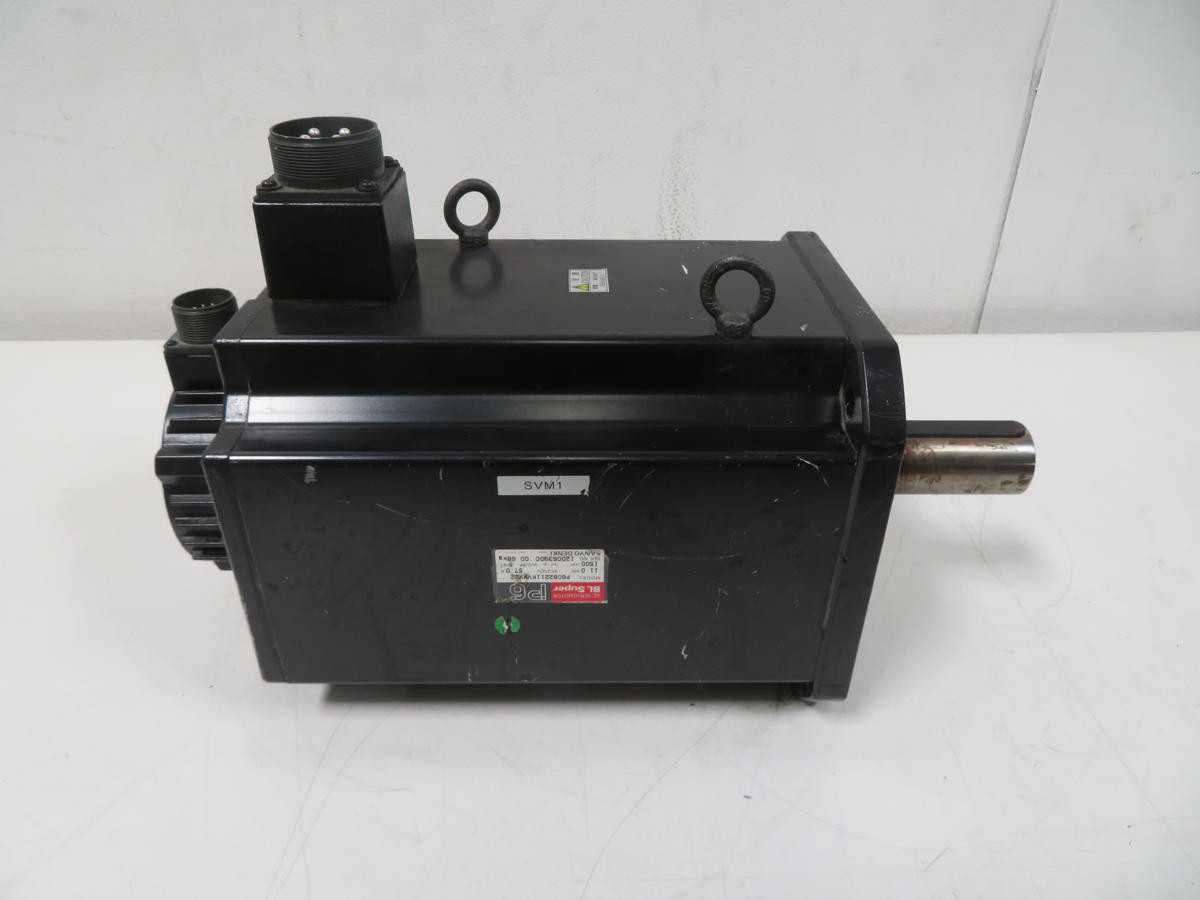

SANYO DENKI P60B2211KVXV22 Servo Motors, 11.0 kW Power, 70 Nm Torque, 55 kg Weight

THE SANYO DENKI P60B2211KVXV22 IS AN AC SERVO MOTOR FROM THE BL SUPER P6 SERIES, DESIGNED FOR INDUSTRIAL MOTION CONTROL APPLICATIONS. THIS UNIT OPERATES ON A 200 VAC SUPPLY, DELIVERING A RATED POWER OUTPUT OF 11.0 KW AND A RATED CURRENT OF 57.0 A. IT ACHIEVES A CONTINUOUS RATED SPEED OF 1500 MIN⁻¹ AND A MAXIMUM OPERATIONAL SPEED OF 2000 MIN⁻¹. THE MOTOR PROVIDES A RATED TORQUE OF 70 NM AND IS CAPABLE OF DELIVERING A MAXIMUM TORQUE OF 210 NM, WITH A MAXIMUM CURRENT DRAW OF 170.0 A. KEY PHYSICAL AND DYNAMIC SPECIFICATIONS INCLUDE A ROTOR INERTIA OF 0.0076 KG⋅M², AN APPROXIMATE WEIGHT OF 55 KG, AND A 220 MM FLANGE SIZE. FOR PRECISE POSITION AND VELOCITY CONTROL, THE MOTOR INTEGRATES A 20-BIT ABSOLUTE ENCODER.
