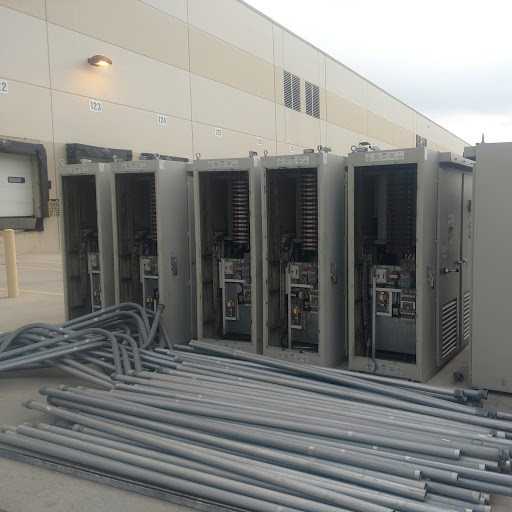

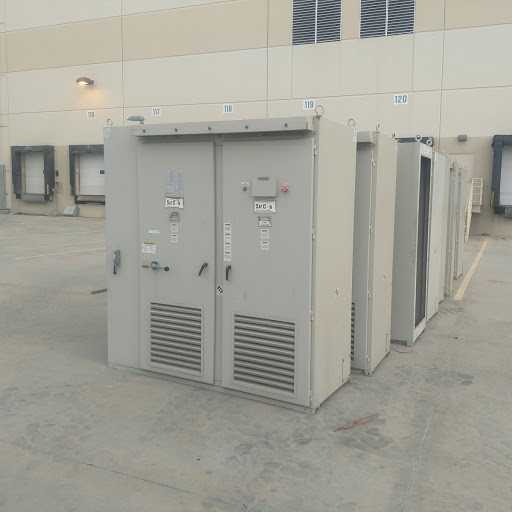

Satcon Model AE-225-60-PV-A Inverter

MODEL AE-225-60-PV-A, S/N 96365A-008, WEIGHT: 6100 LBS, INPUT: MAX: 600VDC, RANGE; 330VDC-600VDC, MAX: 718 ADC, OUTPUT: 3 PHASE, POWER FACTOR: 3, V ANGE-422V-528V, F RANGE-57.0 HZ-60.5 HZ, NEW 2007 TECHNOLOGY SATCOM POWERGATE INVERTERS OFFER MARKET-LEADING RELIABILITY, EFFICIENCY AND EASE-OF-USE FOR LARGE-SCALE GRID-CONNECTED PHOTOVOLTAIC SYSTEMS. A SINGLE-ENCLOSURE SOLUTION, THE UTILITY-GRADE SATCON INCORPORATES A HIGH-EFFICIENCY TRANSFORMER AND BOTH AC AND DC SWITCHGEAR THAT DISCONNECT THE INVERTER AT NIGHT, MINIMIZING TARE LOSSES. A HIGHLY EFFICIENT MPPT TRACKING ALGORITHM AND INTELLIGENT WAKE-UP ROUTINE FURTHER MAXIMIZE NET ENERGY HARVEST. THE SATCOM IS CERTIFIED TO UL-1741 AND IS AVAILABLE WITH A VARIETY OF LOCAL AND REMOTE DATA MONITORING OPTIONS. · UTILITY-GRADE DESIGN 30-YEAR DESIGN LIFE · REVERSE CONVECTION TOP-AIR ENTRY · SLOPED ROOF · 35-YEAR FILM-TYPE CAPACITORS · 5-YEAR STANDARD WARRANTY · EXTENDED WARRANTIES AVAILABLE EASY INSTALLATION, EXCEPTIONAL SAFETY · SINGLE ENCLOSURE MINIMIZES FIELD WIRING · WIDE INPUT VOLTAGE RANGE · INTEGRATED HIGH EFFICIENCY TRANSFORMER · OPTIONAL INTEGRATED SUB-ARRAY COMBINER · INTERNAL AC AND DC SWITCHGEAR · TOP AND BOTTOM CABLE ENTRY · TOP-LIFTING EYE-BOLTS AND FORKLIFT BASE · SUPERIOR ENERGY HARVESTING · INDUSTRY LEADING EFFICIENCY · AUTOMATIC NIGHT DISCONNECT MINIMIZES TRANSFORMER LOSSES · HIGH-SPEED MPPT · SOFT CHARGE NETWORK MINIMIZES IN-RUSH CURRENT AND NUISANCE TRIPS · WIDE INPUT VOLTAGE RANGE · REMOTE AND LOCAL DATA MONITORING · 4-LINE ALPHANUMERIC LCD DISPLAY · OPTIONAL PV VIEW WEB ENABLED DATA MONITORING · OPTIONAL PV ZONE SUB-ARRAY PERFORMANCE MONITORING · RS485 MODBUS · SAFETY CERTIFIED TO UL 1741 · INTEGRATED DC CONTACTOR FOR ARRAY ISOLATION · SURGE WITHSTAND TESTING TO ANSI 62.41 AND IEEE1547-2003 THESE UNITS WERE FUNCTIONING WHEN WE DECOMMISSIONED THE ENTIRE SYSTEM THIS WEEK, THEY HAVE BEEN PROFESSIONALLY DISCONNECTED AND STORED AT AND IN-DOOR LOCATION DUE TO VALUE. HTTP://WWW.SICUSALLC.COM/ SIC IS NOW THE MANAGING COMPANY FOR SATCOM IF UPGRADES ARE REQUIRED FOR THESE UNITS. THEY ARE AVAILABLE FOR IMMEDIATE SALE PLEASE CONTACT RAY AT SENERGY SOLUTIONS, 714-412-3782.
