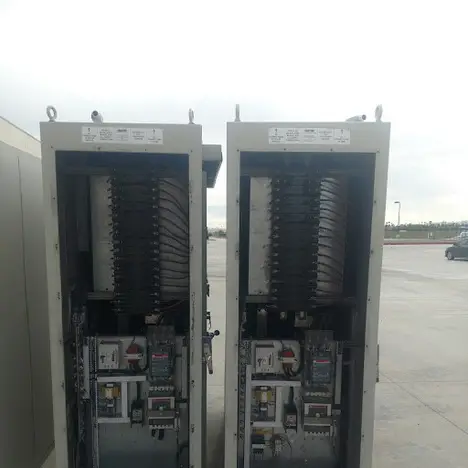

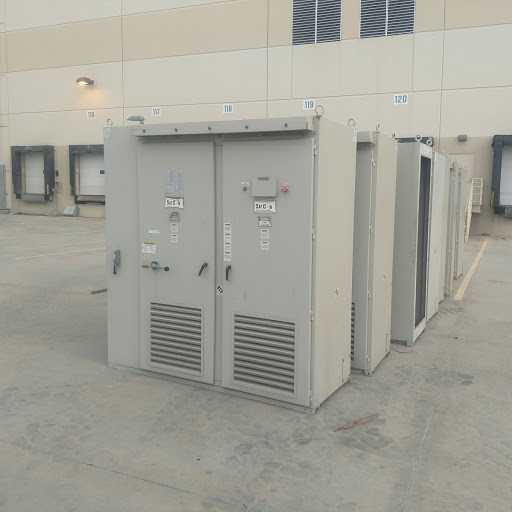

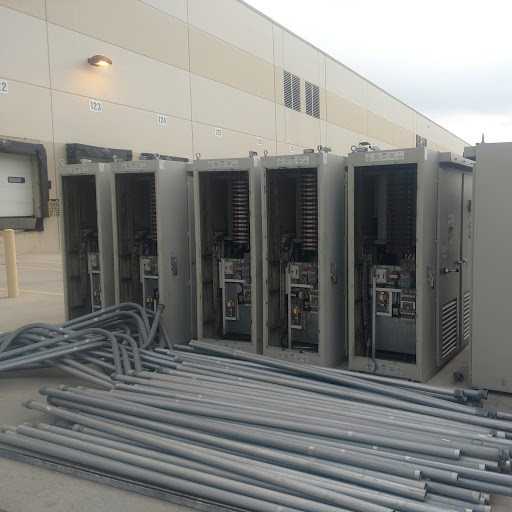

SatCon Power Systems Solar Inverters – Model AE-225-60-PV-A

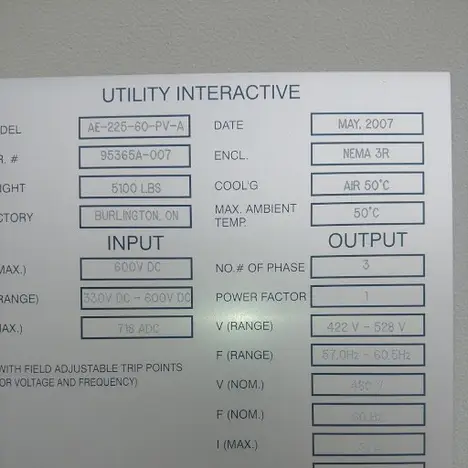

Model AE-225-60-PV-A, S/N 96365A-007, weight: 6100 LBS, INPUT: Max: 600VDC, Range; 330VDC-600VDC, max: 718 ADC, Output: 3 phase, power factor: 3, V ange-422V-528V, F Range-57.0 HZ-60.5 HZ, New 2007 Technology Satcom PowerGate inverters offer market-leading reliability, efficiency and ease-of-use for large-scale grid-connected photovoltaic systems. A single-enclosure solution, the utility-grade Satcon incorporates a high-efficiency transformer and both AC and DC switchgear that disconnect the inverter at night, minimizing tare losses. A highly efficient MPPT tracking algorithm and intelligent wake-up routine further maximize net energy harvest. The Satcom is certified to UL-1741 and is available with a variety of local and remote data monitoring options. · Utility-Grade Design 30-year design life · Reverse convection top-air entry · Sloped roof · 35-year film-type capacitors · 5-year standard warranty · Extended warranties available Easy Installation, Exceptional Safety · Single enclosure minimizes field wiring · Wide input voltage range · Integrated high efficiency transformer · Optional integrated sub-array combiner · Internal AC and DC switchgear · Top and bottom cable entry · Top-lifting eye-bolts and forklift base · Superior Energy Harvesting · Industry leading efficiency · Automatic night disconnect minimizes transformer losses · High-speed MPPT · Soft charge network minimizes in-rush current and nuisance trips · Wide input voltage range · Remote and Local Data Monitoring · 4-line alphanumeric LCD display · Optional PV View web enabled data monitoring · Optional PV Zone sub-array performance monitoring · RS485 Modbus · Safety Certified to UL 1741 · Integrated DC contactor for array isolation · Surge withstand testing to ANSI 62.41 and IEEE1547-2003 These units were functioning when we decommissioned the entire system this week, they have been professionally disconnected and stored at and in-door location due to value. http://www.sicusallc.com/ SIC is now the managing company for Satcom if upgrades are required for these units. They are available for immediate sale please contact Ray at Senergy Solutions, 714-412-3782.
