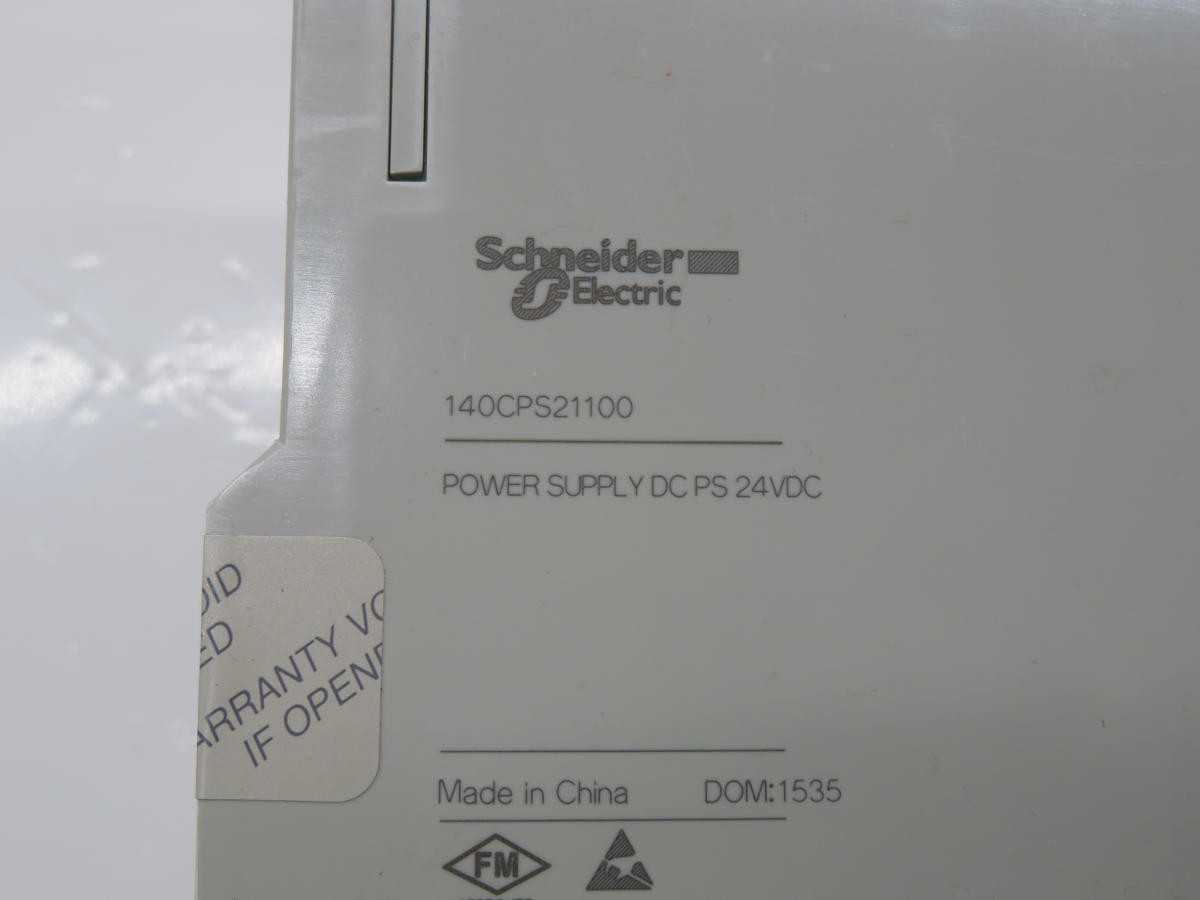

SCHNEIDER, 140CPS21100, AUTOMATION POWER SUPPLY, 24V DC OUT, 72W POWER, 100-240V AC INPUT, 0-60°C OP TEMP

THE SCHNEIDER ELECTRIC MODICON QUANTUM 140CPS21100 IS A POWER SUPPLY UNIT DESIGNED FOR AUTOMATION PLATFORMS. IT PROVIDES A RATED OUTPUT OF 24 V DC AT 3 A, DELIVERING 72 W OF POWER WITH A MAXIMUM DISSIPATION OF 13.5 W. THE UNIT ACCEPTS AN INPUT VOLTAGE RANGE OF 100 TO 240 V AC AT 47 TO 63 HZ, DRAWING AN INPUT CURRENT OF 1.5 A AT 100 V AC AND 0.75 A AT 240 V AC. INTEGRATED PROTECTION FEATURES INCLUDE THERMAL, OVERVOLTAGE, SHORT-CIRCUIT, AND OVERLOAD. IT OPERATES WITHIN A TEMPERATURE RANGE OF 0 TO 60 °C AND IS DESIGNED FOR RACK MOUNTING. COMPLIANCE STANDARDS INCLUDE UL 508, CSA C22.2 NO 142, FM CLASS 1 DIVISION 2, AND EN 61131-2.
