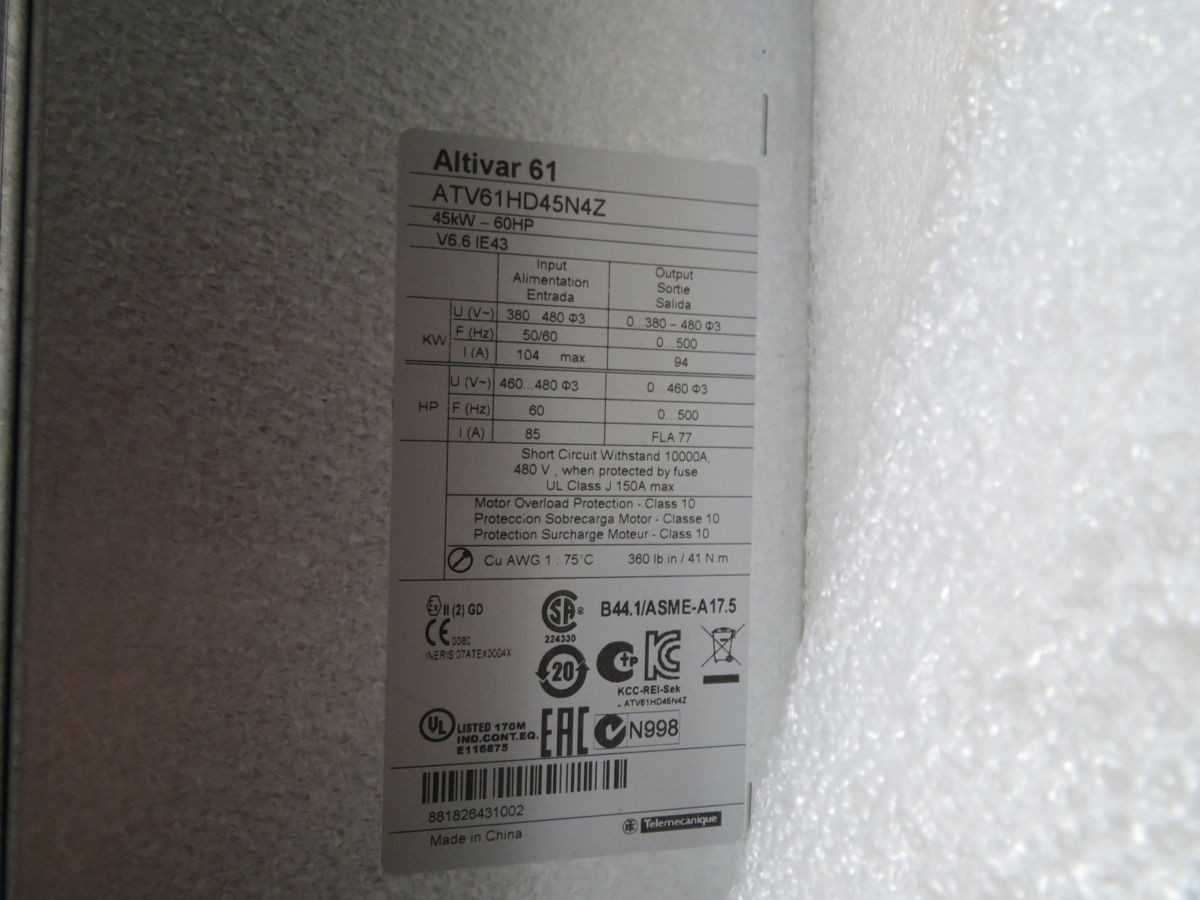

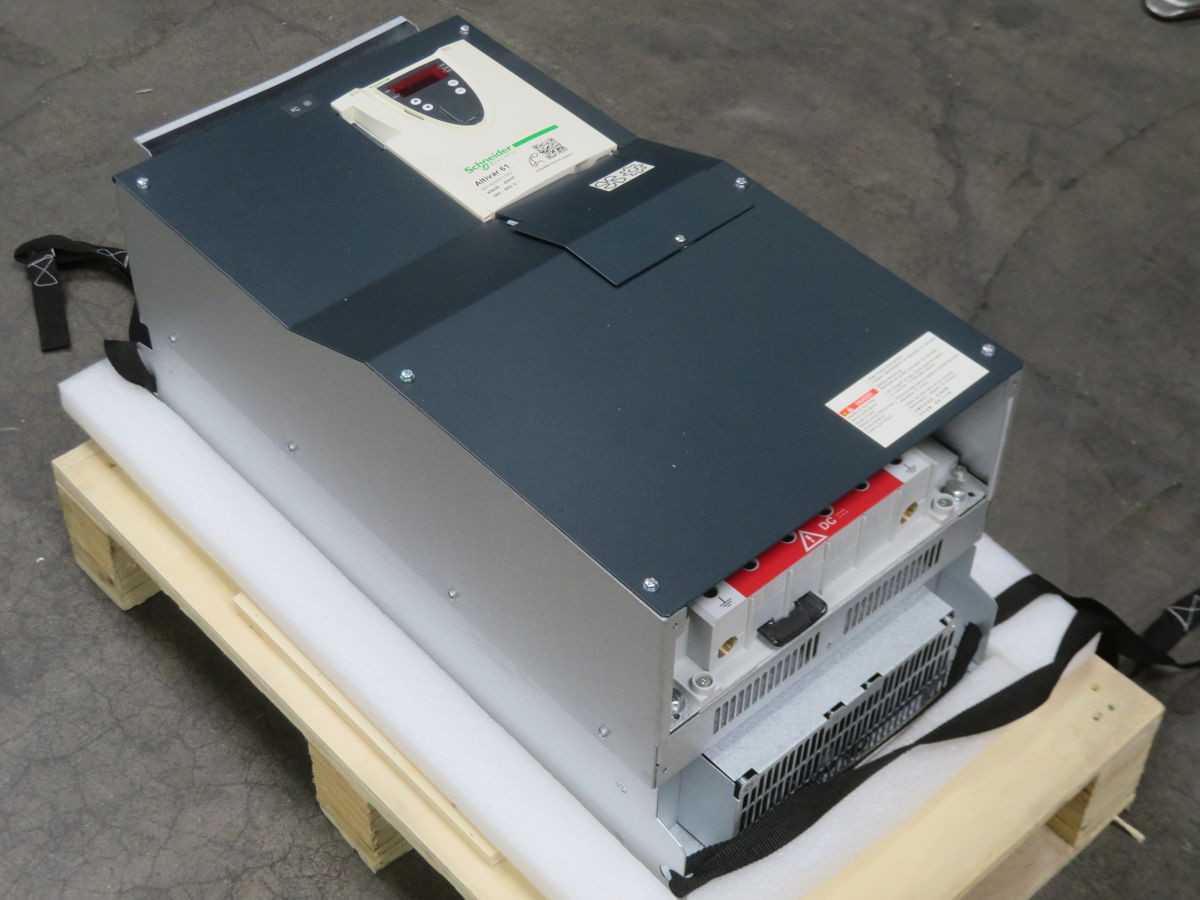

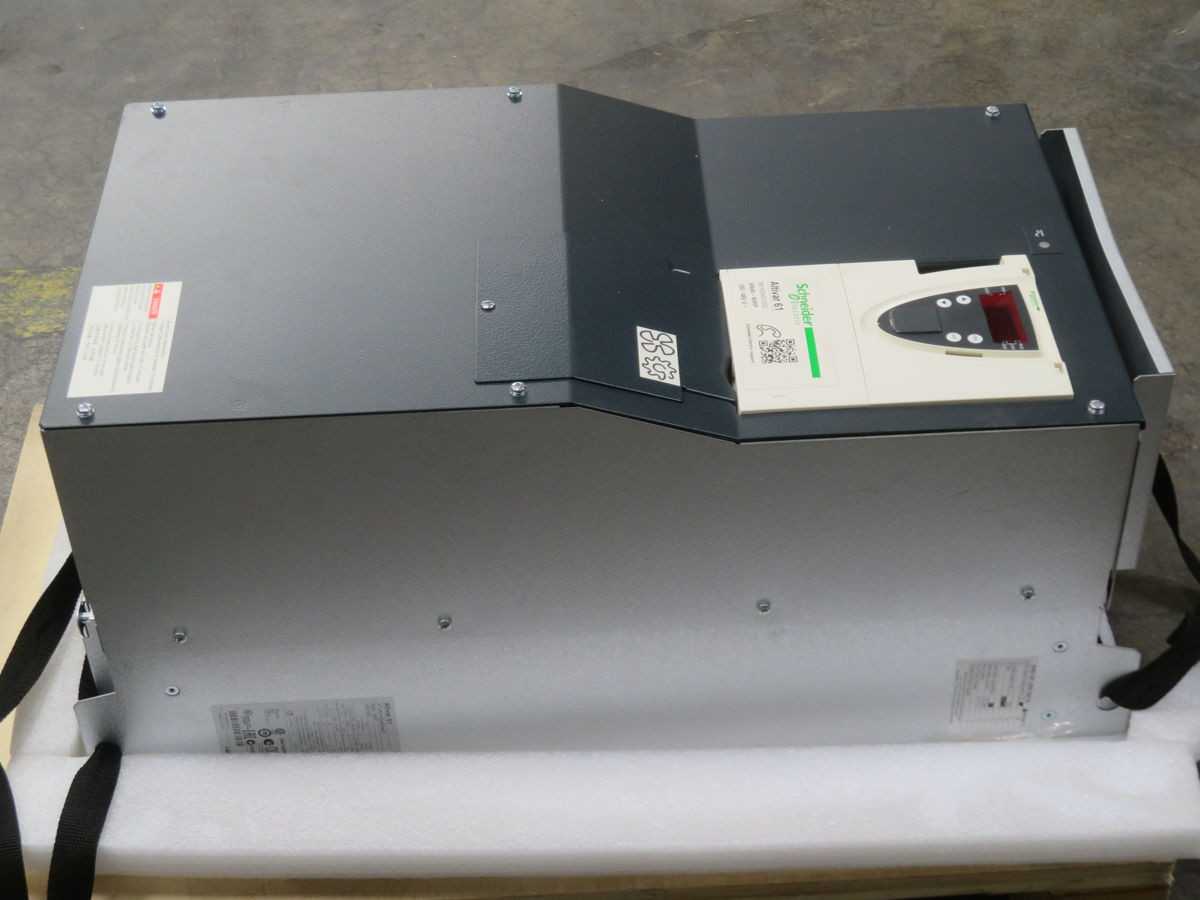

Schneider ATV61HD45N4Z Inverters, 380-480V Input, 45kW Power, 77.0A Output

The Schneider ATV61HD45N4Z is an Altivar 61 series variable speed drive engineered for 3-phase motor control applications. It operates with a 380-480 V AC input voltage range at a 50/60 Hz frequency. The drive delivers a nominal output power of 60 HP (45 kW), providing a continuous output current of 77.0 A under normal duty conditions at 460V. It supports both sensorless flux vector control and voltage/frequency ratio control modes. The unit offers an overload capacity of 120% for 60 seconds. Integrated communication protocols include Modbus and CANopen. Its enclosure features an IP20 protection rating.
