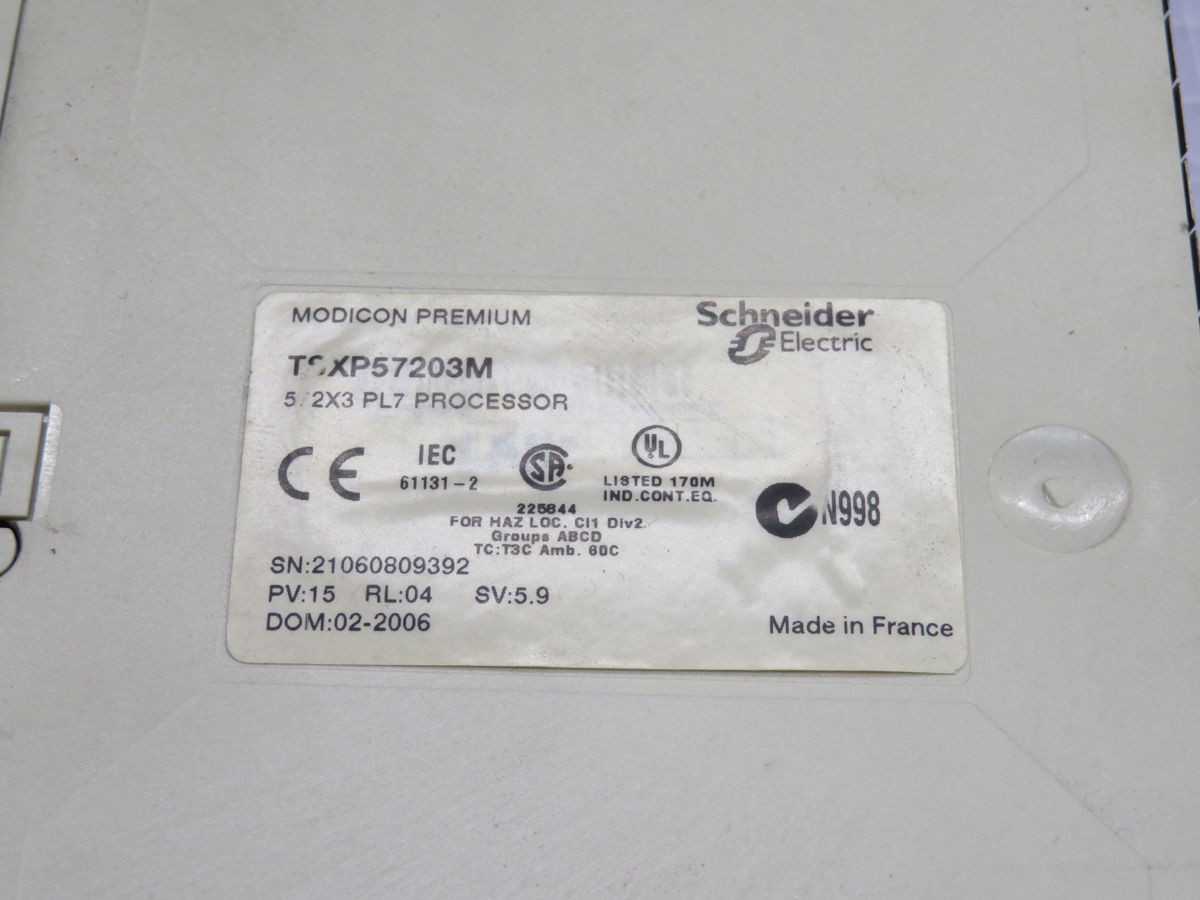

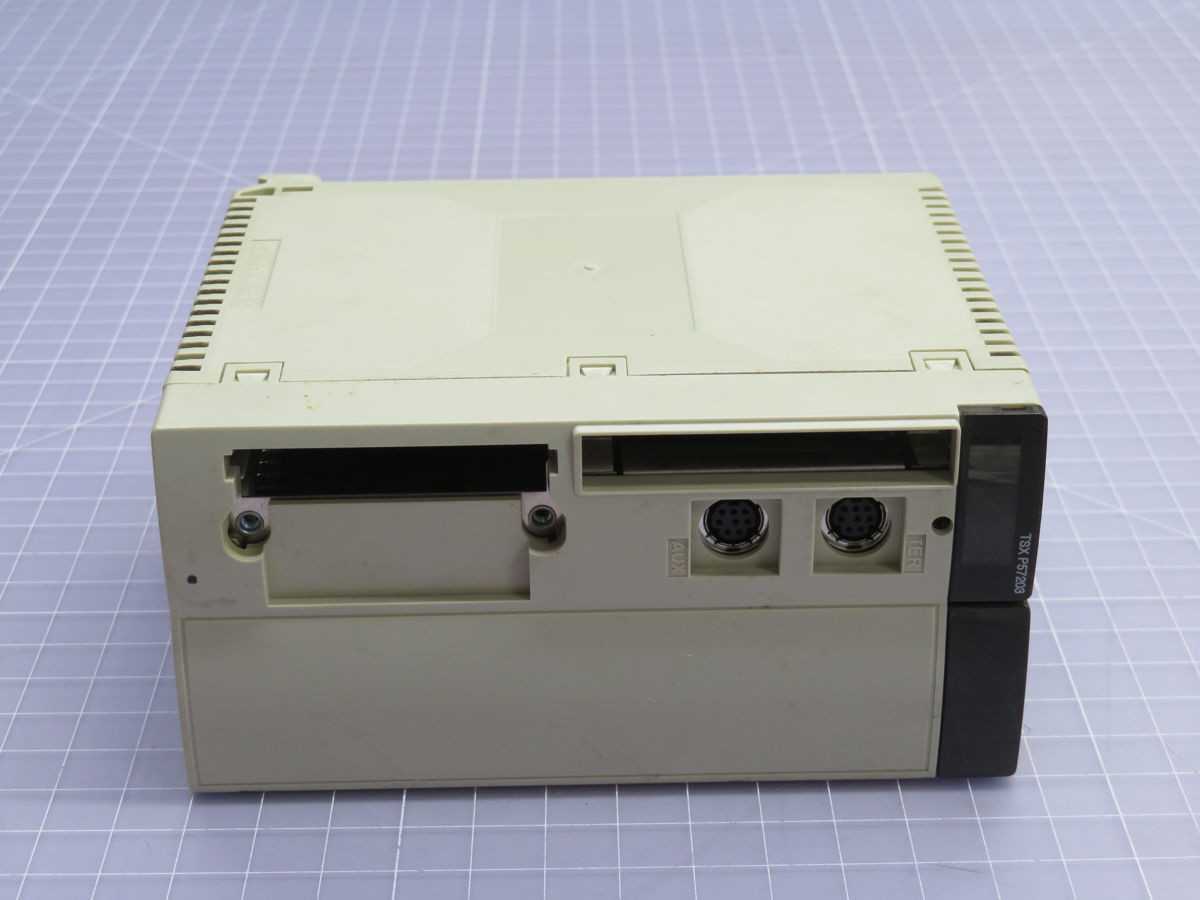

SCHNEIDER, TSXP57203M, PLC, 128K RAM, 20 NS BOOL EXEC, 1024 DI/O, 256 AI/O, ETHERNET, CANOPEN

THE SCHNEIDER ELECTRIC TSXP57203M IS A MODICON PREMIUM AUTOMATION PLATFORM PROCESSOR MODULE. THIS DOUBLE-WIDTH MODULE INTEGRATES A CPU WITH 128 KB OF INTERNAL RAM, EXECUTING BOOLEAN INSTRUCTIONS AT APPROXIMATELY 20 NS. IT OPERATES ON A 5 VDC SUPPLY WITH A POWER CONSUMPTION OF 550 MA. INTEGRATED COMMUNICATION FEATURES INCLUDE A 10/100 MBPS ETHERNET TCP/IP PORT, ONE CANOPEN MASTER PORT, AND ONE CONFIGURABLE SERIAL LINK SUPPORTING MODBUS, RS232, AND RS485 PROTOCOLS. THE MODULE SUPPORTS EXTERNAL MEMORY EXPANSION VIA PCMCIA CARDS FOR PROGRAM AND DATA STORAGE AND IS COMPATIBLE WITH PL7 PRO AND UNITY PRO PROGRAMMING ENVIRONMENTS. IT IS DESIGNED TO MANAGE UP TO 16 RACKS AND SUPPORTS A MAXIMUM CAPACITY OF 1024 DISCRETE I/O AND 256 ANALOG I/O.
