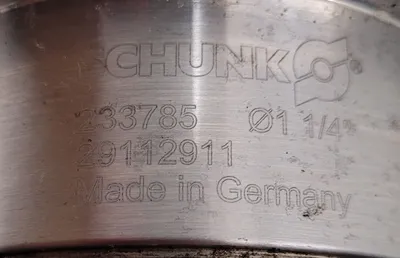

SCHUNK 233785 TRIBOS-R CAT 50 TOOL HOLDER, 1 1/4" CLAMPING DIAMETER, 90MM PROJECTING L

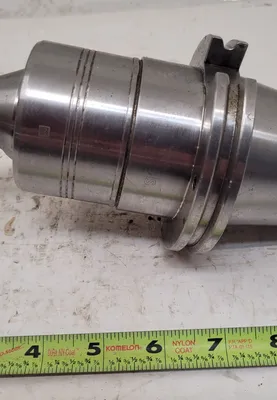

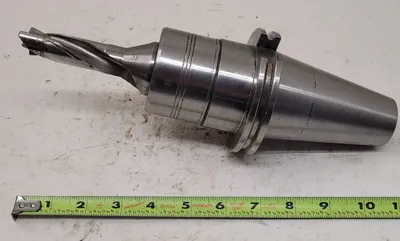

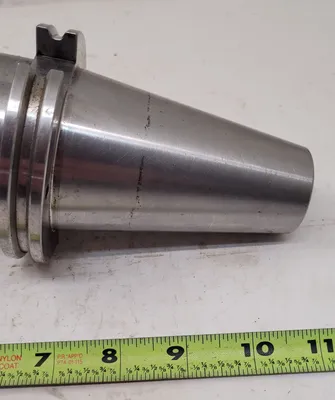

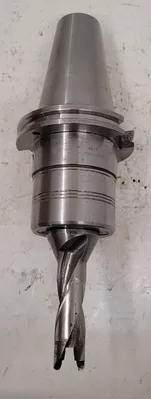

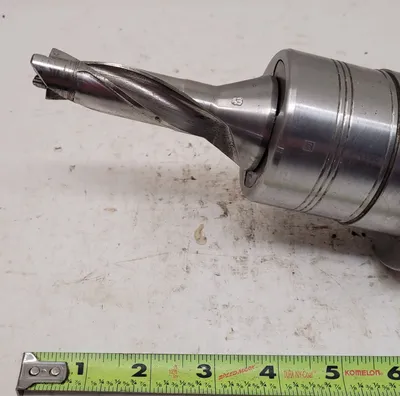

THIS IS A SCHUNK 233785 TRIBOS-R TOOL HOLDER FEATURING A CAT 50 TOOLHOLDER INTERFACE AND ADHERING TO THE ASME B5.50 TOOLHOLDER STANDARD. KEY SPECIFICATIONS INCLUDE A CLAMPING DIAMETER D1 OF 1 1/4". DIMENSIONS ARE DETAILED AS FOLLOWS: D2 IS 67 MM, D3 IS 69.85 MM, AND THE PROJECTING LENGTH L1 IS 90 MM. OTHER CRITICAL LENGTHS INCLUDE L2 AT 61 MM, L3 AT 10 MM, L4 AT 45 MM, AND L5 AT 70.95 MM. THE TOOL HOLDER UTILIZES AN M10X1 THREAD (G) AND REQUIRES A MINIMUM TORQUE OF 330 NM.
