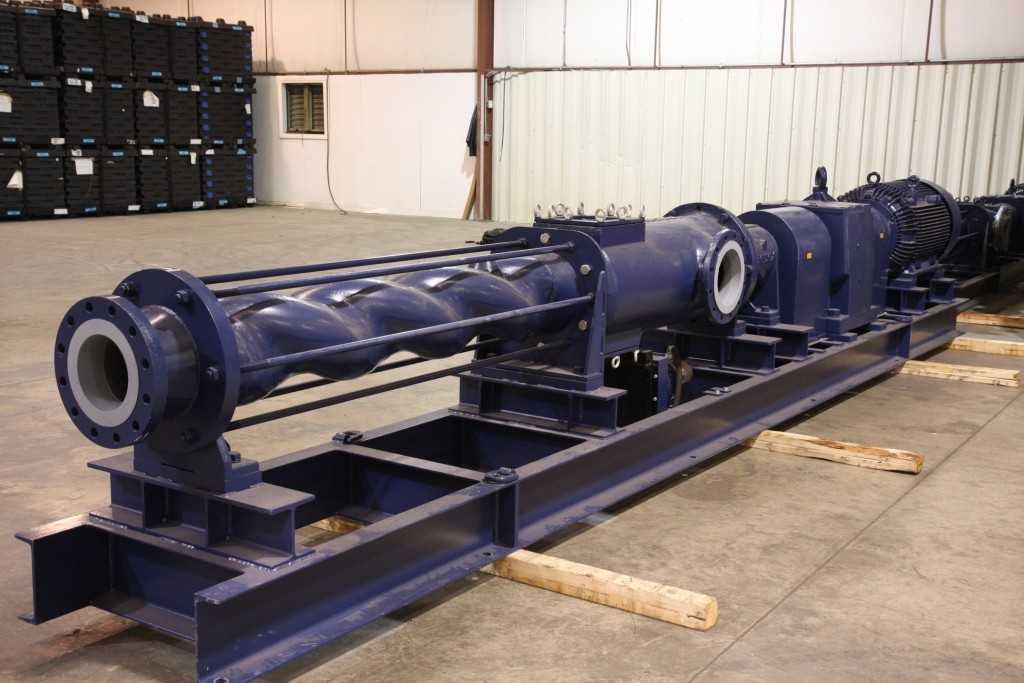

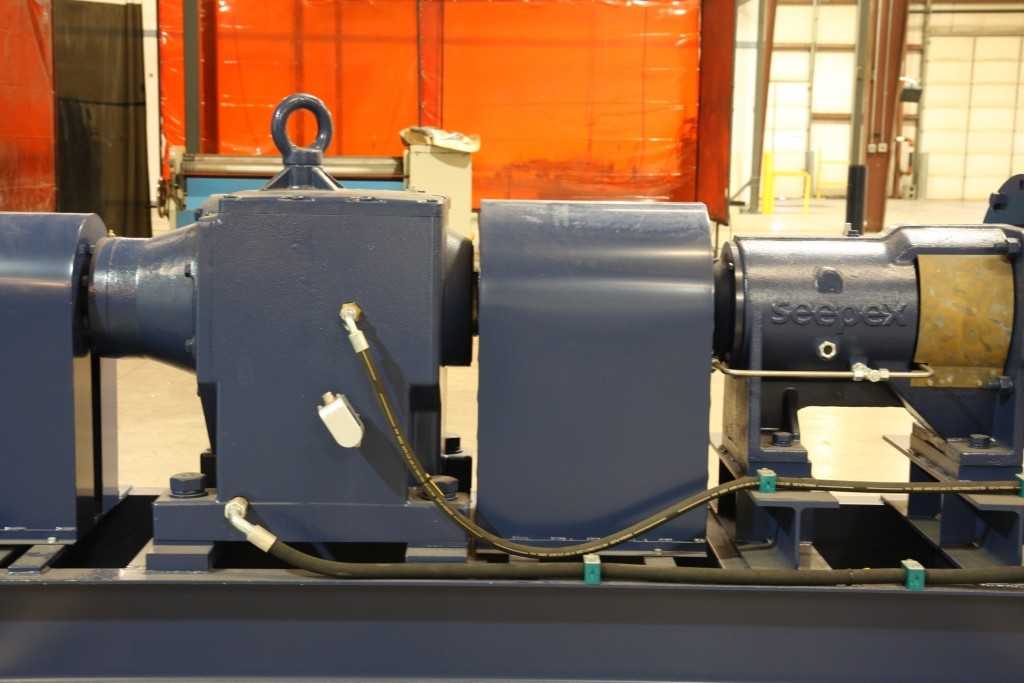

Seepex N-240 Progressive Cavity Pump

Seepex N-240 Progressive Cavity Pump - Dimensions: N240 is 24' X 4' X 4' It is an industrial pump that has many applications. These particular pumps are built with World-Class Quality and known to be used in many different industries throughout the world from mining, dredging, slurry removal, oil and fuel industry applications to waste water. The Pump is in new condition and is unused. Pump is located in the US. Performance data Flow rate Pressure Speed 500 USGPM 300 psi 165 rpm 720 USGPM 300 psi 221 rpm 1000 USGPM 300 psi 294 rpm Starting torque 2065 lb.ft Max. power absorbed 230.48 hp NPSH required 13.45 ft Suction pressure assumed flooded Discharge pressure 300 psig Differential pressure 300 psi Electr. motor Type Severe Duty Manufacturer Baldor-Reliance Model ECP4408TR-4 Rated output 250 hp Rated speed 1750 rpm Starting direct at VFD Voltage 3x460 VAC Frequency 60 Hz
