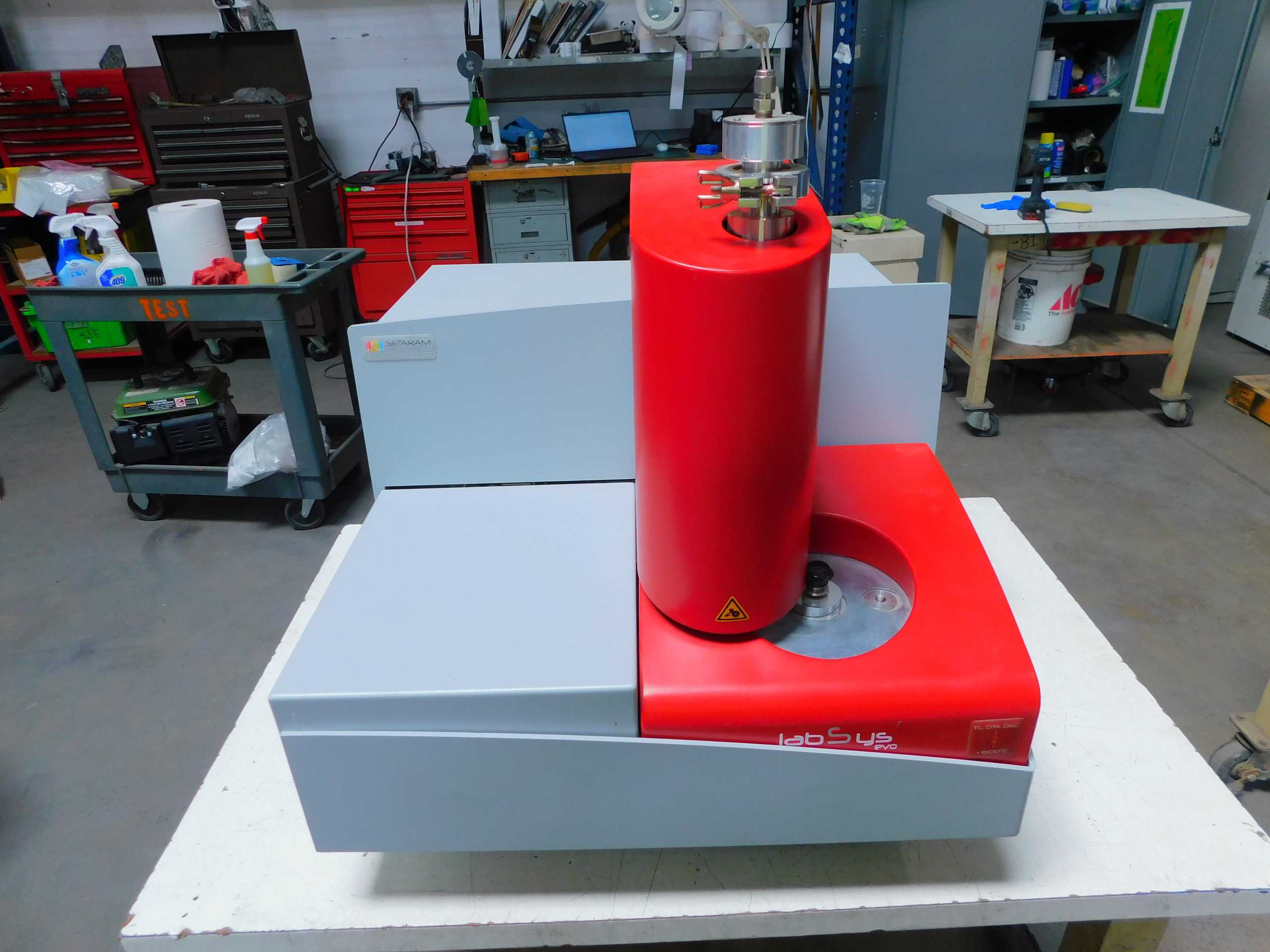

Setaram Labsys Evo S60 Thermal Analysis Platform, Max 1600C, 240V, 1 Phase

THE SETARAM LABSYS EVO S60/58582 IS A HIGH-TEMPERATURE THERMAL ANALYSIS PLATFORM DESIGNED FOR SIMULTANEOUS THERMOGRAVIMETRIC ANALYSIS (TGA) AND DIFFERENTIAL SCANNING CALORIMETRY (DSC) OR DIFFERENTIAL THERMAL ANALYSIS (DTA). OPERATING ACROSS A WIDE TEMPERATURE RANGE FROM AMBIENT UP TO 1600 °C, THE SYSTEM FEATURES A PROGRAMMABLE TEMPERATURE SCANNING RATE FOR BOTH HEATING AND COOLING FROM 0.01 TO 100 °C/MIN. AT ITS CORE IS AN ADVANCED COILED METAL FURNACE AND A TOP-LOADING THERMOSTATED BALANCE BUILT FOR THERMOGRAVIMETRIC MEASUREMENTS, SUPPORTING A MAXIMUM BALANCE CAPACITY OF 20 G WITH A WEIGHT MEASUREMENT RANGE OF +/- 1000 MG OR +/- 200 MG. THE SYSTEM ACHIEVES A TG RESOLUTION OF 0.2 ΜG TO 0.02 ΜG AND A BASELINE DYNAMIC DRIFT OF 10 ΜG OVER ONE HOUR. FOR CALORIMETRIC APPLICATIONS, IT FEATURES INTERCHANGEABLE "PLUG & PLAY" SENSOR RODS, INCLUDING A 3D CALVET-TYPE CP ROD UTILIZING MULTIPLE THERMOCOUPLES IN SERIES TO DELIVER SPECIFIC HEAT CAPACITY MEASUREMENTS WITHIN A 2% PRECISION MARGIN. THE PLATFORM OPERATES ON A SINGLE-PHASE POWER SUPPLY OF 230-240 VAC AT 50/60 HZ. DESIGNED FOR COMPREHENSIVE MATERIAL CHARACTERIZATION, THE EQUIPMENT ALLOWS FOR ATMOSPHERIC CONTROL VIA GAS SWEEPING USING TWO INLETS FOR INERT OR REACTIVE GASES, OR THROUGH AN OPTIONAL AUTOMATED GAS CONTROL PANEL WITH MASS FLOW CONTROLLERS MANAGING UP TO THREE CARRIER GASES. ADDITIONALLY, IT CAN BE COUPLED WITH EVOLVED GAS ANALYSIS SYSTEMS SUCH AS MS OR FTIR, UTILIZING A HEATED COUPLING DEVICE UP TO 300 °C TO PREVENT CONDENSATION.
