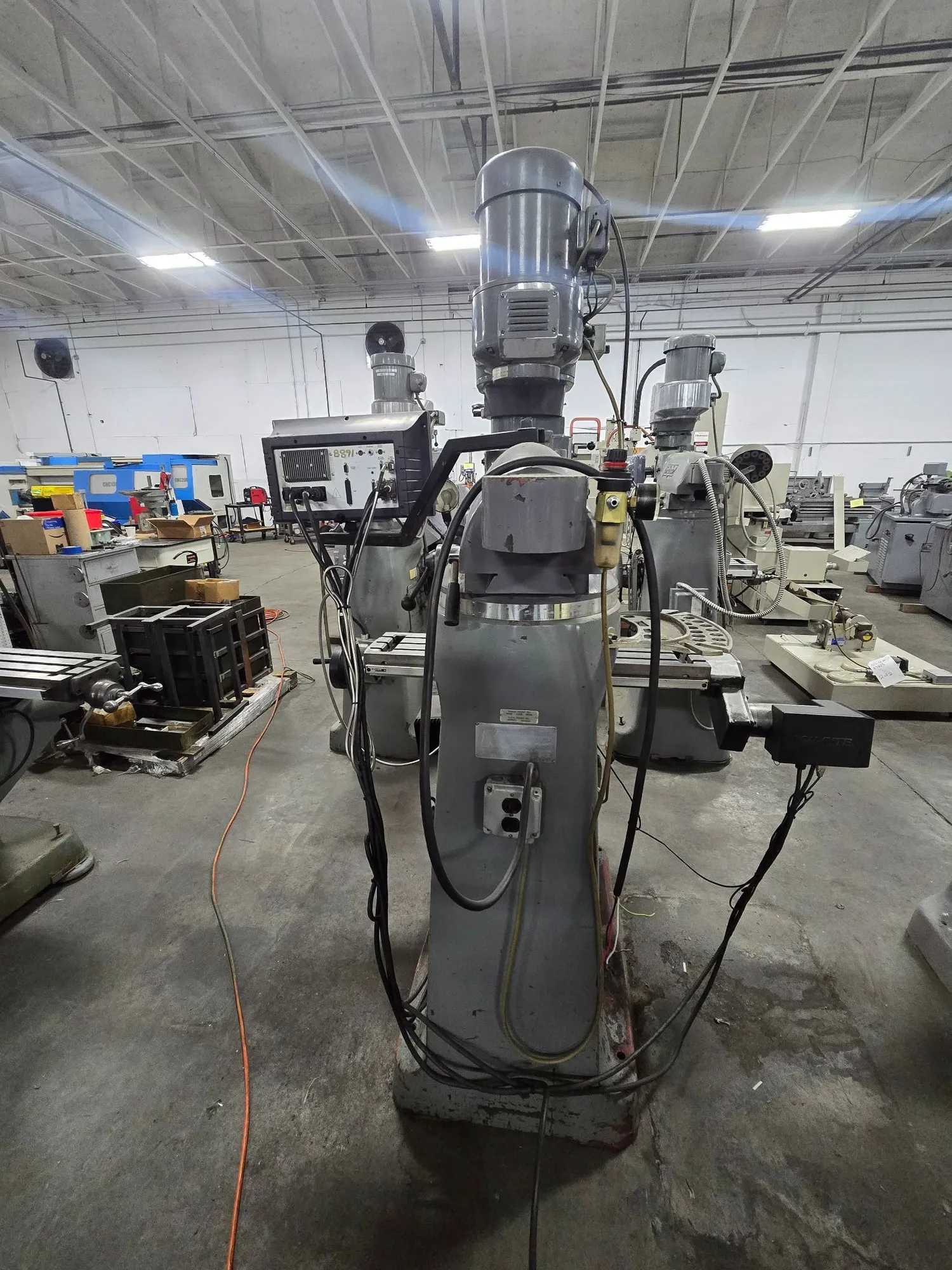

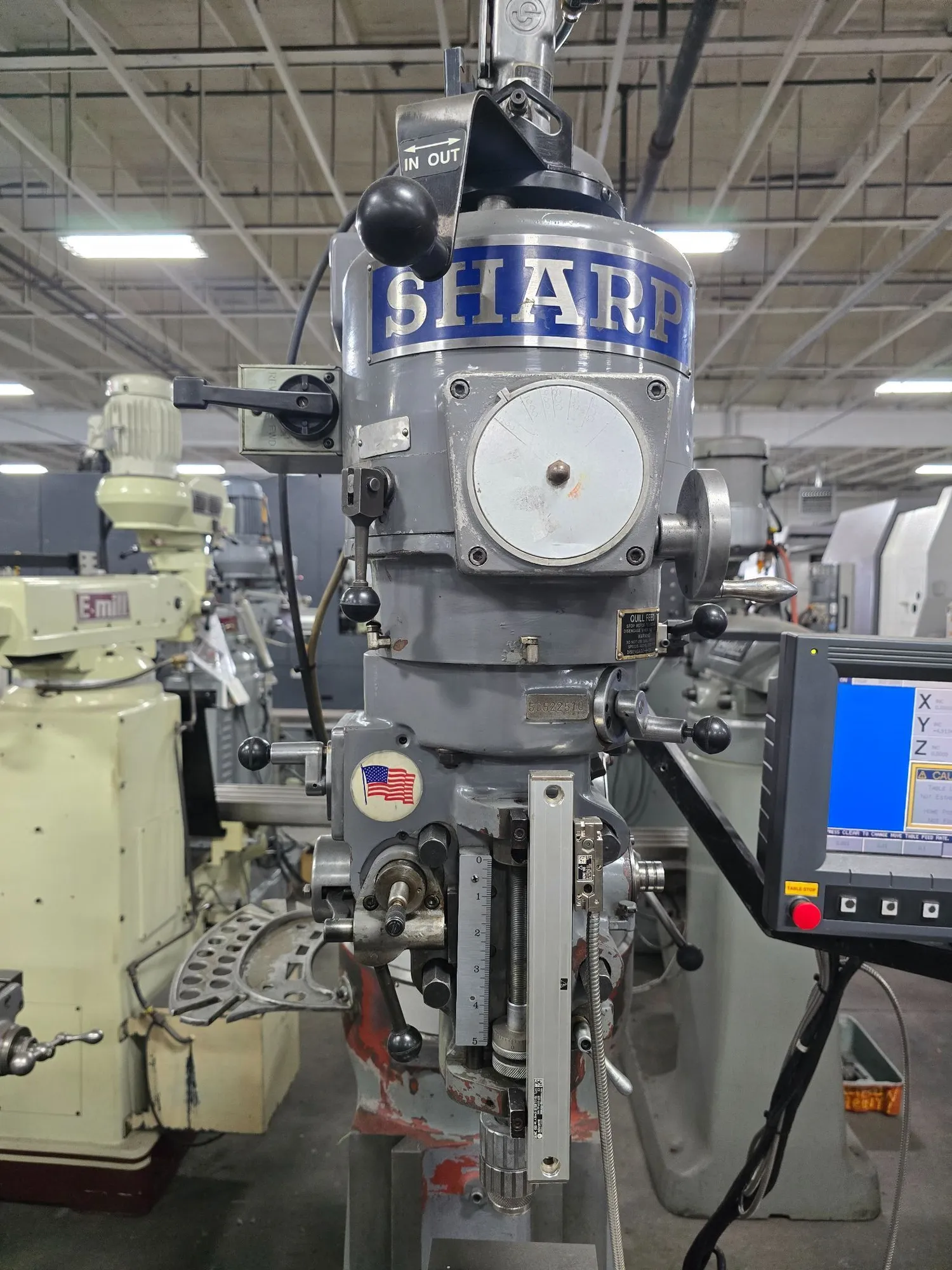

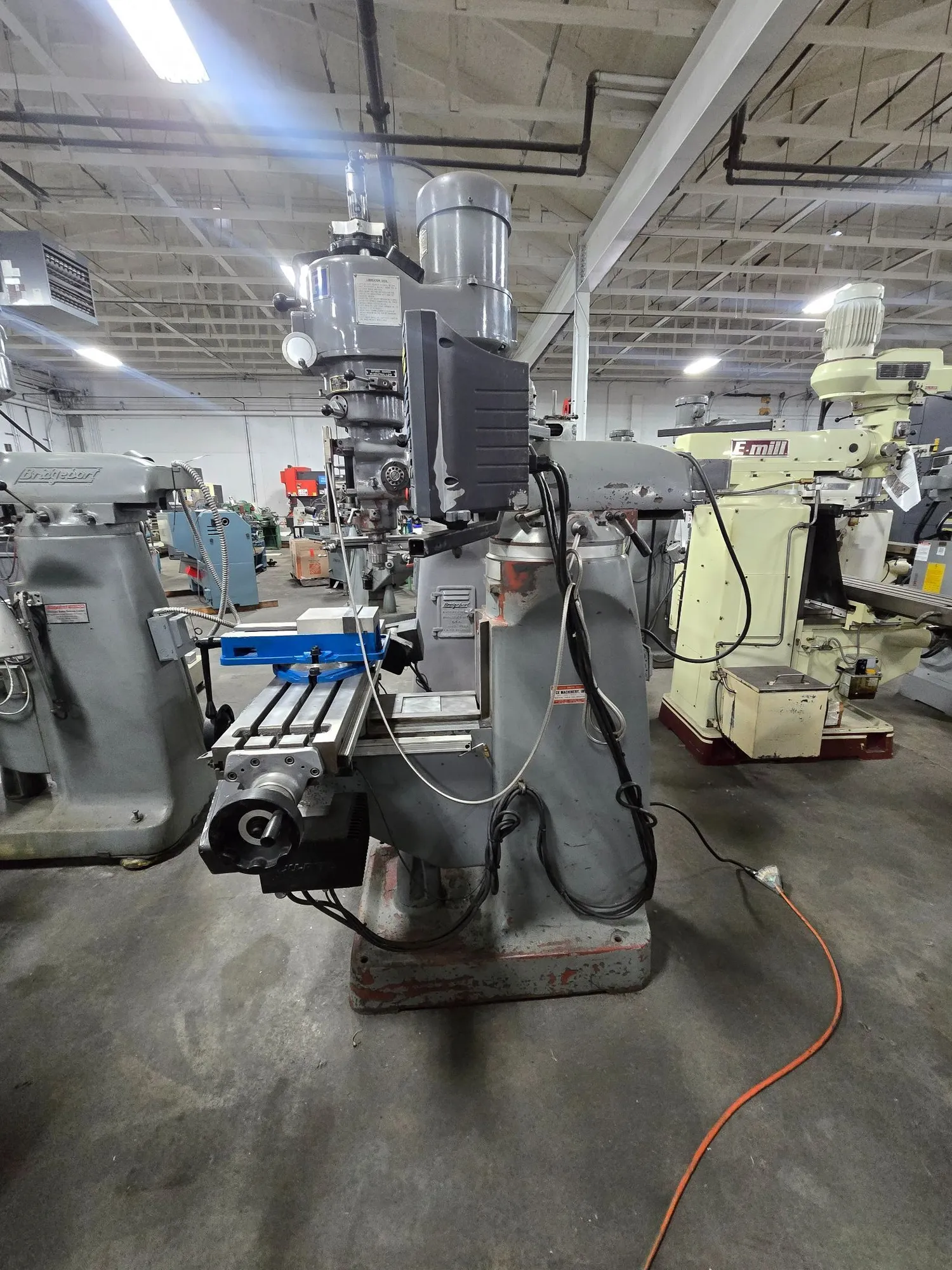

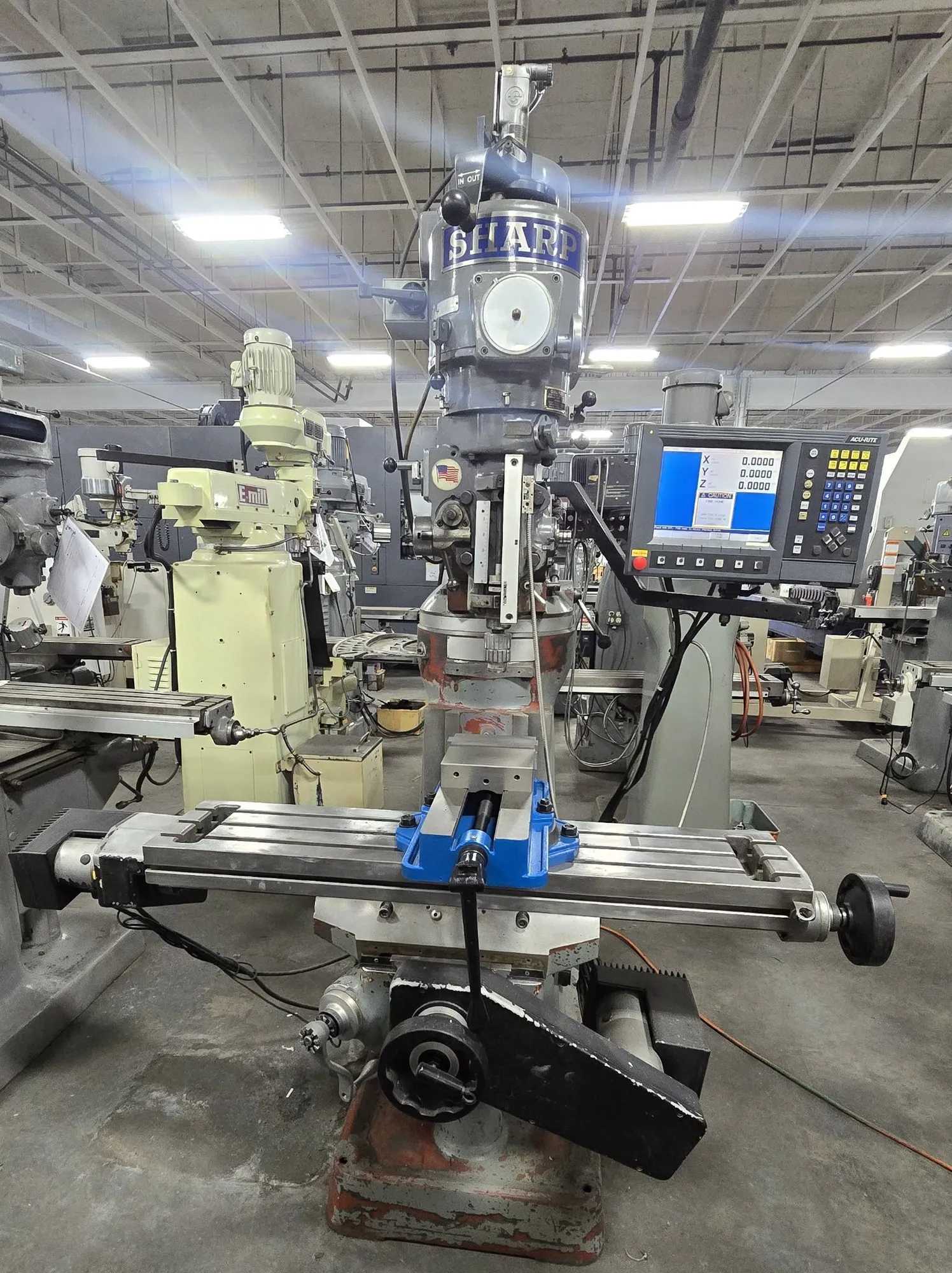

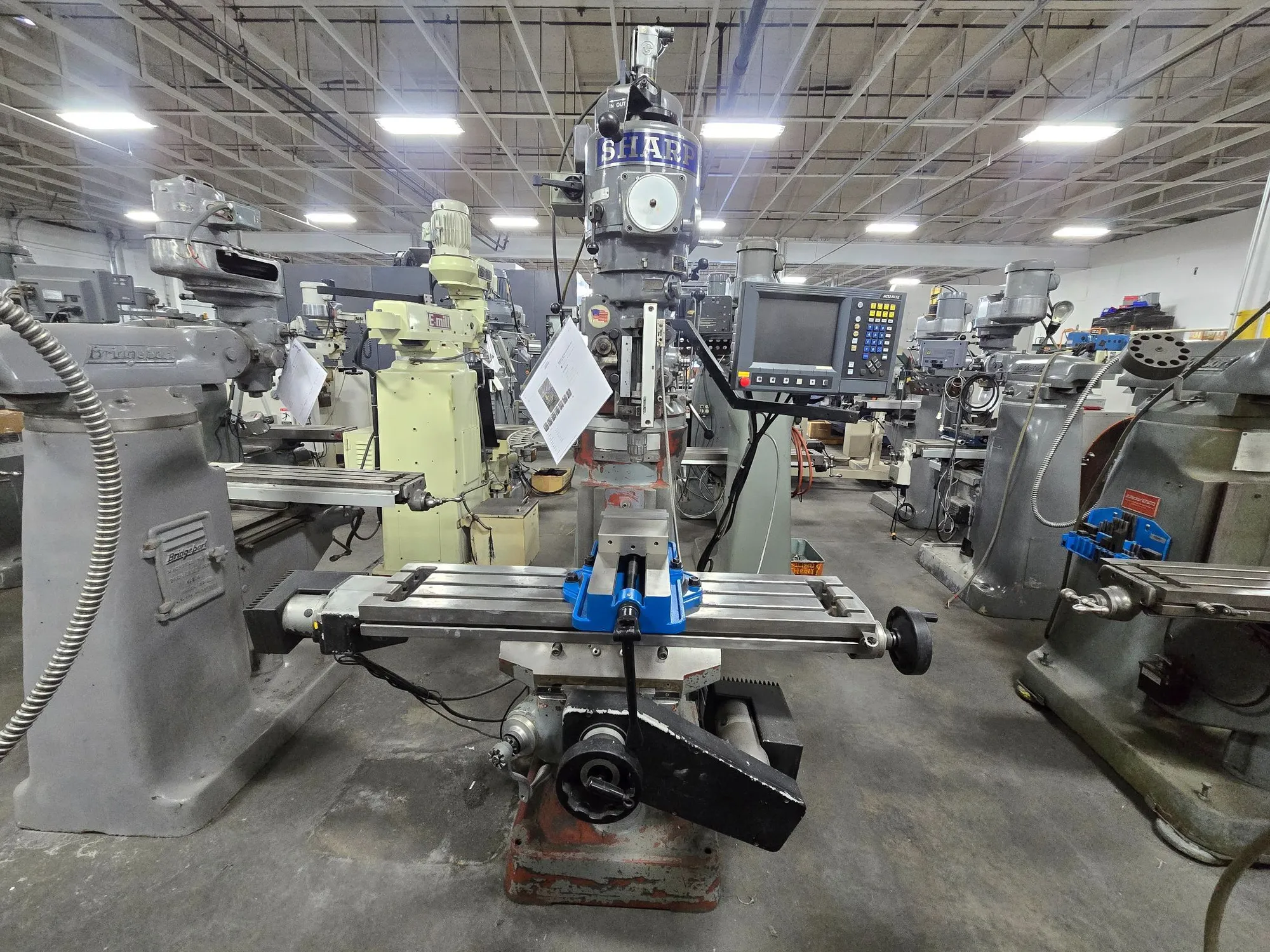

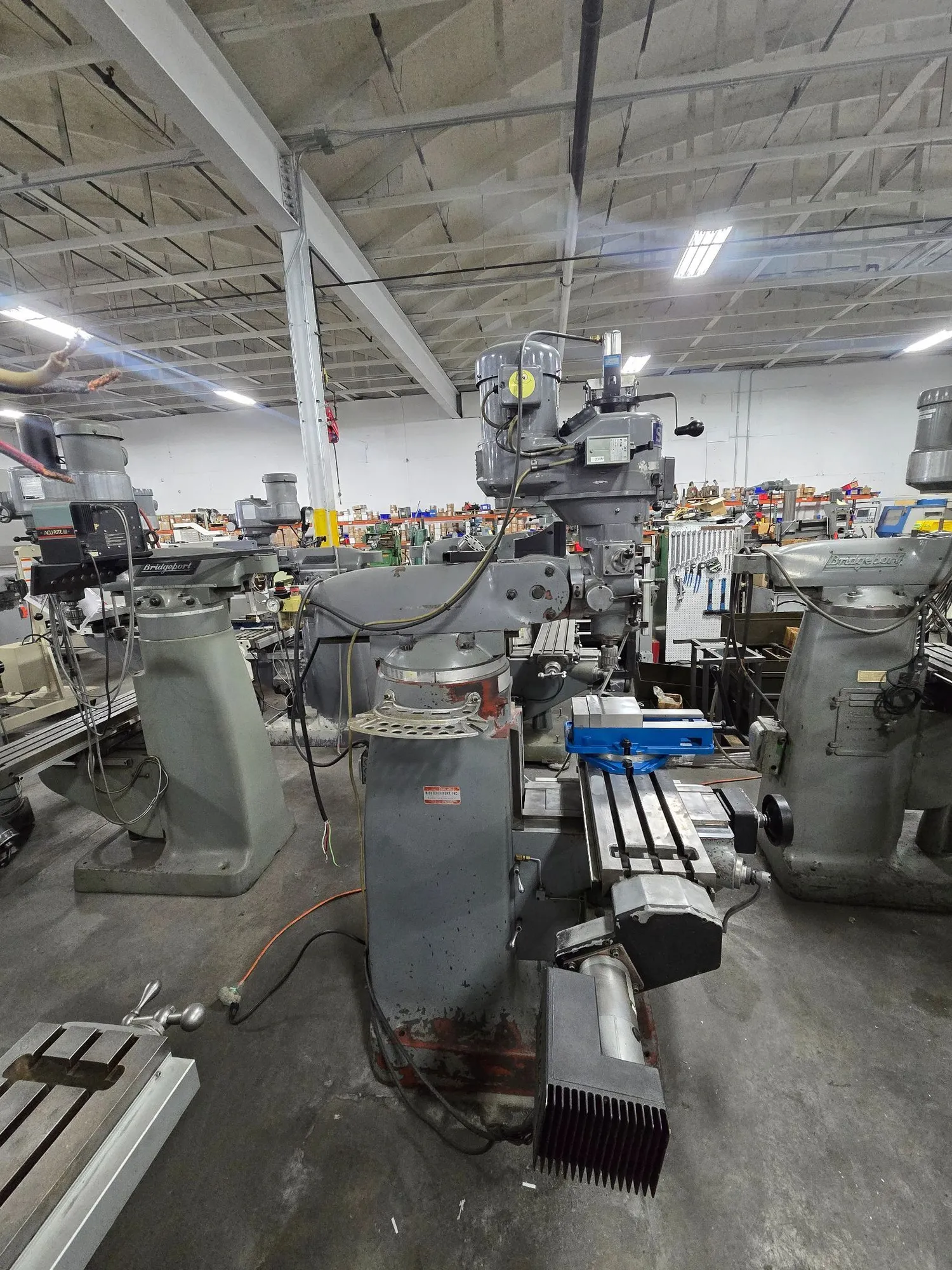

SHARP LMV/MP-2 CNC VERTICAL KNEE MILL - ACURITE MP2, 9X42 TBL, 25X/11Y/5Z TRAVEL, 3HP

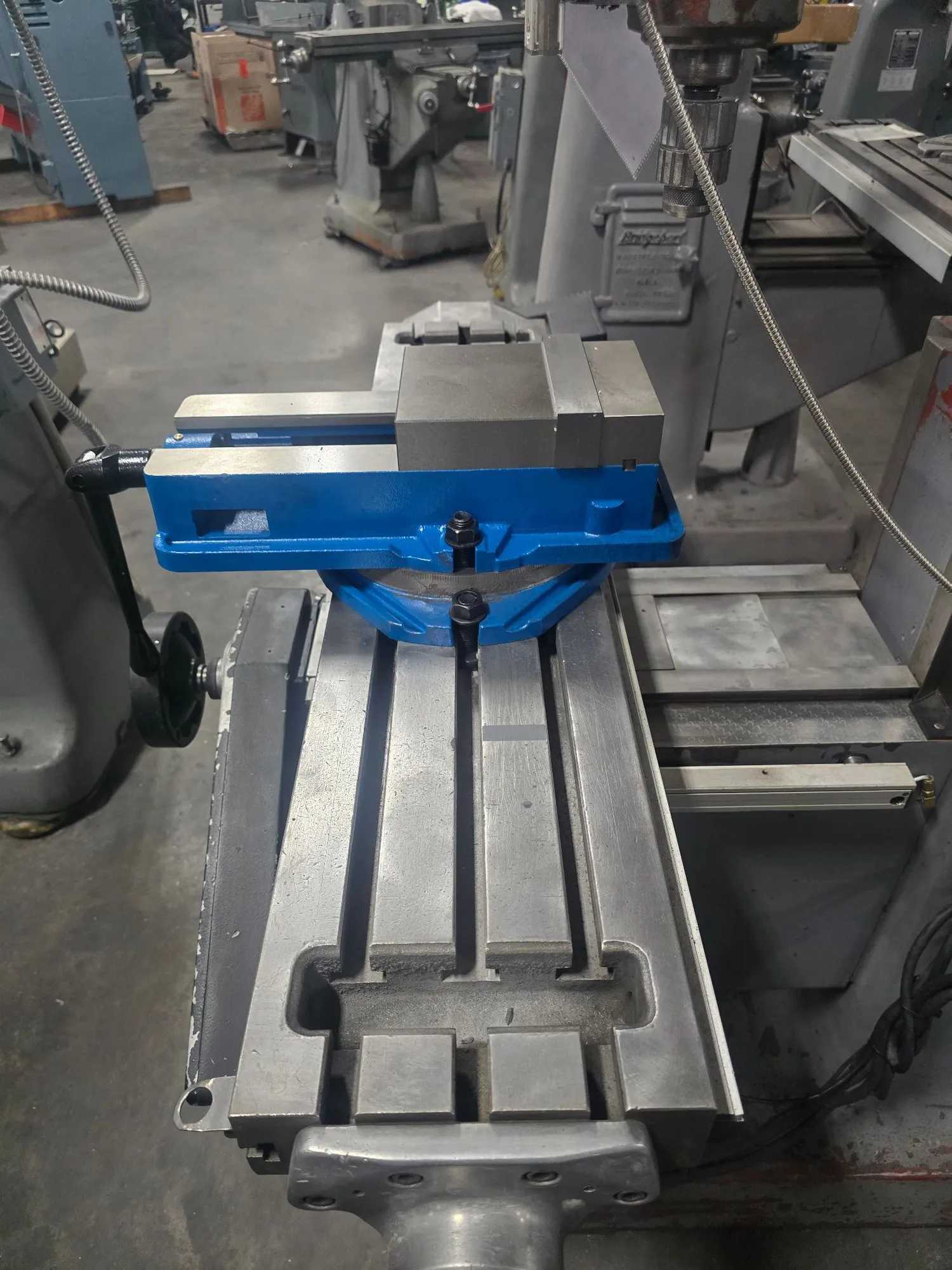

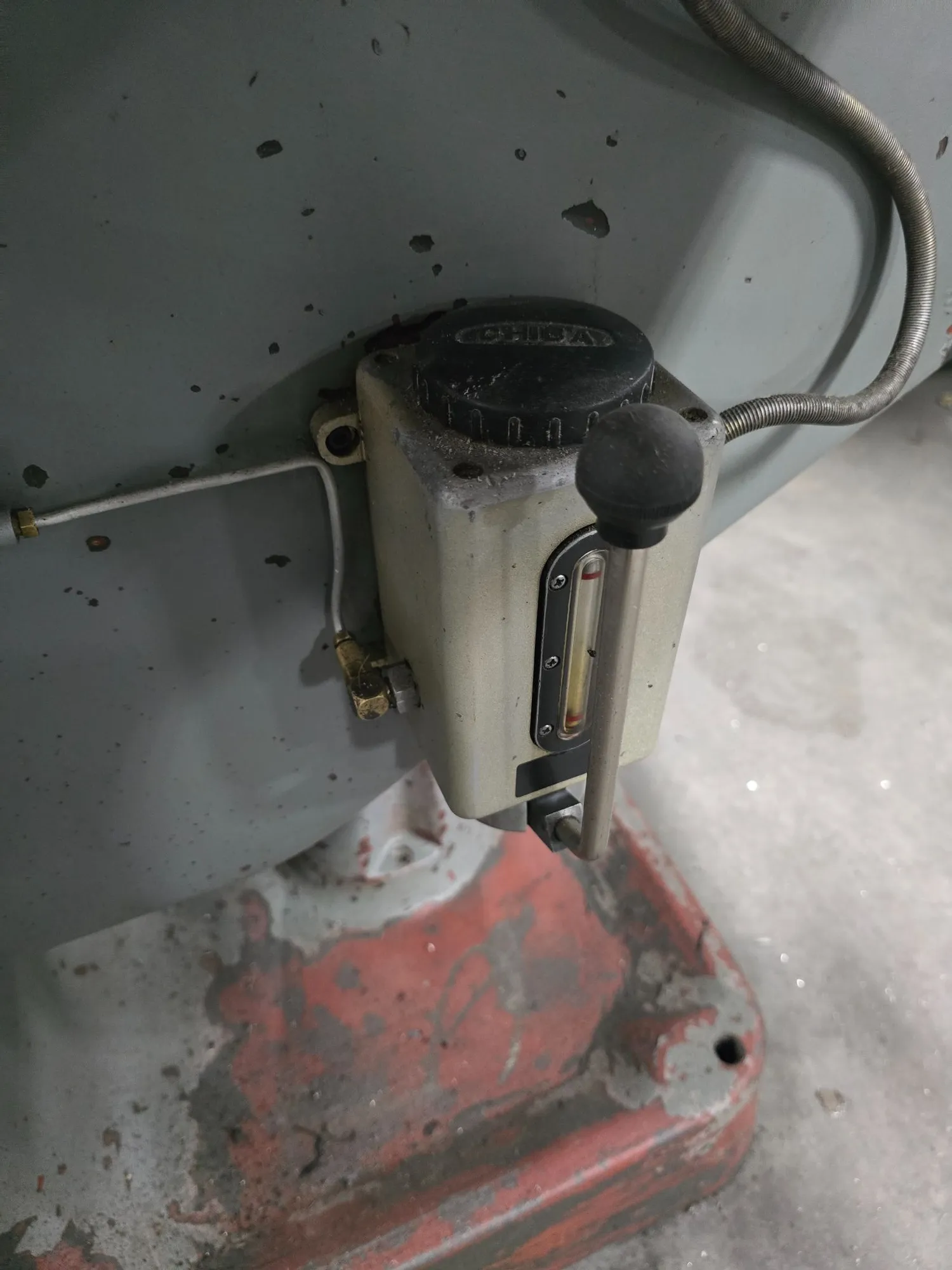

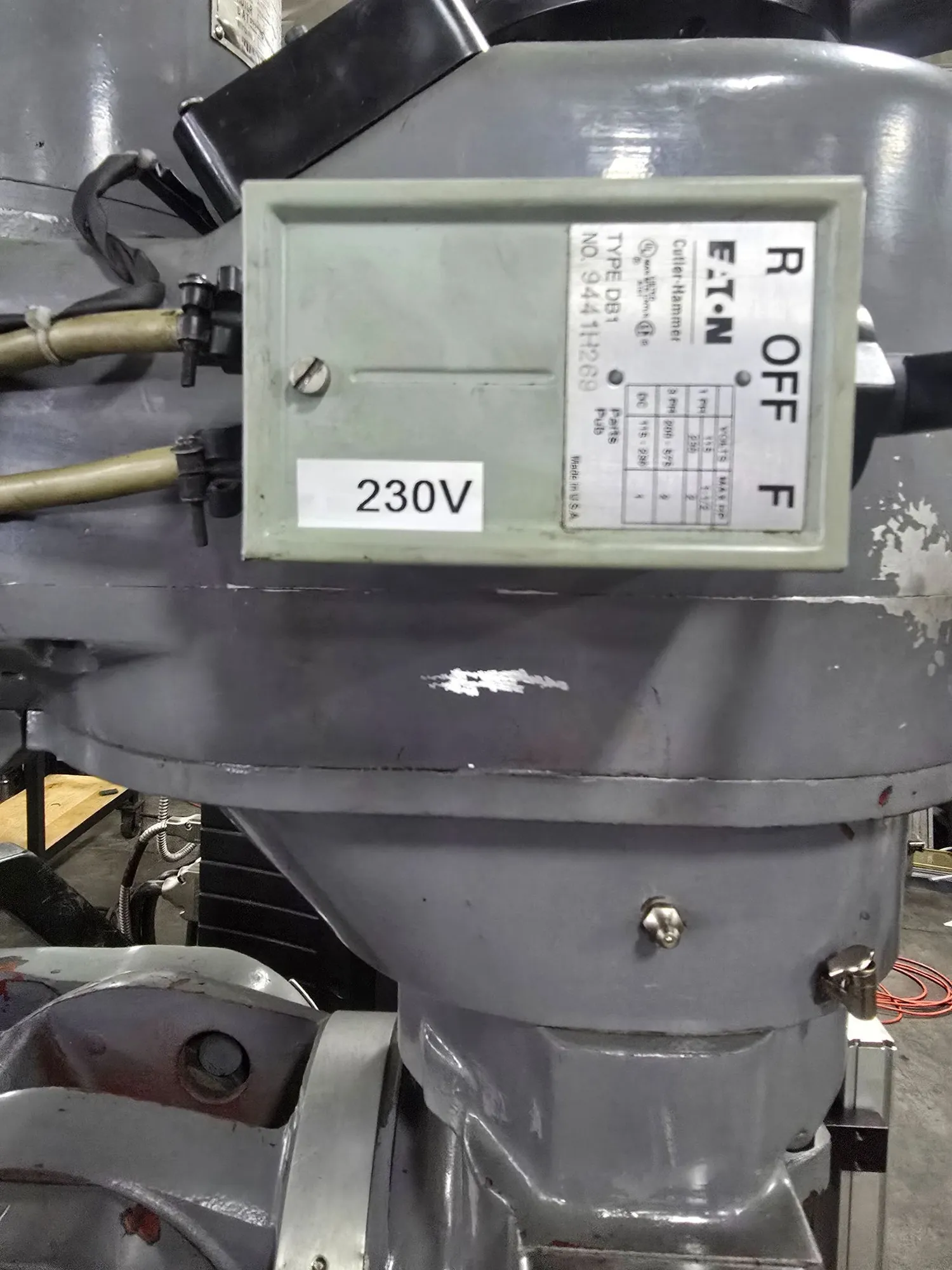

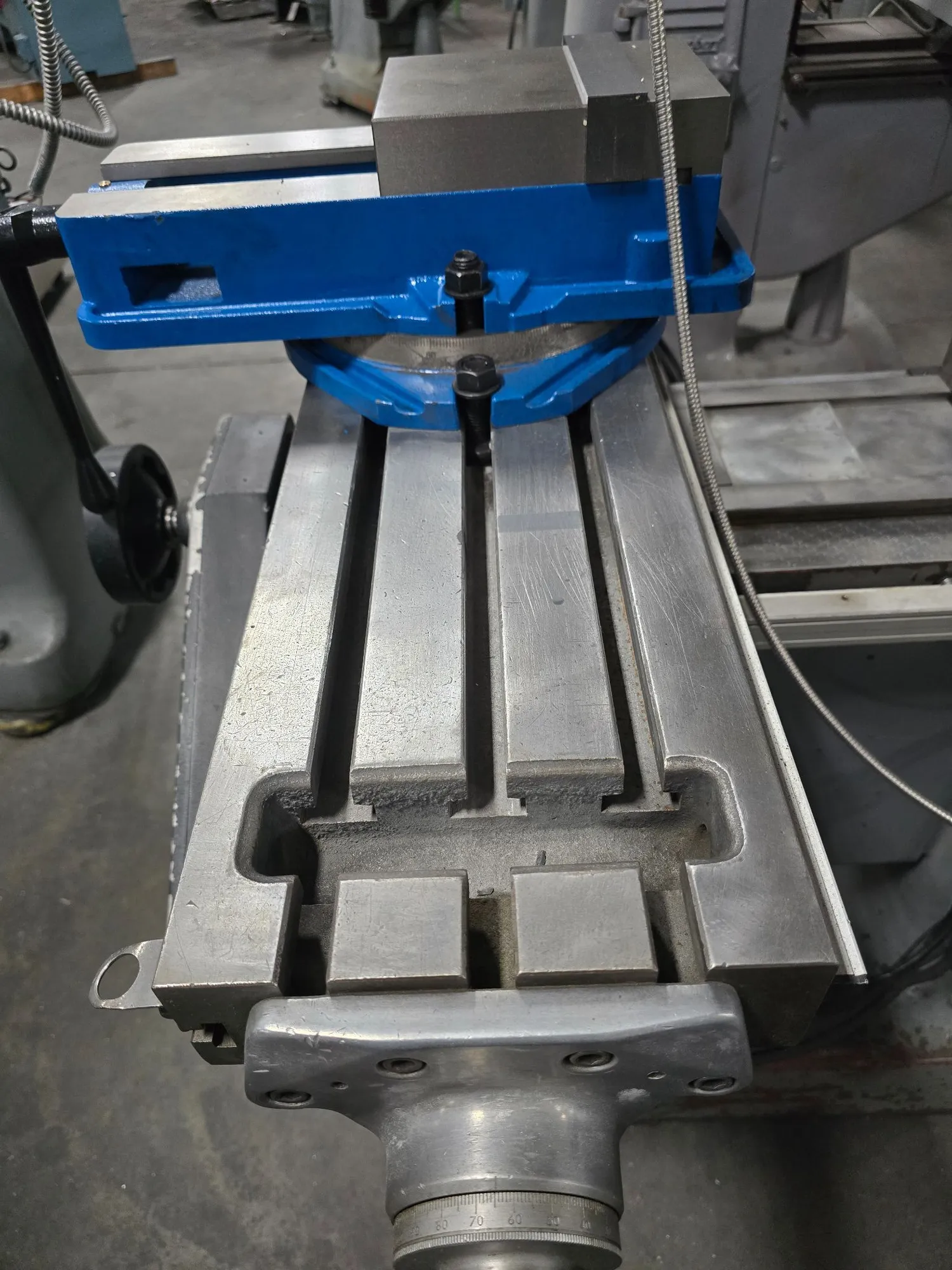

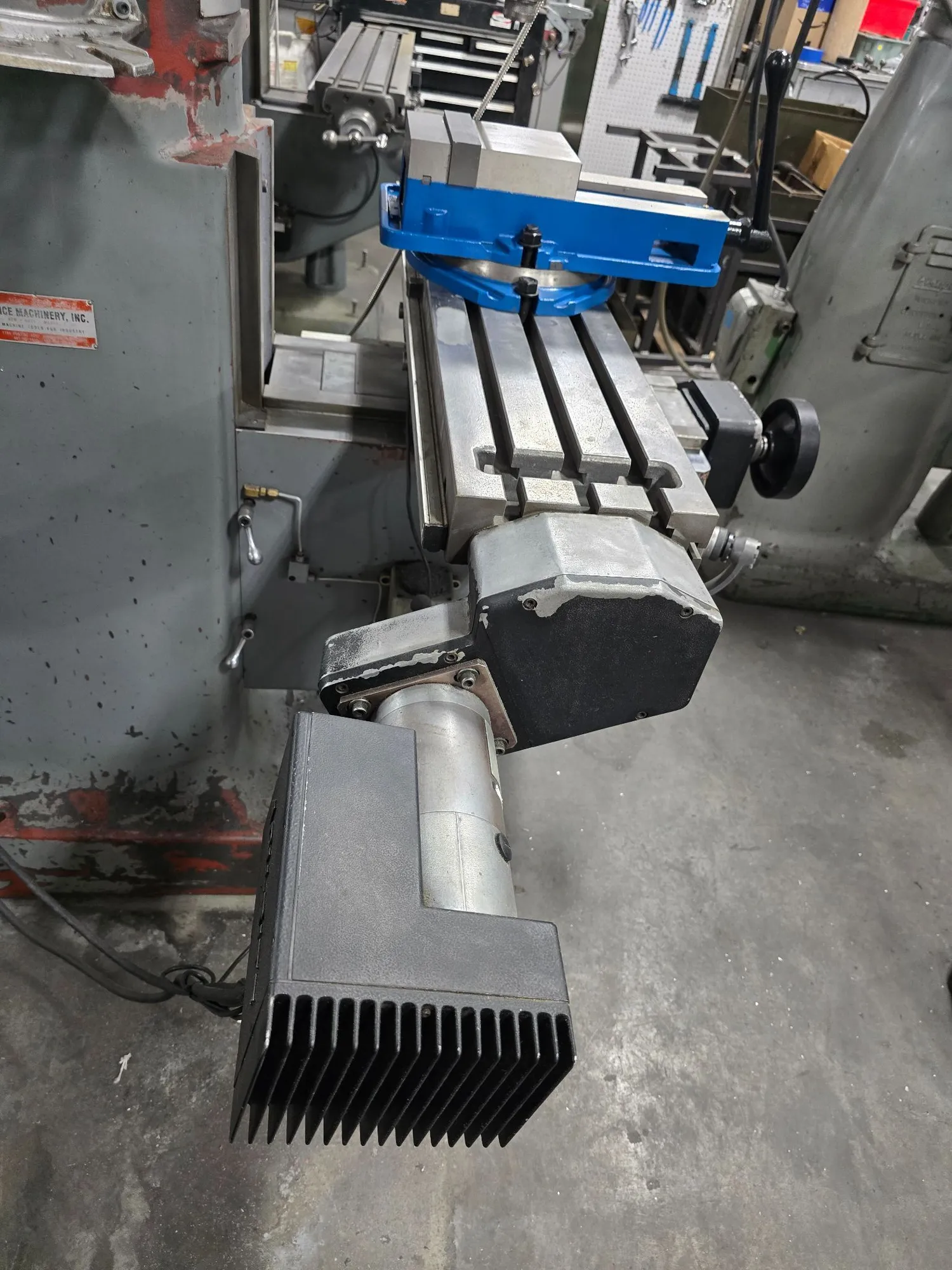

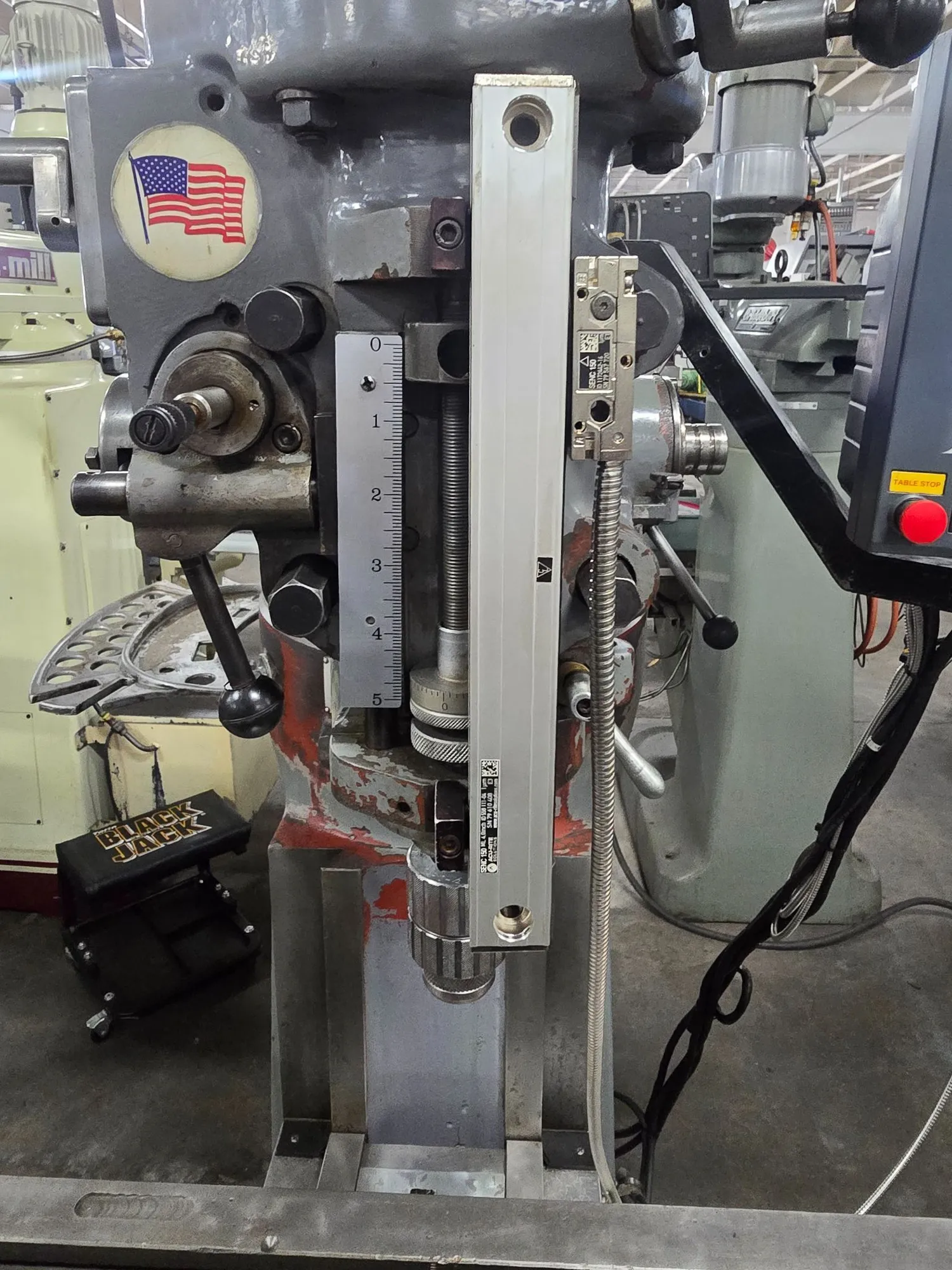

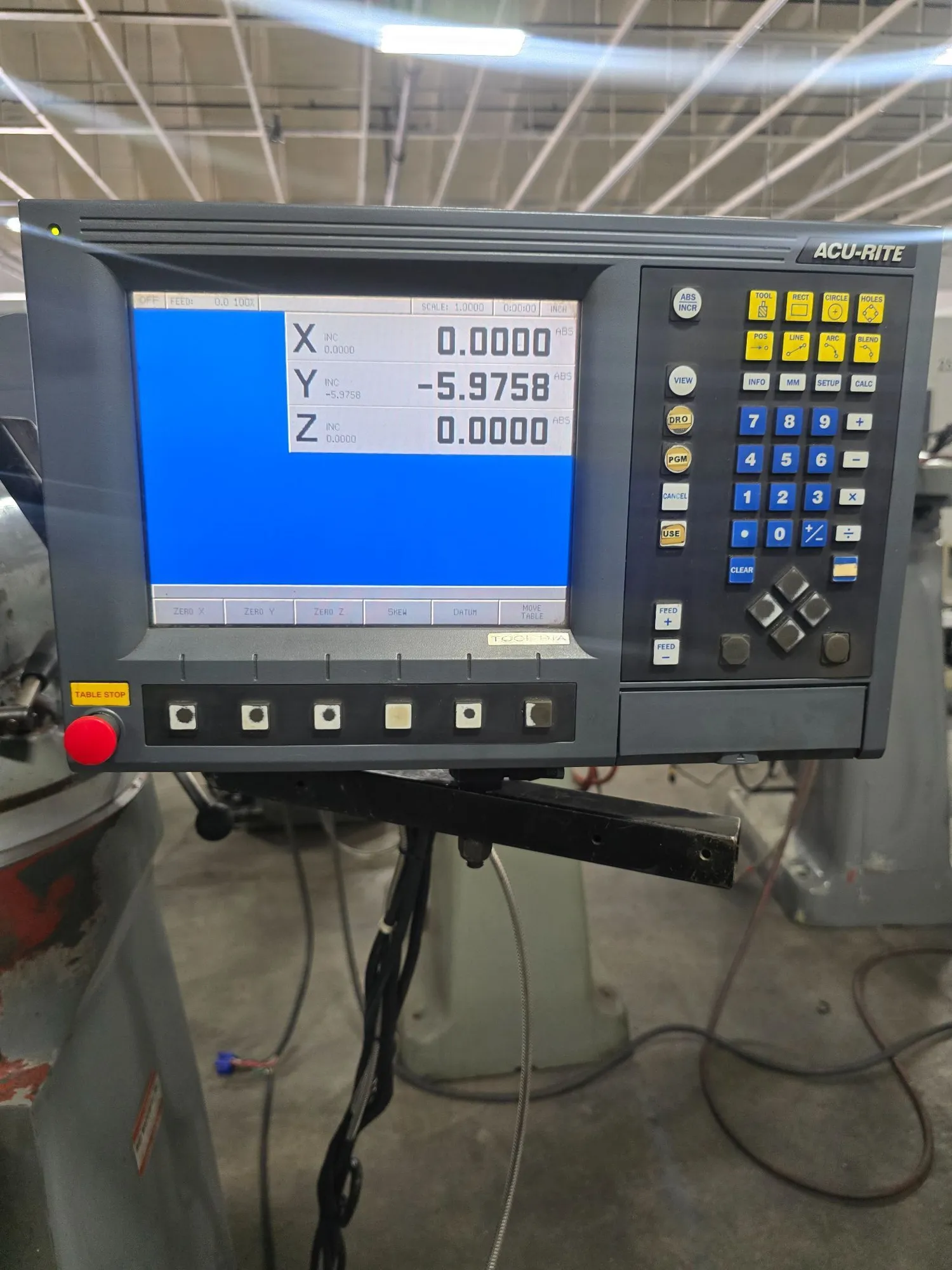

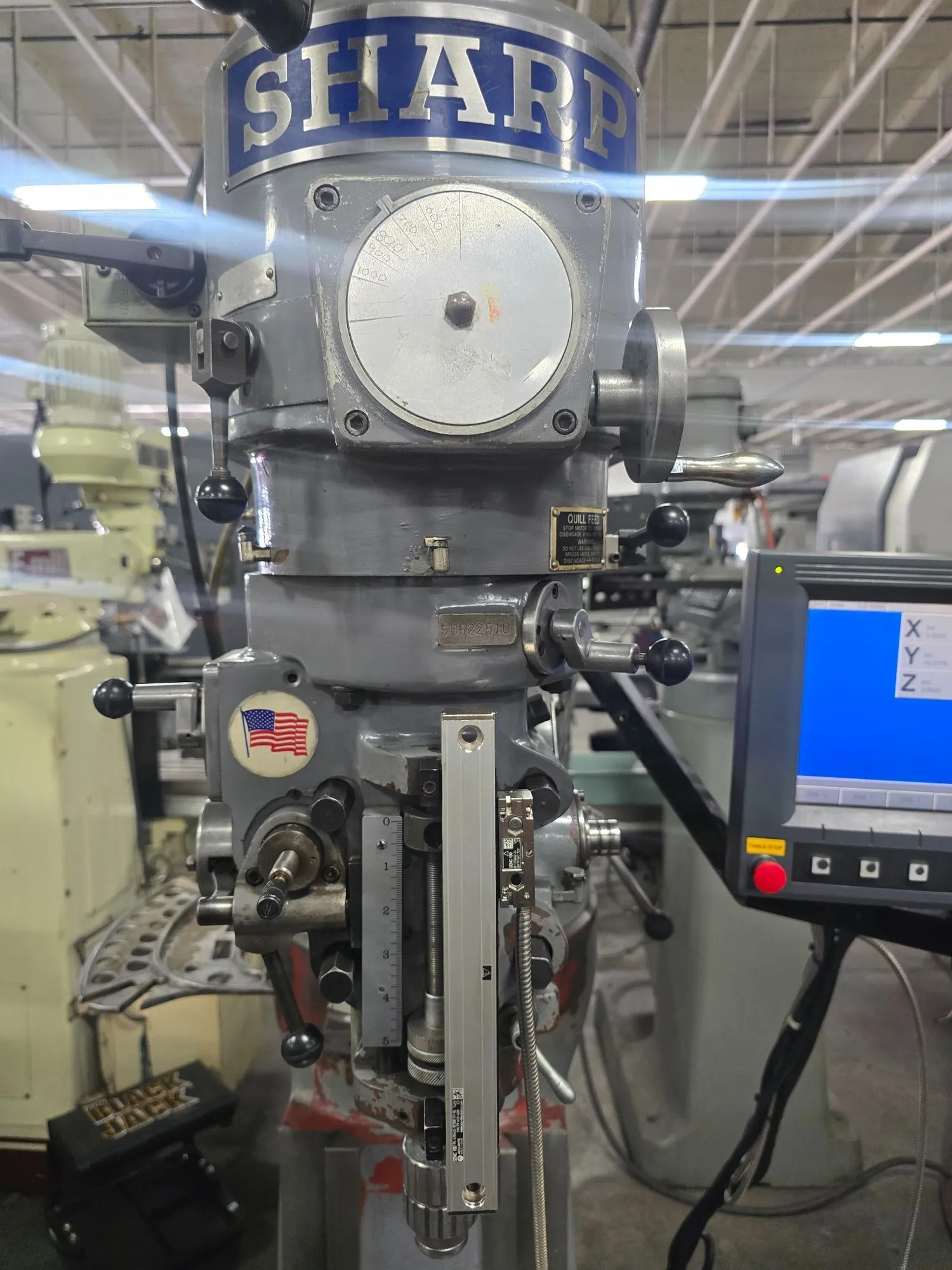

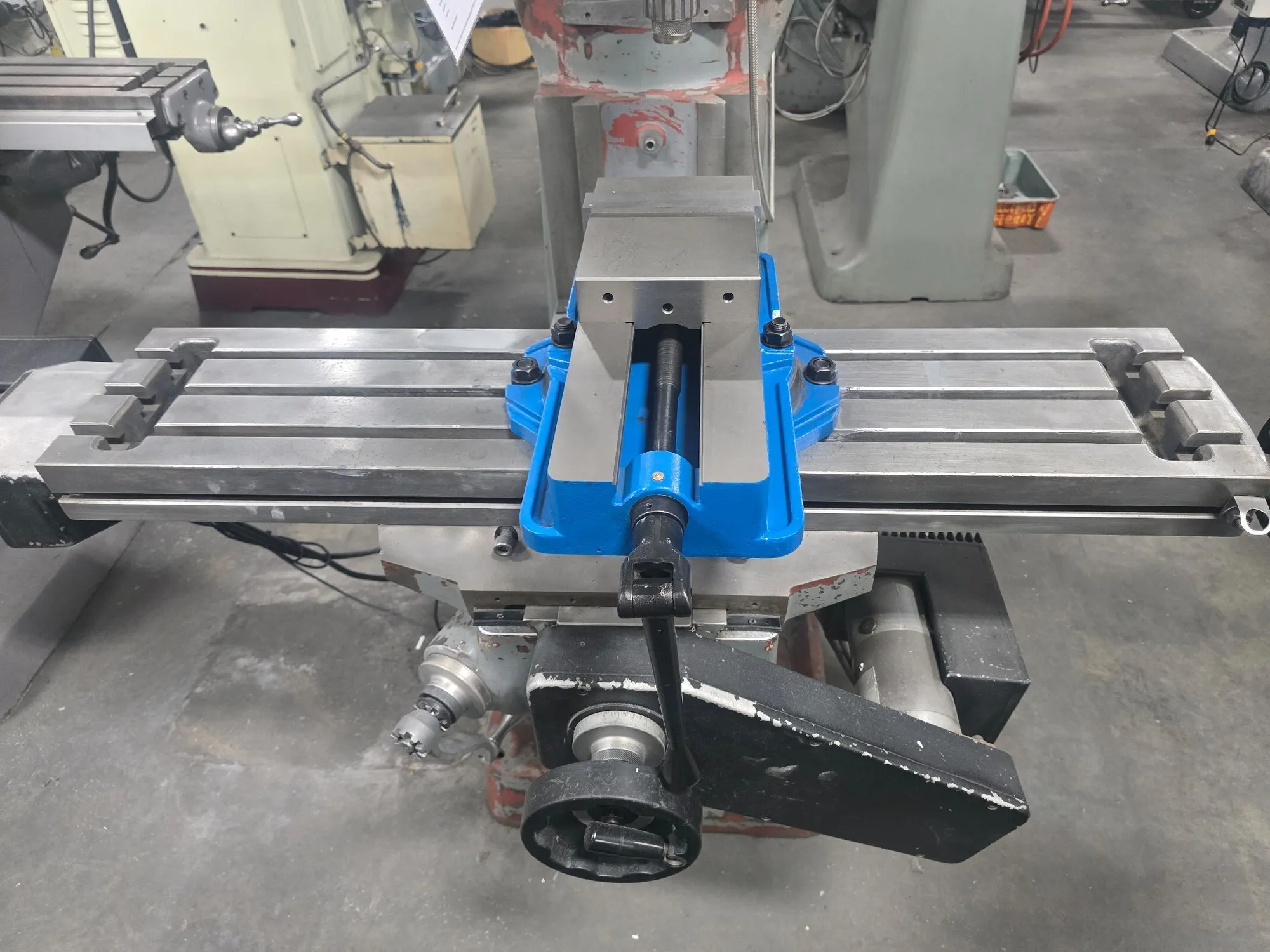

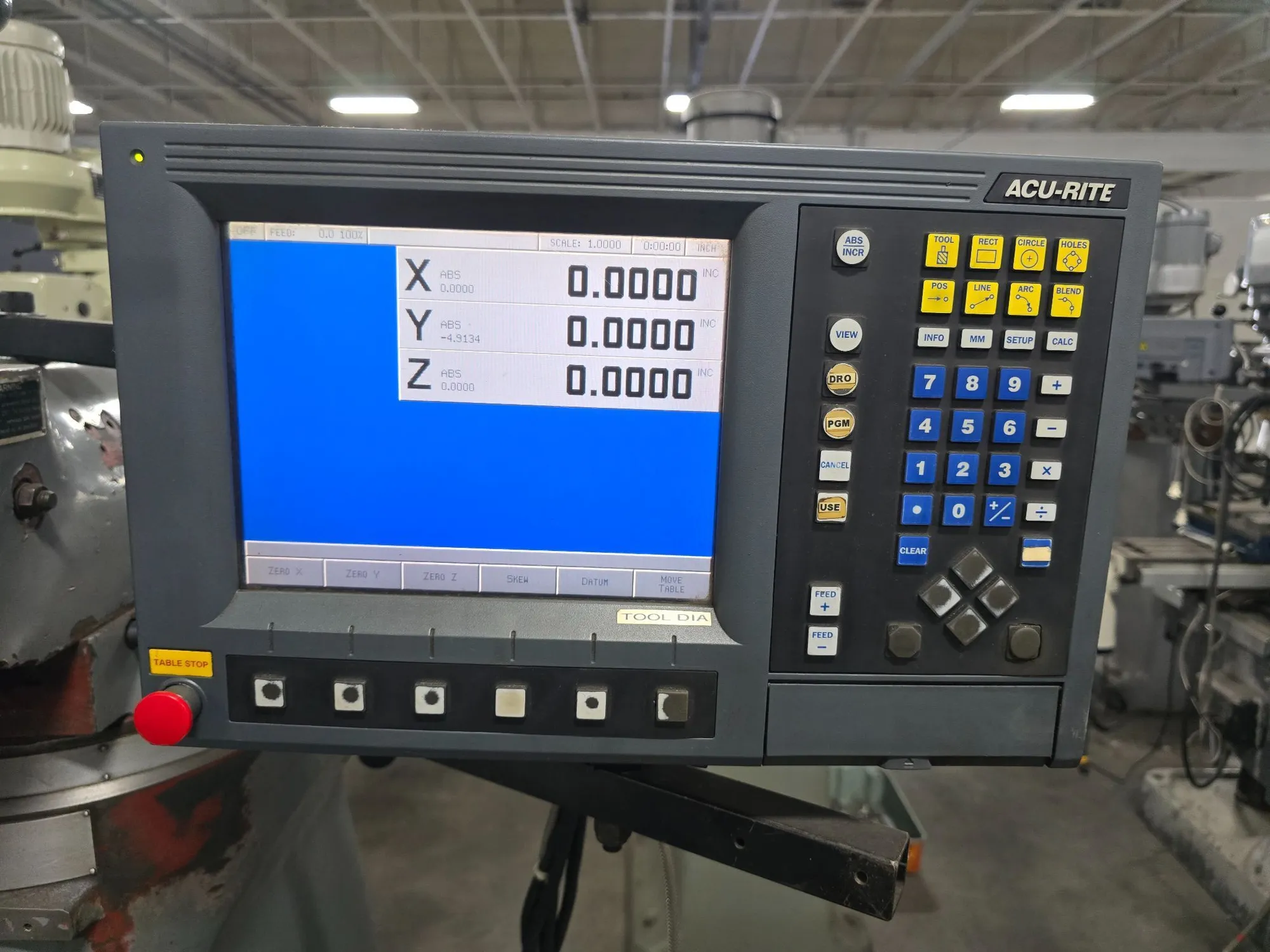

THE SHARP LMV/MP-2 IS A CNC MILL FEATURING AN ACURITE MILLPWR MP2 2-AXIS CNC CONTROL, WHICH SUPPORTS BOTH G CODE AND CONVERSATIONAL PROGRAMMING FOR ITS X AND Y AXES. THE MACHINE UTILIZES A 9” X 42” TABLE WITH 3 T-SLOTS (5/8” SIZE, 2.5” PITCH). TRAVEL SPECIFICATIONS INCLUDE 25” X LONGITUDINAL, 11” Y CROSS, 5” Z VERTICAL QUILL, 12” RAM, AND 16” VERTICAL KNEE TRAVEL. IT IS EQUIPPED WITH AN R-8 SPINDLE NOSE TAPER, POWERED BY A 3 HP, 220V MOTOR, PROVIDING A VARIABLE SPEED RANGE OF 60 TO 4500 RPM. THE 3.375” QUILL DIAMETER OFFERS THREE FEED RATES: .0015”, .003”, AND .006” PER REVOLUTION. THE HEAD FEATURES A 360° SWIVEL ANGLE AND A 45° TILT ANGLE FOR BOTH LEFT/RIGHT AND UP/DOWN ADJUSTMENTS. CORE CONSTRUCTION INCLUDES HARD CHROMED WAYS AND MEEHANITE CASTINGS, WITH ABEC-7 SUPER PRECISION ANGULAR CONTACT BEARINGS SUPPORTING THE SPINDLE. OPERATIONAL COMPONENTS INCLUDE 2-AXIS PRECISION BALL SCREWS, A 1-SHOT LUBE SYSTEM, AND A 3-AXIS DIGITAL READOUT SYSTEM. THE APPROXIMATE WEIGHT IS 2,400 LBS, REQUIRING 3 KVA / 8 AMPS AT 220V POWER CONSUMPTION.
