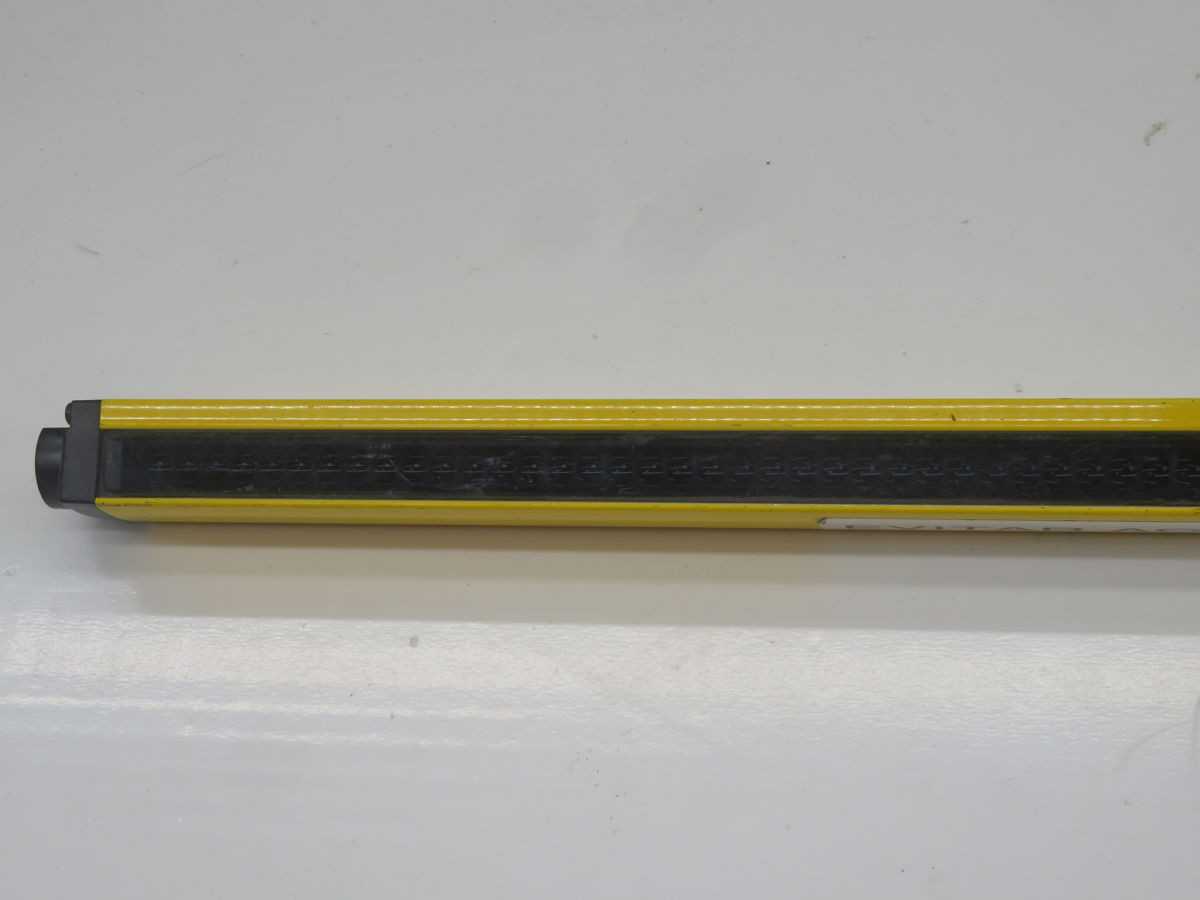

SICK C41E-0701AG300, 14MM RESOLUTION, 750MM HEIGHT, 2.5M RANGE, 10MS RESPONSE, IP65, SIL2, PL C

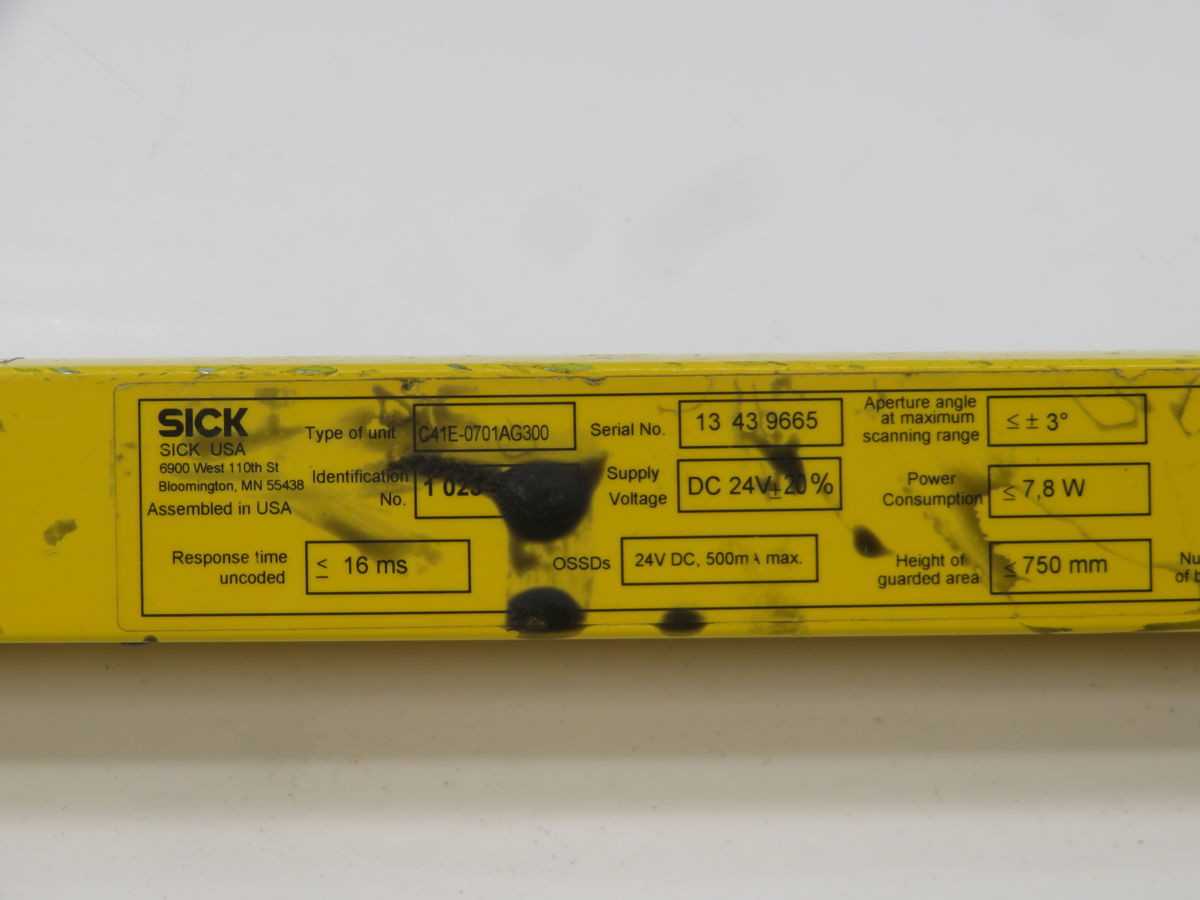

THE SICK C41E-0701AG300 IS A TYPE 2 SAFETY LIGHT CURTAIN RECEIVER, DESIGNED WITH A 14MM RESOLUTION AND A 750MM PROTECTIVE FIELD HEIGHT. IT PROVIDES A SCANNING RANGE FROM 0 TO 2.5 METERS. THE UNIT OPERATES ON A 24 VDC POWER SUPPLY, TYPICALLY CONSUMING 100 MA, AND EXHIBITS A RESPONSE TIME OF 10 MS. OPERATIONAL FEEDBACK IS PRESENTED VIA A 7-SEGMENT DISPLAY. ELECTRICAL CONNECTIVITY IS FACILITATED BY AN 8-PIN M12 MALE CONNECTOR. THE DEVICE FEATURES AN ALUMINUM EXTRUDED PROFILE HOUSING WITH AN IP65 ENCLOSURE RATING, ENABLING OPERATION WITHIN A TEMPERATURE RANGE OF -30 °C TO +55 °C. IT IS CERTIFIED TO SAFETY INTEGRITY LEVEL SIL2 (IEC 61508) AND PERFORMANCE LEVEL PL C (EN ISO 13849-1).
