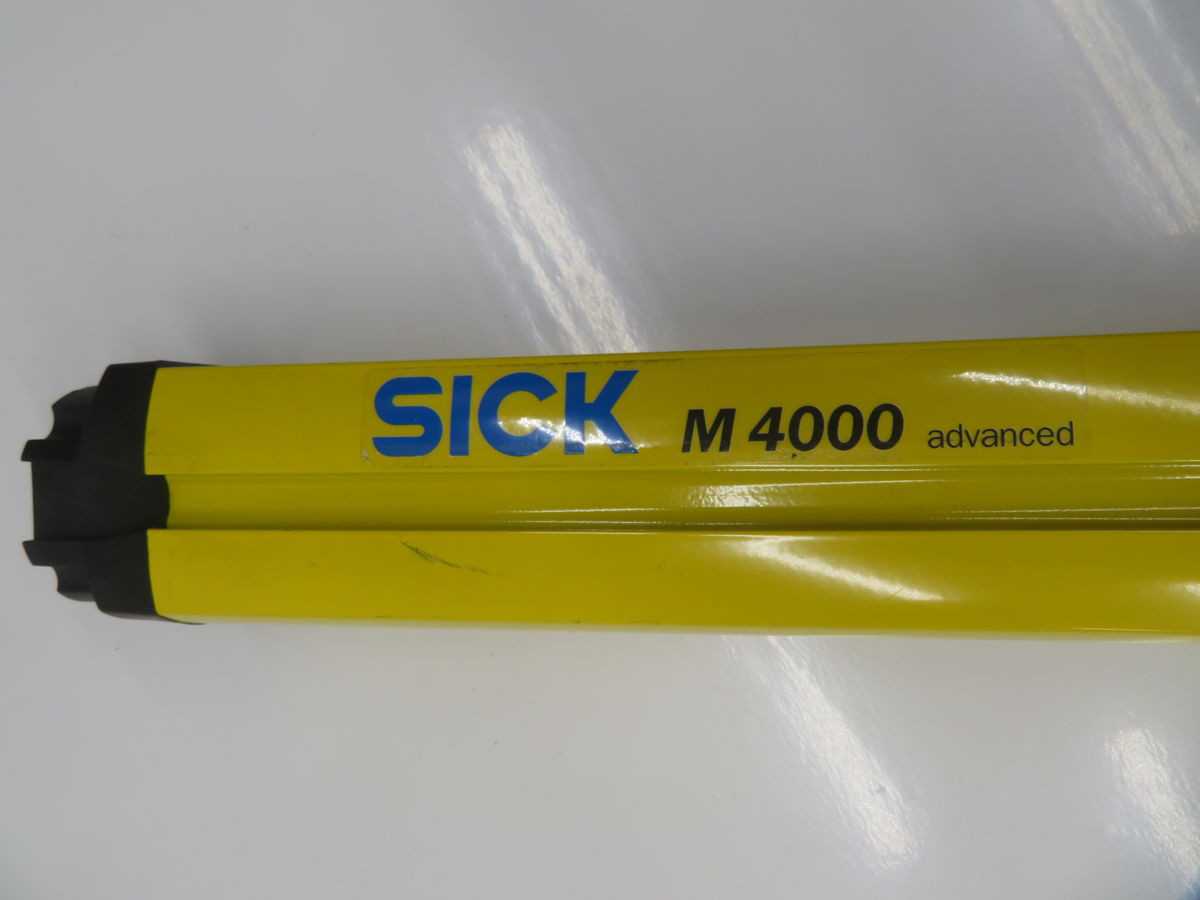

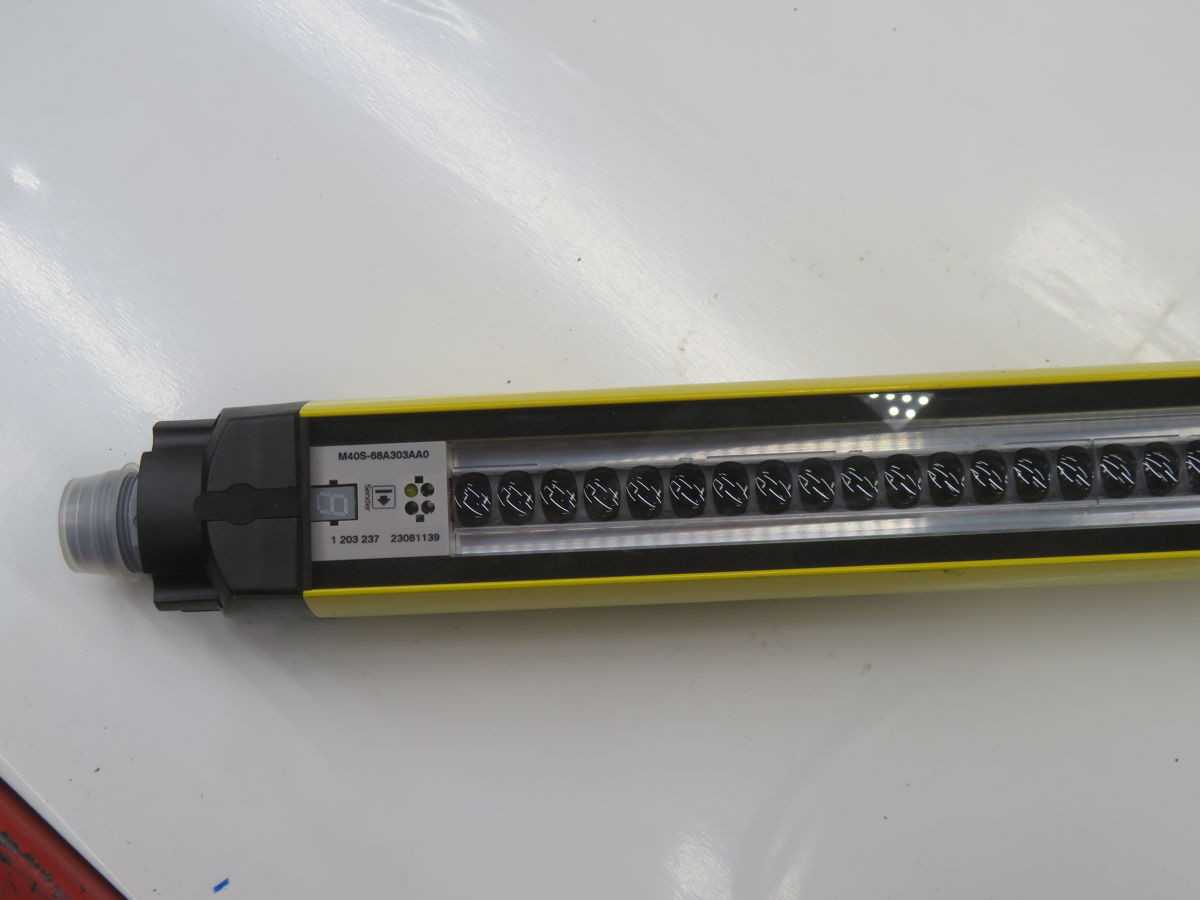

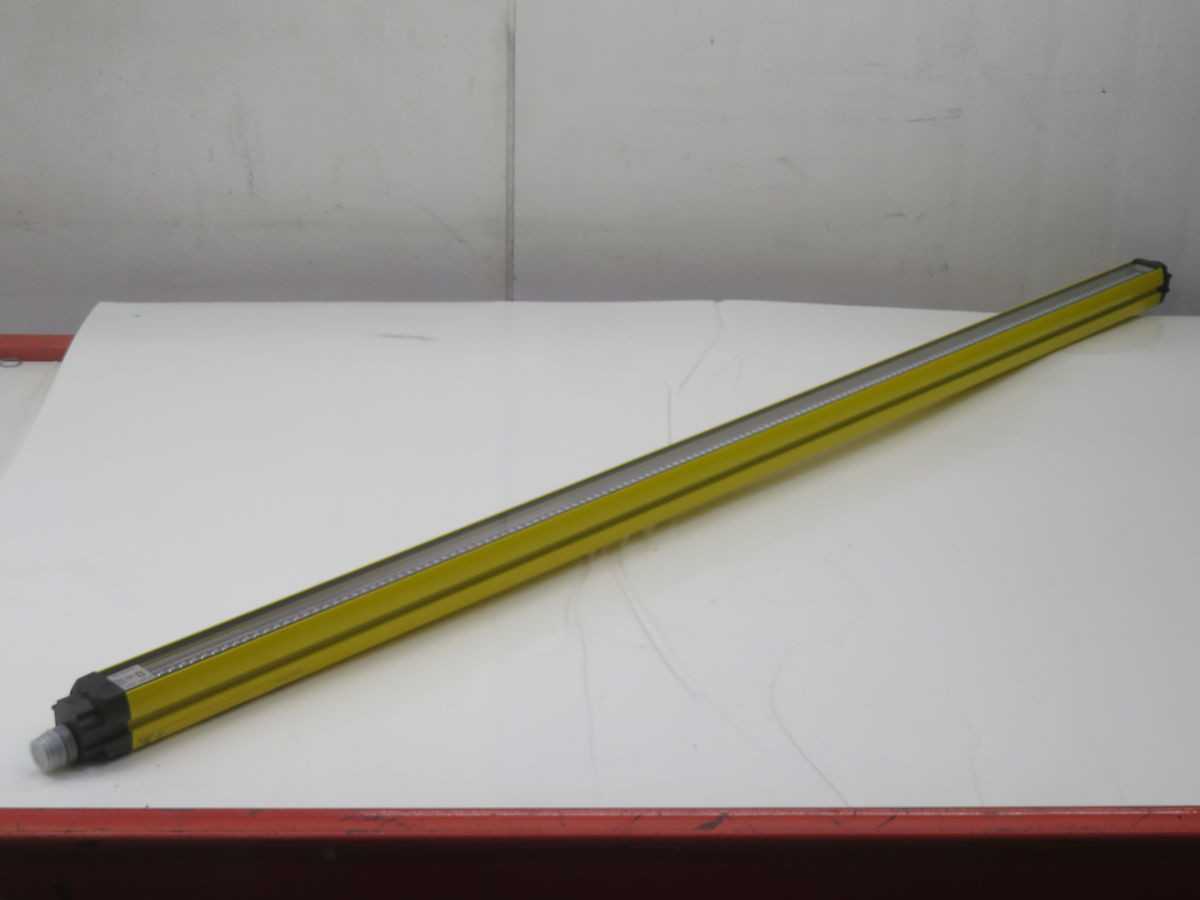

Sick M40S-68A303AA0 Curtain Sensors, 1500 mm Height, 30 mm Resolution, T4 Safety

The Sick M40S-68A303AA0 M 4000 series is a safety light curtain sender unit. It operates with a supply voltage of DC 24V ± 20% and has a maximum power consumption of $\le 5.5W$. The unit features a protective field height of 1500 mm and a resolution of 30 mm. It is certified for safety type 4 according to IEC 61496-1, PL E according to EN ISO 13849-1, and SIL3 according to IEC 61508. The typical operating range extends from 0.5 m to 21 m, with a response time of 18 ms. Environmental protection is rated at IP65, and the operational temperature range is -30 °C to +55 °C.
