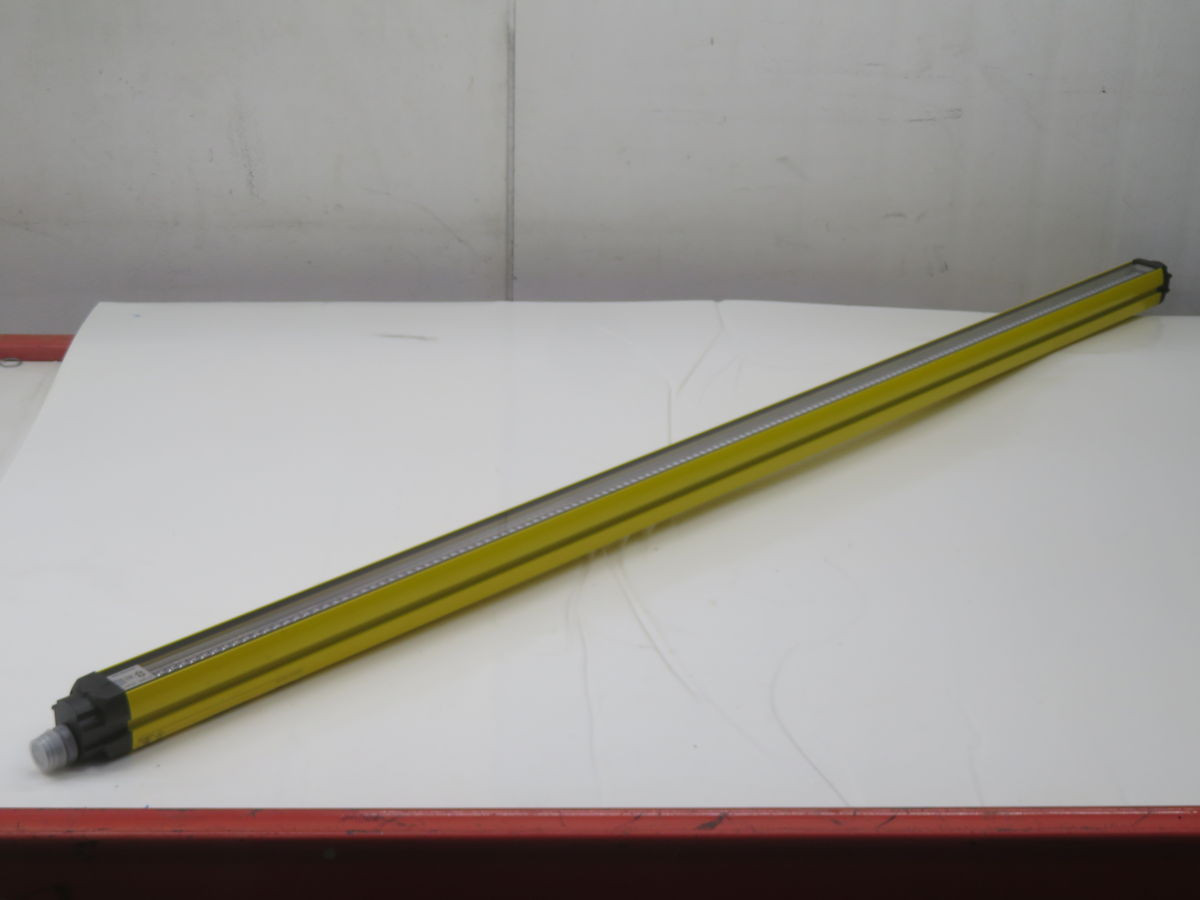

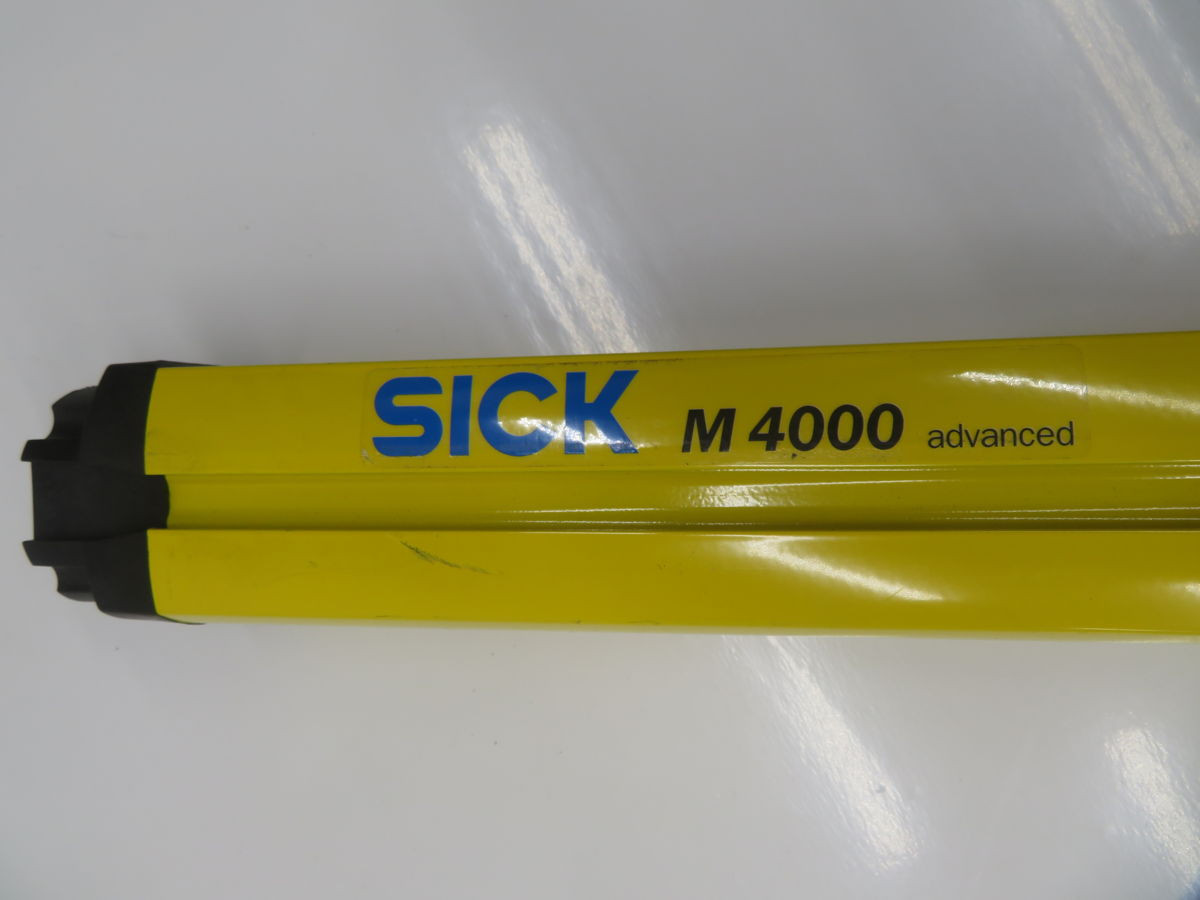

SICK M40S-68A303AA0 M 4000 SAFETY LIGHT CURTAIN

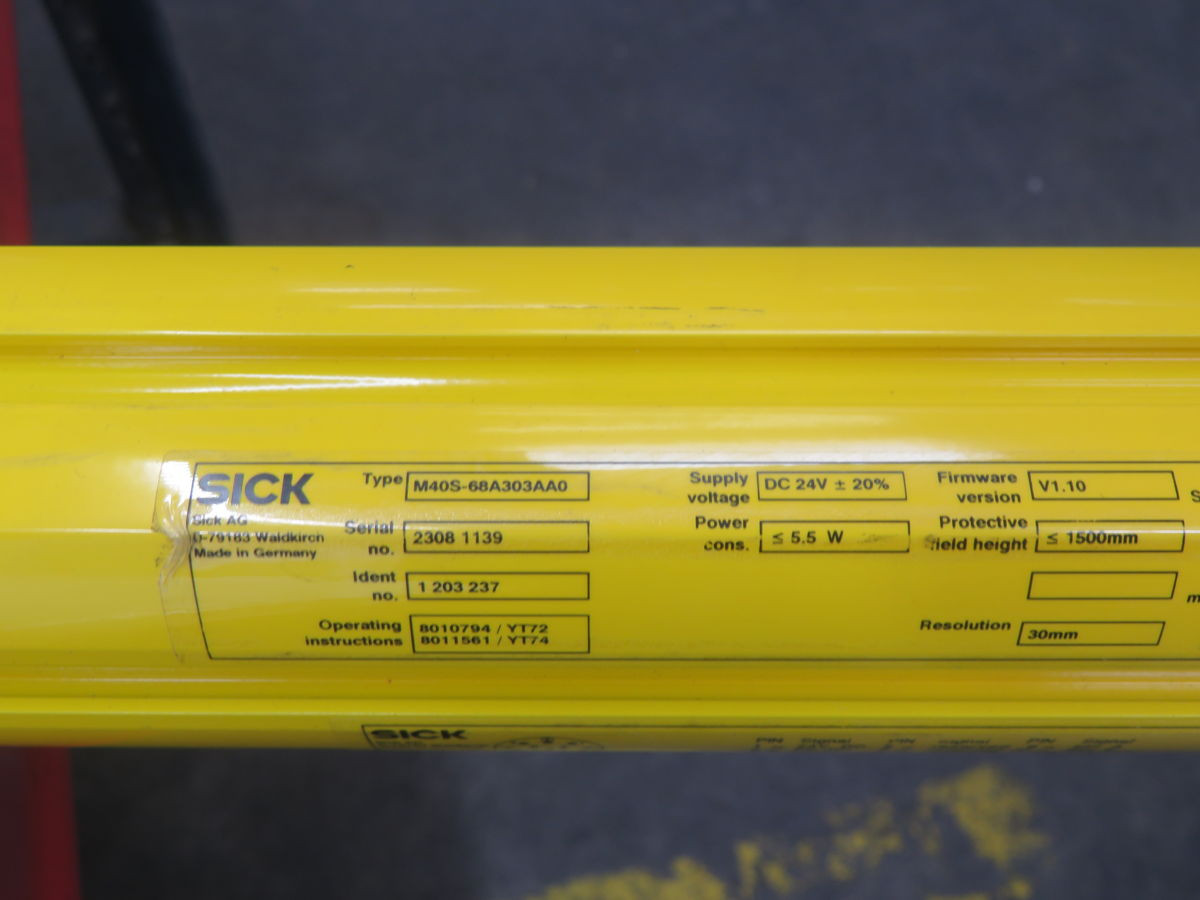

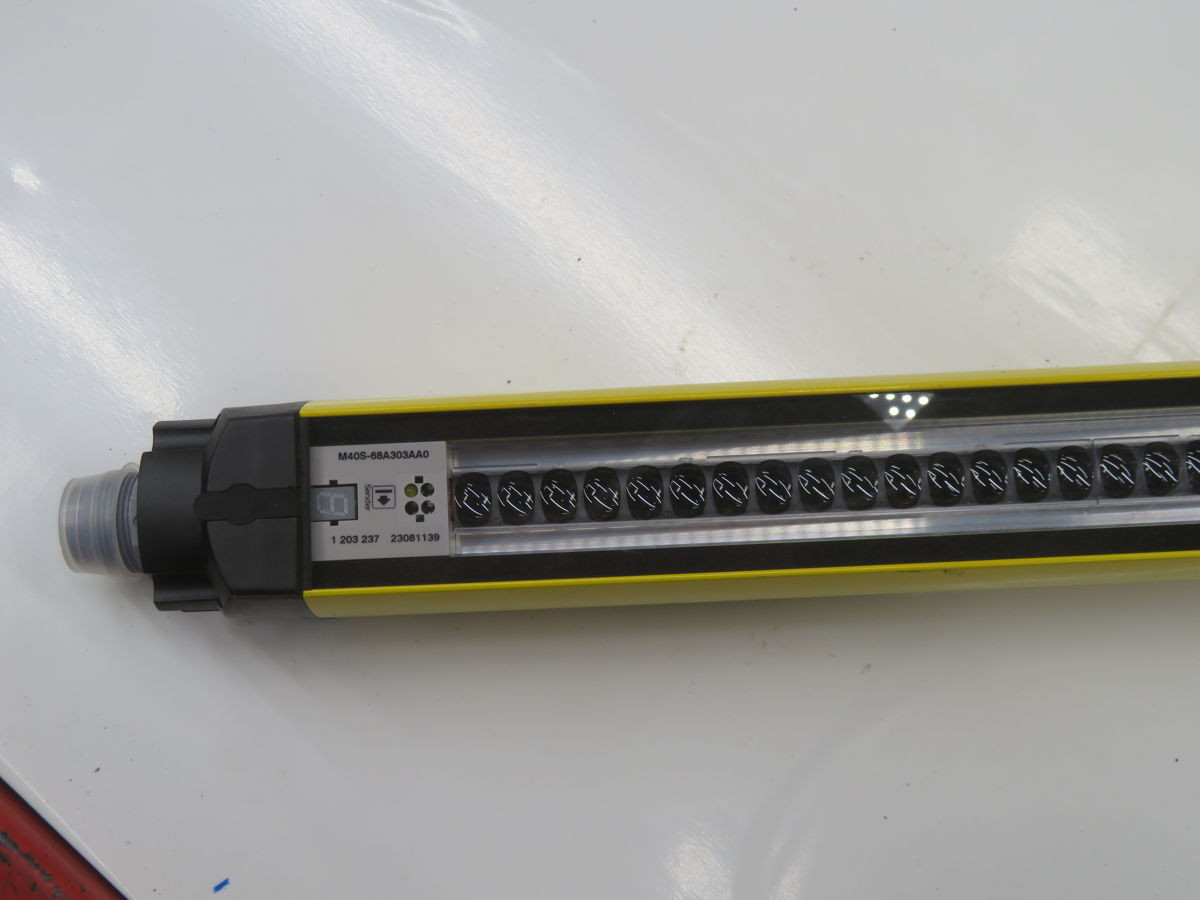

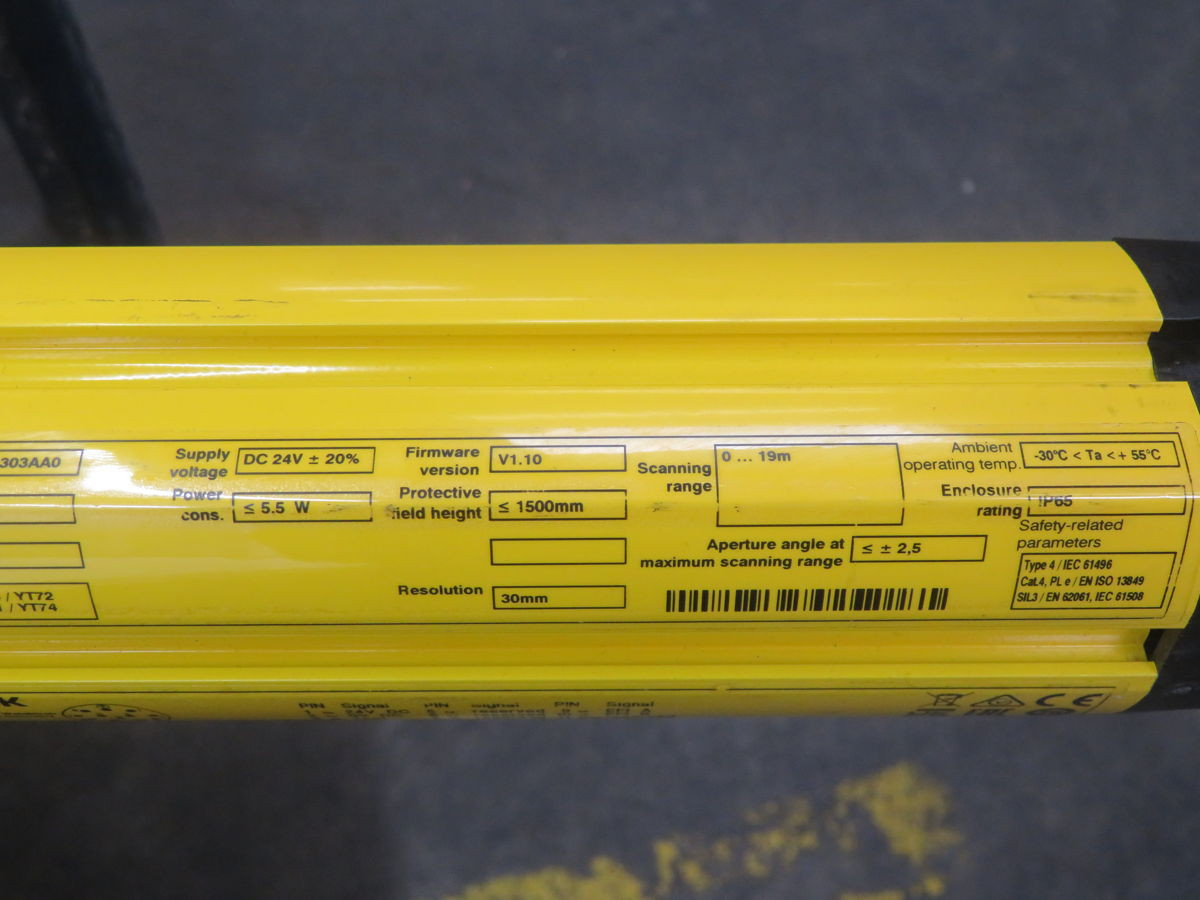

THE SICK M40S-68A303AA0 IS A M 4000 SERIES SAFETY LIGHT CURTAIN SENDER UNIT DESIGNED FOR INDUSTRIAL SAFETY APPLICATIONS. IT OPERATES ON A SUPPLY VOLTAGE OF DC 24V ± 20% AND HAS A MAXIMUM POWER CONSUMPTION OF 5.5W. THIS DEVICE FEATURES A PROTECTIVE FIELD HEIGHT OF 1500MM AND A RESOLUTION OF 30MM, ENABLING THE DETECTION OF OBJECTS DOWN TO THIS SIZE. IT MEETS SAFETY STANDARDS AS A TYPE 4 DEVICE, ACHIEVING PERFORMANCE LEVEL E (PL E) ACCORDING TO EN ISO 13849 AND SAFETY INTEGRITY LEVEL 3 (SIL 3) ACCORDING TO IEC 61508 AND IEC 61496. THE UNIT UTILIZES NEAR-INFRARED (NIR) LEDS AT 950 NM FOR OPTICAL SYNCHRONIZATION AND OPERATES WITHIN A TYPICAL SCANNING RANGE OF 0.5 METERS TO 70 METERS.
