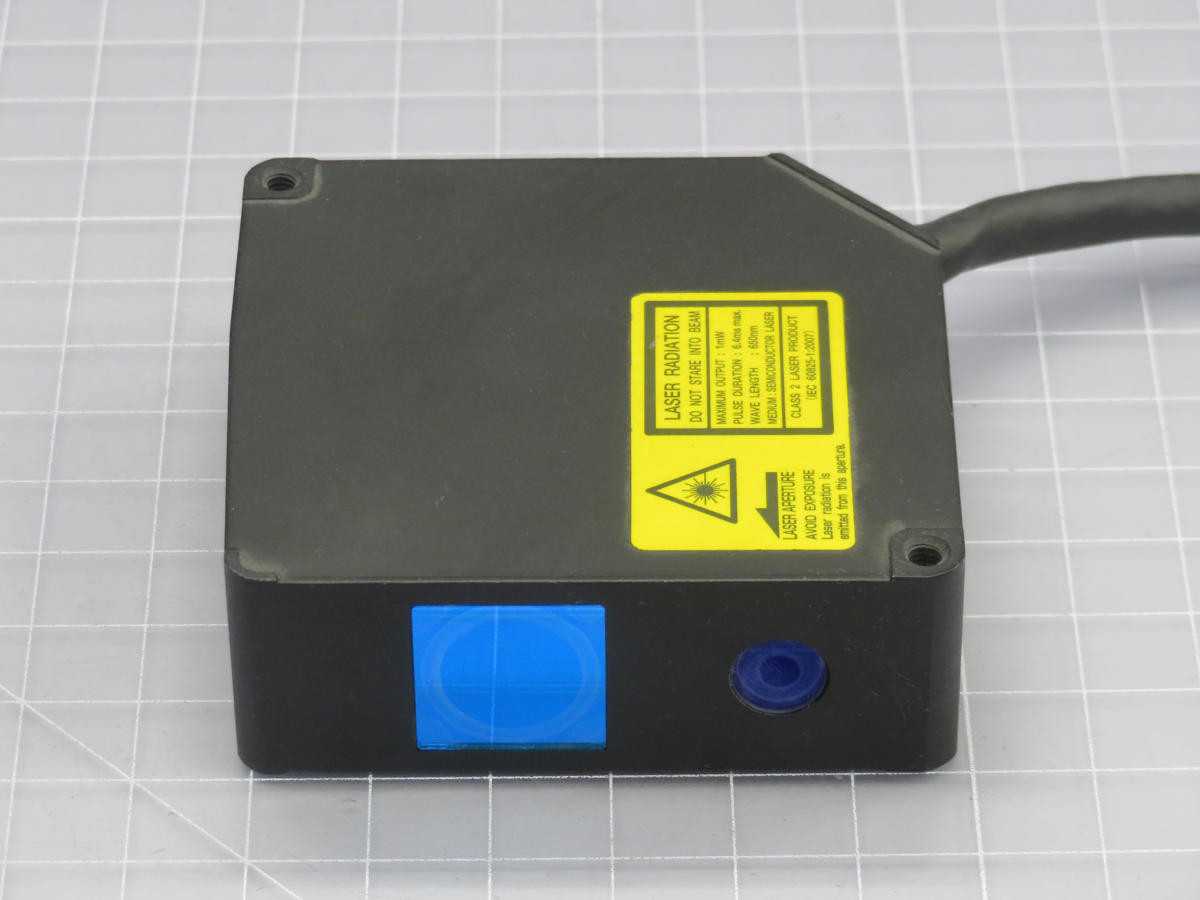

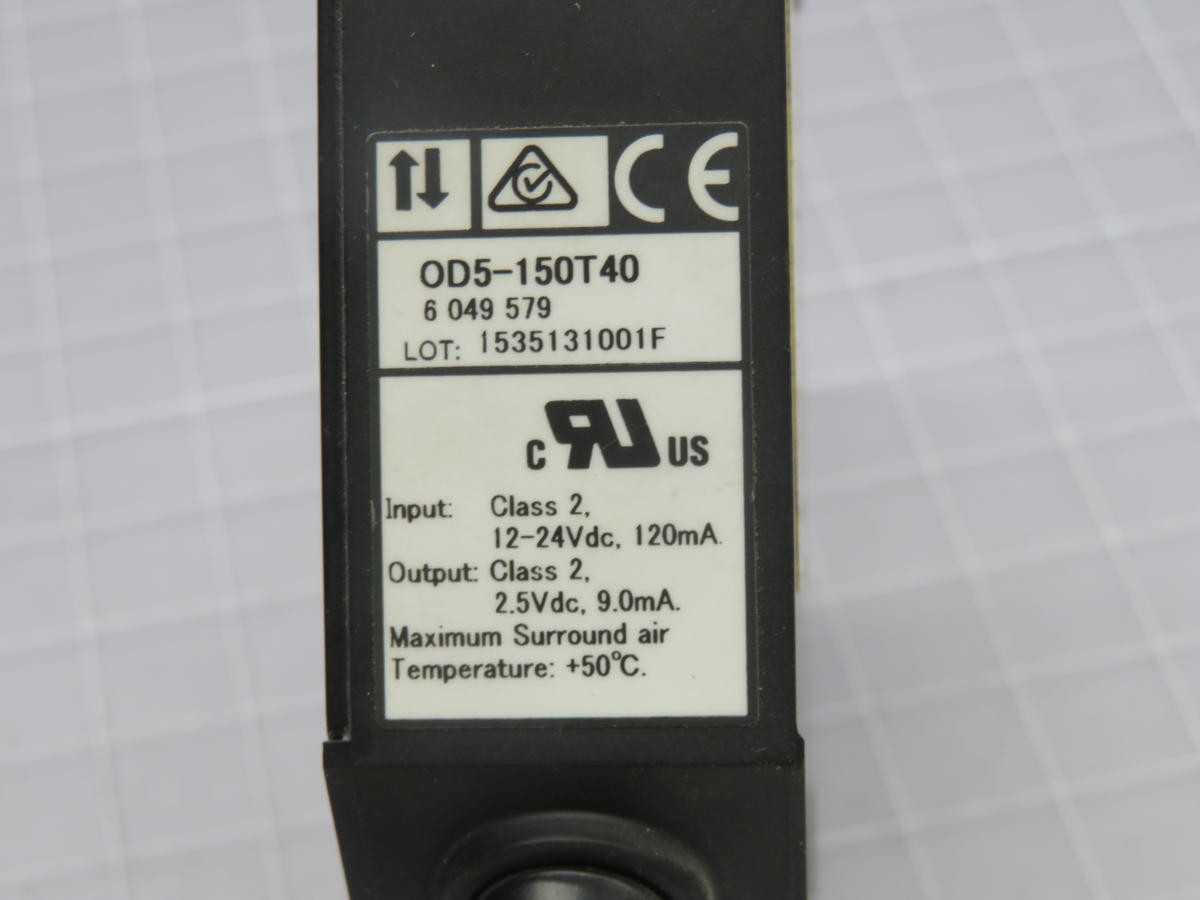

SICK OD5-150T40 PHOTOELECTRIC, 100-200MM RANGE, 10ΜM RESOLUTION, IP67

THE SICK OD5-150T40 IS A PHOTOELECTRIC LASER DISPLACEMENT SENSOR THAT OPERATES ON THE TRIANGULATION PRINCIPLE. IT OFFERS A MEASURING RANGE OF 100 MM TO 200 MM, PROVIDING A RESOLUTION OF 10 ΜM, A REPEATABILITY OF 15 ΜM, AND AN ACCURACY OF ± 50 ΜM. THE SENSOR INTEGRATES A CLASS 2 RED VISIBLE LASER LIGHT SOURCE. ELECTRICAL OPERATION REQUIRES A SUPPLY VOLTAGE RANGING FROM 15 V DC TO 30 V DC. OUTPUT CAPABILITIES INCLUDE ONE SELECTABLE ANALOG OUTPUT (0 V TO 10 V OR 4 MA TO 20 MA) AND ONE CONFIGURABLE SWITCHING OUTPUT (PNP OR NPN, UP TO 100 MA). CONSTRUCTED WITH A NICKEL-PLATED BRASS HOUSING, THE DEVICE MAINTAINS AN IP67 ENCLOSURE RATING AND CONNECTS VIA A 5-PIN M12 MALE CONNECTOR. ITS OPERATIONAL TEMPERATURE RANGE IS SPECIFIED FROM -10 °C TO +50 °C.
