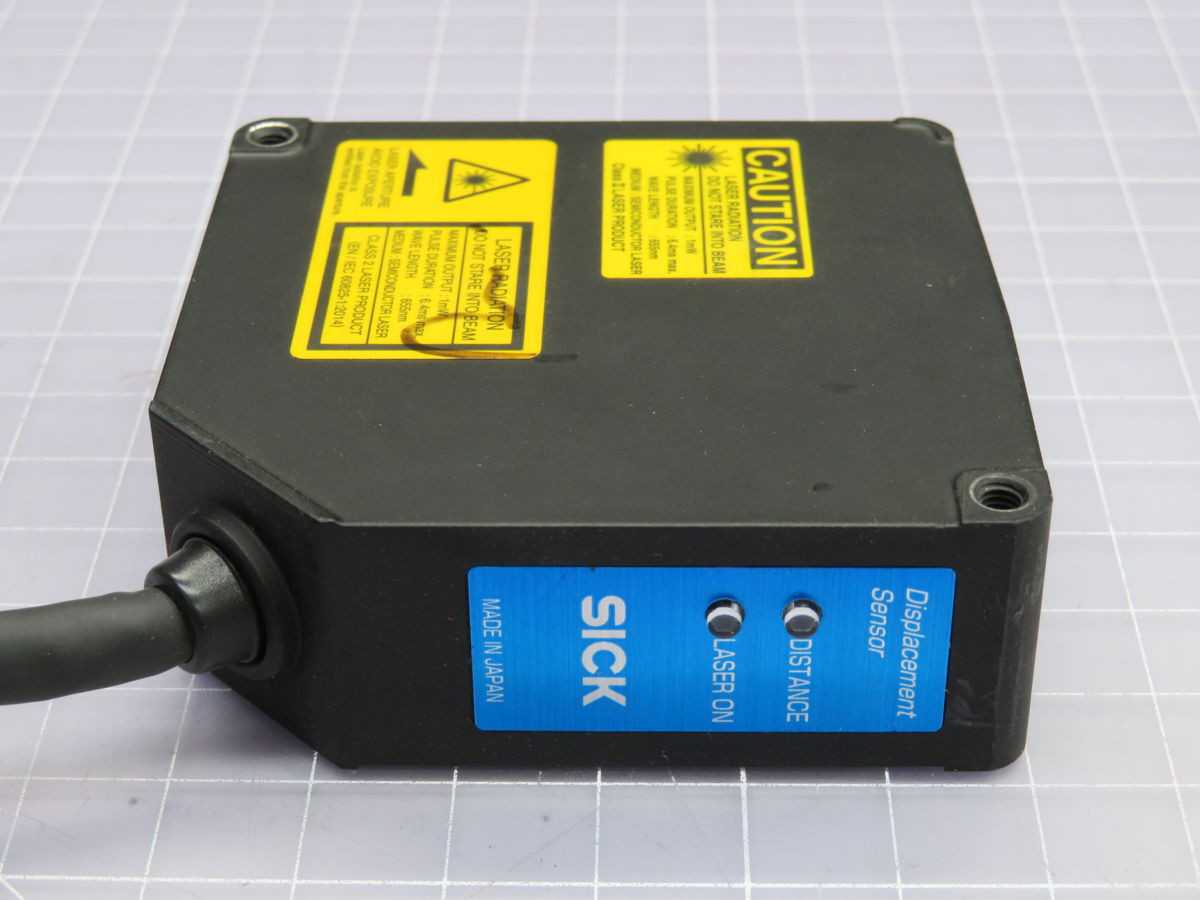

SICK OD5-150T40 PHOTOELECTRIC, 150MM RANGE, 5ΜM RES, 10ΜM REP, ±50ΜM LIN, IP67

THE SICK OD5-150T40 IS A PHOTOELECTRIC DISPLACEMENT SENSOR DESIGNED FOR PRECISE DISTANCE MEASUREMENT WITHIN A 150 MM RANGE. IT EMPLOYS A CLASS 2 RED LASER AS ITS LIGHT SOURCE. PERFORMANCE SPECIFICATIONS INCLUDE A RESOLUTION OF 5 ΜM, REPEATABILITY OF 10 ΜM, AND LINEARITY OF ± 50 ΜM. THE SENSOR OFFERS VERSATILE OUTPUT CAPABILITIES, FEATURING SELECTABLE ANALOG OUTPUTS (0 V TO 10 V, -10 V TO +10 V, OR 4 MA TO 20 MA) ALONGSIDE TWO CONFIGURABLE DIGITAL OUTPUTS (PNP/NPN). IT OPERATES ON A SUPPLY VOLTAGE RANGE OF 15 V DC TO 30 V DC. THE DEVICE FEATURES A ROBUST DIE-CAST ZINC HOUSING, PROVIDING AN IP67 ENCLOSURE RATING, AND CONNECTS VIA AN M12, 8-PIN MALE CONNECTOR.
