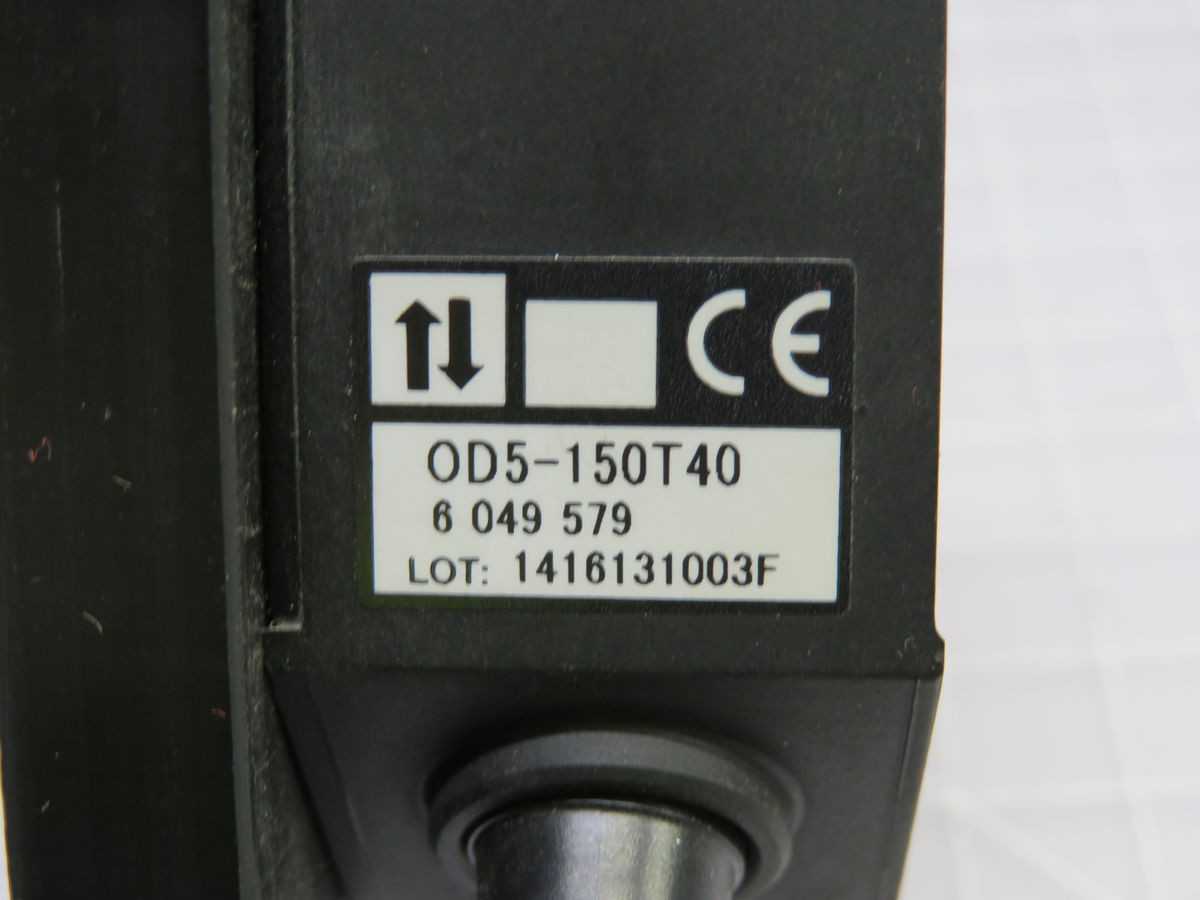

SICK OD5-150T40 SENSOR, 110-190MM RANGE, 2ΜM REPEATABILITY, +/-40ΜM LINEARITY, 180G WEIGHT, IP67

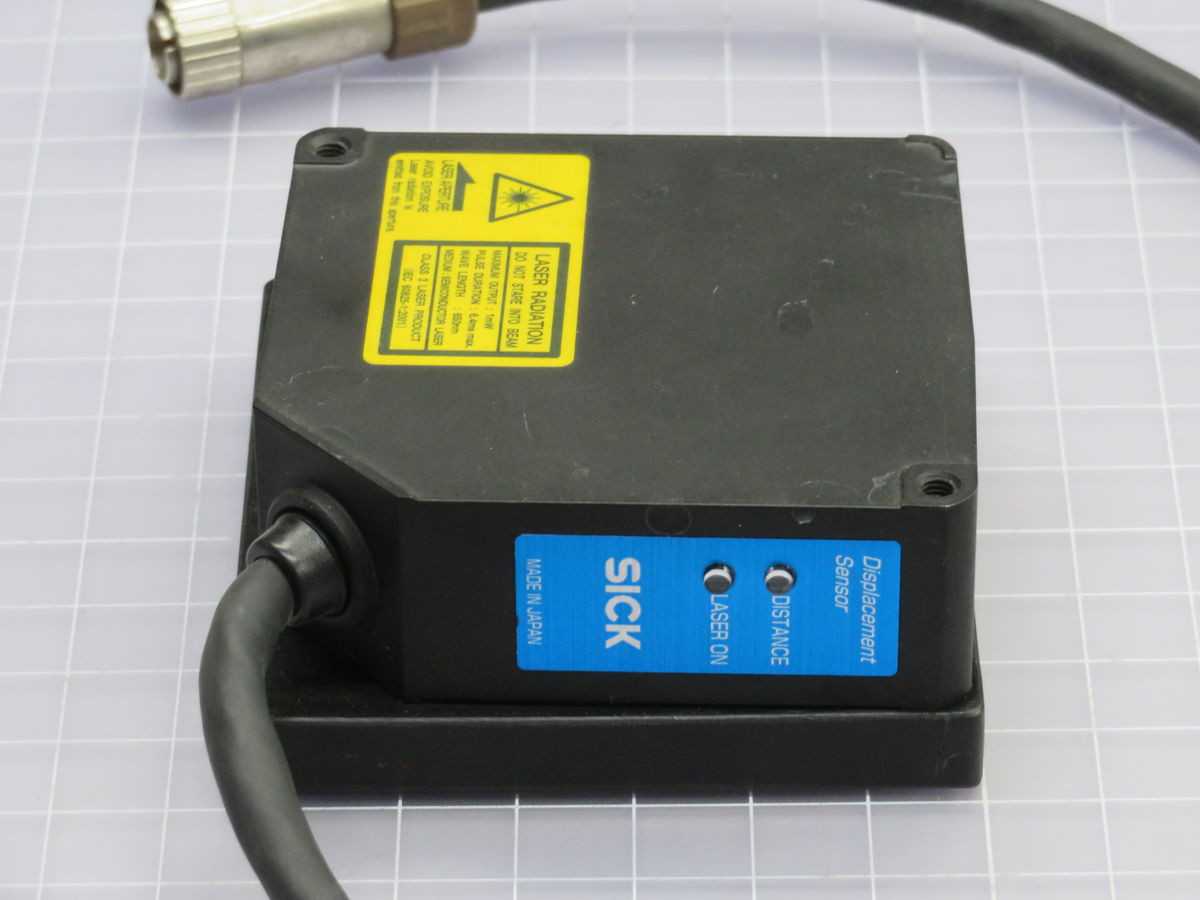

THE SICK OD5-150T40 IS AN OPTICAL DISPLACEMENT MEASUREMENT SENSOR DESIGNED FOR MEASURING DISTANCES TO NATURAL OBJECTS. IT FEATURES A MEASURING RANGE OF 110 MM TO 190 MM, PROVIDING A REPEATABILITY OF 2 ΜM AND A LINEARITY OF ± 40 ΜM. THE SENSOR OPERATES WITH A VISIBLE RED LASER LIGHT SOURCE, CLASSIFIED AS CLASS 2 ACCORDING TO EN 60825-1:2014. ITS ELECTRICAL SPECIFICATIONS INCLUDE A RESPONSE TIME AND OUTPUT TIME OF ≥ 0.1 MS. THE DEVICE OPERATES ON A SUPPLY VOLTAGE OF 18 V DC TO 30 V DC, WITH A MAXIMUM POWER CONSUMPTION OF 2.4 W. OUTPUT CAPABILITIES INCLUDE ONE CONFIGURABLE ANALOG OUTPUT (4 MA TO 20 MA OR 0 V TO 10 V) AND TWO CONFIGURABLE PNP DIGITAL OUTPUTS. THE SENSOR HOUSING IS CONSTRUCTED FROM DIE-CAST ALUMINUM WITH GLASS OPTICS, PROVIDING AN IP67 ENCLOSURE RATING. IT HAS PHYSICAL DIMENSIONS OF 20 MM (WIDTH) X 57.5 MM (HEIGHT) X 90.5 MM (DEPTH) AND WEIGHS APPROXIMATELY 180 G. THE OPERATIONAL TEMPERATURE RANGE SPANS FROM –10 °C TO +55 °C.
