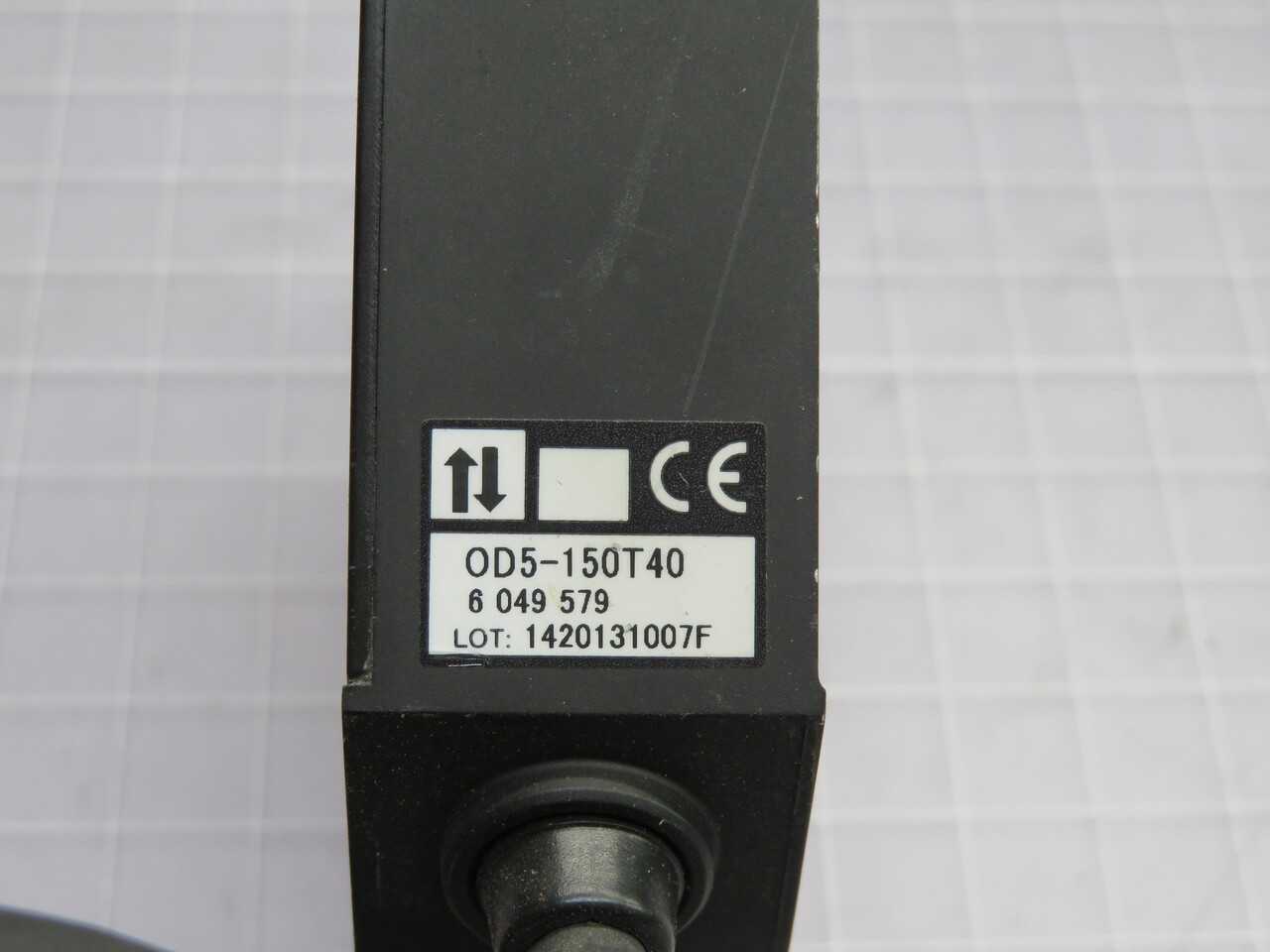

SICK OD5-150T40 SENSORS, 100-200 MM RANGE, 10 ΜM RESOLUTION, 5 ΜM REPEATABILITY, IP67

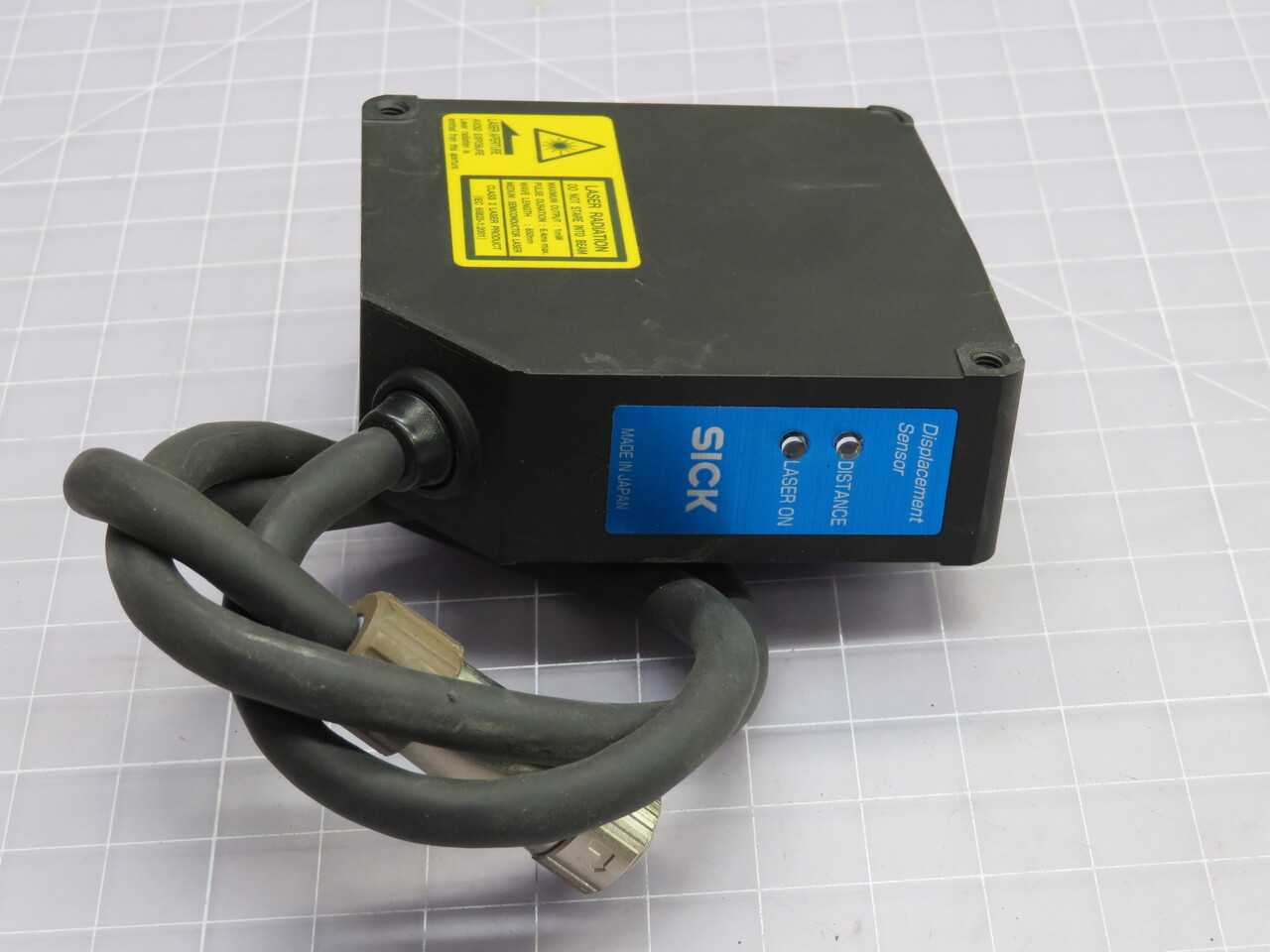

THE SICK OD5-150T40 IS A LASER DISTANCE SENSOR ENGINEERED FOR HIGH-PRECISION DISPLACEMENT AND POSITION MEASUREMENT TASKS. THIS DEVICE OFFERS A MEASUREMENT RANGE SPANNING FROM 100 MM TO 200 MM, ACHIEVING A RESOLUTION OF 10 ΜM AND A REPEATABILITY OF 5 ΜM. IT INCORPORATES A CLASS 2 RED LASER LIGHT SOURCE WITH A WAVELENGTH OF 655 NM. THE SENSOR OPERATES WITH A SUPPLY VOLTAGE RANGE OF 12 V DC TO 24 V DC. OUTPUT CAPABILITIES INCLUDE ONE CONFIGURABLE ANALOG OUTPUT, SELECTABLE BETWEEN 0 V TO 10 V OR 4 MA TO 20 MA, AND TWO CONFIGURABLE DIGITAL SWITCHING OUTPUTS (PNP/NPN). HOUSED IN AN IP67-RATED ENCLOSURE, IT ENSURES PROTECTION AGAINST DUST AND WATER, AND IS DESIGNED FOR OPERATION WITHIN A TEMPERATURE RANGE OF -10 °C TO +50 °C. ELECTRICAL CONNECTION IS FACILITATED VIA AN M12 8-PIN MALE CONNECTOR.
