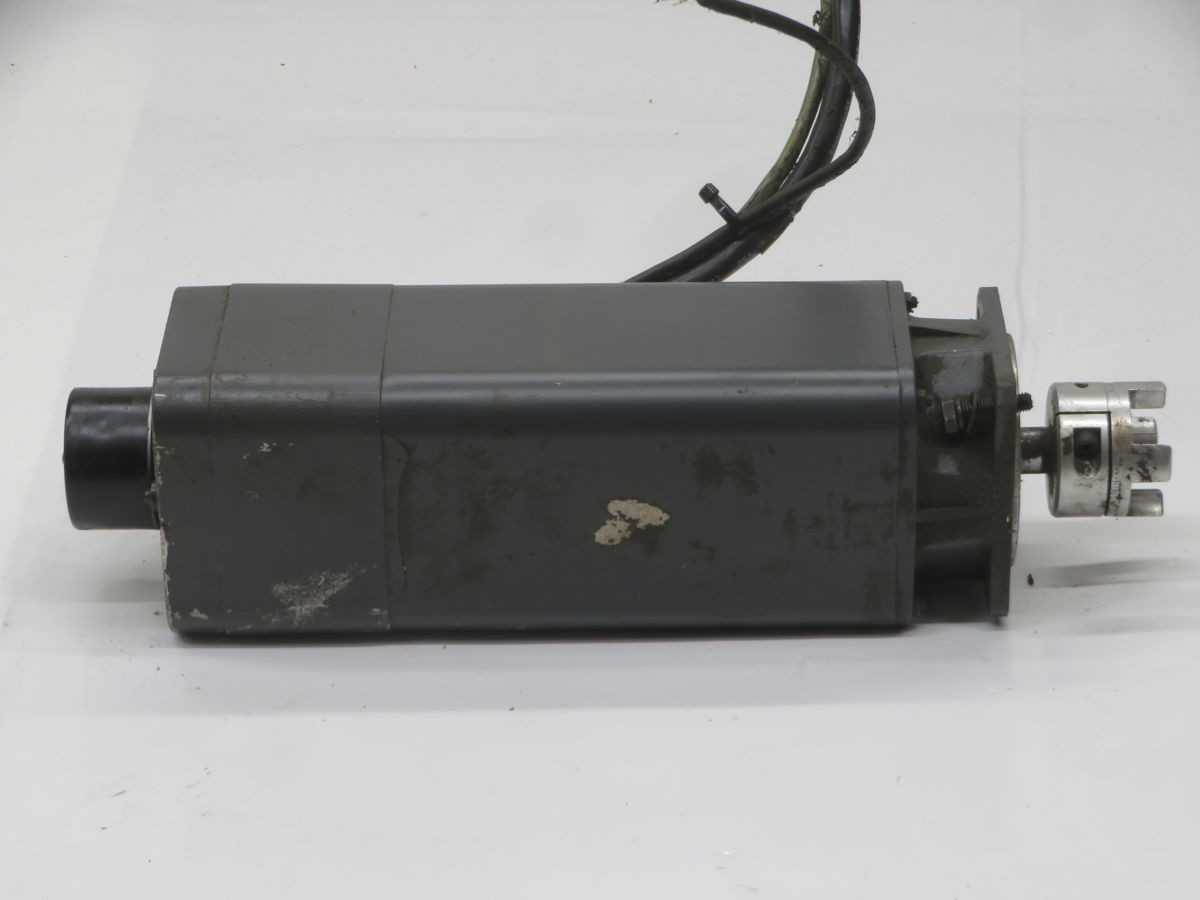

SIEMENS 1FT5066-0AC71-1-Z SERVO, 1.7 KW POWER, 2000 RPM SPEED, 8.0 NM TORQUE

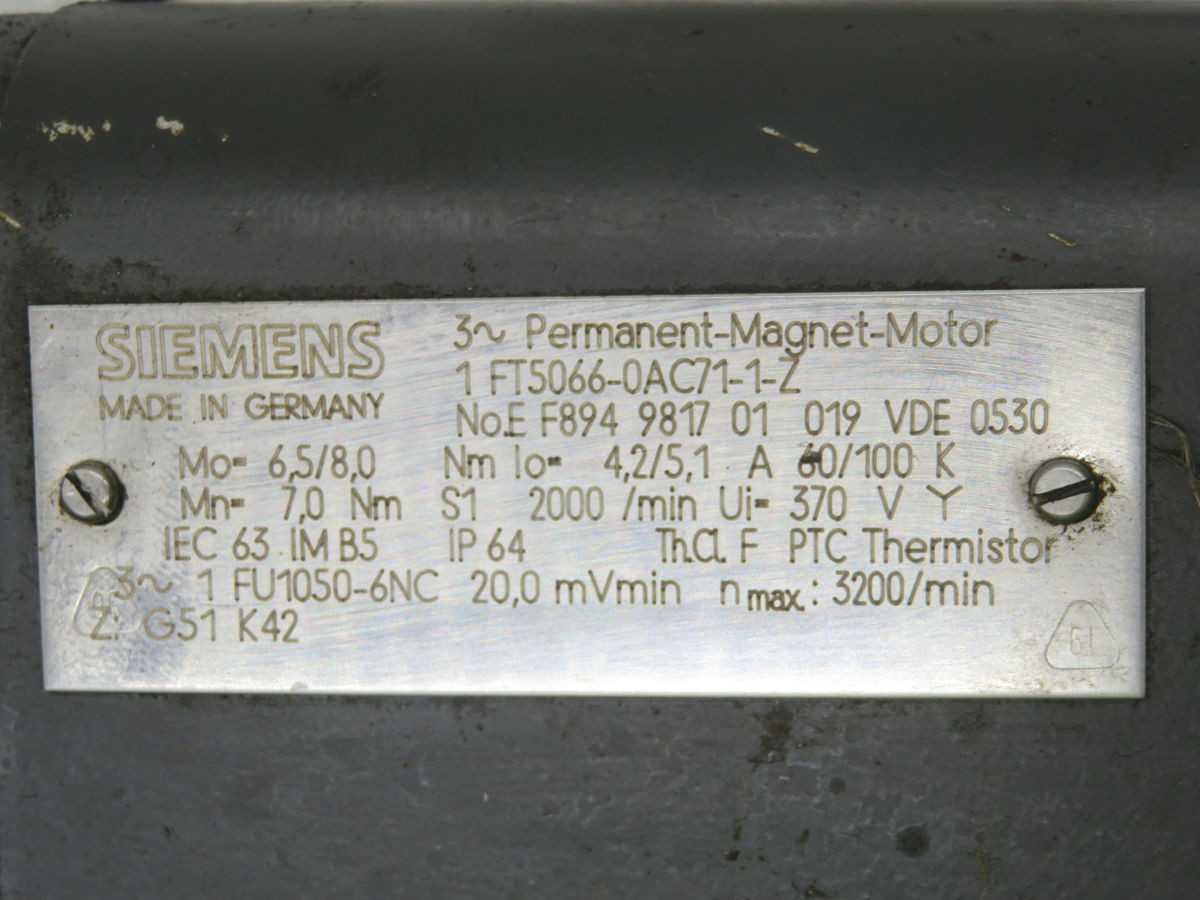

THE SIEMENS 1FT5066-0AC71-1-Z IS A SIMOTICS S-1FT5 SERIES AC SERVO MOTOR, SPECIFICALLY A COMPACT ASYNCHRONOUS MOTOR DESIGNED FOR FEED APPLICATIONS. IT OPERATES AT A RATED SPEED OF 2000 RPM WITH A RATED TORQUE OF 8.0 NM AND A RATED CURRENT OF 4.2 A. THE MOTOR IS ENGINEERED FOR A 60 HZ OPERATING FREQUENCY AND UTILIZES A 600 V DC LINK. WITH A RATED POWER OF 1.7 KW, THIS MOTOR TYPICALLY FEATURES A 100 MM FRAME SIZE AND AN IP64 PROTECTION CLASS, INTEGRATING A RESOLVER FOR FEEDBACK.
