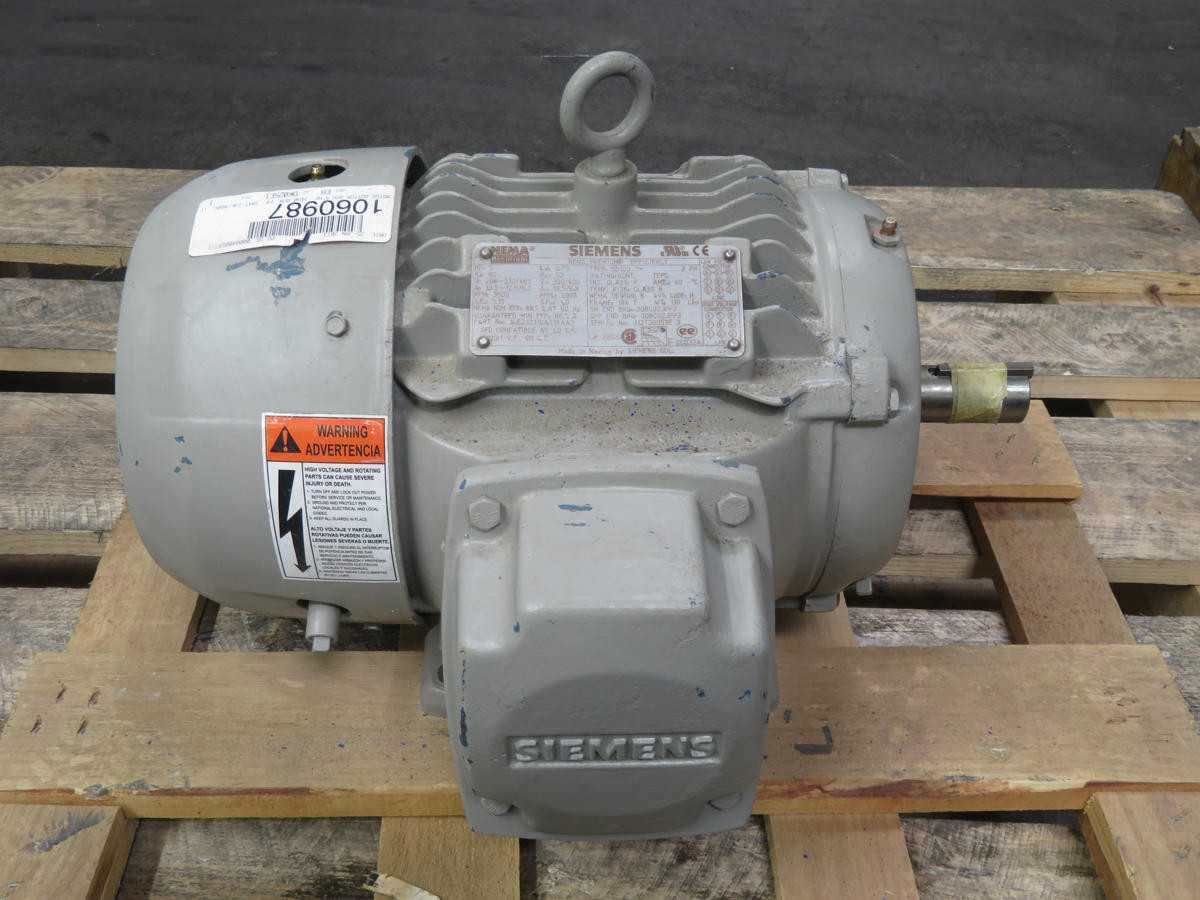

SIEMENS 1LE23211CA314AA3 INDUCTION MOTOR, 90L FRAME, 4-POLE, 1.5 KW, 1445 RPM, IP55 PROTECTION

THE SIEMENS 1LE23211CA314AA3 IS A SIMOTICS GP IE2 SERIES THREE-PHASE SQUIRREL-CAGE INDUCTION MOTOR. IT FEATURES A 90L FRAME SIZE AND A 4-POLE DESIGN. THE MOTOR OPERATES AT 50 HZ WITH VOLTAGE RATINGS OF 200V/400V, DELIVERING 1.5 KW OF POWER AT 1445 RPM. FOR 60 HZ OPERATION, IT SUPPORTS 208-230V/460V WITH A POWER OUTPUT OF 1.75 KW AT 1740 RPM. CURRENT RATINGS ARE 6.2A FOR 200V (50HZ) AND 230V (60HZ), AND 3.1A FOR 400V (50HZ) AND 460V (60HZ). IT IS CONSTRUCTED WITH A CAST IRON FRAME AND HAS AN IP55 PROTECTION CLASS. THE MOTOR FEATURES CLASS F INSULATION AND UTILIZES AN IC411 SELF-VENTILATED, FAN-COOLED SYSTEM. IT IS DESIGNED FOR FOOT MOUNTING (IM B3).
