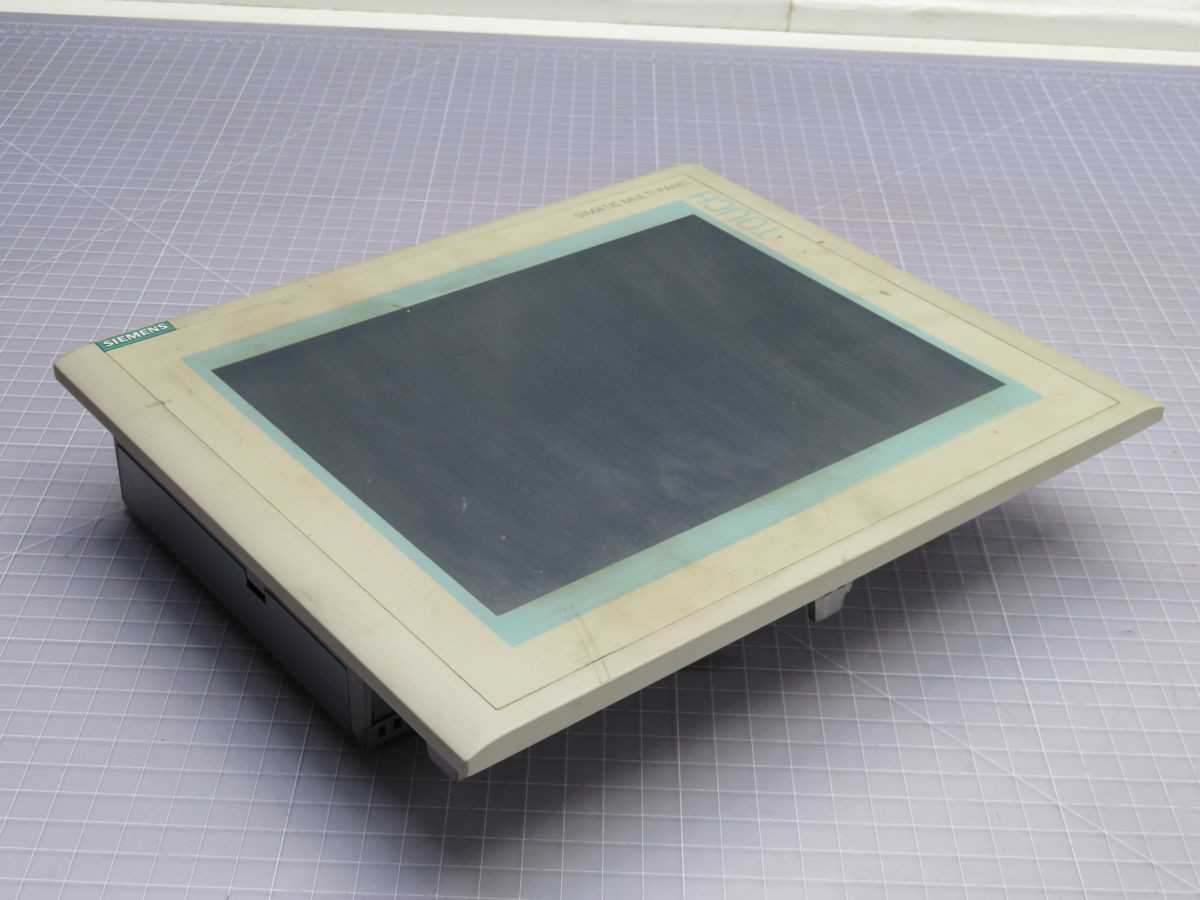

SIEMENS 6AV6-545-0DA10-0AX0 PANEL, 12.1IN DISPLAY, 800X600 RES, 200MHZ CPU, 24VDC PWR, IP65

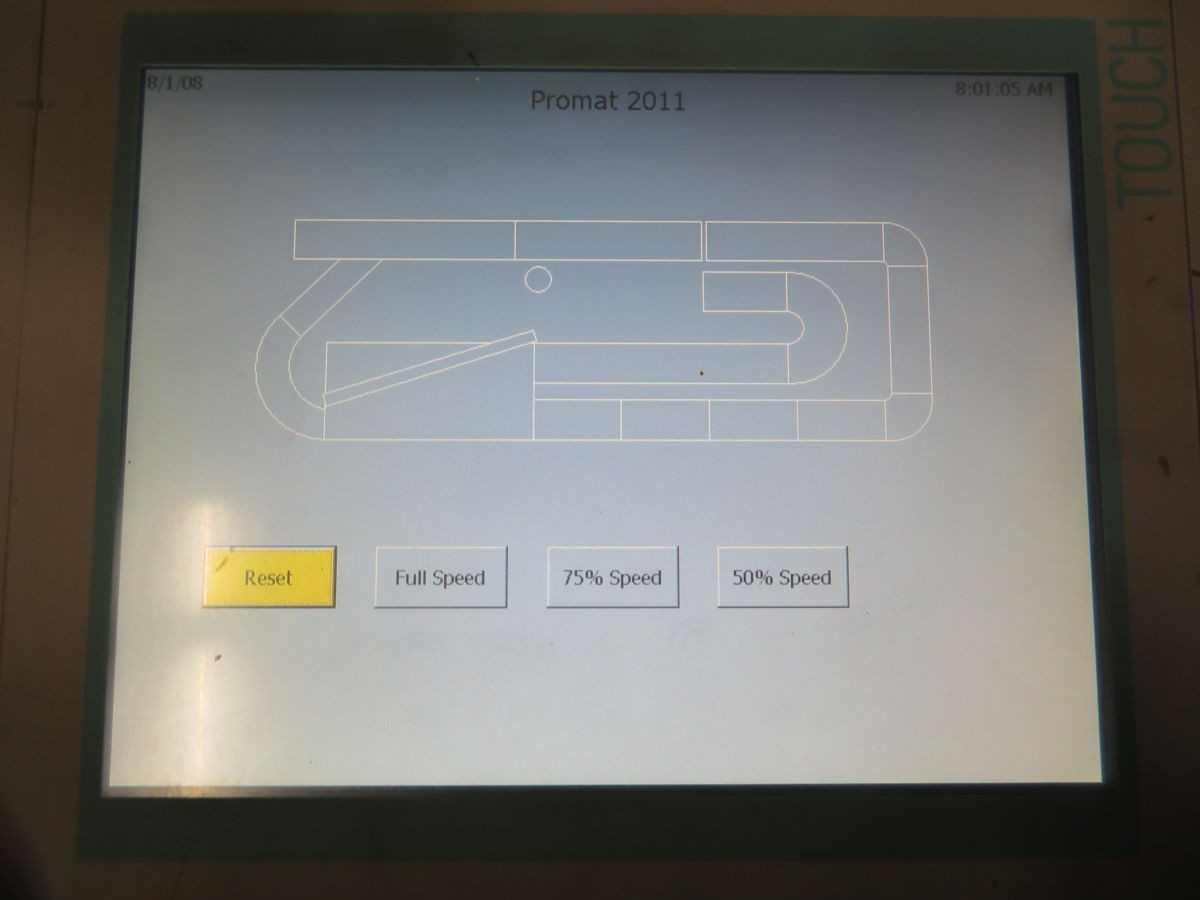

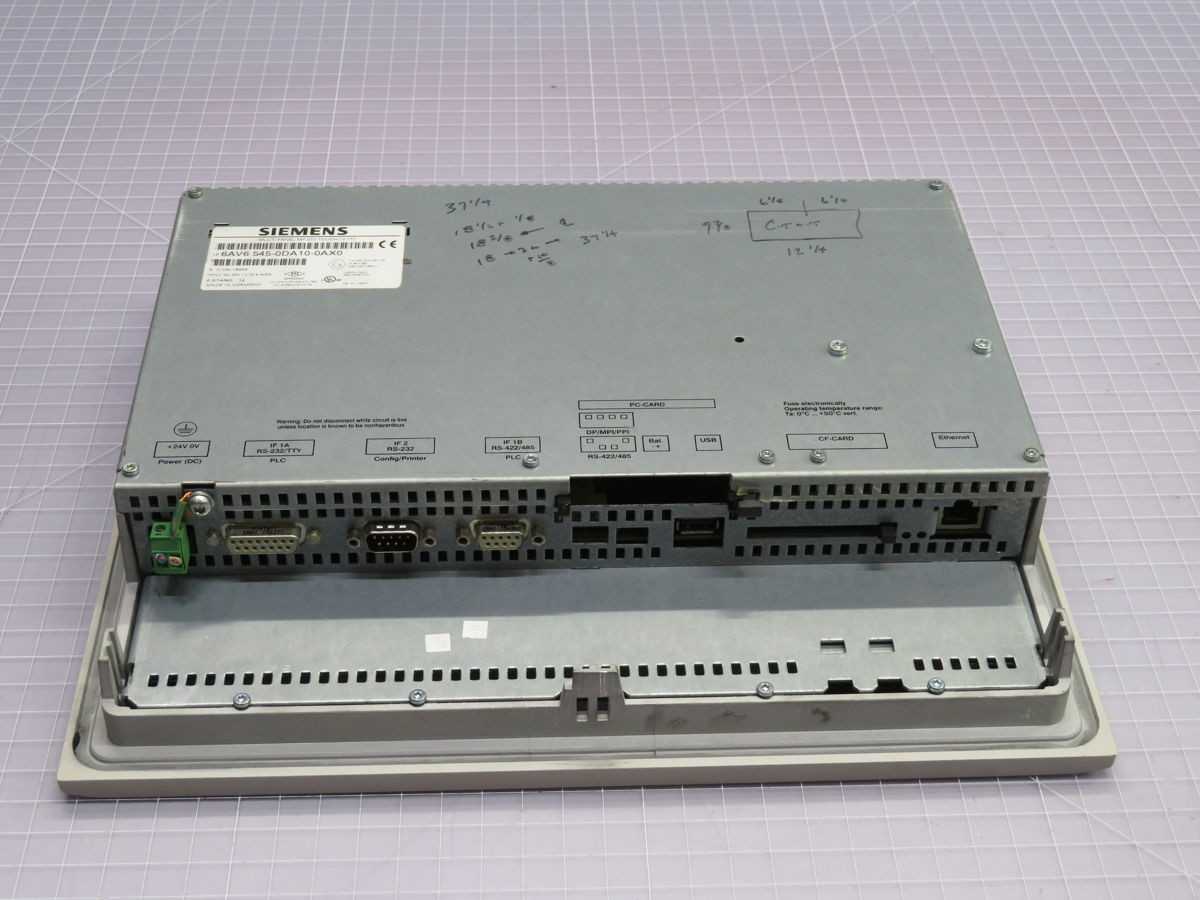

THE SIEMENS 6AV6-545-0DA10-0AX0 IS A SIMATIC MP 270B 12" TOUCH OPERATOR INTERFACE PANEL FEATURING A 12.1-INCH TFT COLOR DISPLAY WITH AN 800 X 600 PIXEL RESOLUTION, CAPABLE OF RENDERING 65,536 COLORS. USER INTERACTION IS FACILITATED BY AN ANALOG RESISTIVE TOUCH SCREEN. THE UNIT INTEGRATES AN INTEL XSCALE 200 MHZ PROCESSOR, SUPPORTED BY 6 MB OF USER MEMORY AND 64 MB OF SDRAM, AND OPERATES ON WINDOWS CE. STANDARD INTERFACES INCLUDE ONE RJ45 ETHERNET PORT, TWO USB PORTS, AND ONE RS 485/RS 422 SERIAL CONNECTION. IT REQUIRES A 24 VDC POWER SUPPLY WITH A CURRENT CONSUMPTION OF 1.15 A. THE FRONT PANEL BOASTS AN IP65 INGRESS PROTECTION RATING, DESIGNED FOR PANEL MOUNTING APPLICATIONS.
