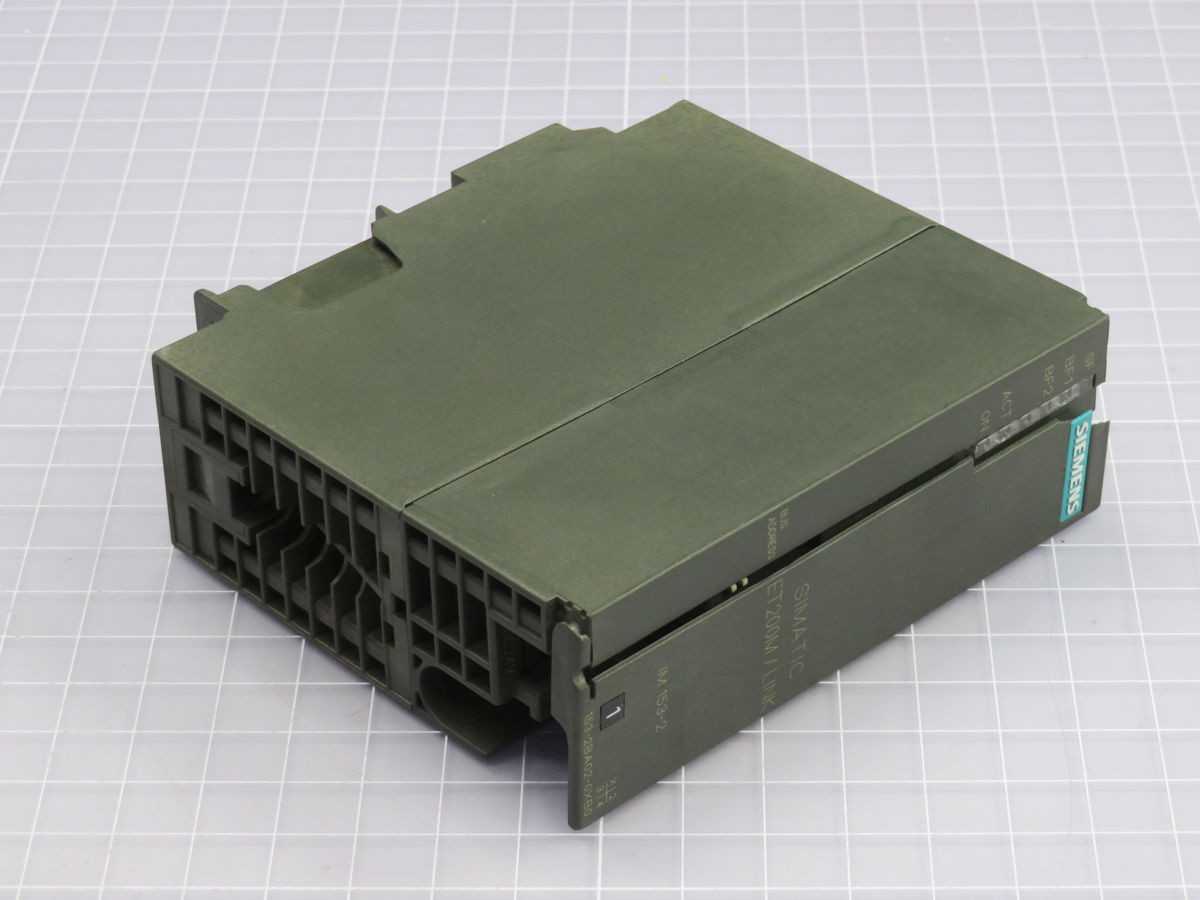

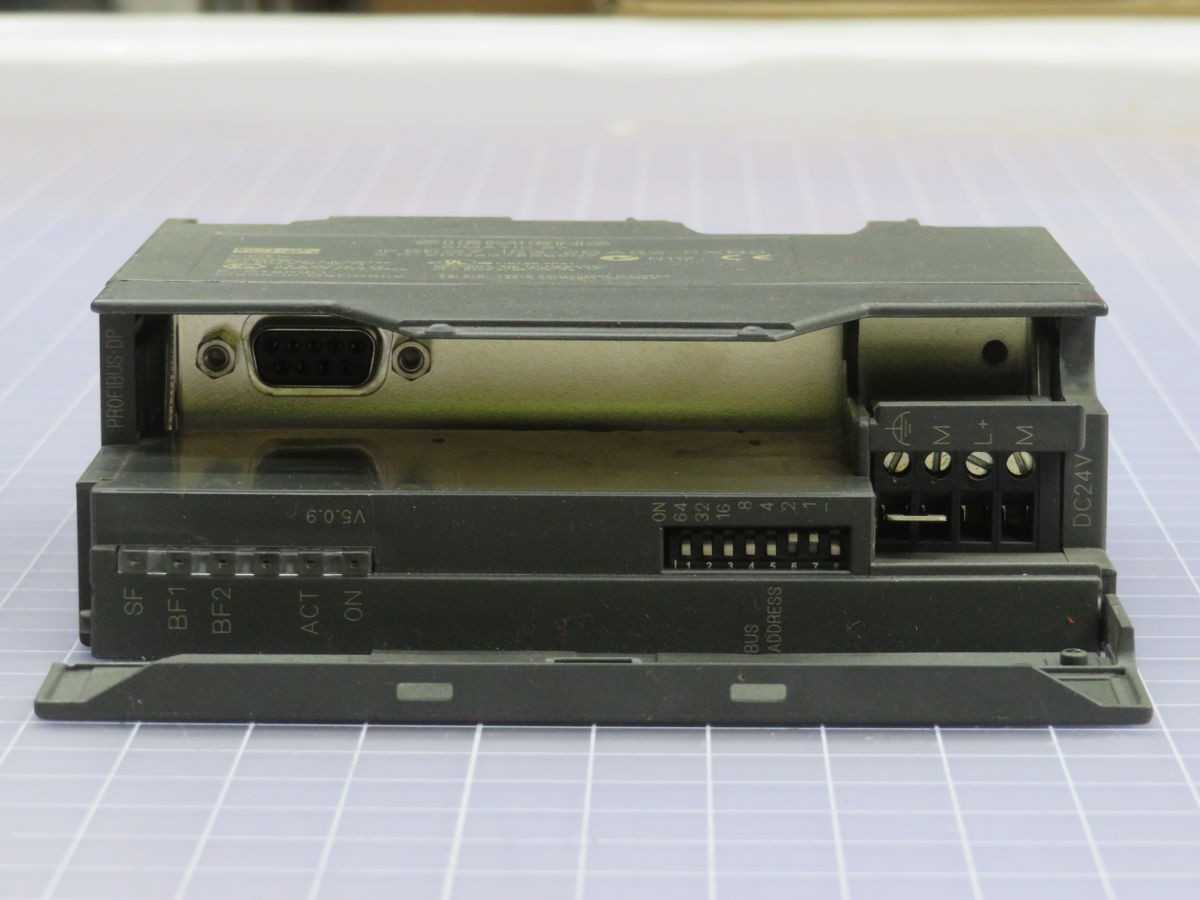

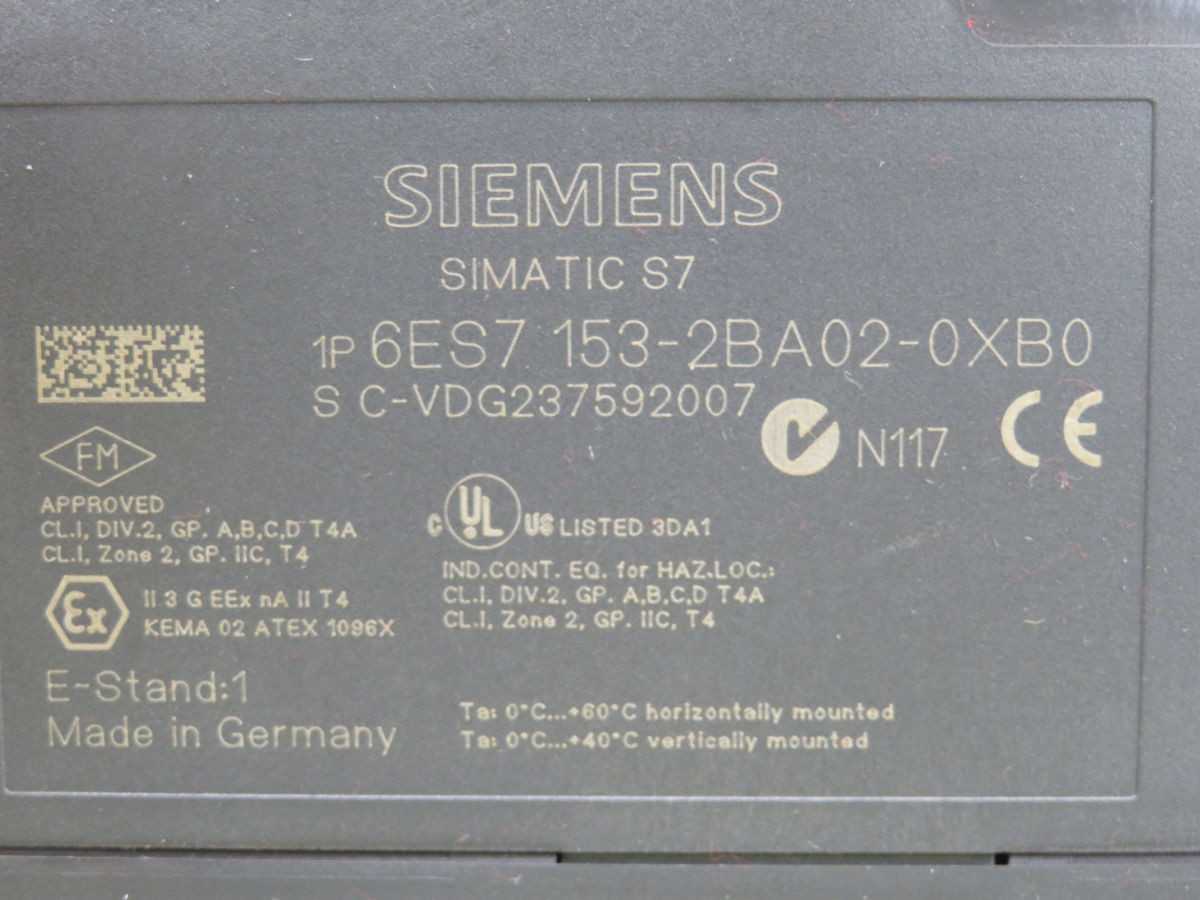

SIEMENS 6ES7 153-2BA02-0XB0, PLC CPU MODULES, PROFIBUS DP V1 INT, 12 MBPS RATE, 12 I/O CAP

THE SIEMENS 6ES7 153-2BA02-0XB0 IS A SIMATIC DP, IM 153-2 HIGH FEATURE INTERFACE MODULE DESIGNED FOR THE ET 200M DISTRIBUTED I/O SYSTEM. IT PROVIDES A PROFIBUS DP V1 MASTER INTERFACE FOR COMMUNICATION, SUPPORTING DATA TRANSFER RATES UP TO 12 MBIT/S. THIS MODULE ENABLES CONNECTION OF UP TO 12 S7-300 I/O MODULES TO THE PROFIBUS DP NETWORK. IT SUPPORTS MODULE DIAGNOSTICS FOR ALL CONNECTED S7-300 I/O MODULES AND IS COMPATIBLE WITH S7-400 REDUNDANCY CONFIGURATIONS. THE UNIT FEATURES HOT-SWAPPING CAPABILITY, ALLOWING MODULES TO BE EXCHANGED DURING OPERATION. IT OPERATES ON A 24V DC POWER SUPPLY AND HAS A MAXIMUM CURRENT CONSUMPTION OF 620 MA. THE OPERATING TEMPERATURE RANGE IS 0 TO 60 °C.
