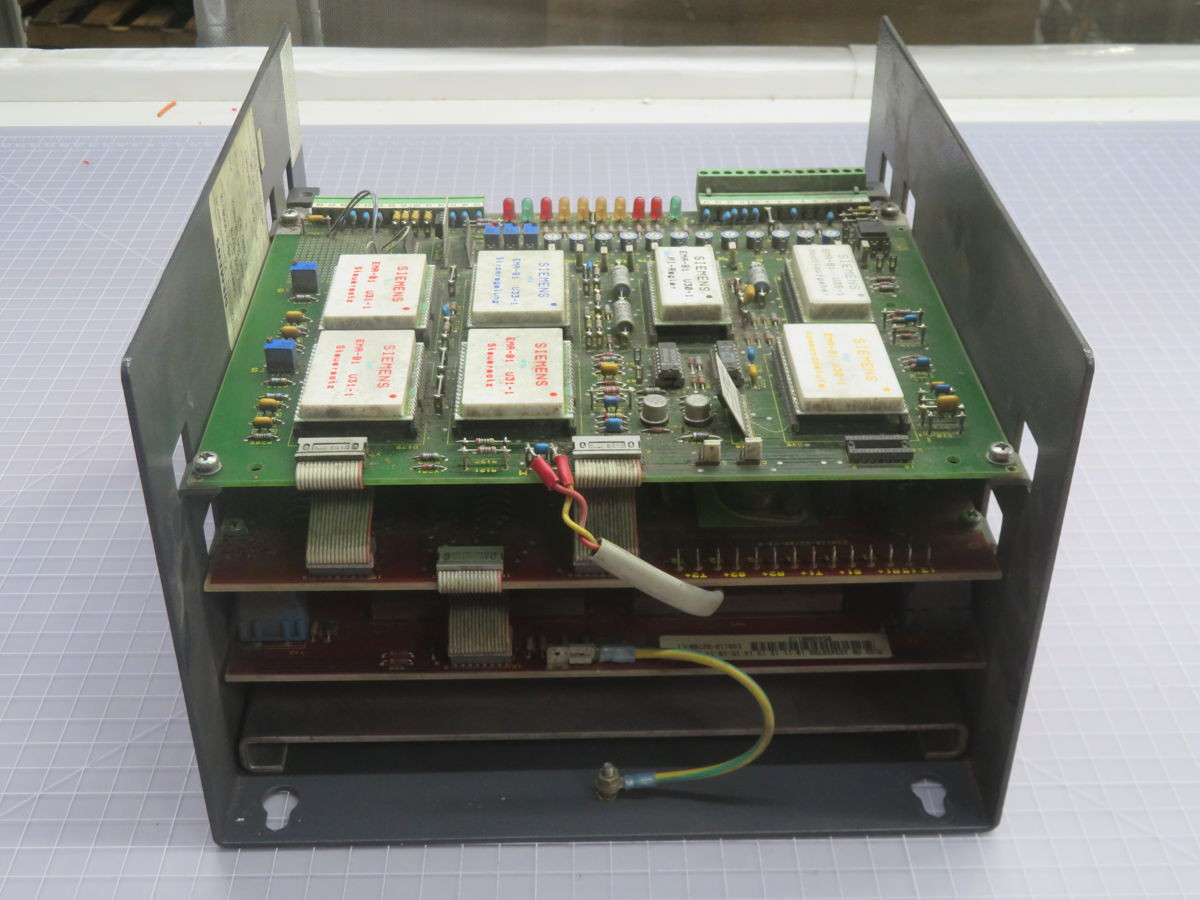

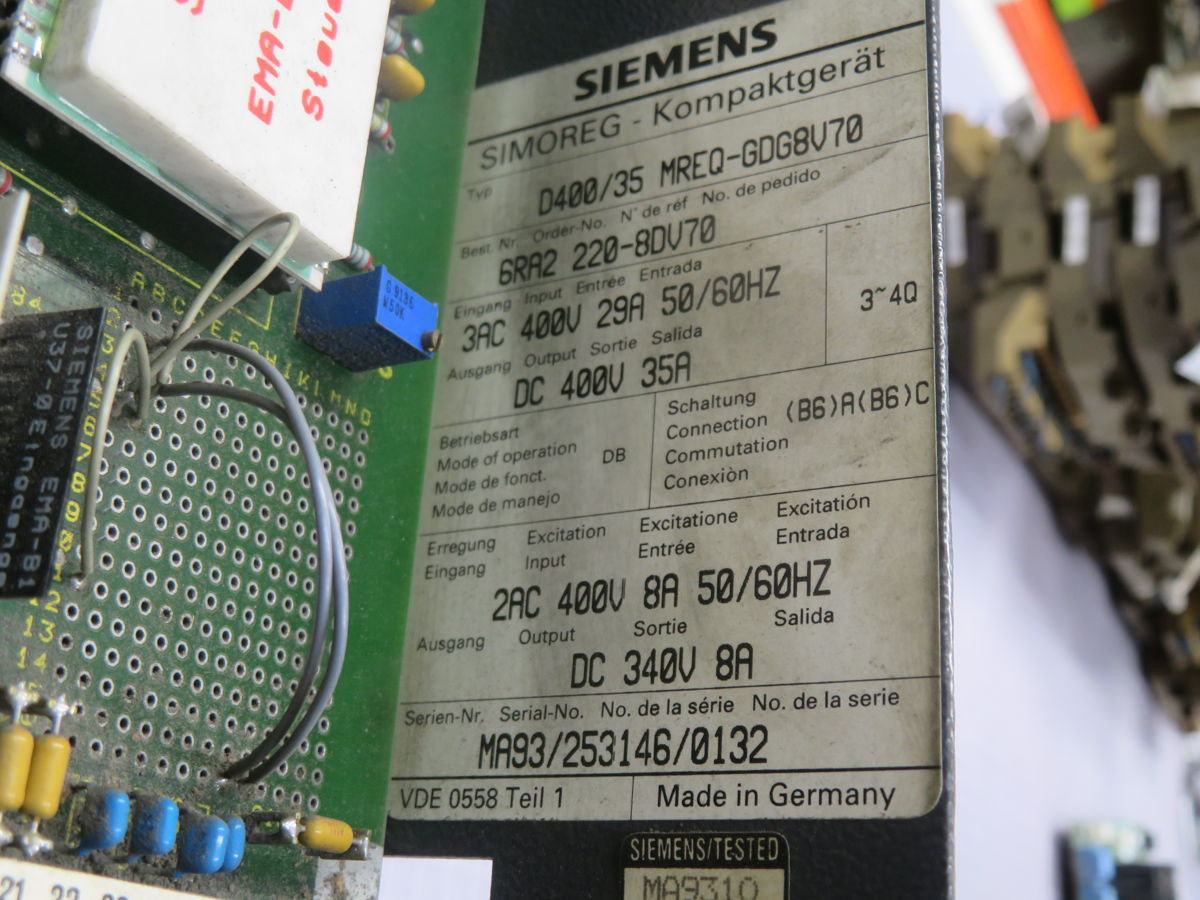

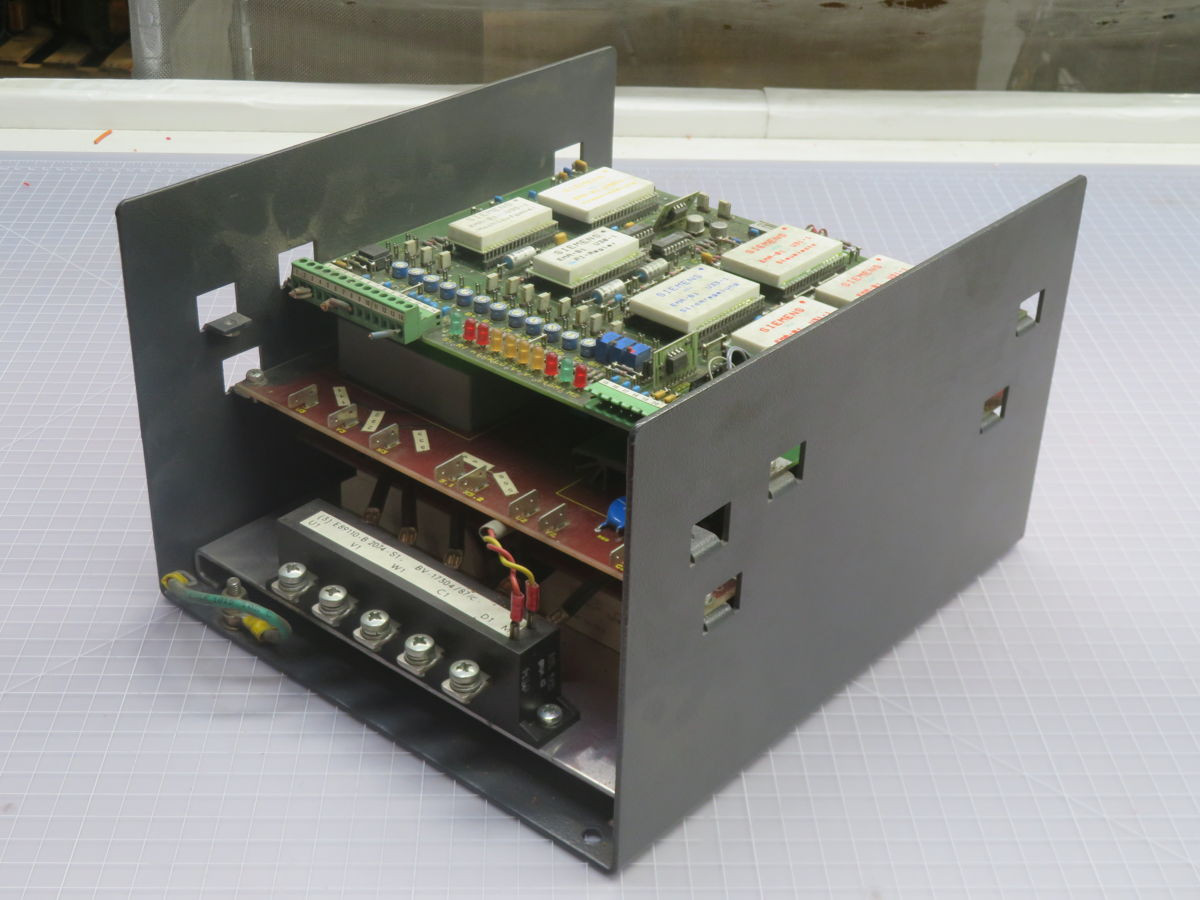

SIEMENS D400/35 MREQ-GDG8V70 SIMOREG DC DRIVE

THE SIEMENS D400/35 MREQ-GDG8V70 IS A SIMOREG DC DRIVE DESIGNED FOR CONTROLLED DC MOTOR APPLICATIONS. THIS UNIT OPERATES WITH AN INPUT VOLTAGE OF 2AC 400V AT A NOMINAL CURRENT OF 8A, COMPATIBLE WITH 50/60HZ AC SUPPLY FREQUENCIES. IT PROVIDES A DC OUTPUT VOLTAGE OF 400V AND A CONTINUOUS OUTPUT CURRENT OF 8A. THE DRIVE HAS A RATED OUTPUT POWER OF 3.5 KW AND FUNCTIONS AS A 2-QUADRANT CONVERTER, ENABLING MOTOR OPERATION IN ONE DIRECTION WITH ACCELERATION AND REGENERATIVE DECELERATION CAPABILITIES. IT IS CLASSIFIED WITHIN THE SIMOREG K SERIES OF DC DRIVES.
