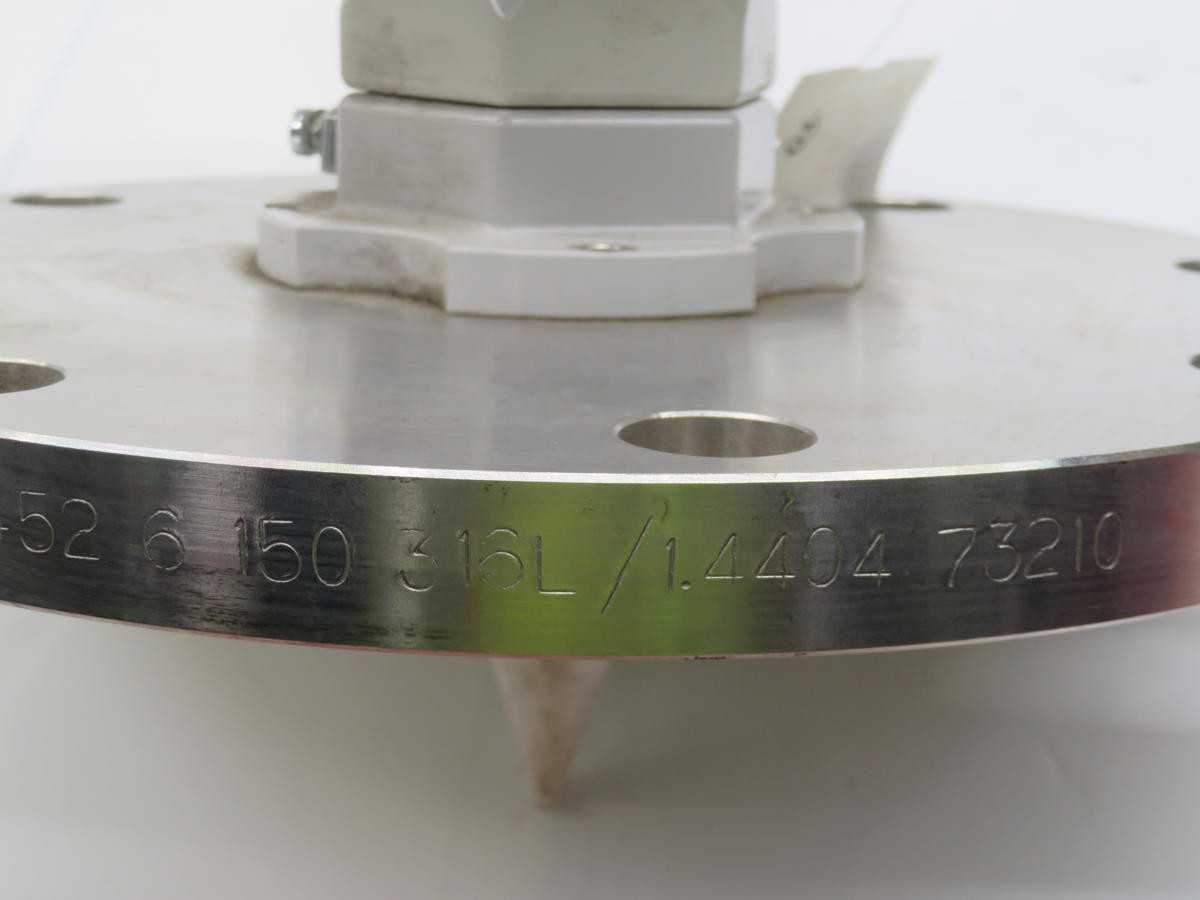

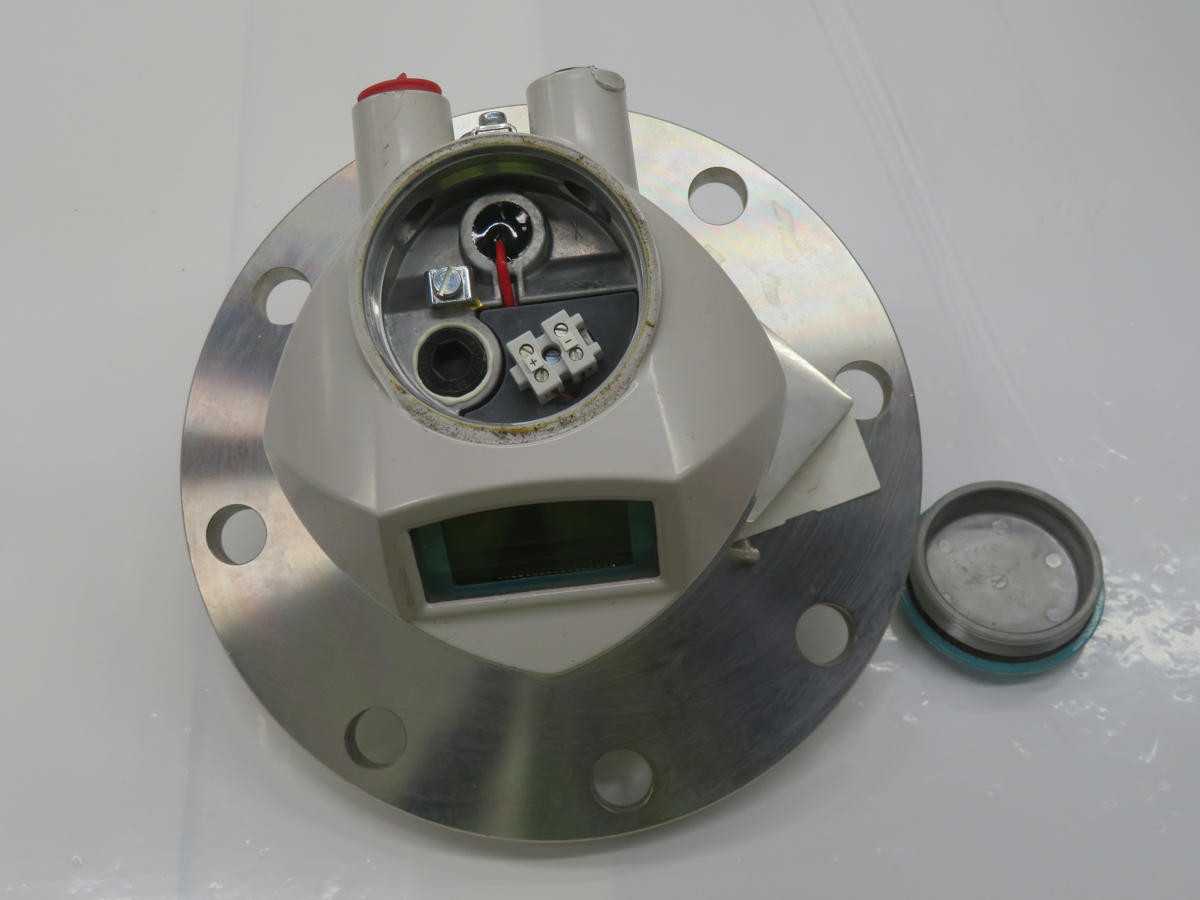

SIEMENS SITRANS LR200 LEVEL TRANSMITTER, 6.3 GHZ RADAR, 0.3-20M RANGE, +/-10MM ACCURACY, IP67

THE SIEMENS SITRANS LR200 IS A 2-WIRE, 6.3 GHZ PULSE RADAR LEVEL TRANSMITTER DESIGNED FOR CONTINUOUS LEVEL MEASUREMENT OF LIQUIDS AND SLURRIES IN STORAGE AND PROCESS VESSELS. IT OFFERS A MEASURING RANGE FROM 0.3 TO 20 METERS (1 TO 66 FEET) WITH AN ACCURACY OF ±10 MM (±0.4 INCH). THE DEVICE OPERATES WITHIN A PROCESS TEMPERATURE RANGE OF -40°C TO 150°C (-40°F TO 302°F) AND CAN WITHSTAND PROCESS PRESSURES FROM FULL VACUUM UP TO 40 BAR (600 PSI). ITS WETTED METALLIC PARTS ARE CONSTRUCTED FROM 316 SS. OUTPUT IS PROVIDED VIA A 4-20 MA SIGNAL WITH HART COMMUNICATION. THE ENCLOSURE IS RATED IP67 / NEMA 4X.
