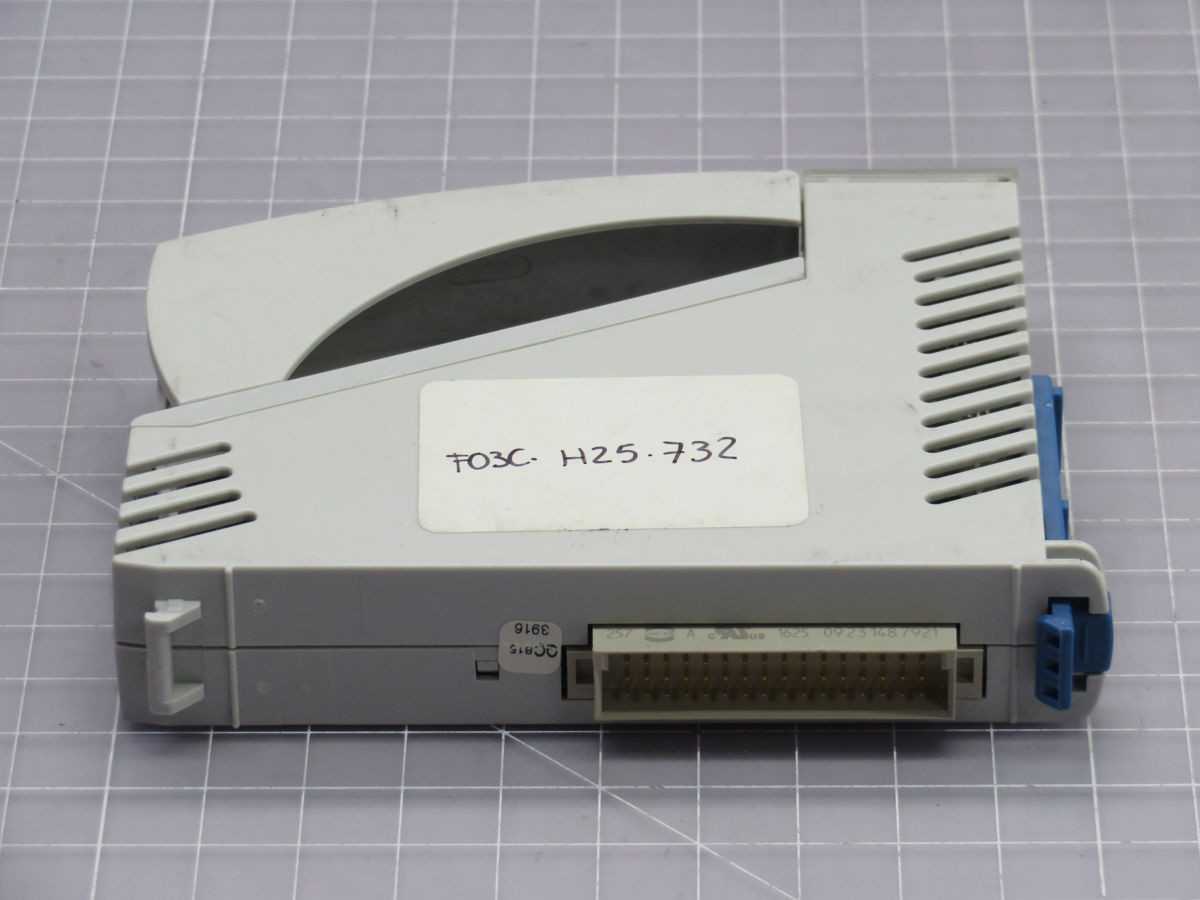

Sigmatek 12-057-021 Controls PLCs, 64 B I/O Data, 24V DC In, 100 MA, 9-Pin D-Sub

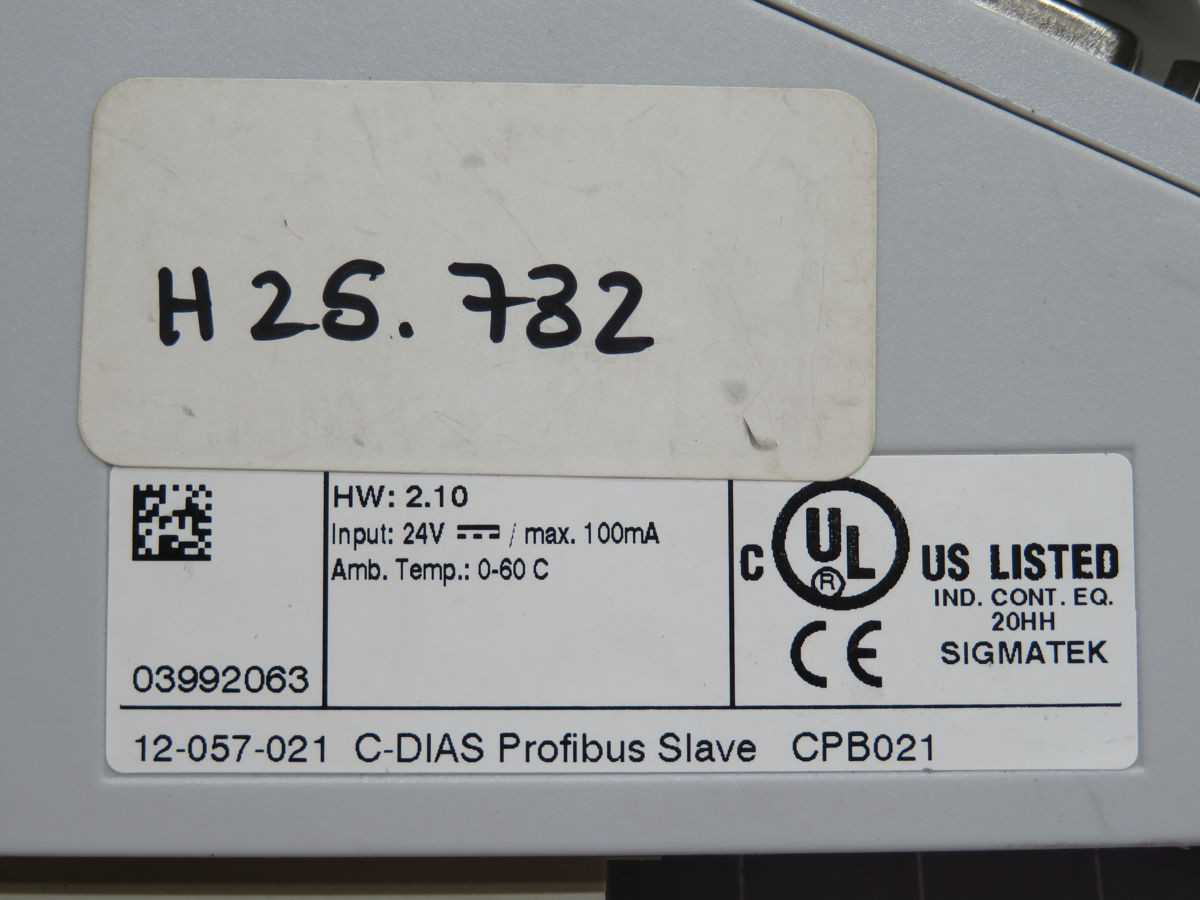

THE SIGMATEK 12-057-021, ALSO IDENTIFIED AS CPB021, IS A C-DIAS PROFIBUS DP SLAVE MODULE. THIS UNIT FUNCTIONS AS AN INTERFACE, ENABLING A C-DIAS CONTROL SYSTEM TO OPERATE AS A SLAVE DEVICE WITHIN A PROFIBUS DP NETWORK. IT FACILITATES DATA EXCHANGE BETWEEN A PROFIBUS DP MASTER AND THE C-DIAS BACKPLANE. THE MODULE SUPPORTS A MAXIMUM OF 64 BYTES FOR INPUT DATA AND 64 BYTES FOR OUTPUT DATA. ELECTRICAL SPECIFICATIONS INCLUDE A NOMINAL INPUT OF 24V DC WITH A MAXIMUM CURRENT CONSUMPTION OF 100MA. THE PROFIBUS DP CONNECTION IS ESTABLISHED VIA A 9-PIN D-SUB CONNECTOR.
