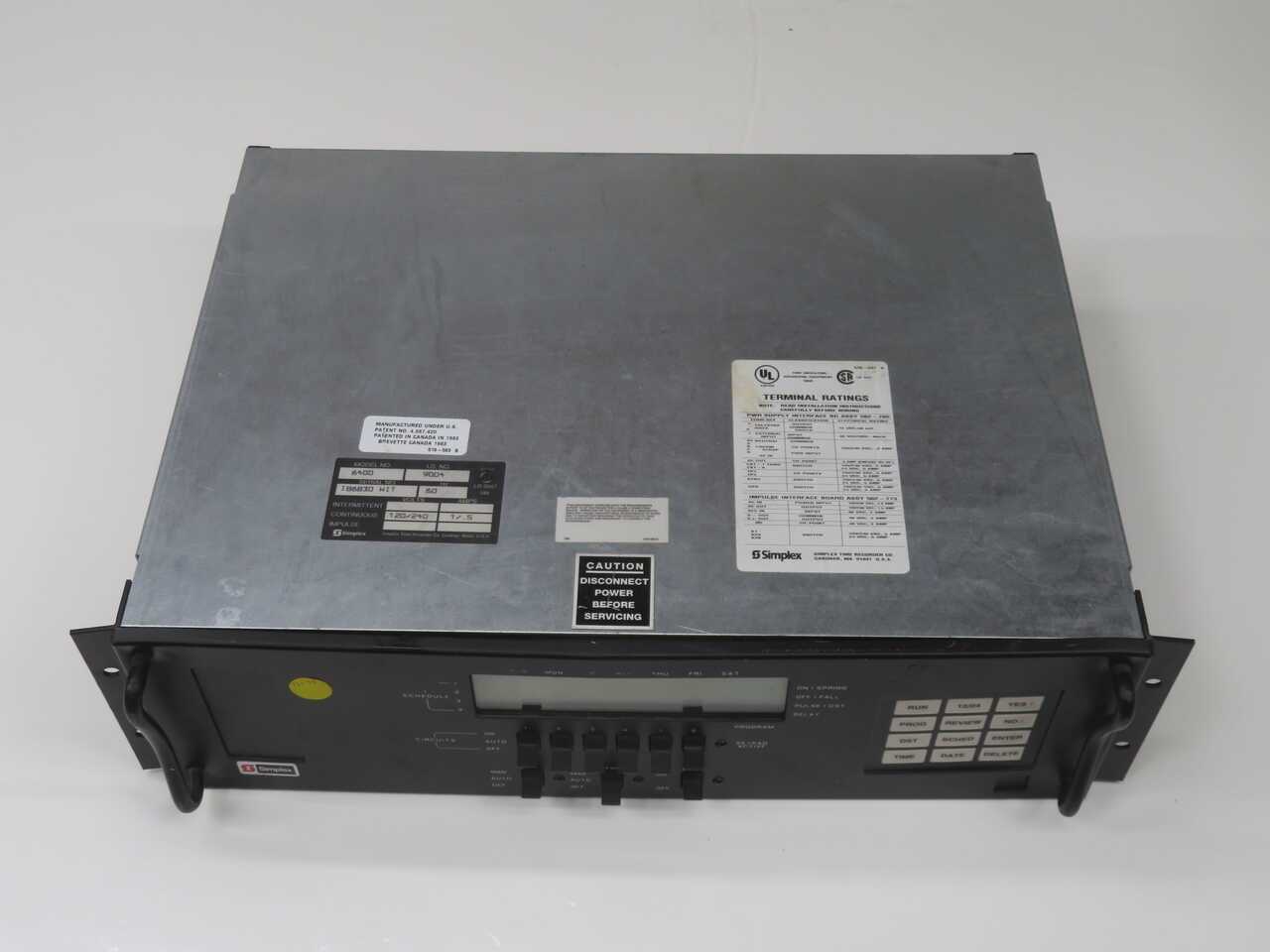

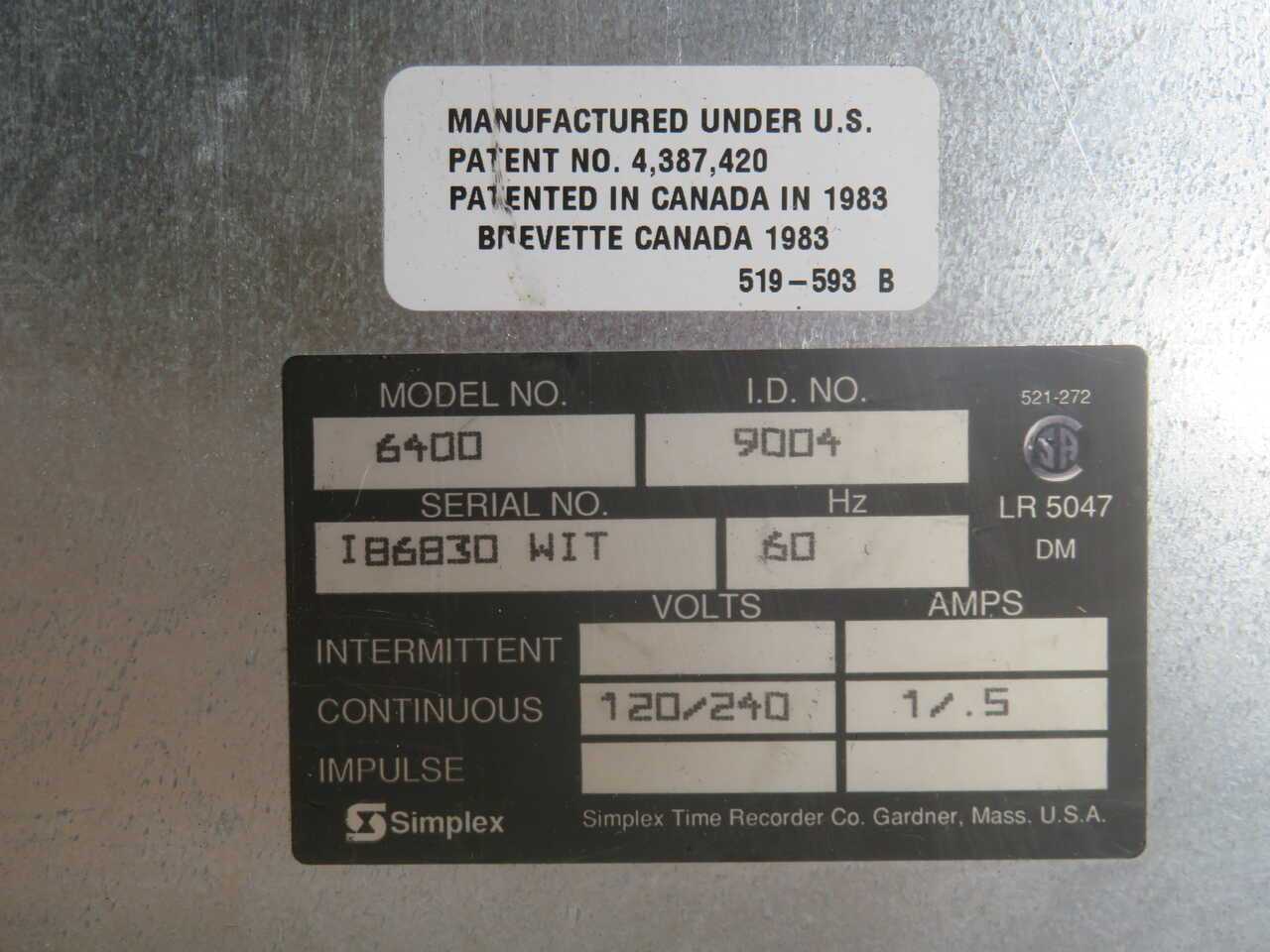

SIMPLEX 6400 TIME CONTROL CENTER, 1.5A, 120/240V, 60HZ, 6 OUTPUT CIRCUITS

THE SIMPLEX 6400 TIME CONTROL CENTER IS A MICROPROCESSOR-BASED MASTER CLOCK DESIGNED TO MANAGE FACILITY-WIDE SYNCHRONIZED CLOCK SYSTEMS AND EXTERNAL DEVICES. IT SUPPORTS SYNCHRONOUS WIRED, POWER LINE CARRIER, DIGITAL, AND CELESTRA BCD SECONDARY CLOCKS, WITH OPTIONAL SUPPORT FOR MINUTE IMPULSE SYSTEMS. OPERATING ON A SELECTABLE INPUT VOLTAGE OF 120/240 VAC AT 50/60 HZ, IT DRAWS AN INPUT CURRENT OF 0.2 A FOR BASIC OPERATION. THE SYSTEM INCLUDES SIX OUTPUT CIRCUITS RATED AT 5 A AT 120 VAC OR 30 VDC RESISTIVE (3 A AT 240 VAC) FOR CONTROLLING EXTERNAL EQUIPMENT LIKE BELLS, HORNS, AND LIGHTING. USERS CAN PROGRAM UP TO FOUR INDEPENDENT SCHEDULES WITH UP TO 1000 TOTAL EVENTS, UTILIZING A 12-POSITION KEYPAD AND A SIX-DIGIT LIQUID CRYSTAL DISPLAY THAT DISPLAYS TIME, DAY OF THE WEEK, AND CIRCUIT STATUS. IT FEATURES MANUAL OVERRIDE SWITCHES FOR EACH CIRCUIT, AUTOMATIC DAYLIGHT SAVING TIME CORRECTION, AND A 60-DAY BATTERY STANDBY TO PRESERVE MEMORY AND TIMEKEEPING. THE STANDARD TIMEKEEPING TIME BASE RELIES ON AC LINE FREQUENCY MONITORING OR A DC QUARTZ CRYSTAL ACCURATE TO WITHIN 30 SECONDS PER MONTH, WITH AN OPTIONAL TEMPERATURE-COMPENSATED CRYSTAL OSCILLATOR OFFERING ACCURACY WITHIN 3 SECONDS PER MONTH. OPERATING WITHIN A TEMPERATURE RANGE OF 32 TO 122 DEGREES FAHRENHEIT (0 TO 50 DEGREES CELSIUS) AND UP TO 95 PERCENT NON-CONDENSING RELATIVE HUMIDITY, THE UNIT IS AVAILABLE IN WALL-MOUNT OR 19-INCH RACK-MOUNT CONFIGURATIONS.
