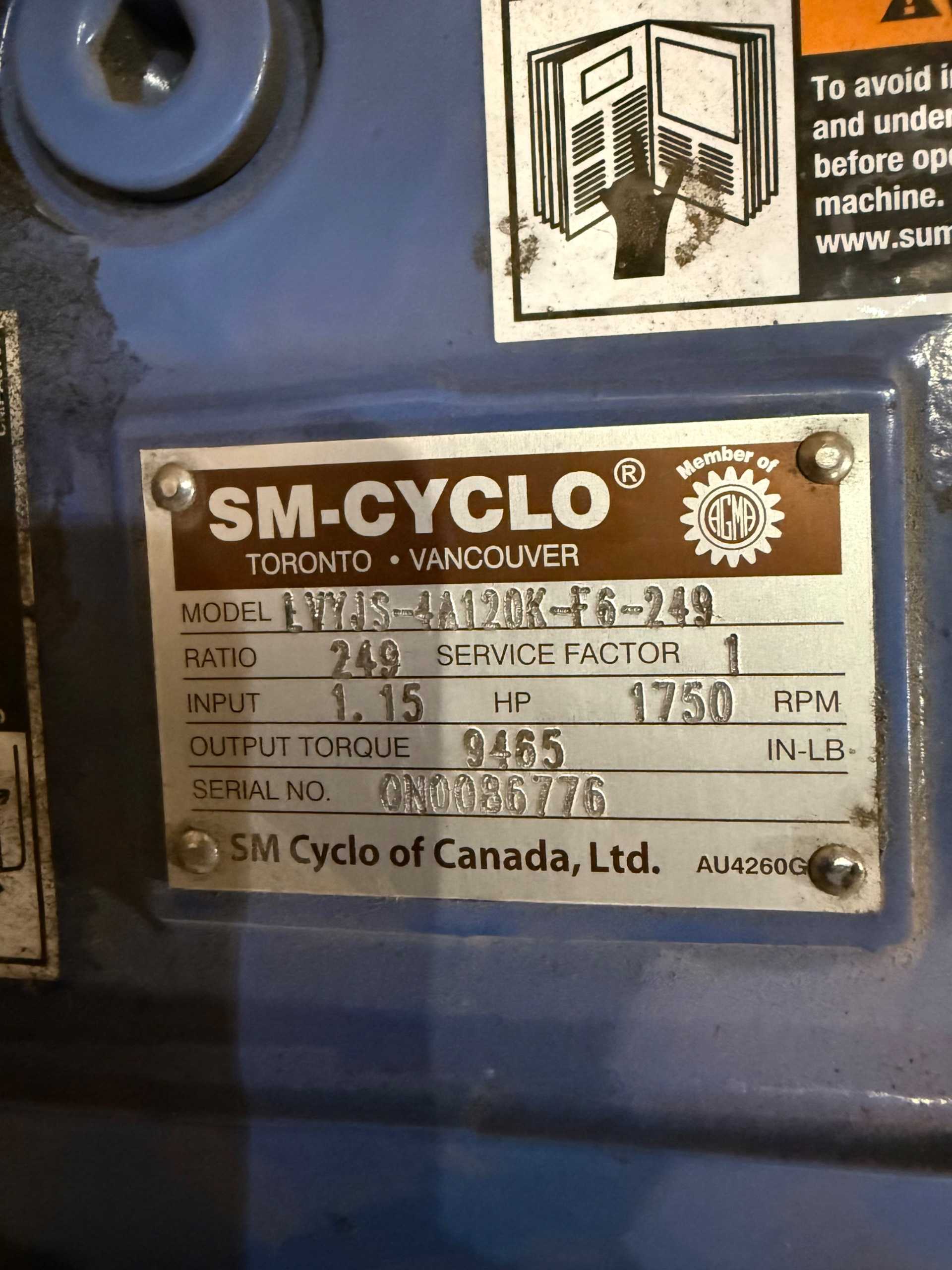

Sm-Cyclo LVYJS-4A120K-F6-249 Gear Reducer 249:1, 1.15HP, 1750RPM, 9465in-lb

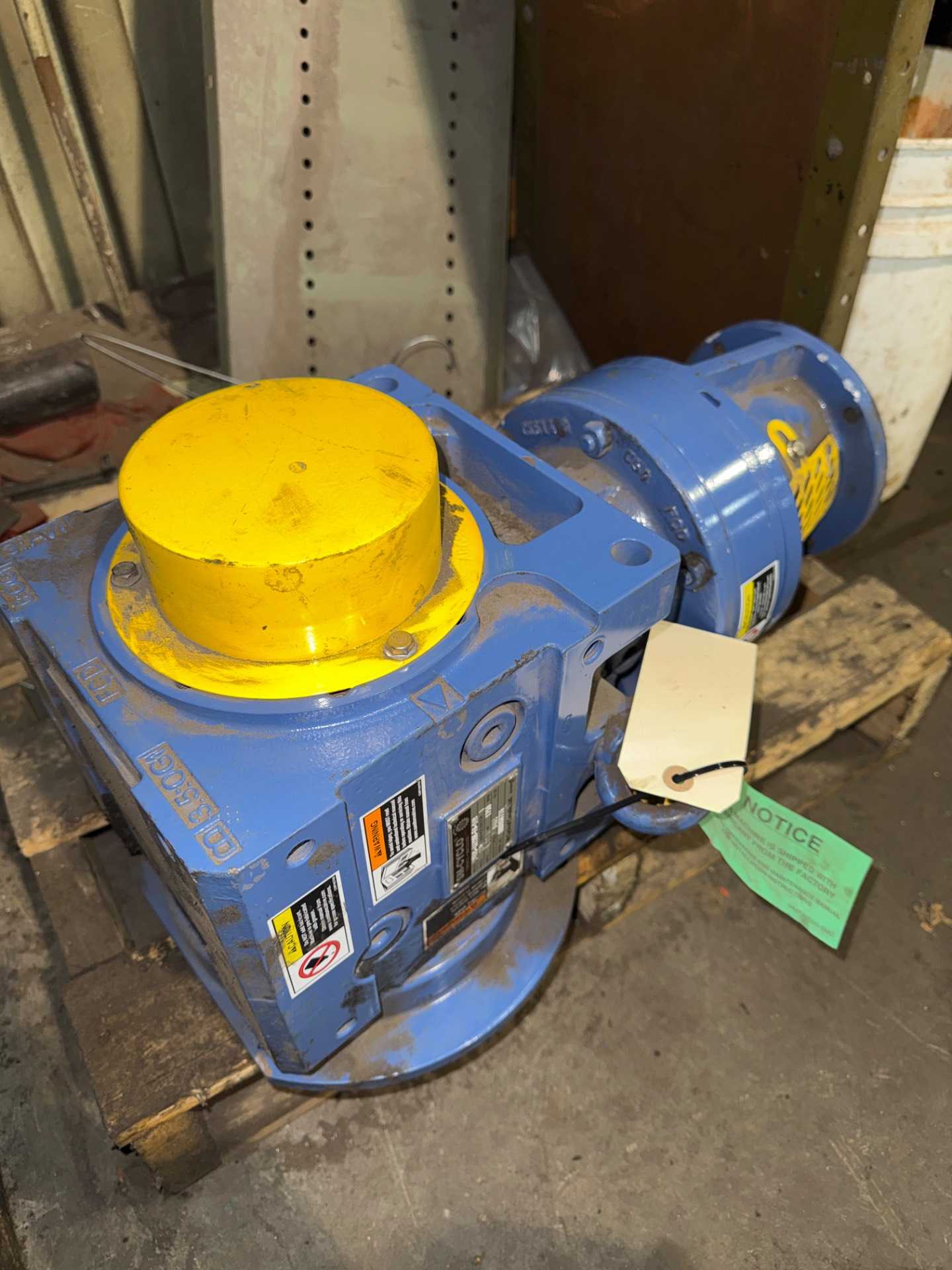

The Sm-Cyclo LVYJS-4A120K-F6-249 is an inline cycloidal gear reducer engineered for high-torque industrial applications. This unit features a 249:1 reduction ratio and is rated for an input power of 1.15 HP at a standard input speed of 1750 RPM. It delivers an output torque of 9465 in-lb with a service factor of 1. Utilizing a cycloidal design, the reducer operates through compression rather than shear, allowing it to withstand momentary shock loads of up to 500% of its rating. The LVY model prefix indicates a vertical mounting orientation, and the F6 designation specifies the flange mounting configuration. This gearless mechanism provides minimal vibration, low backlash, and high mechanical efficiency.
