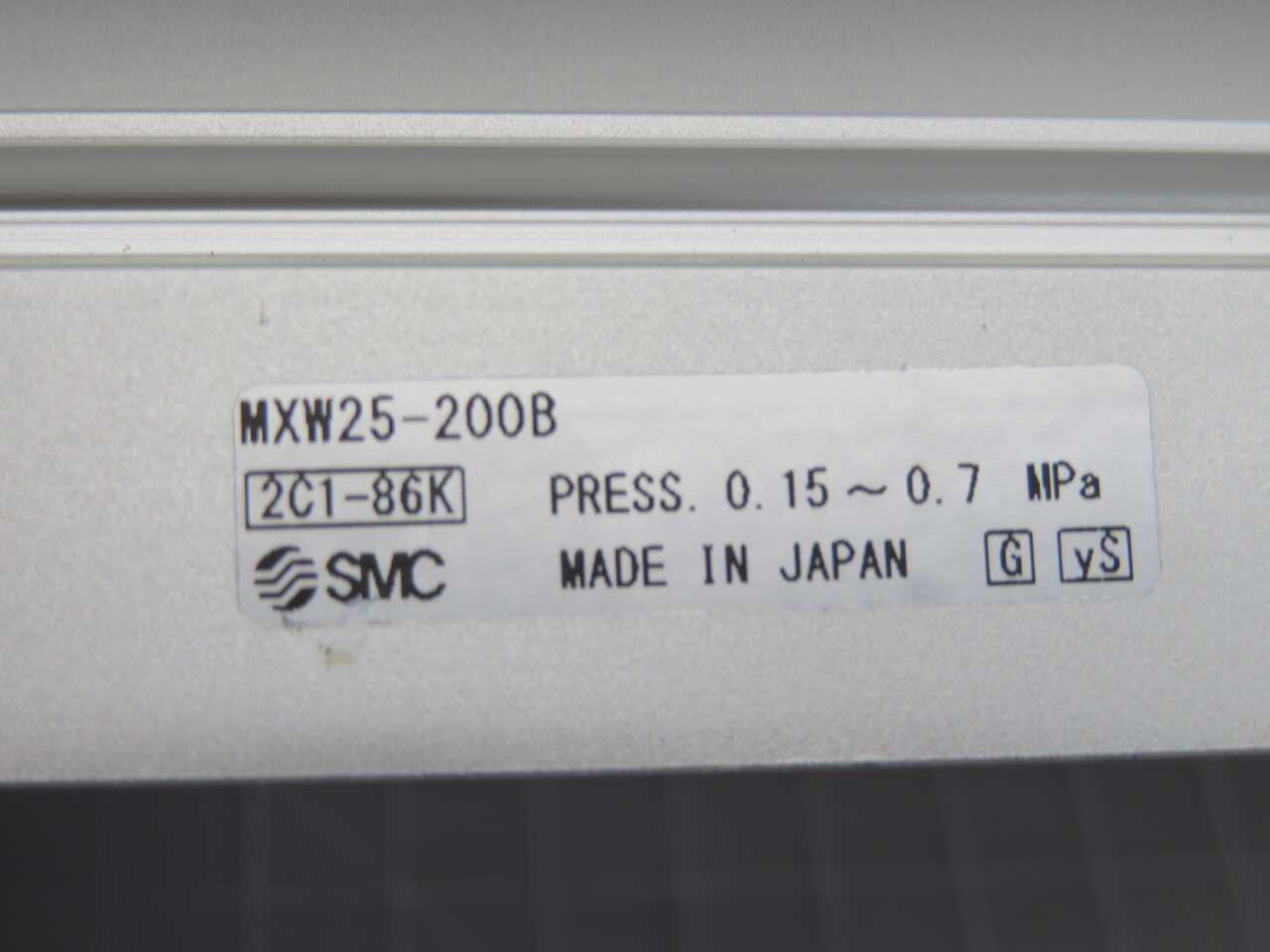

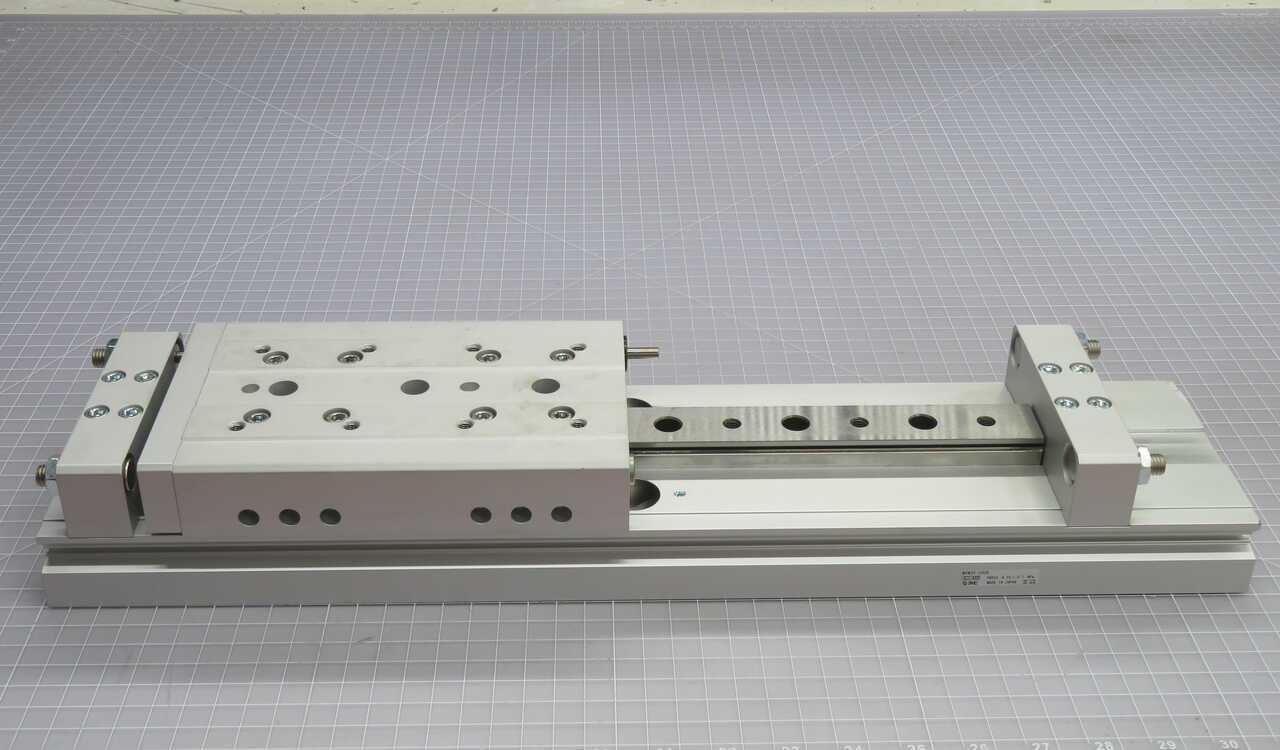

SMC MXW25-200B AIR SLIDE TABLE 25MM BORE 200MM STROKE DOUBLE-ACTING PNEUMATIC ACTUATOR

THE SMC MXW25-200B IS A HIGH-PRECISION, LONG-STROKE AIR SLIDE TABLE DESIGNED FOR THE SMOOTH AND PRECISE TRANSFER OF LOADS. THIS DOUBLE-ACTING PNEUMATIC ACTUATOR FEATURES A 25 MM CYLINDER BORE SIZE AND A 200 MM STROKE LENGTH. UTILIZING A DUAL PISTON ROD DESIGN, THE UNIT PROVIDES TWICE THE FORCE OF A STANDARD CYLINDER WHILE MAINTAINING A SLIM PROFILE. IT OPERATES WITHIN A PRESSURE RANGE OF 0.15 TO 0.7 MPA, WITH A PROOF PRESSURE OF 1.05 MPA, AND IS DESIGNED TO HANDLE AMBIENT AND FLUID TEMPERATURES RANGING FROM -10 TO 60 DEGREES CELSIUS. THE SLIDE TABLE SUPPORTS PISTON SPEEDS BETWEEN 50 AND 500 MM/S. THE B OPTION CONFIGURATION DESIGNATES THAT THE UNIT IS EQUIPPED WITH TWO INTEGRATED SHOCK ABSORBERS AT BOTH ENDS TO FACILITATE STANDARD STROKE ADJUSTMENT AND EFFECTIVELY ABSORB IMPACT ENERGY. BUILT WITH A RIGID TABLE STRUCTURE AND AN INTEGRATED LINEAR GUIDE, THE MXW25-200B ENSURES HIGH RIGIDITY AND MINIMAL VIBRATION THROUGHOUT ITS ENTIRE STROKE.
