Sogevac SV65BIFC Vacuum Pump, 65M³/H Speed, <5E-2MBAR Press, 1.5kW Power, 62kg Weight

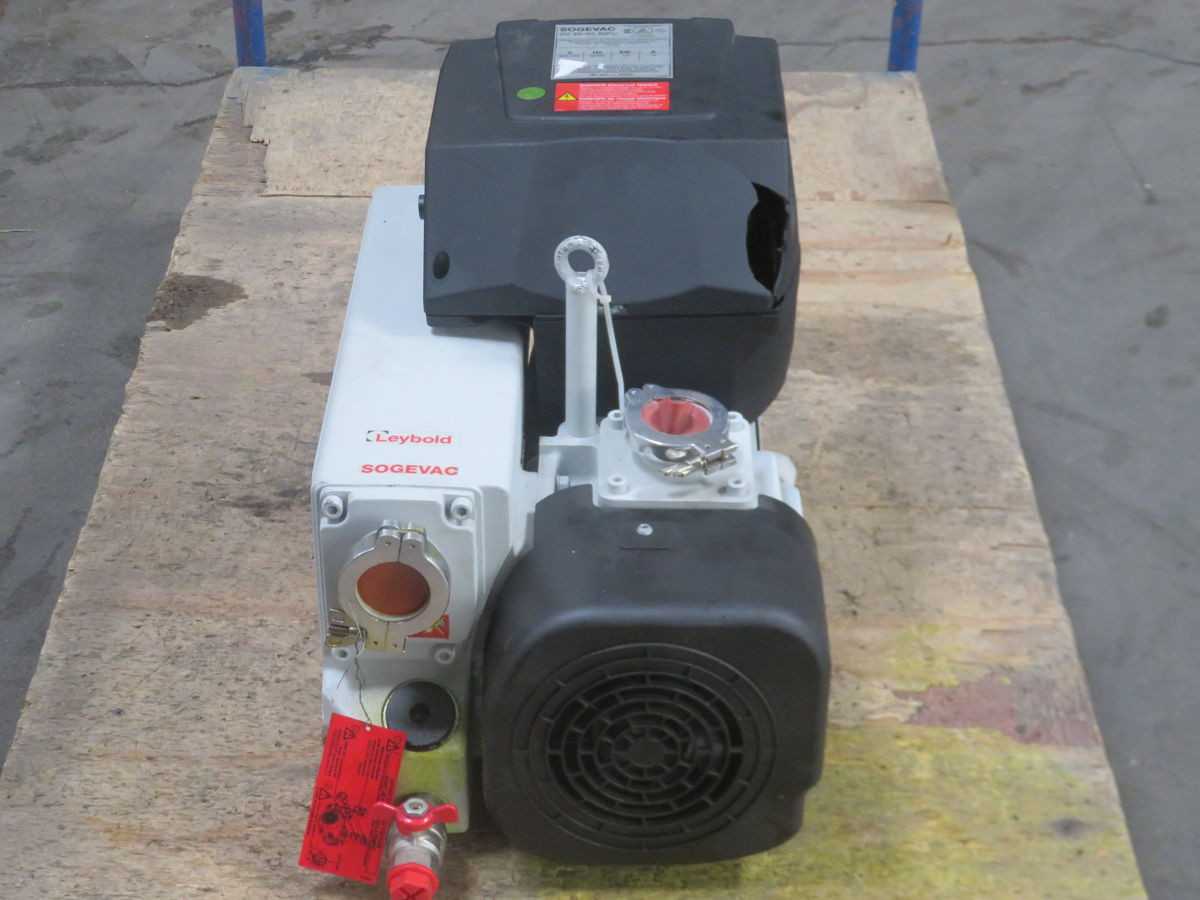

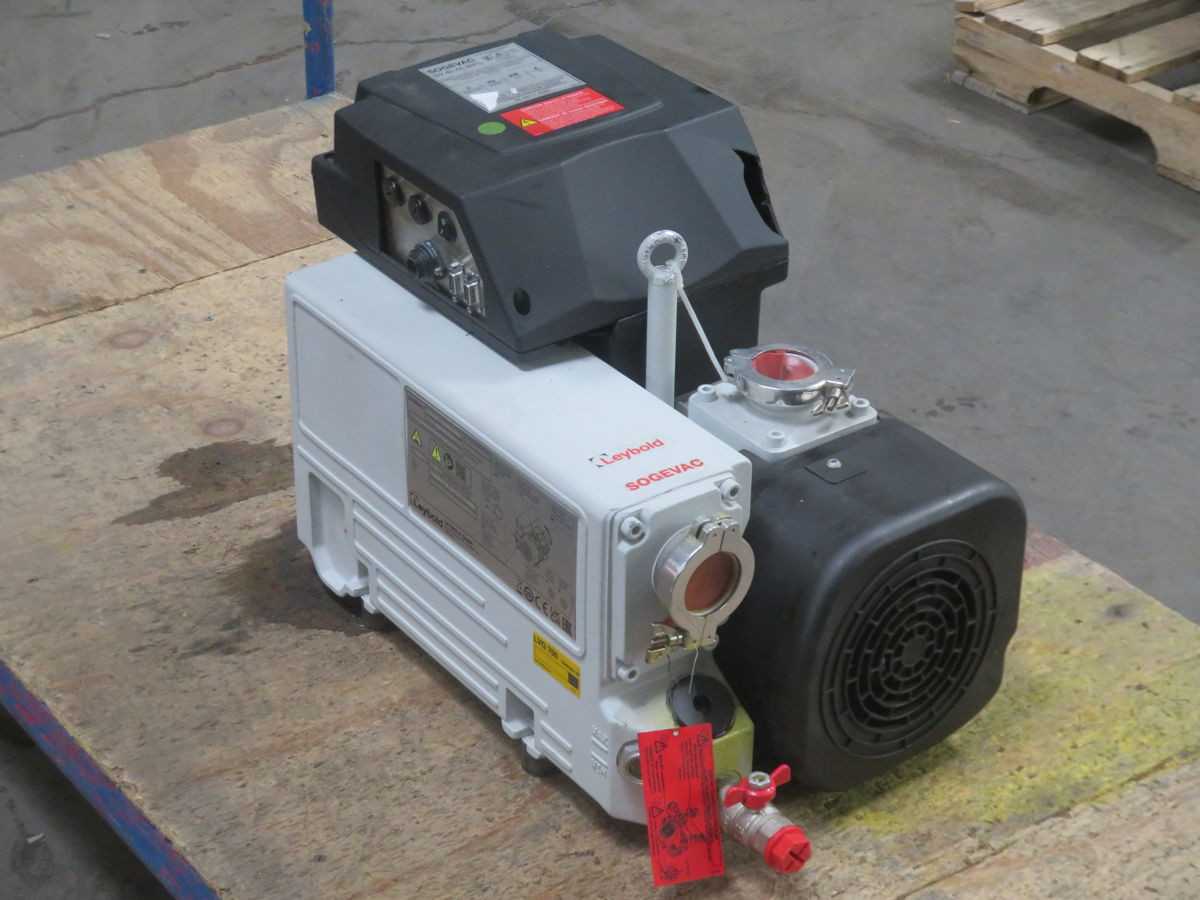

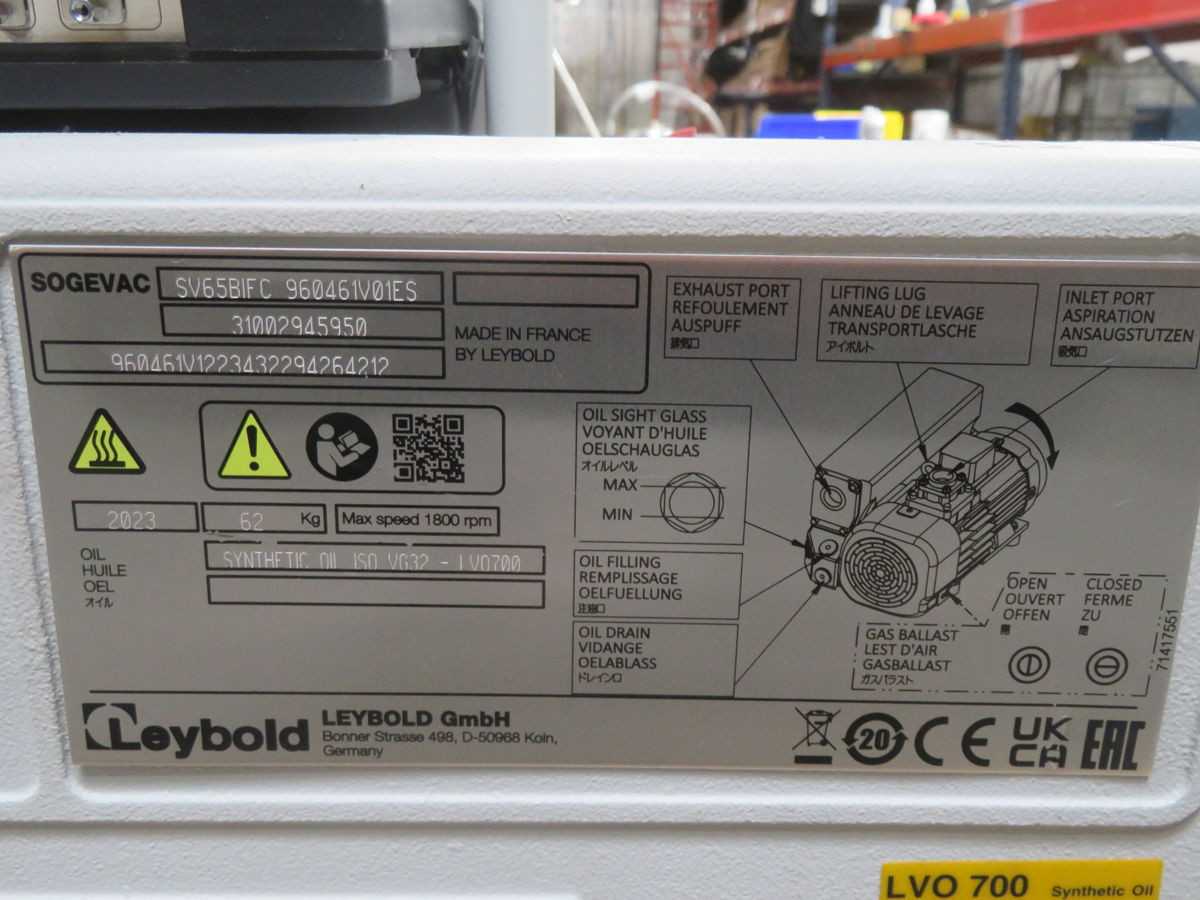

The Sogevac SV65BIFC rotary vane vacuum pump, model 960461V01ES, is designed for industrial vacuum applications. It provides a nominal pumping speed of 65 m³/h (at 50 Hz) and achieves an ultimate pressure of < 5 x 10⁻² mbar with the gas ballast closed. The pump is powered by a 1.5 kW motor and operates using synthetic oil. It features a DN 40 ISO-K inlet flange and a DN 25 ISO-K exhaust flange. The SV65BIFC variant is characterized by its inert fluid compatible construction, incorporating FKM (Viton) seals for improved chemical resistance. The unit has a dry weight of 62 kg.
