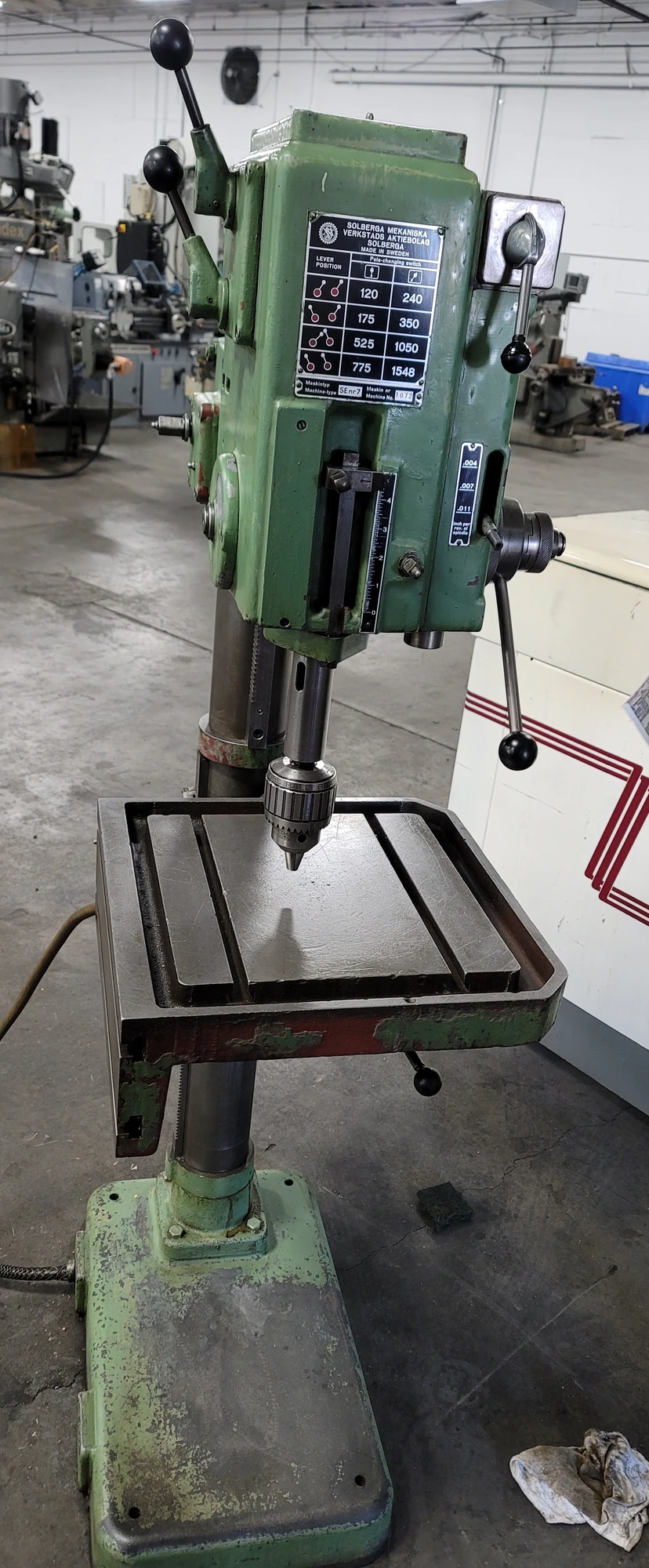

SOLBERGA 22" GEARED HEAD DRILL PRESS MODEL SE NR7

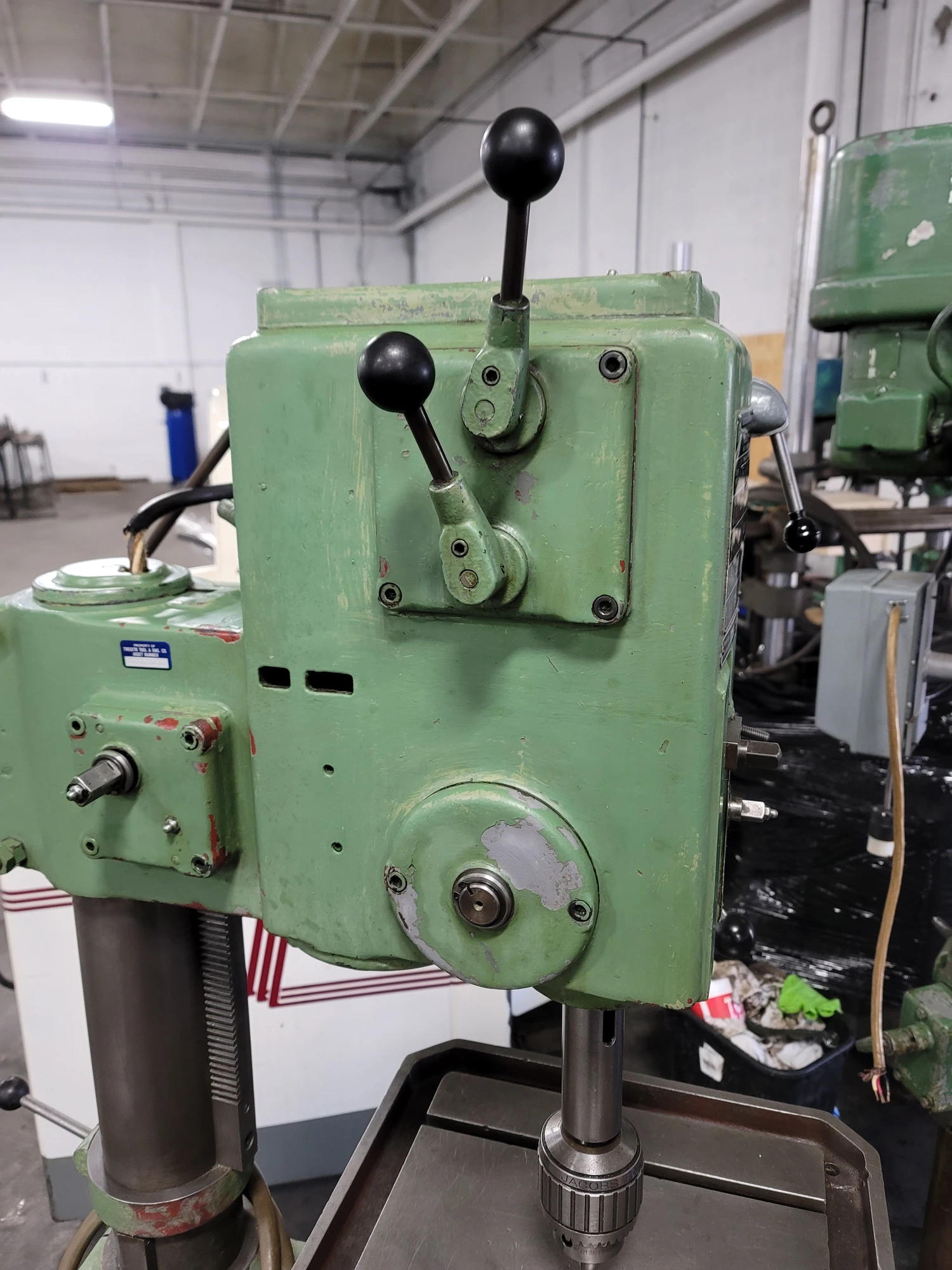

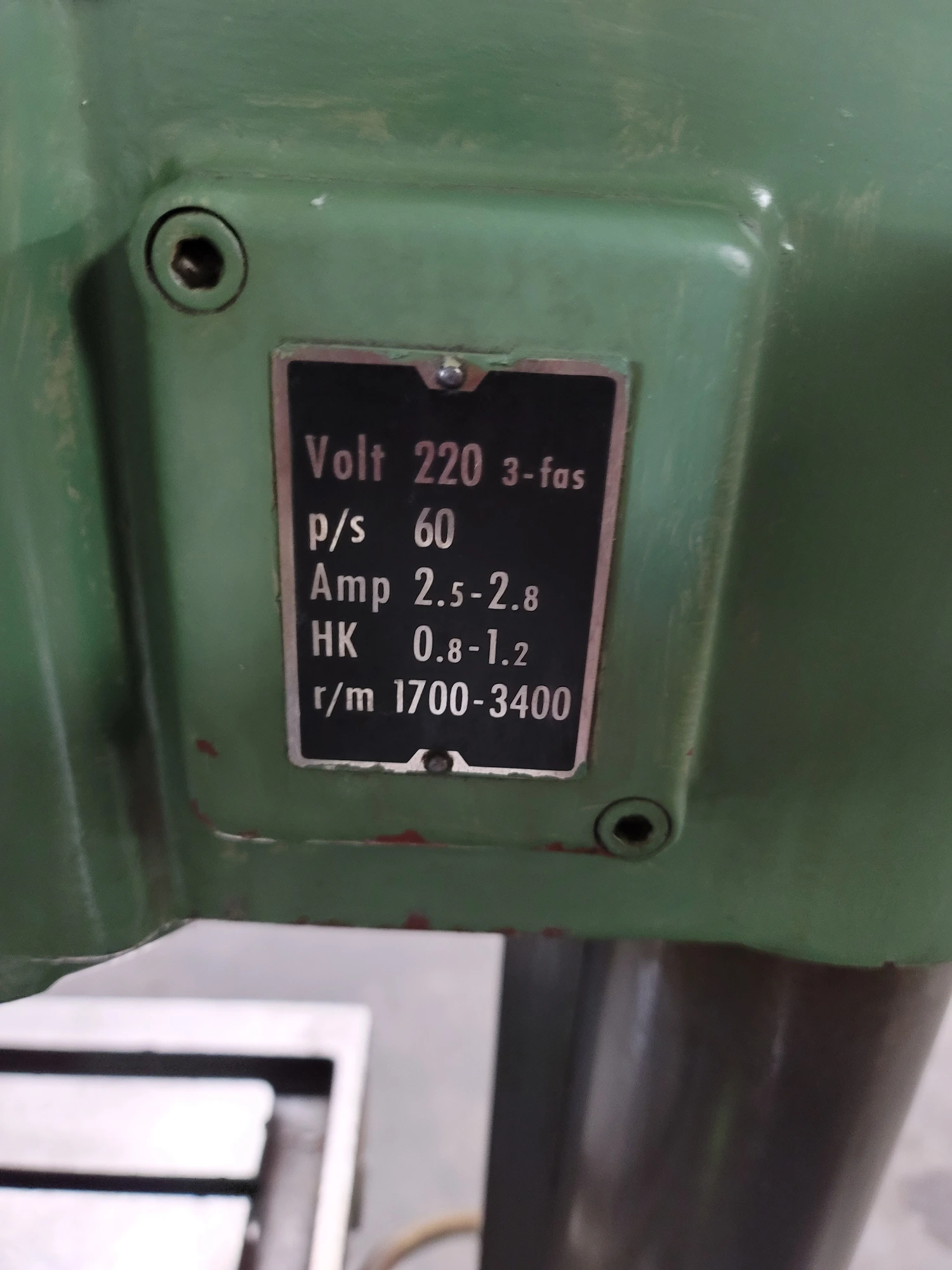

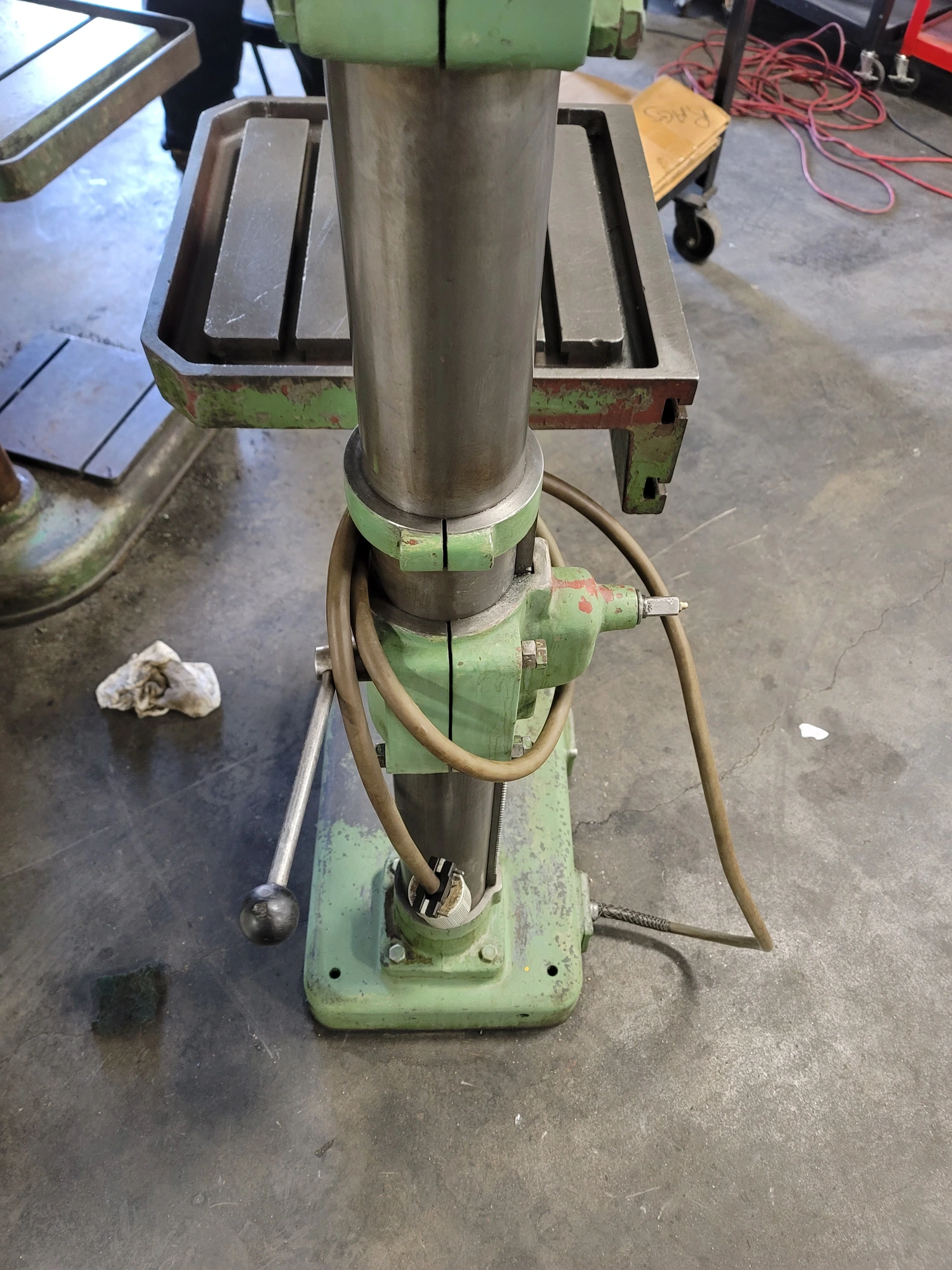

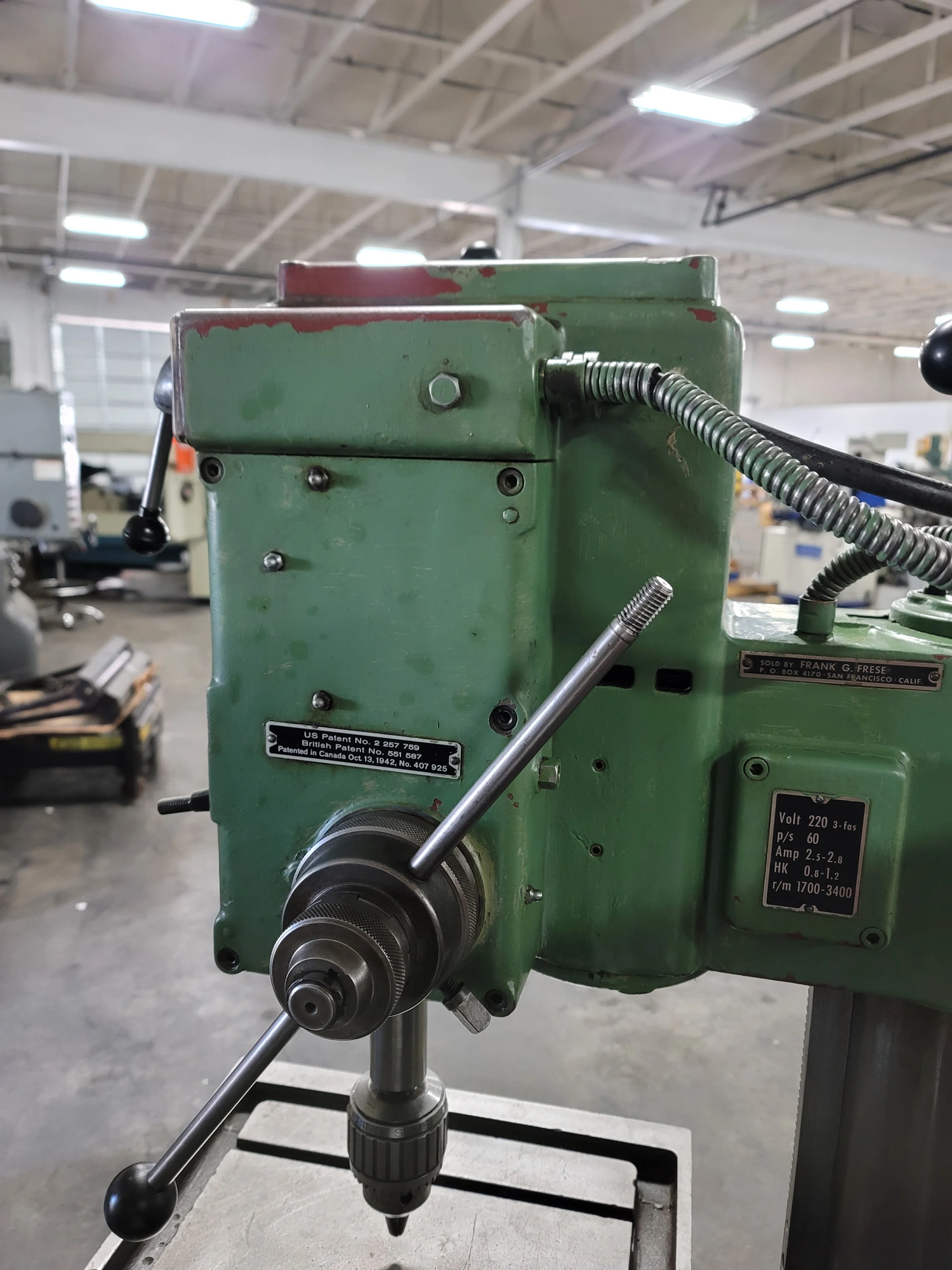

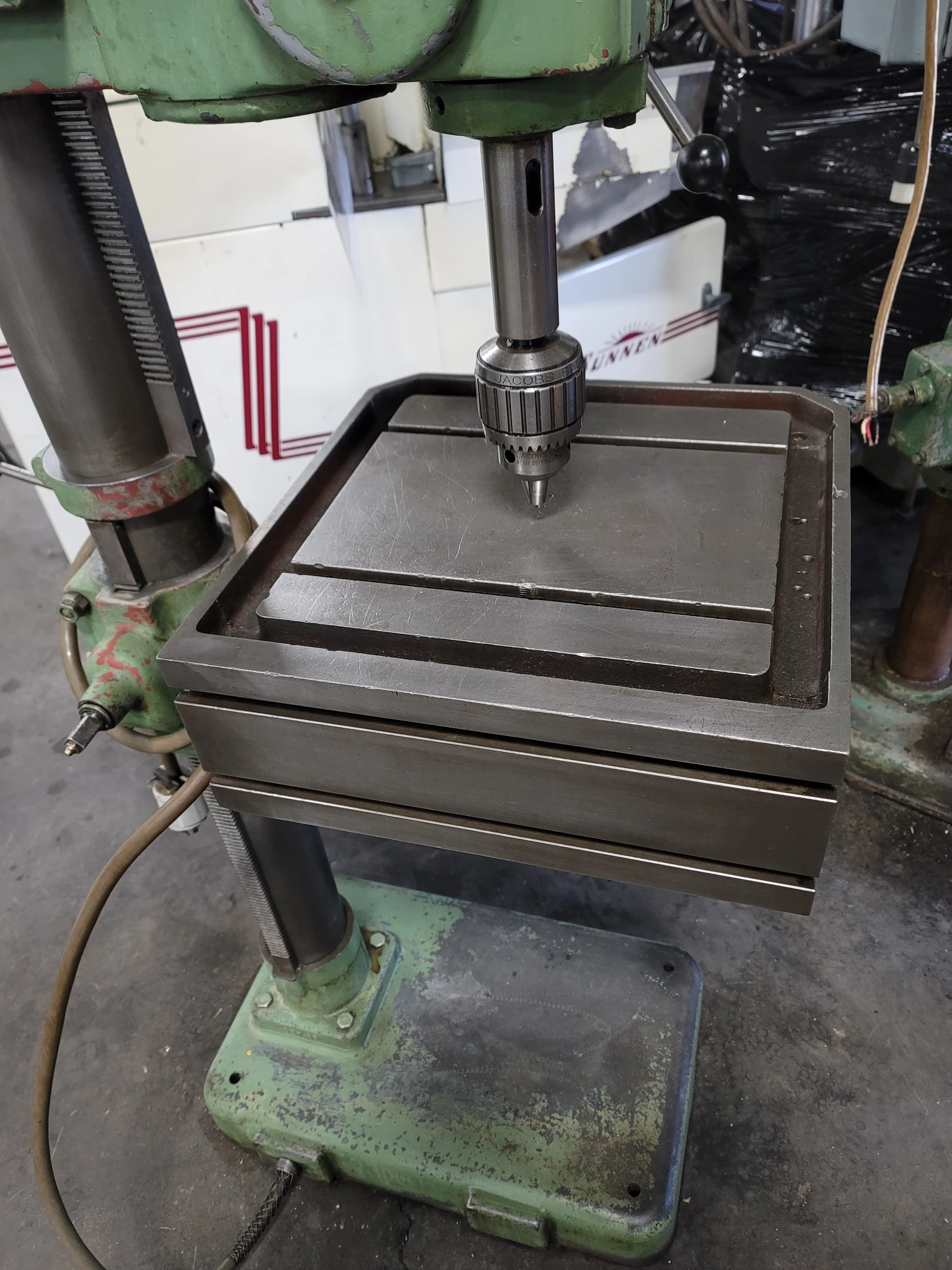

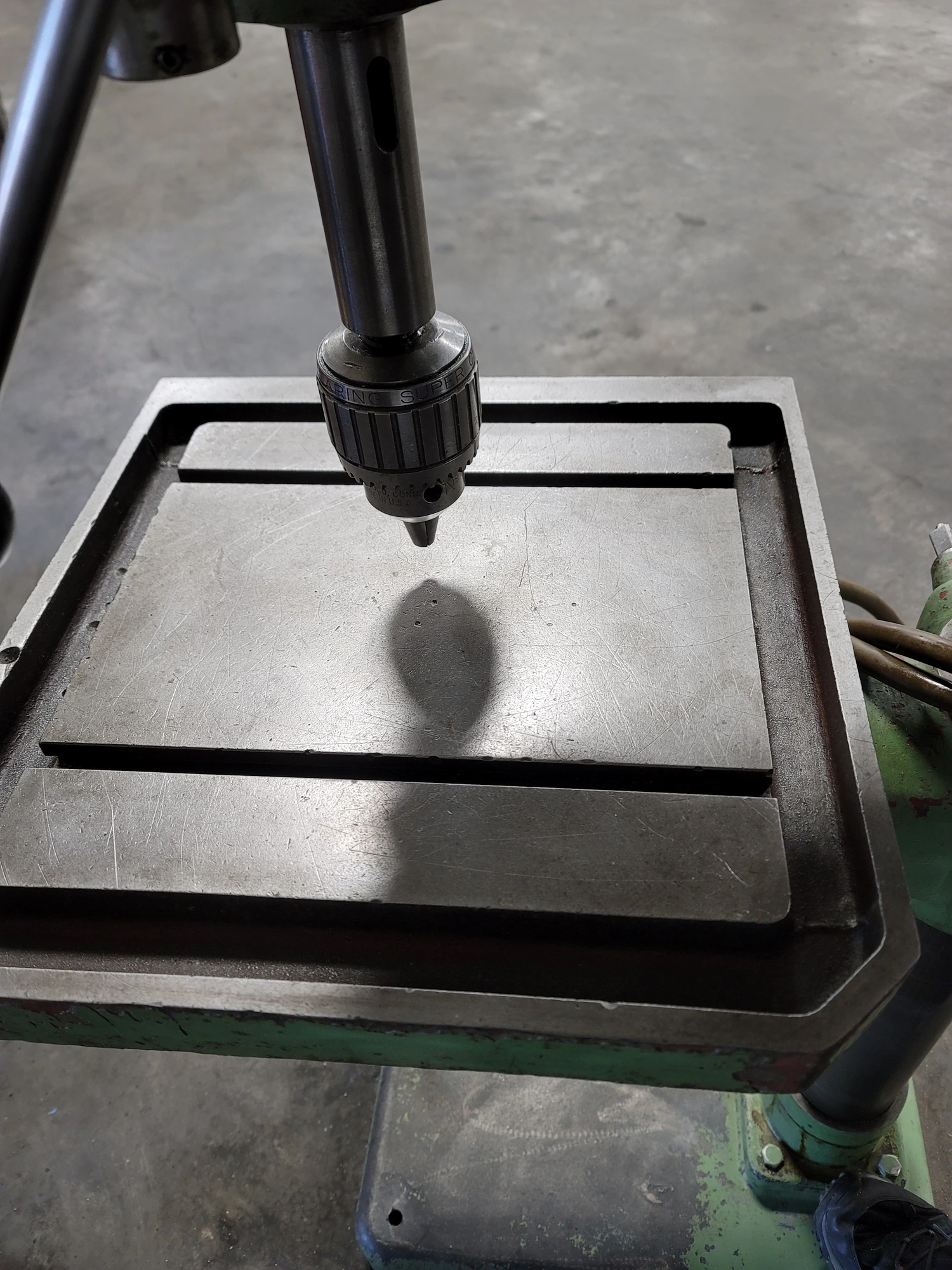

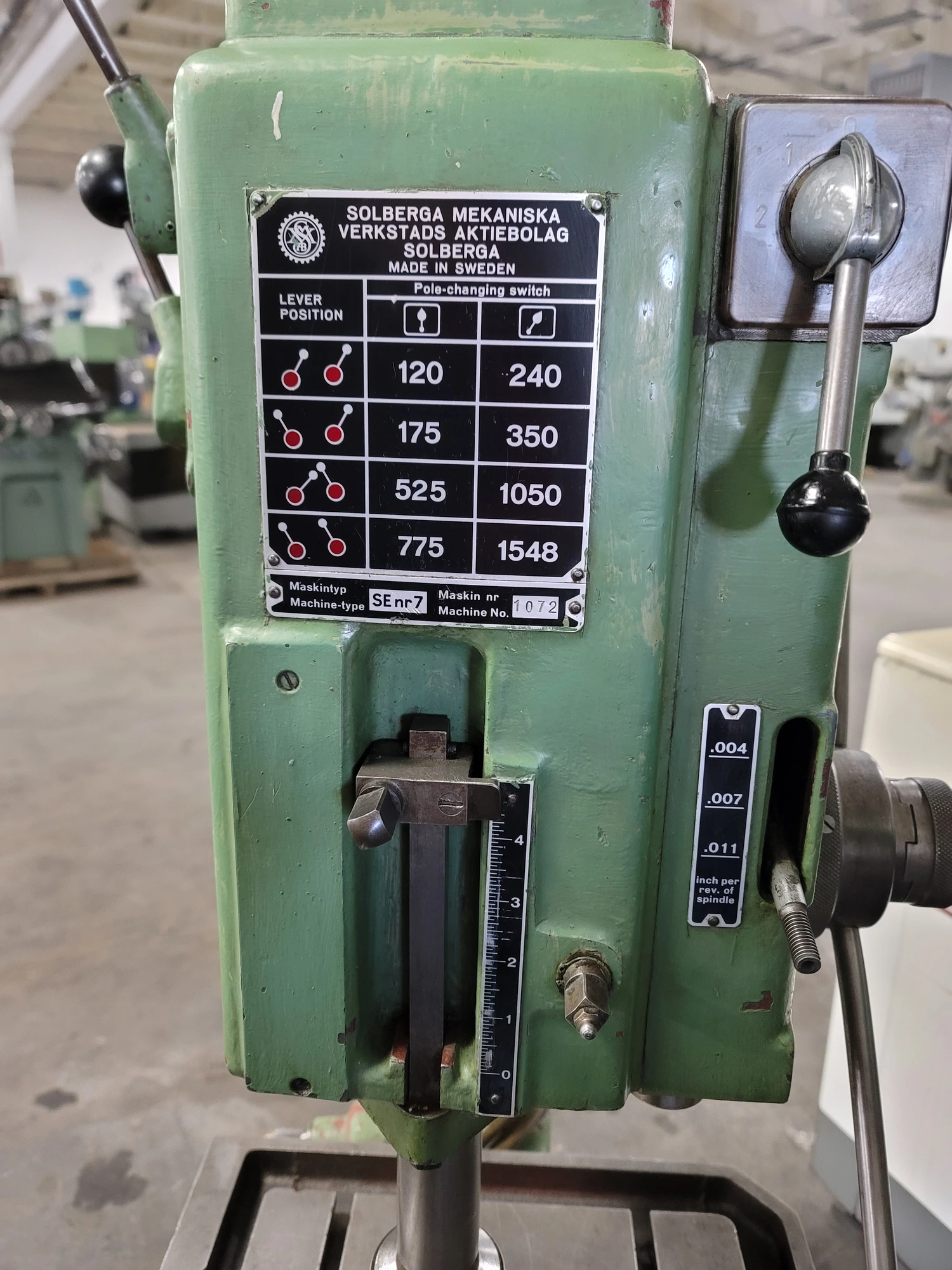

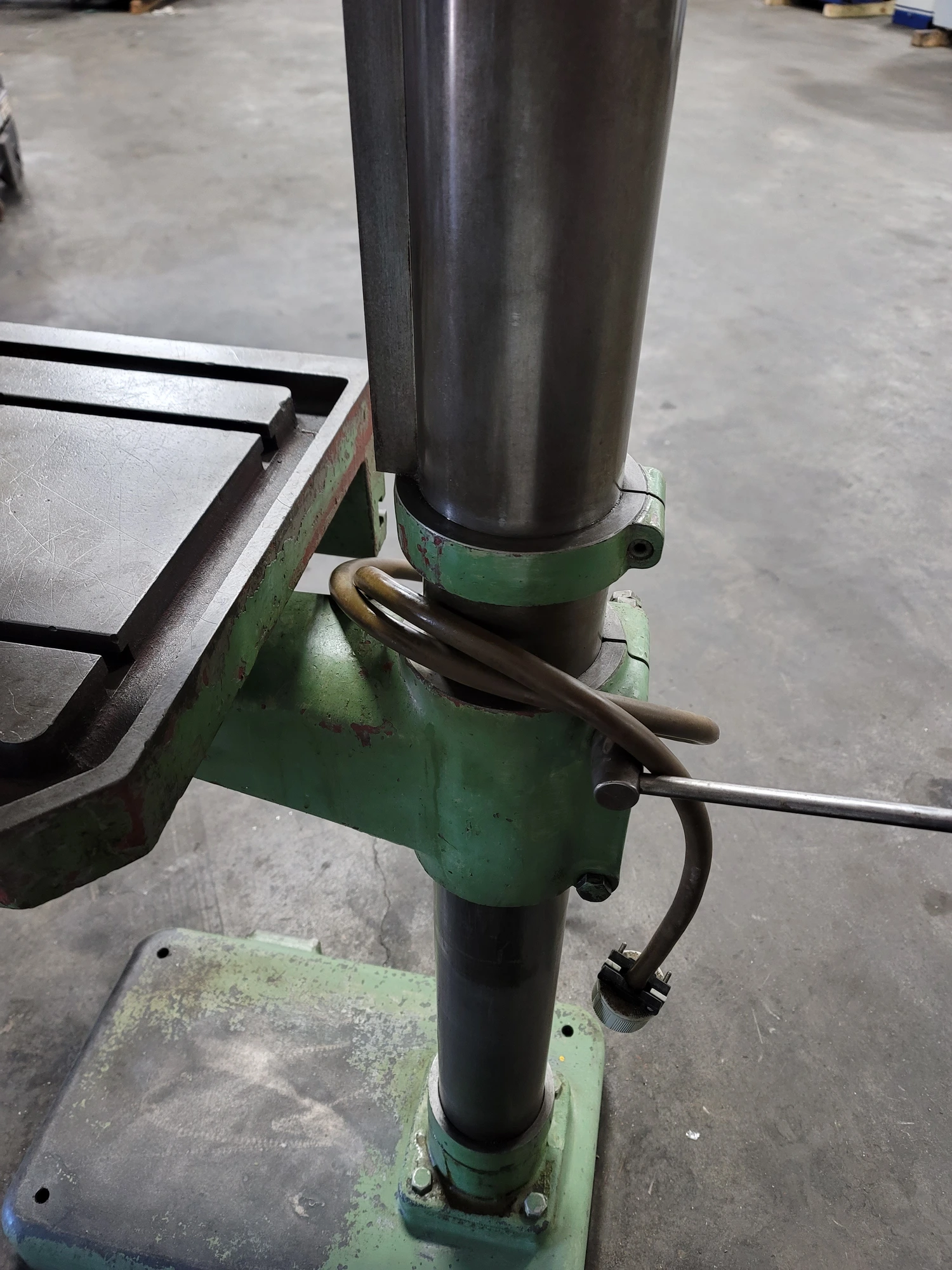

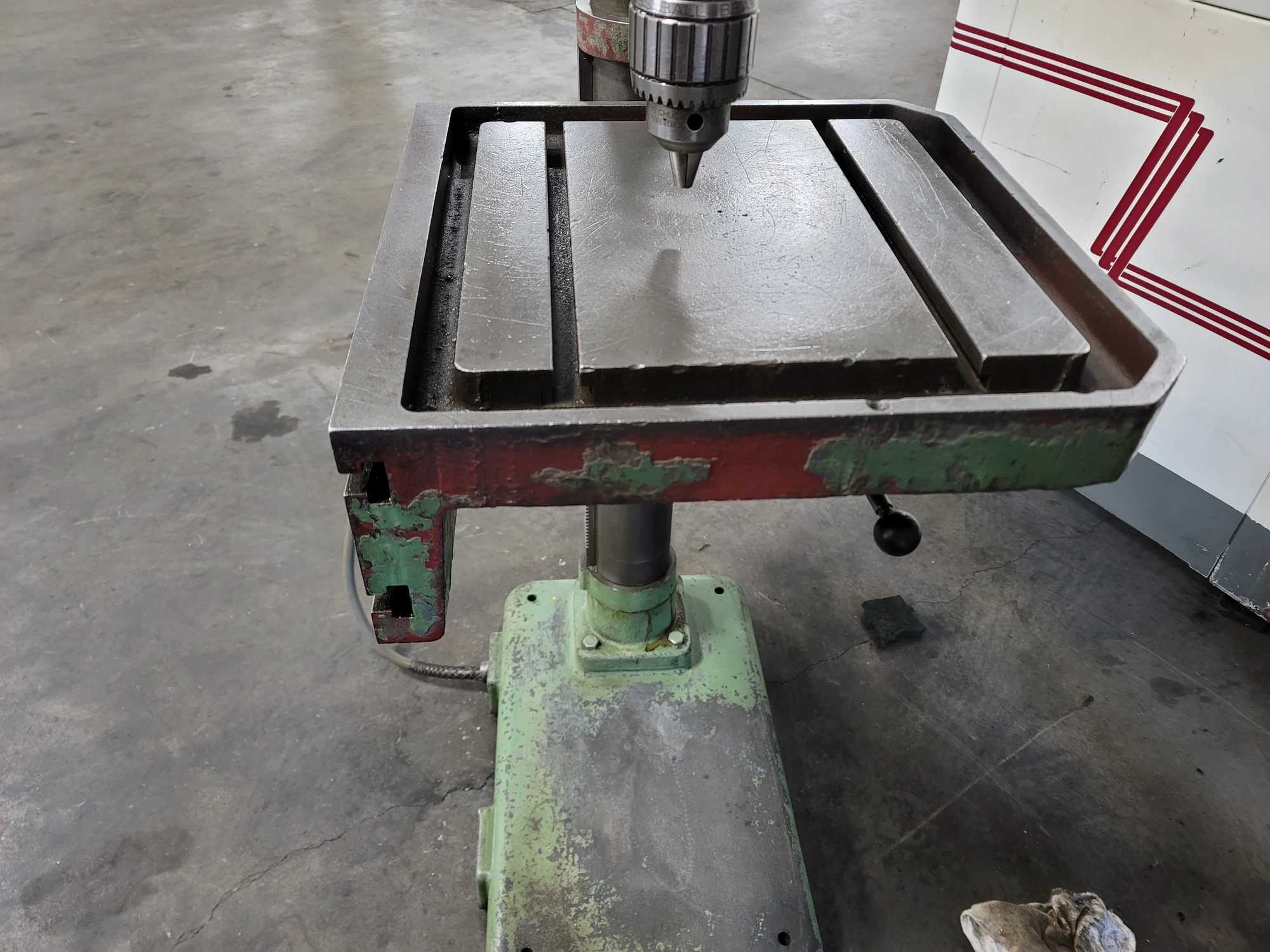

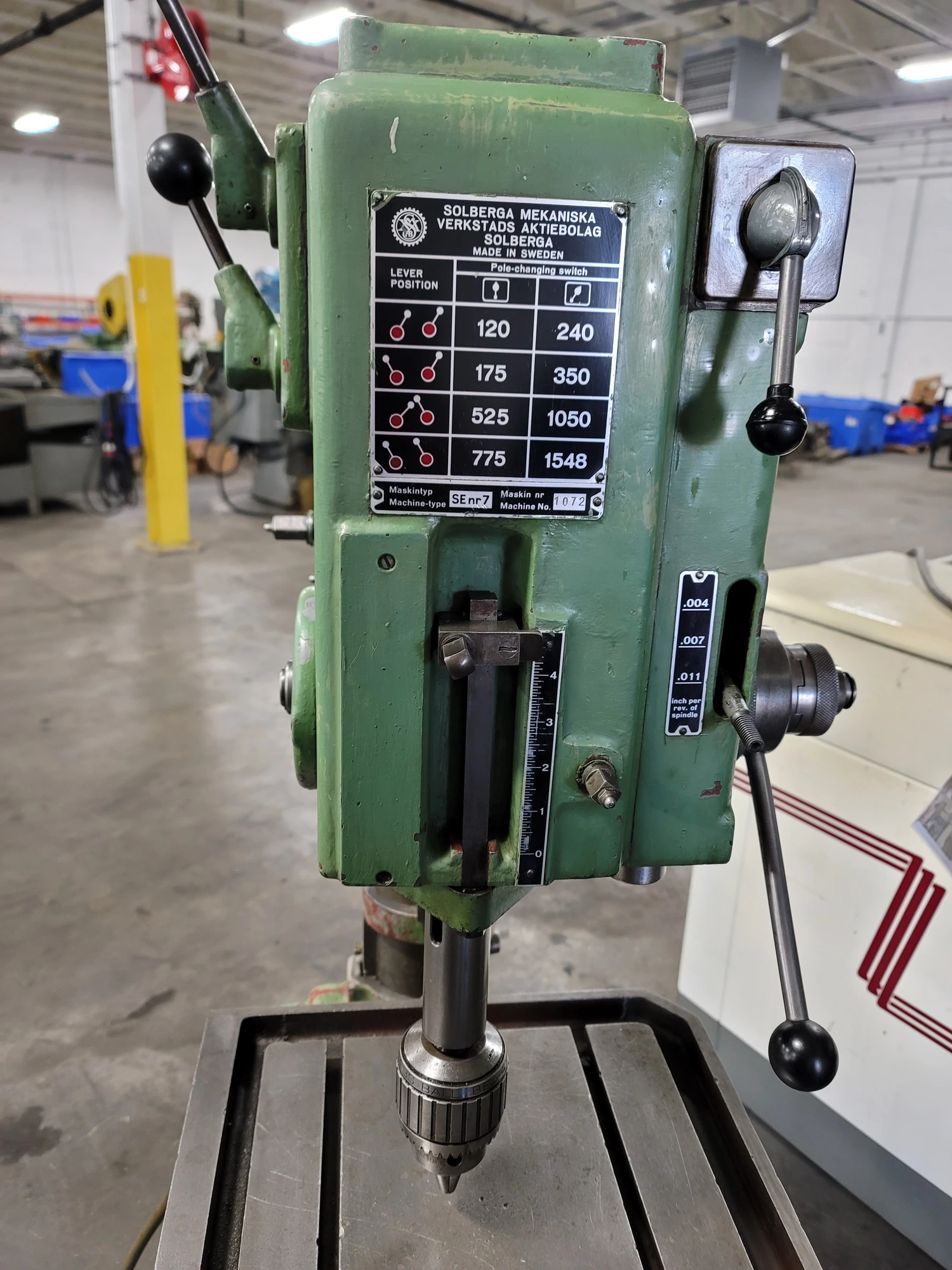

THE SOLBERGA 22" GEARED HEAD DRILL PRESS MODEL SE NR7 IS ENGINEERED FOR PRECISION AND EFFICIENCY IN SINGLE SPINDLE DRILLING APPLICATIONS. IT FEATURES A ROBUST GEARED HEAD DESIGN WITH A RACK AND PINION HEAD ADJUSTMENT SYSTEM, ALLOWING FOR PRECISE CONTROL AND EASE OF USE. THE DRILL PRESS OFFERS EIGHT SPINDLE SPEEDS RANGING FROM 120 TO 1548 RPM, POWERED BY A TWO-SPEED MOTOR WITH A SPINDLE MOTOR CAPACITY OF 1-1/2 HORSEPOWER. THE SPINDLE IS EQUIPPED WITH A #3 MORSE TAPER AND A JACOBS 18N DRILL CHUCK, ENSURING COMPATIBILITY WITH A VARIETY OF DRILL BITS. THE SPINDLE STROKE MEASURES 4-1/2", WITH A SPINDLE-TO-COLUMN DISTANCE OF 11-1/4". THE T-SLOTTED TABLE AREA IS 14" X 14", PROVIDING AMPLE SPACE FOR WORKPIECES, WITH A SPINDLE-TO-TABLE DISTANCE ADJUSTABLE FROM 4-1/2" TO 28". THE BASE WORK AREA IS ALSO T-SLOTTED, MEASURING 17" X 14". THE COLUMN DIAMETER IS 4", CONTRIBUTING TO THE MACHINE'S STABILITY AND DURABILITY. THE DRILL PRESS OPERATES ON A 220 VOLT, THREE-PHASE ELECTRICAL SYSTEM, WITH A MOTOR OUTPUT OF 3 / 1.8 HORSEPOWER AND A SPEED OF 1,700 / 3450 RPM, DRAWING 4.2 / 5 AMPS AT 60 HZ. THE OVERALL DIMENSIONS OF THE MACHINE ARE 24" X 29" X 81" TALL, MAKING IT SUITABLE FOR PROFESSIONAL WORKSHOPS REQUIRING RELIABLE AND PRECISE DRILLING EQUIPMENT.
