SOUTHBEND 125FW-AC MECHANICAL PRESS 125T, 4-6IN STROKE, 15HP, 40SPM

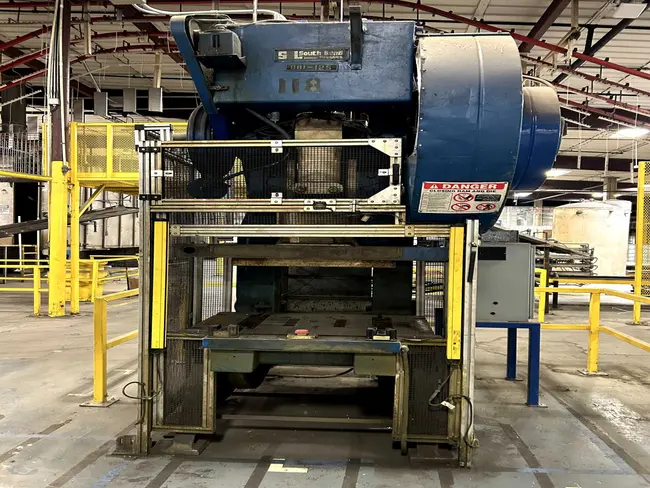

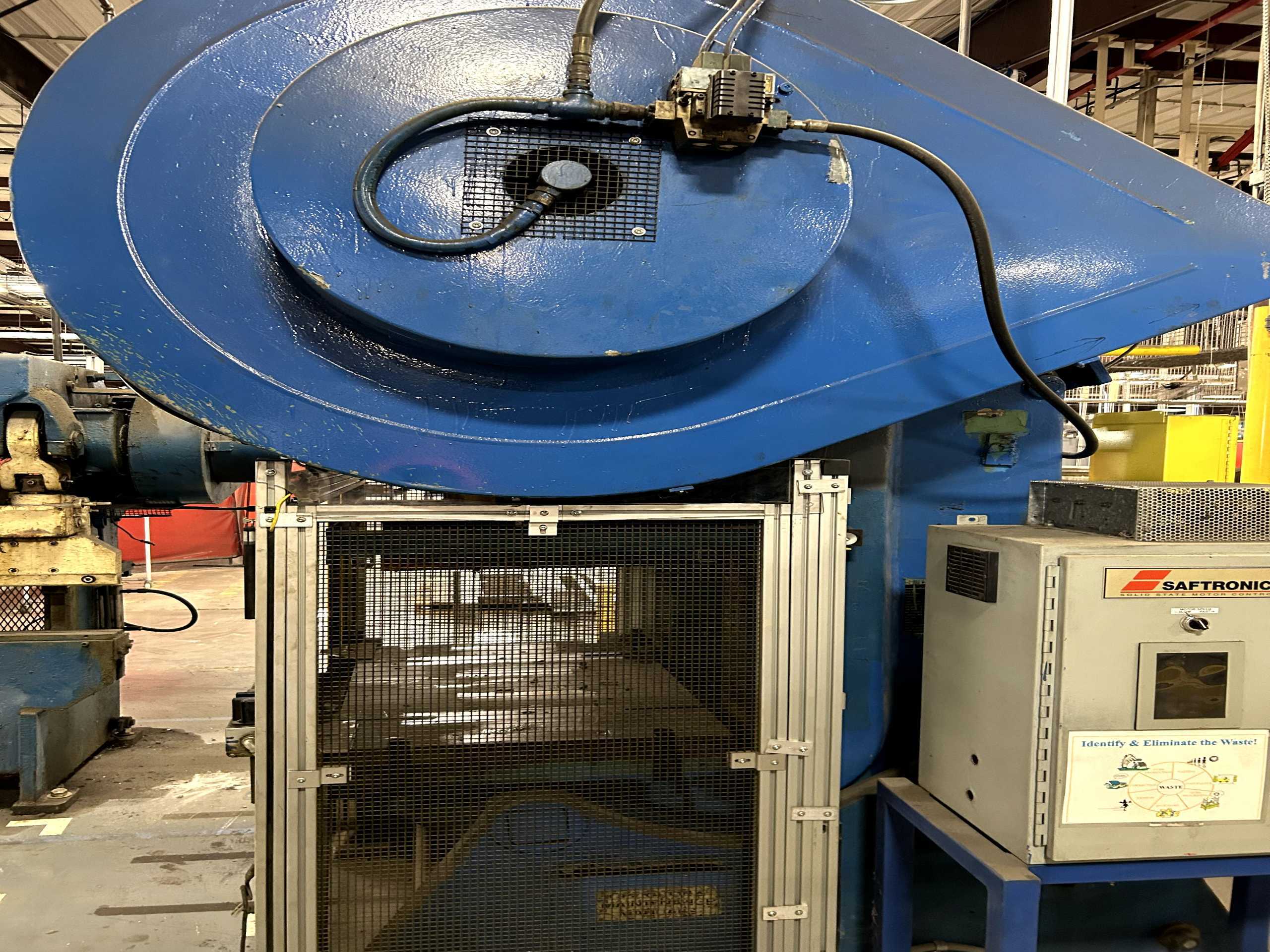

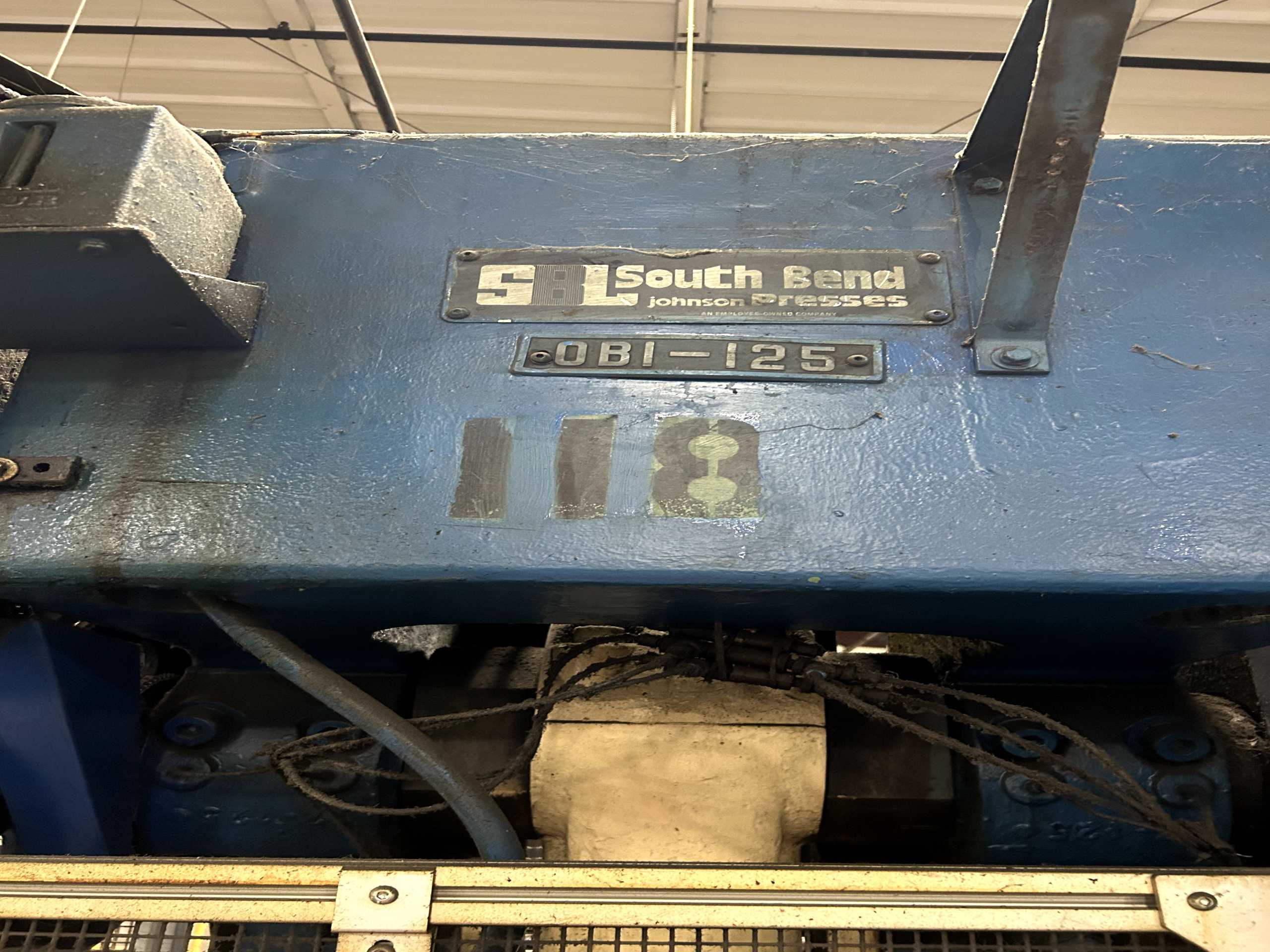

THE SOUTHBEND 125FW-AC IS A 125-TON CAPACITY MECHANICAL OBI PRESS DESIGNED FOR HEAVY-DUTY METALWORKING OPERATIONS. THIS FLYWHEEL-DRIVEN MACHINE FEATURES A 4-INCH OR 6-INCH STROKE LENGTH DEPENDING ON THE SPECIFIC CONFIGURATION, WITH A 4-INCH MANUAL RAM ADJUSTMENT. THE PRESS OFFERS A SIGNIFICANT BED AREA OF 42 INCHES BY 27 INCHES (RL X FB) AND A RAM AREA OF APPROXIMATELY 28 INCHES BY 21 INCHES, OFTEN FEATURING A FLANGED DESIGN. IT IS TYPICALLY EQUIPPED WITH AN AIR CLUTCH AND BRAKE SYSTEM FOR PRECISE OPERATION AND ENHANCED SAFETY. THE MACHINE IS POWERED BY A 15 HP AC MOTOR, OPERATING AT APPROXIMATELY 1150-1180 RPM, COMPATIBLE WITH 208-230/460V, 60HZ, 3-PHASE ELECTRICAL SYSTEMS. IT DELIVERS A CONSISTENT OPERATING SPEED OF 40 STROKES PER MINUTE. TECHNICAL SPECIFICATIONS INCLUDE A SHUT HEIGHT TO THE BED OF APPROXIMATELY 15.5 TO 17.5 INCHES SDAU. THE CONSTRUCTION UTILIZES A CAST IRON FRAME FOR RIGIDITY AND OFTEN INCLUDES AIR COUNTERBALANCES ON THE RAM AND AN OIL LUBRICATION SYSTEM. THE FLOOR-STANDING UNIT HAS APPROXIMATE DIMENSIONS OF 140 INCHES IN HEIGHT, WITH A FOOTPRINT OF ROUGHLY 85 INCHES BY 110 INCHES, AND A TOTAL WEIGHT RANGING BETWEEN 22,000 AND 25,000 LBS. ADDITIONAL FEATURES COMMONLY FOUND ON THIS MODEL INCLUDE REMOVABLE TIE RODS AND DUAL PALM BUTTON CONTROLS.
