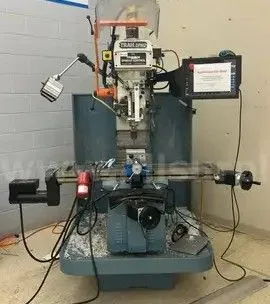

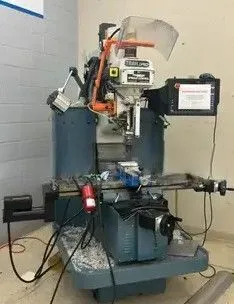

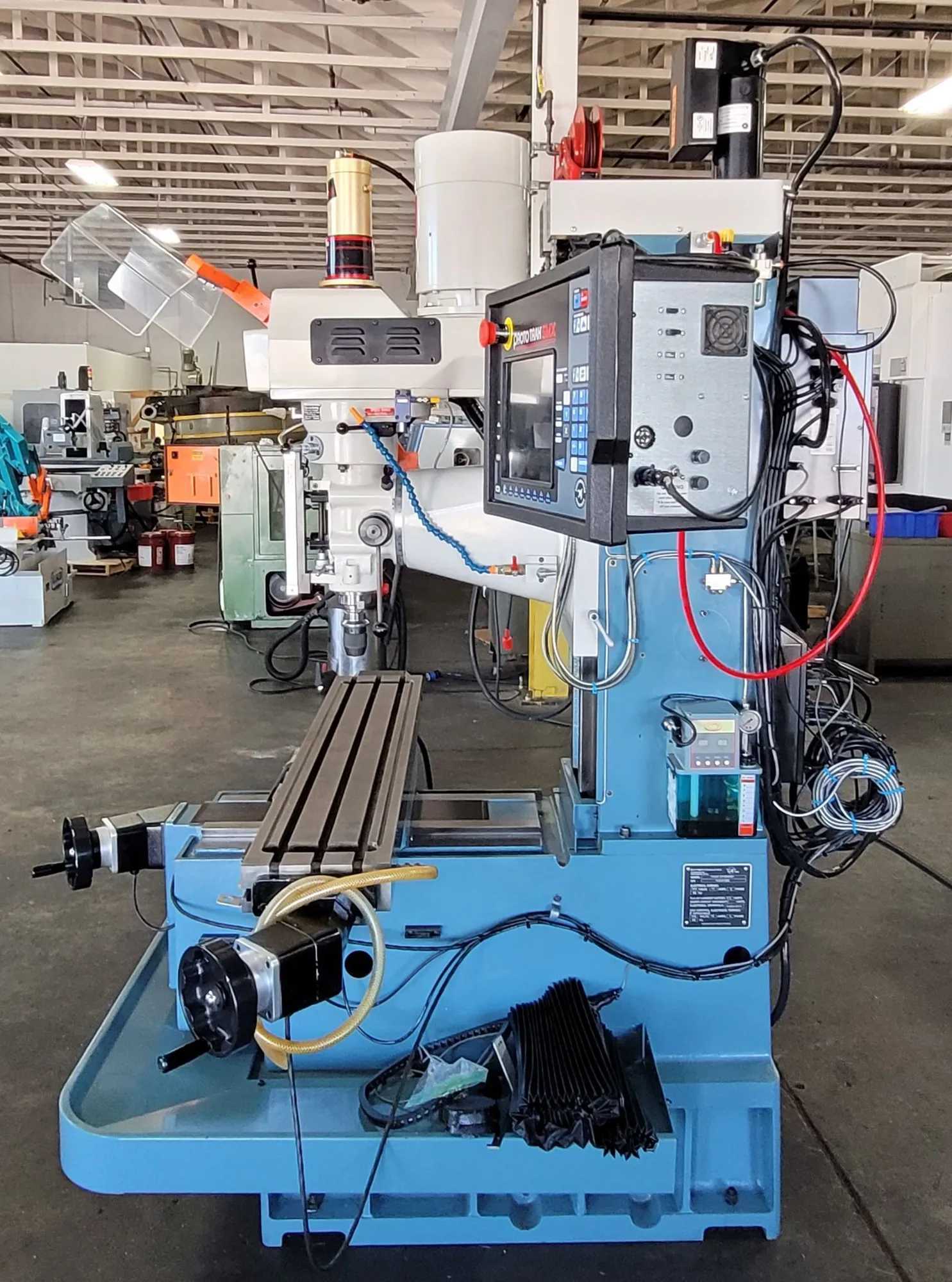

Southwestern Industries Trak DPM2 3 Axis CNC Bed Mill With PDB

The TRAK DPM SX2P is a 3-axis CNC bed mill operated via the ProtoTRAK SMX 3-axis CNC control system. It features a 49" x 9" table with a 1,320 lb load capacity, three T-slots measuring 0.63" wide on a 2.5" pitch, and a table height of 37" from the bed. Motion travels include 31" on the X-axis (32" maximum), 16" on the Y-axis, 27" on the Z-axis, and 5" of quill travel, with a rapid traverse rate of 150 IPM across all axes. The spindle features an R-8 taper, a 3 3/8" quill diameter, an 18" distance from the spindle center to the column face, and is powered by a 3 HP motor. It offers a programmable electronic variable spindle speed range from 40 to 5,000 RPM across low and high ranges. Electrical specifications require 110V, 1-phase, 10A for the control system, and 220V, 3-phase, 11A at 60 Hz for machine power. Overall machine dimensions are approximately 72" x 64" x 98" with a weight ranging between 3,200 and 4,000 lbs.
