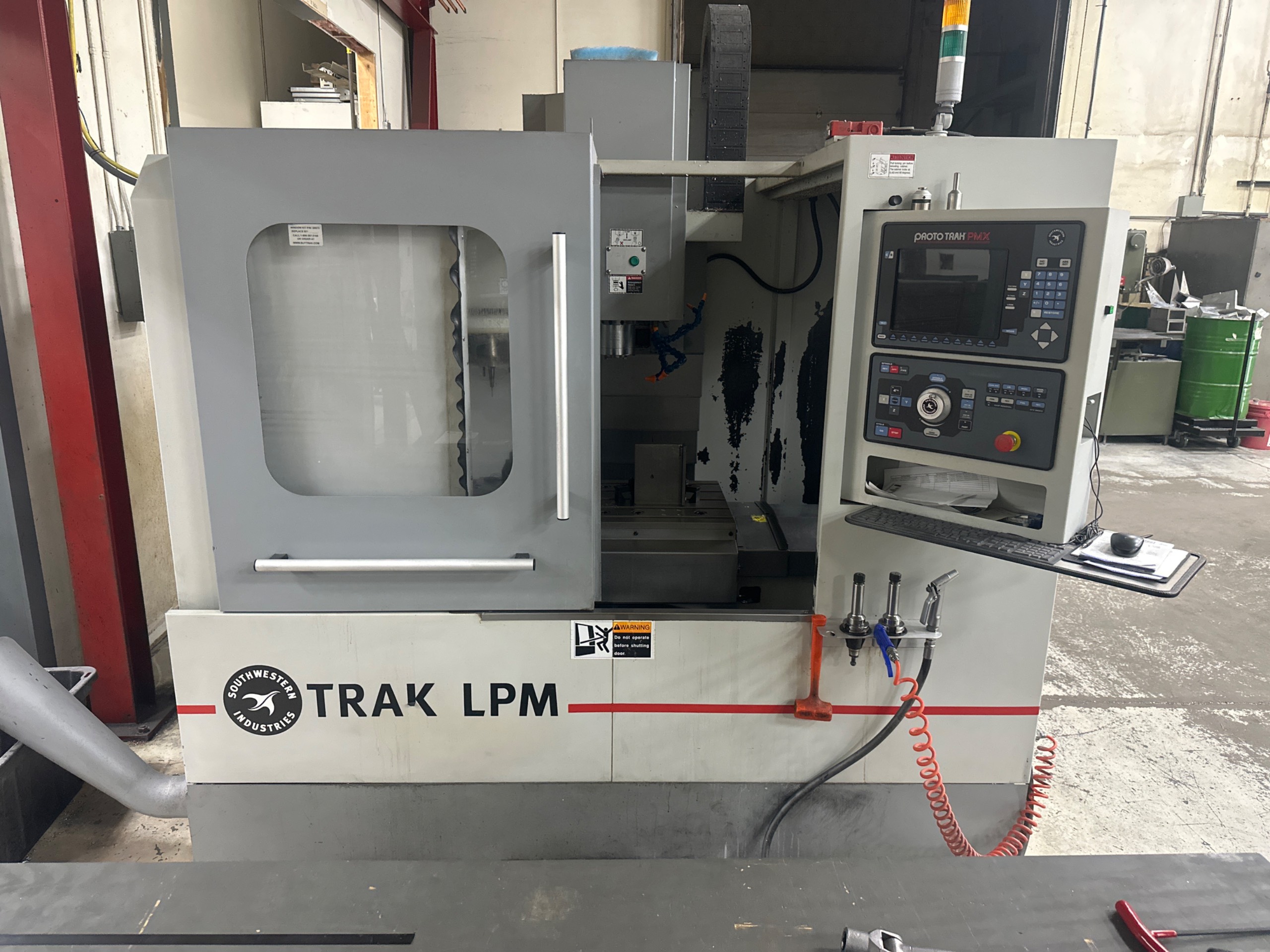

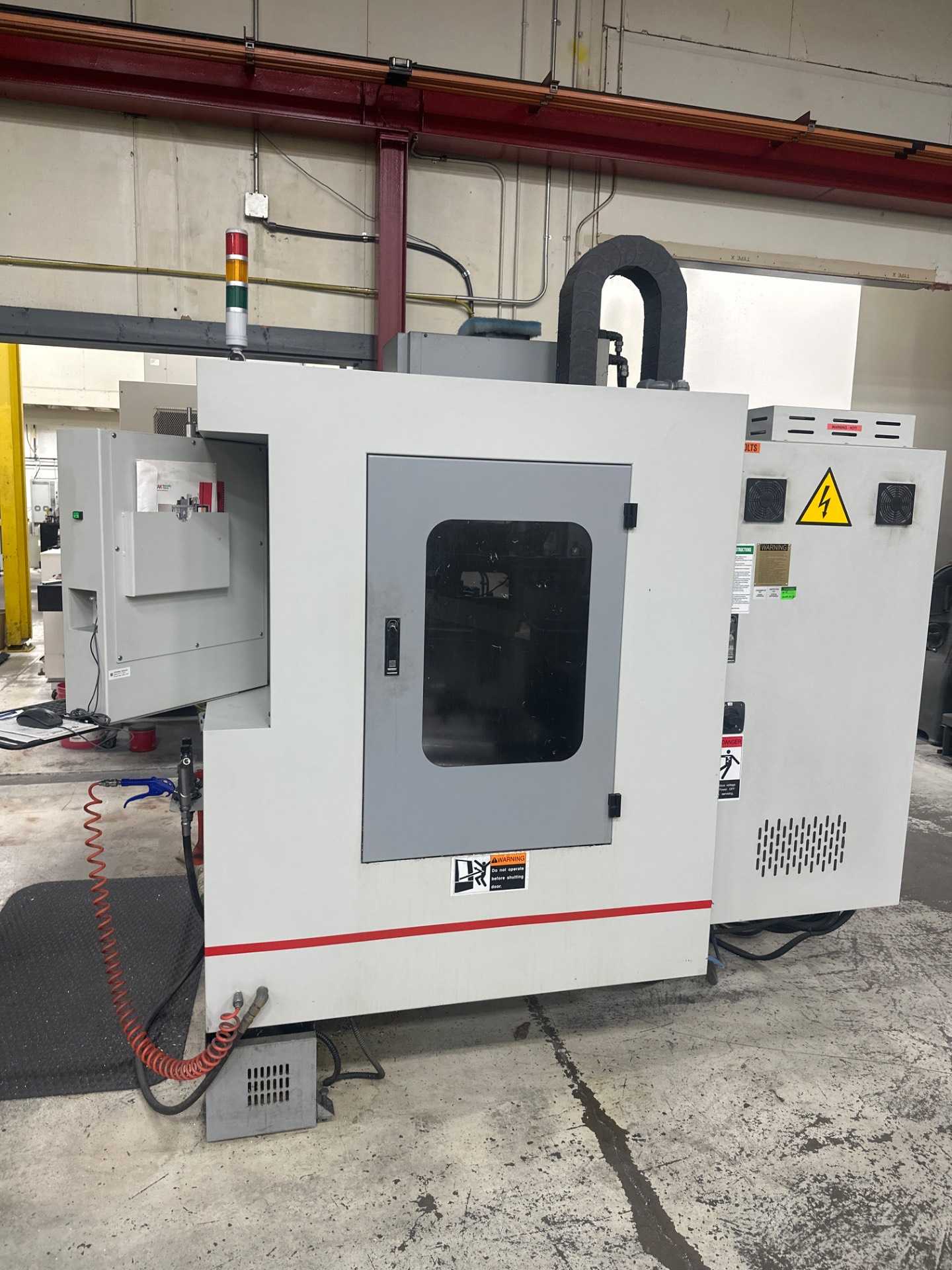

SOUTHWESTERN INDUSTRIES TRAK LPM VMC, 31X18.5X21IN, 8K RPM, CAT40, 16 ATC, PROTOTRAK PMX CNC

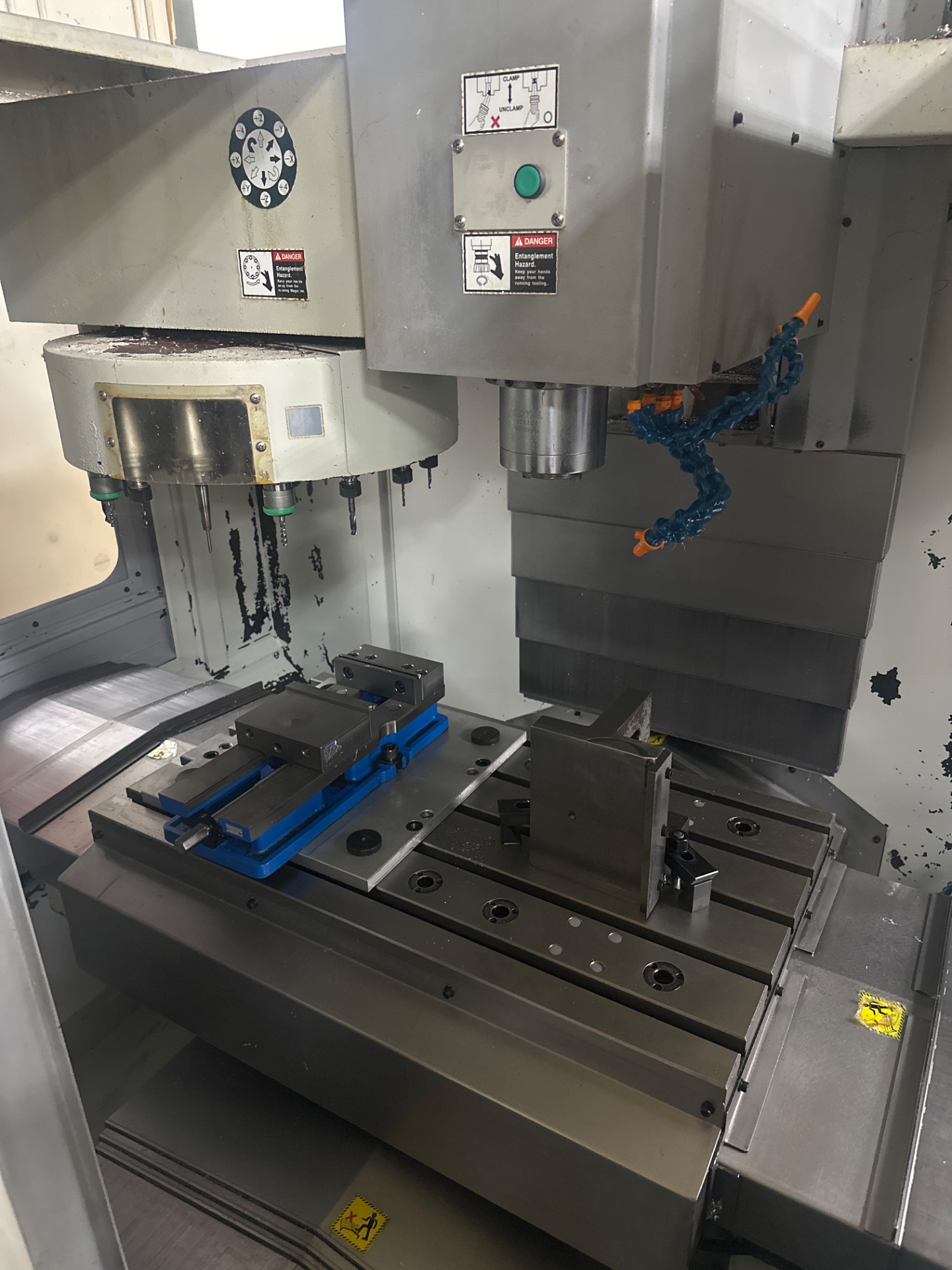

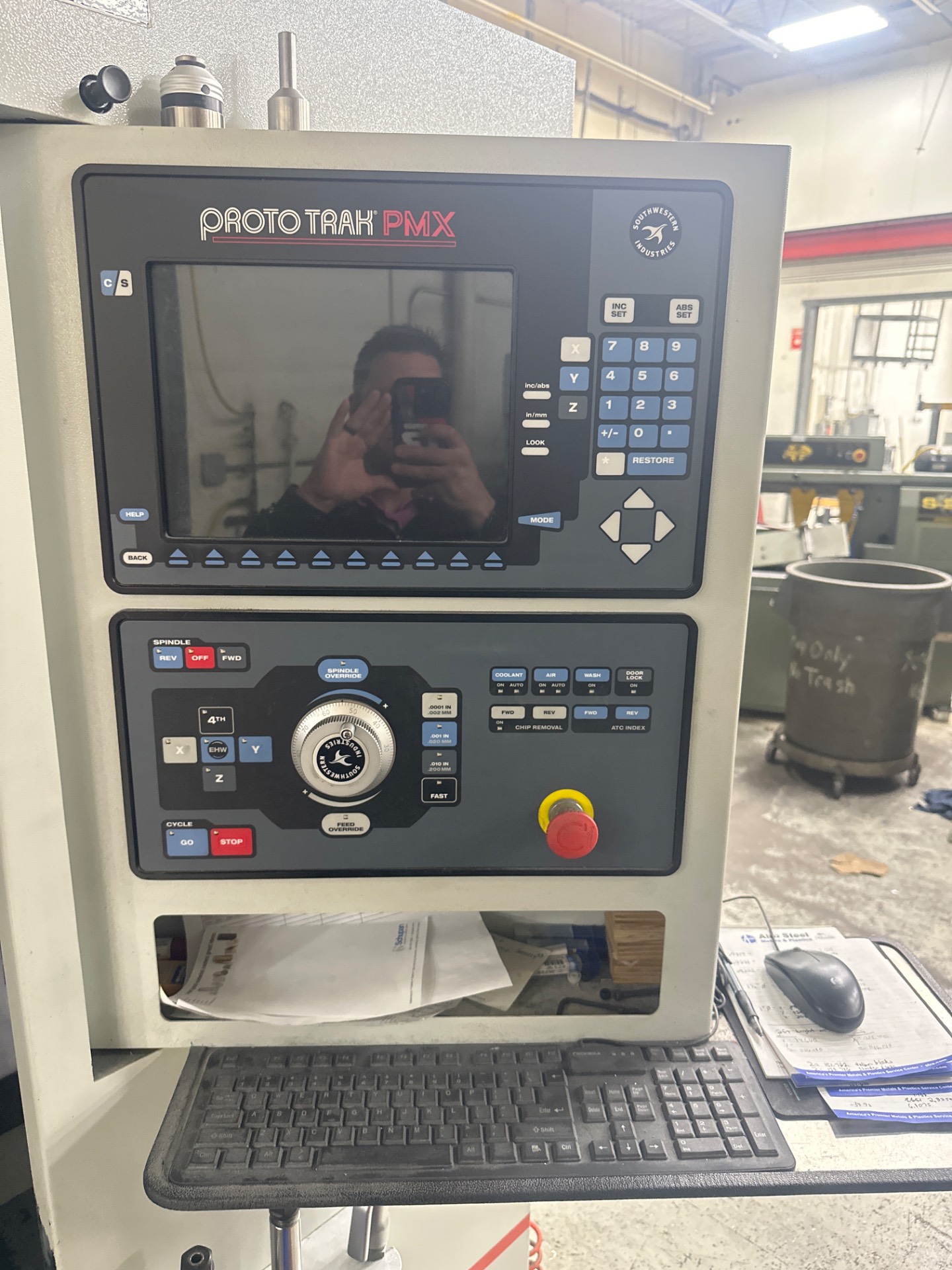

THE TRAK LPM IS A CNC VERTICAL MACHINING CENTER MANUFACTURED BY SOUTHWESTERN INDUSTRIES, SPECIFICALLY DESIGNED FOR HIGH-EFFICIENCY SMALL-LOT PRODUCTION. IT FEATURES A TABLE WORKING SURFACE OF 35.375 INCHES BY 19.625 INCHES WITH A MAXIMUM WEIGHT CAPACITY OF 1,000 LBS. THE MACHINE PROVIDES TRAVELS OF 31 INCHES IN THE X-AXIS, 18.5 INCHES IN THE Y-AXIS, AND 21 INCHES IN THE Z-AXIS. ITS SPINDLE IS POWERED BY A 15 HP PEAK MOTOR, SUPPORTING SPEEDS UP TO 8,000 RPM AND UTILIZING A CAT 40 TAPER. THE TOOL MANAGEMENT SYSTEM INCLUDES A 16-STATION CAROUSEL-STYLE AUTOMATIC TOOL CHANGER WITH A MAXIMUM TOOL WEIGHT OF 15 LBS AND A MAXIMUM TOOL DIAMETER OF 3.14 INCHES. RAPID TRAVERSE RATES REACH 800 IPM FOR THE X AND Y AXES AND 700 IPM FOR THE Z-AXIS. THE MACHINE IS EQUIPPED WITH THE PROTOTRAK PMX CNC CONTROL, WHICH FEATURES A 12.1-INCH COLOR ACTIVE-MATRIX SCREEN AND SUPPORT FOR BOTH CONVERSATIONAL PROGRAMMING AND G-CODE. STANDARD TECHNICAL FEATURES INCLUDE A CHIP AUGER, RIGID TAPPING, AIR BLAST, INTERNAL WASH-DOWN NOZZLES, AND AN AUTOMATIC LUBRICATION SYSTEM. THE TABLE IS DESIGNED WITH FIVE T-SLOTS AND INTEGRATED JERGENS BALL LOCK LINERS FOR RAPID FIXTURE POSITIONING. PRECISION IS MAINTAINED THROUGH 40MM DIAMETER GROUND BALLSCREWS, LINEAR GUIDES, AND A HEAVY-RIBBED CASTING CONSTRUCTION. THE OVERALL PHYSICAL FOOTPRINT IS APPROXIMATELY 14 FEET BY 7.5 FEET WITH A HEIGHT OF 9 FEET, AND THE MACHINE HAS AN APPROXIMATE SHIPPING WEIGHT OF 8,000 TO 8,500 LBS.
