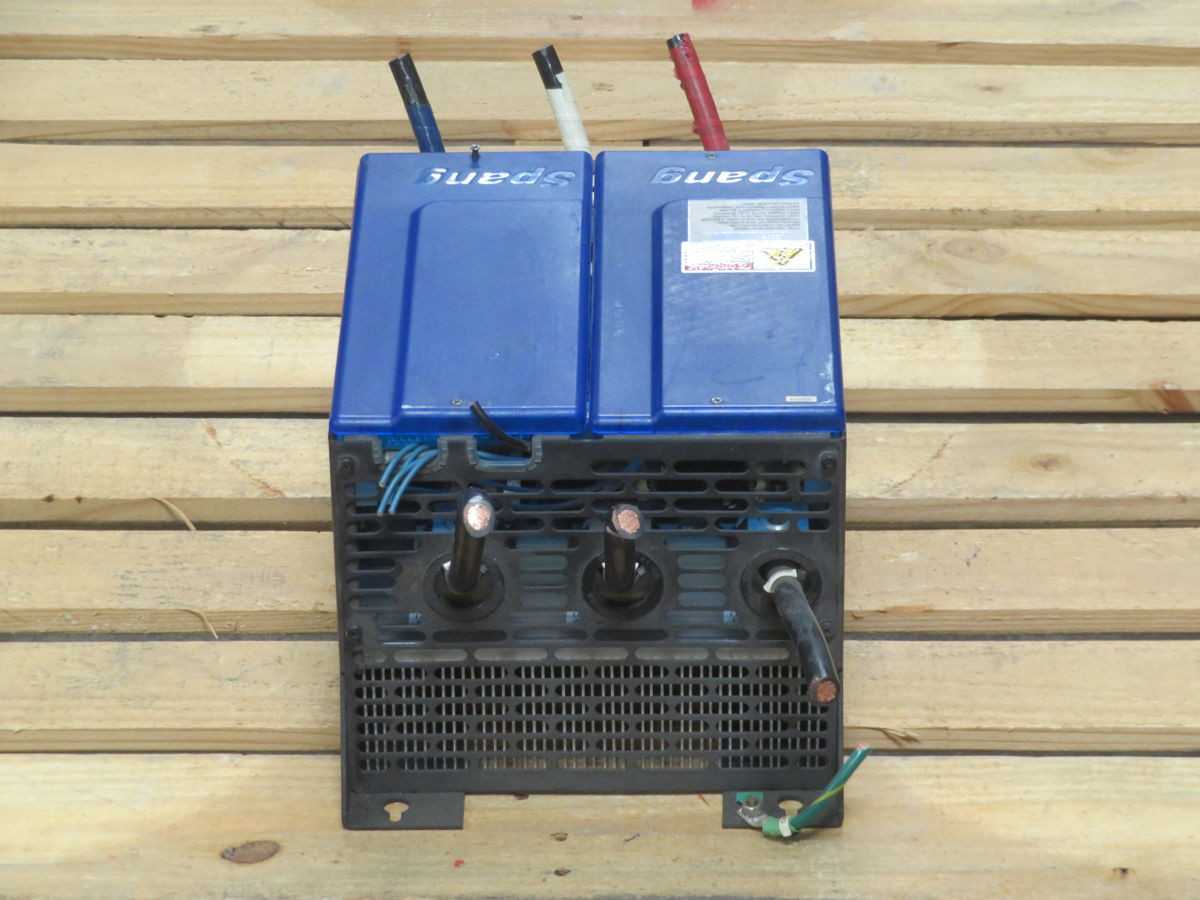

SPANG 1053-0200-000-0-1-00RPK D-SCR PWR CTRL, 200A MAX, 115VAC 1PH 50/60HZ CTRL PWR, 3PH SYSTEM

THE SPANG MODEL 1053-0200-000-0-1-00RPK IS A DIGITAL SCR POWER CONTROLLER FOR THREE-PHASE SYSTEMS. IT FEATURES A 6-SCR, 3-LEG FUSED POWER ARCHITECTURE, RATED FOR A MAXIMUM CURRENT OF 200 AMPERES. THE CONTROL POWER INPUT SPECIFICATION IS 115VAC, SINGLE-PHASE, 50/60HZ. THIS UNIT IS SUPPLIED WITHOUT AN INTEGRATED DISPLAY AND LACKS AUXILIARY I/O FUNCTIONALITY. ALTHOUGH IT INCLUDES A SINGLE NETWORK CARD, THE CONTROLLER OFFERS NO EXTERNAL NETWORK COMMUNICATION CAPABILITIES, OPERATING IN A STANDARD CONFIGURATION.
